1-41 — FUEL PIPING; CHASSIS (#13526) — 241 parça

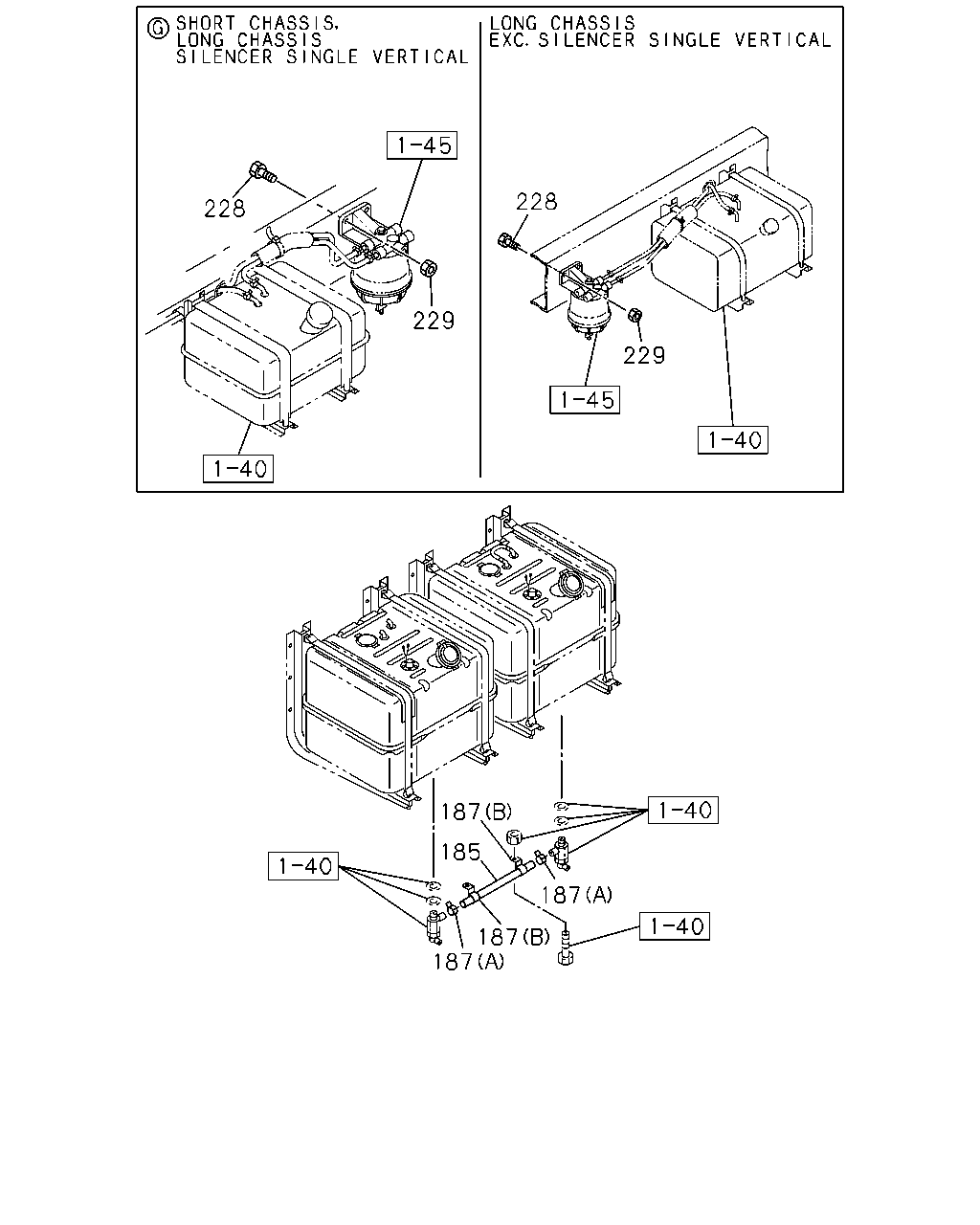

229 229 228 228 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	0105-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=17.1	8-94122-679-0	02	1	0105-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	0105-	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	0105-0512	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28051-040-0	02	1	0601-	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●

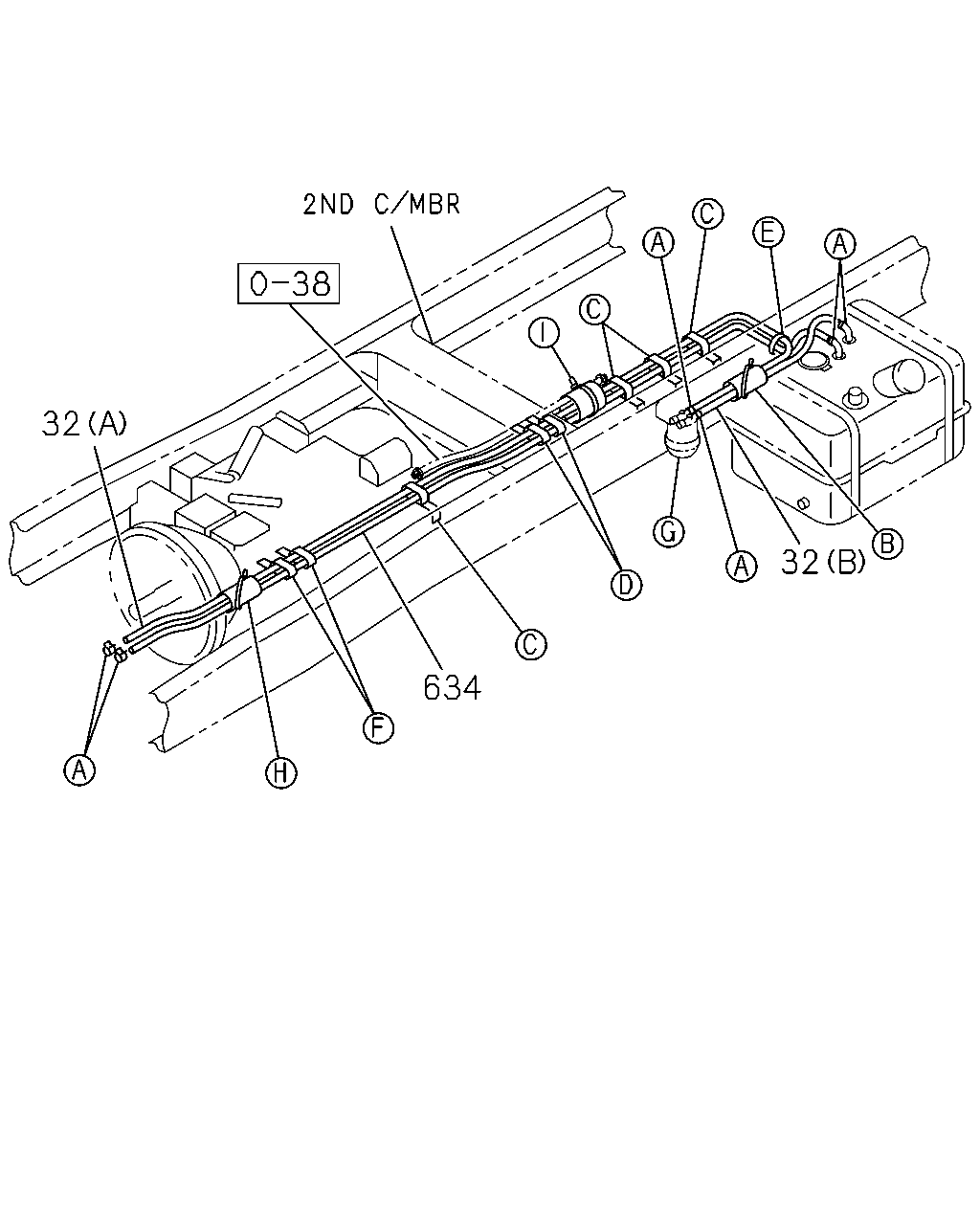

634 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK MUFFLER TWIN VERTICAL<NBS> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0105-		●
32	PIPE; DELIVERY,FUEL TANK MUFFLER TWIN VERTICAL<NBS> (A) L=2350 SERVICED BY L=3000	0-01260-300-0	01	1	0105-		●
32	PIPE; DELIVERY,FUEL TANK PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0106		●
32	PIPE; DELIVERY,FUEL TANK W-SERIES ENG<1A2> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0106		●
32	PIPE; DELIVERY,FUEL TANK PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	0107-		●
32	PIPE; DELIVERY,FUEL TANK W-SERIES ENG<1A2> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	0107-		●
32	PIPE; DELIVERY,FUEL TANK PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●	●
32	PIPE; DELIVERY,FUEL TANK W-SERIES ENG<1A2> (A) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0105-		●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
32	PIPE; DELIVERY,FUEL TANK W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> (A) L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> W-SERIES ENG<1A2> (A) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●
32	PIPE; DELIVERY,FUEL TANK MUFFLER TWIN VERTICAL<NBS> (B) L=1300 SERVICED BY L=3000	0-01260-300-0	02	1	0105-	●
32	PIPE; DELIVERY,FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●
32	PIPE; DELIVERY,FUEL TANK W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
634	HOSE; RUBBER RETURN W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
634	HOSE; RUBBER RETURN W-SERIES ENG<1A2> L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0106-		●
634	HOSE; RUBBER RETURN MUFFLER TWIN VERTICAL<NBS> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
634	HOSE; RUBBER RETURN MUFFLER TWIN VERTICAL<NBS> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0106-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> W-SERIES ENG<1A2> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0106-	●
634	HOSE; RUBBER RETURN BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FUEL TANK 400L<SDH> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0105	●
634	HOSE; RUBBER RETURN W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0106-	●
634	HOSE; RUBBER RETURN PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0105-0106	●	●
634	HOSE; RUBBER RETURN PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> L=2750 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0305	●	●
634	HOSE; RUBBER RETURN PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> L=2750 SERVICED BY L=3000	0-01260-300-0	01	1	0306-		●
634	HOSE; RUBBER RETURN PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0306-	●

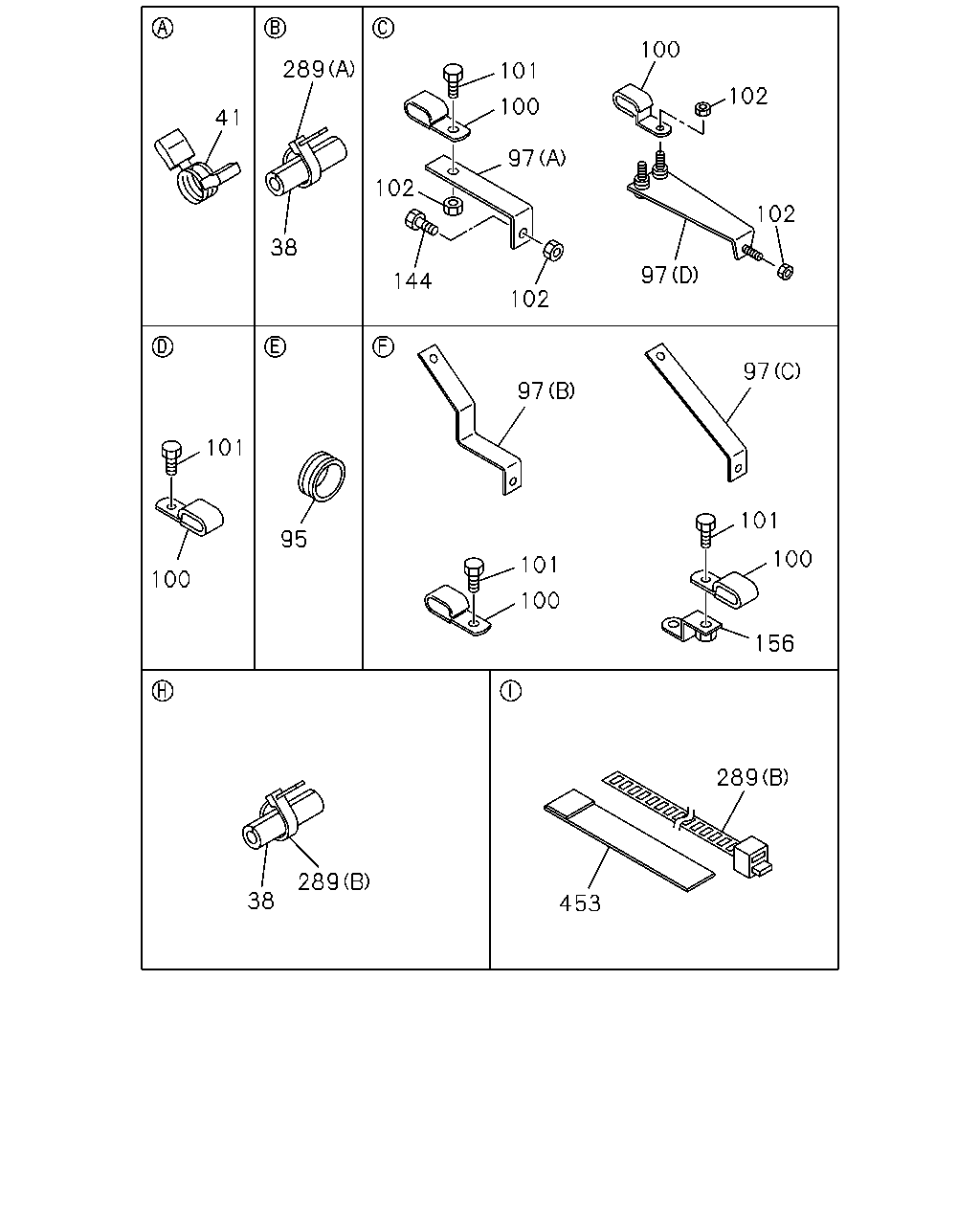

100 101 101 156 100 95 100 101 97 97 289 453 289 38 102 97 102 144 38 41 289 102 97 100 101 100 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 300L<RF5> W-SERIES ENG<1A2> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> W-SERIES ENG<1A2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> PE-SERIES ENG<1A0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. MUFFLER TWIN VERTICAL<NBS> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0105-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-		●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-	●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-0106		●
38	SLEEVE; RUBBER,RUBBER HOSE MUFFLER TWIN VERTICAL<NBS> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0105-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0107-0108		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0107-0108	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 300L<RF5> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0109-		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0109-	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0105-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-	●	●
95	BUSHING; PIPE,FUEL TANK PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-		●
95	BUSHING; PIPE,FUEL TANK MUFFLER TWIN VERTICAL<NBS> ID=28 OD=35 T=25	1-09332-011-1	01	1	0105-	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	01	1	0105-0106		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=115	1-47475-305-0	01	1	0105-0106	●
97	BRACKET; CLIP ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	01	1	0105-0106	●
97	BRACKET; CLIP MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	01	1	0107-		●
97	BRACKET; CLIP W-SERIES ENG<1A2> (A) L=115	1-47475-305-0	01	1	0107-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> W-SERIES ENG<1A2> (A) L=115	1-47475-305-0	01	1	0107-	●
97	BRACKET; CLIP ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	01	1	0107-	●
97	BRACKET; CLIP ZF M/T<X9E> (B)	1-47478-442-0	01	1	0105-0105	●	●
97	BRACKET; CLIP MAP5 M/T<Y9F> W-SERIES ENG<1A2> (B)	1-47478-442-0	01	1	0105-0105	●
97	BRACKET; CLIP ZF M/T<X9E> PE-SERIES ENG<1A0> (B)	1-47478-442-0	01	1	0105-	●	●
97	BRACKET; CLIP MAP5 M/T<Y9F> W-SERIES ENG<1A2> (C)	1-47478-083-0	01	1	0105-0105	●
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> (D)	1-47479-247-0	02	1	0105-0408	●	●
97	BRACKET; CLIP ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> (D)	1-47471-045-0	02	1	0409-	●	●
97	BRACKET; CLIP MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	02	1	0105-0106	●
97	BRACKET; CLIP PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	02	1	0107-		●
97	BRACKET; CLIP MUFFLER TWIN VERTICAL<NBS> (A) L=115	1-47475-305-0	02	1	0107-	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> ID=14X29 H=15 L=20	1-09700-744-0	02	1	0105-	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> ID=15	1-09700-845-1	02	1	0105-0106	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> ID=15	1-09700-845-1	02	1	0107-0107	●	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2>	1-09701-299-0	02	1	0107-	●	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20	9-09535-536-0	04	1	0105-0105		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> ID=16X2 L=20	9-09535-536-0	04	1	0105-0105	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> ID=16X2 L=20	9-09535-536-0	04	1	0105-0106		●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> ID=14X29 H=15 L=20	1-09700-744-0	03	1	0107-		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> W-SERIES ENG<1A2> ID=14X29 H=15 L=20	1-09700-744-0	03	1	0107-	●
100	CLIP; FUEL PIPE PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> ID=14X29 H=15 L=20	1-09700-744-0	03	1	0107-	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> ID=16X2 L=20	9-09535-536-0	05	1	0105-0105		●
100	CLIP; FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> ID=16X2 L=20	9-09535-536-0	05	1	0105-0105		●
100	CLIP; FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> ID=16X2 L=20	9-09535-536-0	05	1	0105-0105	●
100	CLIP; FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> ID=16X2 L=20	9-09535-536-0	05	1	0105-0106		●
100	CLIP; FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> ID=16X2 L=20	9-09535-536-0	05	1	0105-0106	●
100	CLIP; FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> ID=14X29 H=15 L=20	1-09700-744-0	06	1	0107-		●
100	CLIP; FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> ID=14X29 H=15 L=20	1-09700-744-0	01	1	0105-0106		●
100	CLIP; FUEL PIPE MUFFLER TWIN VERTICAL<NBS> ID=14X29 H=15 L=20	1-09700-744-0	04	1	0107-		●
100	CLIP; FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> ID=16X2 L=20	9-09535-536-0	06	1	0105-0105		●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0105-0106	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0105-0105	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	0105-0105	●
100	CLIP; FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> ID=16X2 L=20	9-09535-536-0	03	1	0105-0105	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> ID=14X29 H=15 L=20	1-09700-744-0	03	1	0105-0106	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> ID=14X29 H=15 L=20	1-09700-744-0	05	1	0107-		●
100	CLIP; FUEL PIPE MUFFLER TWIN VERTICAL<NBS> ID=14X29 H=15 L=20	1-09700-744-0	05	1	0107-	●
100	CLIP; FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> ID=16X2 L=50	9-09535-586-0	01	1	0105-	●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X30 FLANGE	0-28680-830-0	01	1	0110-0512		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0110-0512	●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	04	1	0105-0106		●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	05	1	0107-0512		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	05	1	0107-0512	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	06	1	0105-0105		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0105-0106	●	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	03	1	0105-0106	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	06	1	0107-0512		●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	06	1	0601-		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	05	1	0105-0105	●	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	05	1	0105-0105		●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	05	1	0105-0105		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	05	1	0105-0106	●	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	05	1	0105-0106		●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	03	1	0107-0109		●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0107-0109		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0107-0109	●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	03	1	0110-0512		●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0110-0512		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0110-0512	●
101	BOLT; CLIP,FUEL PIPE PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	03	1	0110-0512	●
101	BOLT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
101	BOLT; CLIP,FUEL PIPE PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0105-0105	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	03	1	0105-0105	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	03	1	0105-0105	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	0105-0106	●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0107-0109	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0107-0109	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0110-0512	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●
101	BOLT; CLIP,FUEL PIPE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	04	1	0105-0106	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0107-0602	●	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE MAP5 M/T<Y9F> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	05	1	0105-0106		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	05	1	0105-0106	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0107-0602		●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-		●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	0105-0105	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	01	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91180-108-0	02	1	0603-		●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91180-108-0	02	1	0603-	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	02	1	0603-	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0105-0105	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
102	NUT; CLIP,FUEL PIPE MAP5 M/T<Y9F> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0105	●
102	NUT; CLIP,FUEL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106		●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0107-0602		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
102	NUT; CLIP,FUEL PIPE PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
102	NUT; CLIP,FUEL PIPE MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●
102	NUT; CLIP,FUEL PIPE PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8 FLANGE	0-91180-108-0	01	1	0603-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	03	1	0107-0512		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	03	1	0601-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105		●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 400L<SDH> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	0105-0105	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	01	1	0105-0106		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0105-0106	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	01	1	0105-0106	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	02	1	0107-0512		●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	02	1	0107-0512	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> EXC. ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0105-0105		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0105-0105		●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	02	1	0105-0105	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> EXC. ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0105-0106		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0106		●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	02	1	0105-0106	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0107-0109		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0107-0109		●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 400L<SDH> W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0107-0109	●
144	BOLT; CLIP,FUEL PIPE,C/MBR PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0107-0109	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0110-0512		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0110-0512		●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 400L<SDH> ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0110-0512	●
144	BOLT; CLIP,FUEL PIPE,C/MBR PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28680-835-0	01	1	0110-0512	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR ISUZU M/T<X9A>,ZF M/T<X9E> W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	01	1	0601-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 400L<SDH> ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
144	BOLT; CLIP,FUEL PIPE,C/MBR MAP5 M/T<Y9F> W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	03	1	0105-0105	●
156	BRACKET; FUEL HOSE ZF M/T<X9E>	1-47478-306-0	02	1	0105-0107	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0>	1-47478-306-0	02	1	0108-	●	●
289	CLIP; BAND,HOSE MIXER TRUCK<RA2> W-SERIES ENG<1A2> (B) L=250	1-09707-126-0	01	1	0110-		●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FUEL TANK 300L<RF5> W-SERIES ENG<1A2> (A) L=250	5-09707-030-1	06	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FUEL TANK 300L<RF5> W-SERIES ENG<1A2> (A) L=250	5-09707-030-1	04	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> PE-SERIES ENG<1A0> (A) L=250	5-09707-030-1	04	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=250	5-09707-030-1	04	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	04	1	0105-0106		●
289	CLIP; BAND,HOSE EXC. MUFFLER TWIN VERTICAL<NBS> (A) L=250	5-09707-030-1	04	1	0105-0106	●
289	CLIP; BAND,HOSE FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	04	1	0107-		●
289	CLIP; BAND,HOSE EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (A) L=250	5-09707-030-1	04	1	0107-	●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=250	5-09707-030-1	02	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	02	1	0105-0106		●
289	CLIP; BAND,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS> PE-SERIES ENG<1A0> EXC. FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	02	1	0105-0106		●
289	CLIP; BAND,HOSE MUFFLER TWIN VERTICAL<NBS> (A) L=250	5-09707-030-1	02	1	0105-0106	●
289	CLIP; BAND,HOSE EXC. FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	02	1	0107-0108		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> W-SERIES ENG<1A2> (A) L=250	5-09707-030-1	02	1	0107-0108	●
289	CLIP; BAND,HOSE EXC. FUEL TANK 300L<RF5> (A) L=250	5-09707-030-1	02	1	0109-		●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> (A) L=250	5-09707-030-1	02	1	0109-	●
453	BAND; FLEX HOSE MIXER TRUCK<RA2> W-SERIES ENG<1A2> L=175	1-09707-178-0	01	1	0110-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
