Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#13525) — 504 parça

51 40 40 40 38 56 38 38 43 40 38 55 55 38 42 43 42 1 1 1 38 38 42 42 42 43 42 49 43 43 38 42 42 53 53 54 54 461 467 1 1 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	0105-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0105-		●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0105-		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112		●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404	●	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (E) 720X610X496 200L	1-22401-212-0	01	1	0405-	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=580	1-22553-003-0	02	1	0105-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=650	1-22553-022-1	02	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (A) L=1156	1-22553-039-1	02	1	0105-	●
40	BELT; SUPPORT,FUEL TANK MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FUEL TANK 300L<RF5> L=1040	1-22550-194-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0105-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0105-0207		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0105-0207	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. MIXER TRUCK<RA2>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0208-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0105-	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0105-0512		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-53461-435-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-436-4	01	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> (C)	1-53461-409-1	02	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-279-4	03	1	0105-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (E)	1-53461-525-1	02	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	02	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	01	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (D)	1-53461-375-0	01	1	0105-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	22	1	0105-0512	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	22	1	0601-	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0105-0305	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0306-0512	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	0601-	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0105-0512		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0601-		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0105-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28051-250-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28651-240-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0105-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	24	1	0601-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0105-0512	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	0105-0112	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=14.2	8-94462-114-0	02	1	0201-	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	0105-0112	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) ID=14.2 OD=20.0	9-09571-414-0	02	1	0201-	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0105-0112	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	1-09680-072-0	02	1	0201-	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0105-	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0105-	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0603-	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●

11 8 22 19 11 8 25 29 32 35 1 1 35 29 32 25 19 22 617 166 29 25 32 35 11 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	0105-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0105-		●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0105-		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112		●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404	●	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (E) 720X610X496 200L	1-22401-212-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0105-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	0105-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0404		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0404	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	0105-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-0404	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	02	1	0405-	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0105-0106		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0105-0106	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-0404		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0107-0404	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0405-		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0105-0106	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0107-0404	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-83149-003-0	01	1	0105-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0105-0404	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=42 OD=71	5-83148-001-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=42 OD=71	5-83148-001-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=42 OD=71	5-83148-001-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0105-0404		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0105-0404	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0105-	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	0105-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0105-		●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-83141-124-0	01	1	0105-0404		●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0105-0404	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0405-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0105-0404	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0105-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-22440-034-1	01	1	0105-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-0404		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0105-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-0404	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0105-	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	0105-0404		●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	0105-0404	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	0405-		●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-	●
29	WASHER; PL,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.3	9-09160-505-0	01	1	0405-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	0105-0404	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	02	1	0405-	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	0105-0404		●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	0105-0404	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	0405-		●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-	●
32	WASHER; LK,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=5.1	9-09150-505-0	05	1	0405-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	0105-0404	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	10	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0105-		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0105-0404		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	0105-0404	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0405-		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0105-0404	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	10	1	0405-	●
166	GASKET FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	8-94366-904-0	01	1	0405-	●
617	PLATE FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22419-021-0	01	1	0405-	●

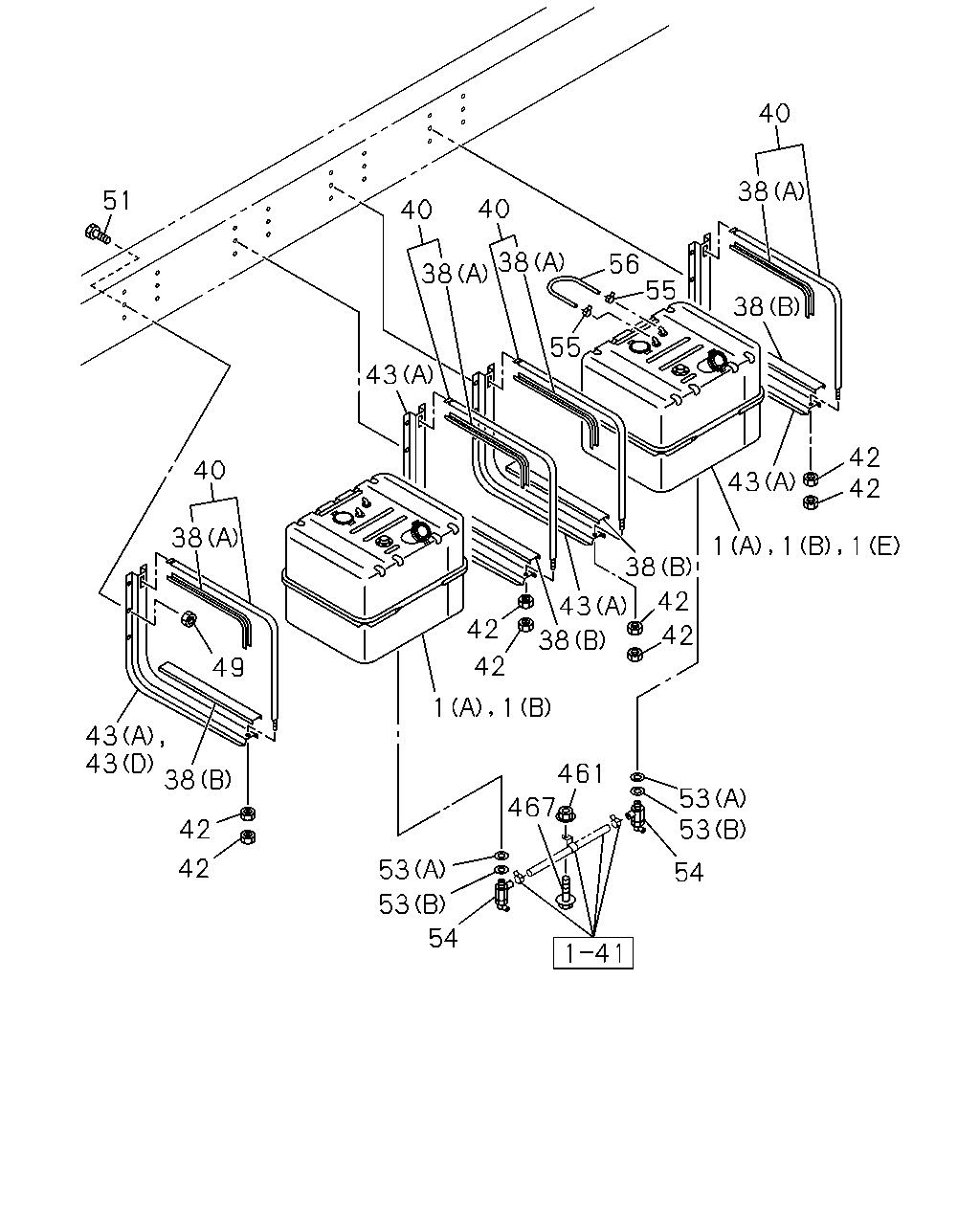

25 1 35 22 19 11 8 51 51 43 43 40 38 38 40 42 42 42 42 43 43 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	0105-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0105-		●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0105-		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112		●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404	●	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (E) 720X610X496 200L	1-22401-212-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0105-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> T=2.0	9-09923-030-0	01	1	0105-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0404		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0404	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	0105-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-0404	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	02	1	0405-	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0105-0106		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M36	1-09604-052-0	01	1	0105-0106	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-0404		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0107-0404	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0405-		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0105-0106	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0107-0404	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-83149-003-0	01	1	0105-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0105-0404	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=42 OD=71	5-83148-001-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=42 OD=71	5-83148-001-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=42 OD=71	5-83148-001-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0105-0404		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0105-0404	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0105-	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	0105-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0105-		●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-83141-124-0	01	1	0105-0404		●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0105-0404	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0405-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0105-0404	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0105-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-22440-034-1	01	1	0105-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-0404		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0105-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-0404	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0105-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0105-		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0105-0404		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	0105-0404	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0405-		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M5X10	9-93497-510-0	05	1	0405-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0105-0404	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	10	1	0405-	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=580	1-22553-003-0	02	1	0105-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=650	1-22553-022-1	02	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (A) L=1156	1-22553-039-1	02	1	0105-	●
40	BELT; SUPPORT,FUEL TANK MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FUEL TANK 300L<RF5> L=1040	1-22550-194-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0105-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0105-0207		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0105-0207	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. MIXER TRUCK<RA2>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0208-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0105-	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0105-0512		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-53461-435-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-436-4	01	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> (C)	1-53461-409-1	02	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-279-4	03	1	0105-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (E)	1-53461-525-1	02	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	02	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	01	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (D)	1-53461-375-0	01	1	0105-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	22	1	0105-0512	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	22	1	0601-	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0105-0305	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0306-0512	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	0601-	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0105-0512		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0601-		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0105-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28051-250-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28651-240-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0105-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	24	1	0601-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0105-0512	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●

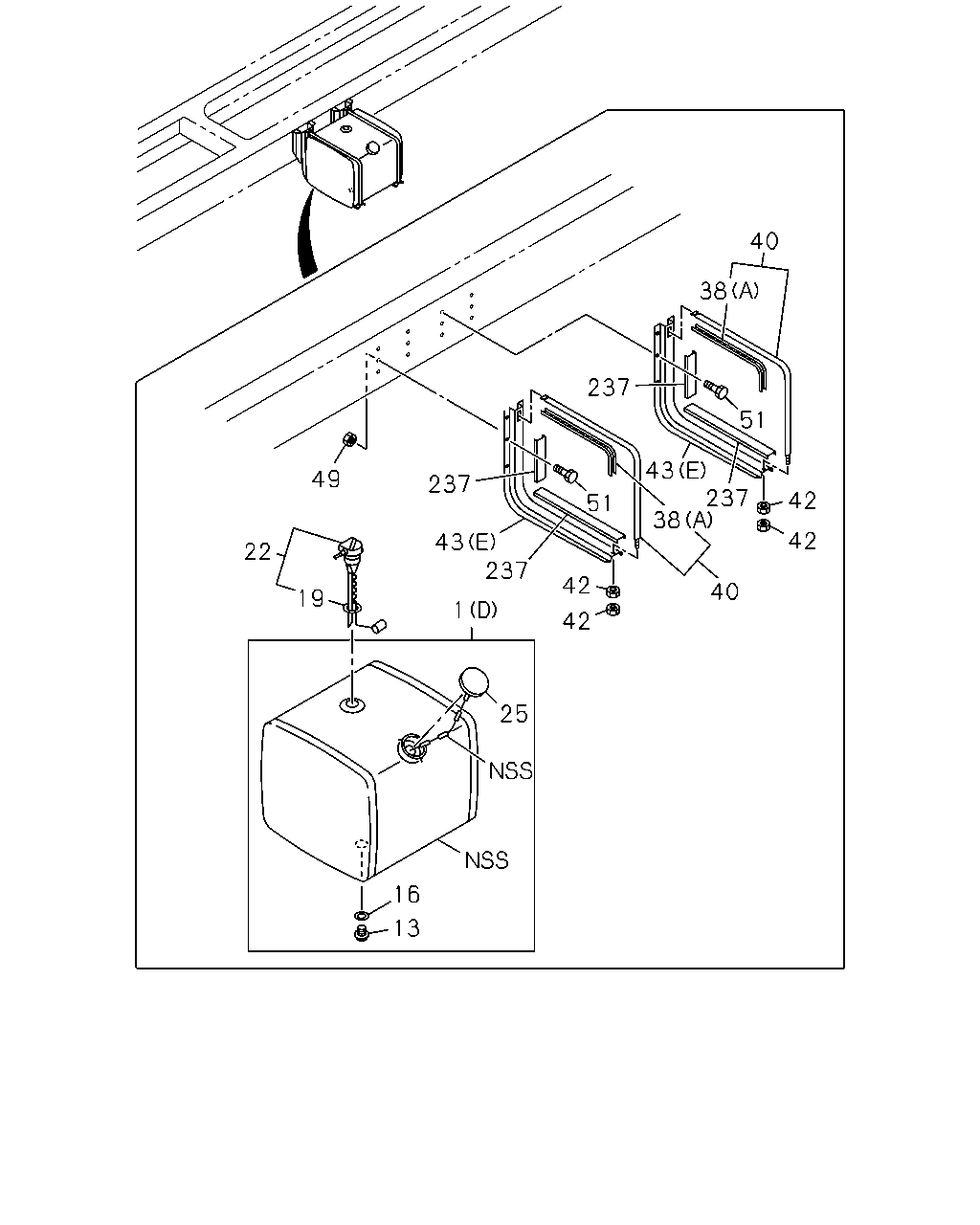

40 237 237 49 22 19 1 237 43 42 42 40 42 42 237 38 43 51 51 38 13 16 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	0105-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-	●

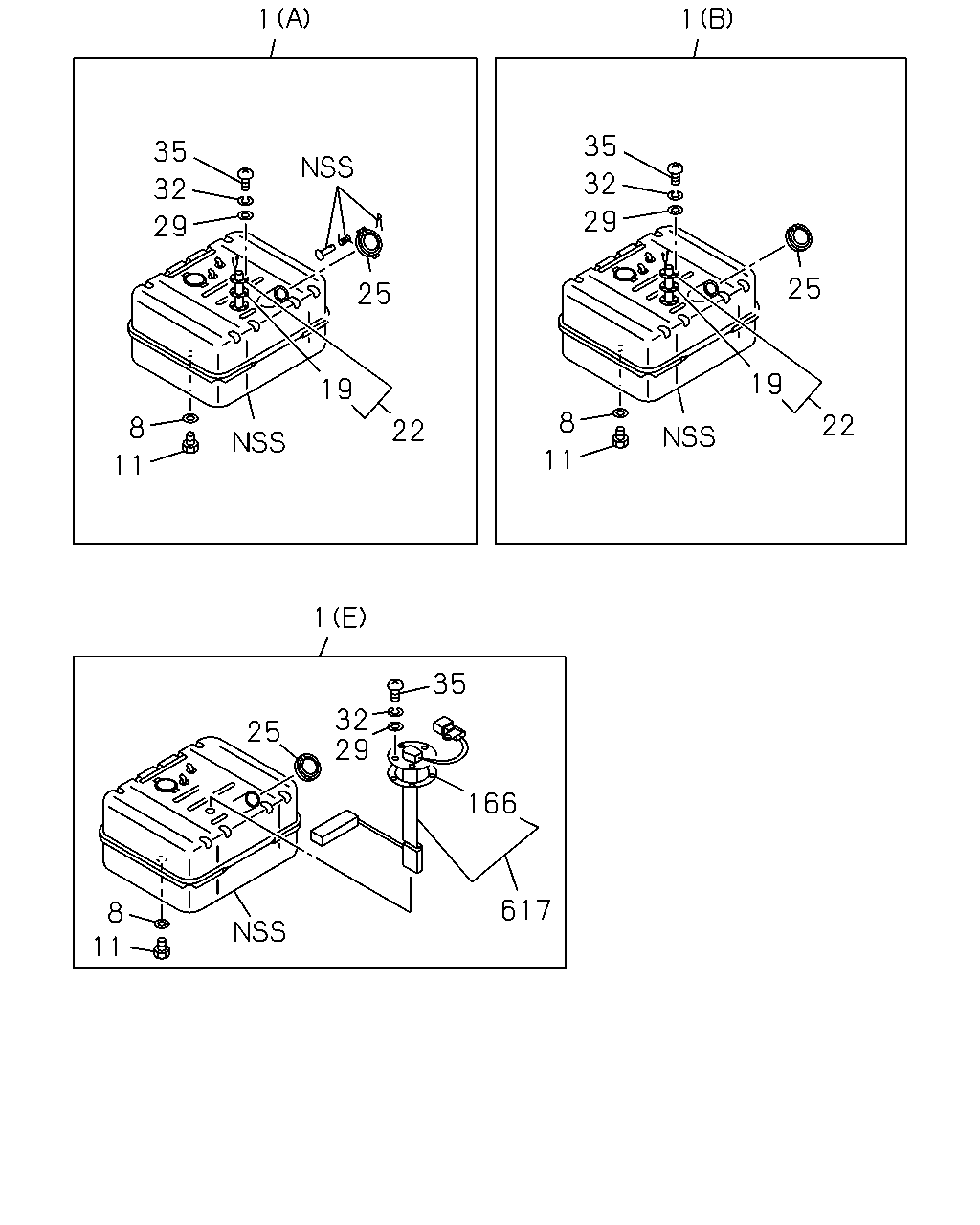

1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0105-		●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0105-		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112		●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404	●	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (E) 720X610X496 200L	1-22401-212-0	01	1	0405-	●

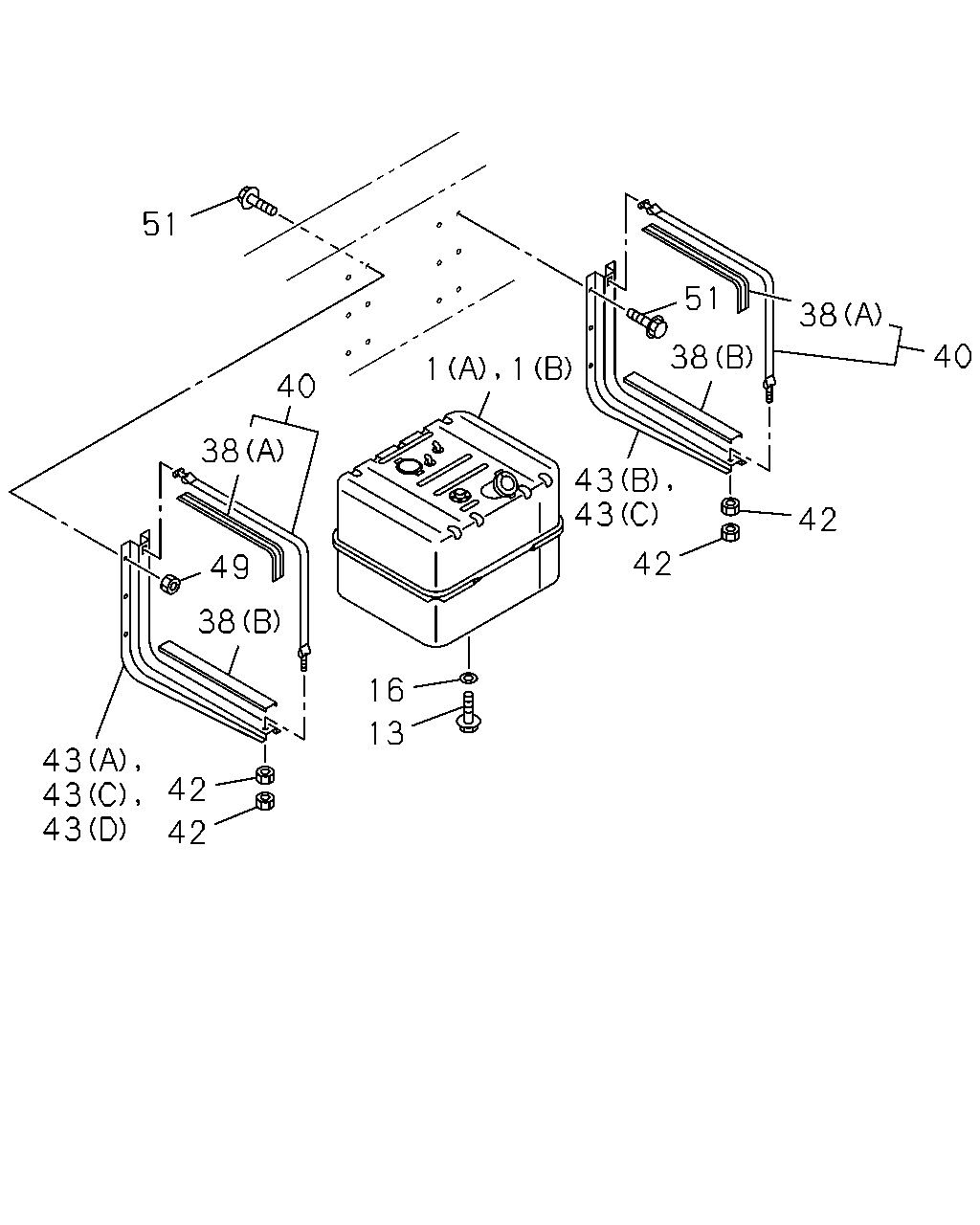

13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	0105-0112		●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	0105-0112	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0201-	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0105-	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0201-	●	●
16	GASKET; PLUG EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	0105-0112		●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	0105-0112	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	0201-0509	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	8-98030-453-0	01	1	0510-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-83149-003-0	01	1	0105-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0105-0404	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=42 OD=71	5-83148-001-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=42 OD=71	5-83148-001-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=42 OD=71	5-83148-001-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0105-0404		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0105-0404	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	9-83135-003-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0105-0404	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	02	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0105-	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	0105-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-83141-080-1	01	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0105-		●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-83141-124-0	01	1	0105-0404		●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0105-0404	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0405-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0105-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0105-0404	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0105-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>	1-22440-034-1	01	1	0105-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-0404		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0105-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0105-0112	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-0404	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0105-	●

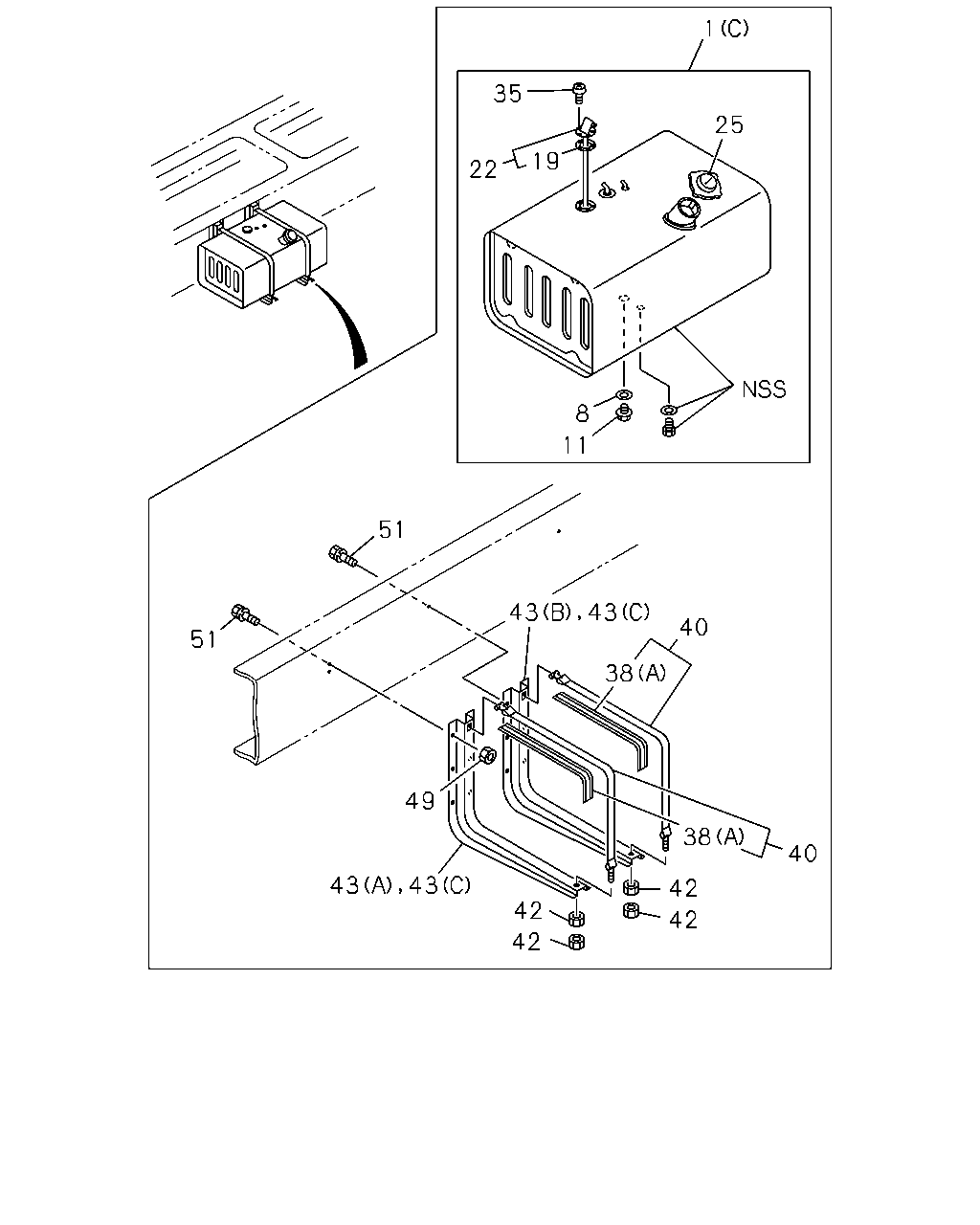

38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=580	1-22553-003-0	02	1	0105-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=650	1-22553-022-1	02	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (A) L=1156	1-22553-039-1	02	1	0105-	●
40	BELT; SUPPORT,FUEL TANK MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FUEL TANK 300L<RF5> L=1040	1-22550-194-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0105-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0105-0207		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0105-0207	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. MIXER TRUCK<RA2>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0208-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0105-	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0105-0512		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-53461-435-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-436-4	01	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> (C)	1-53461-409-1	02	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-279-4	03	1	0105-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (E)	1-53461-525-1	02	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	02	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	01	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (D)	1-53461-375-0	01	1	0105-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	22	1	0105-0512	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	22	1	0601-	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0105-0305	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0306-0512	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	0601-	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0105-0512		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0601-		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0105-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28051-250-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28651-240-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0105-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	24	1	0601-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0105-0512	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-0	04	1	0105-	●

40 42 42 43 43 1 1 40 38 51 49 38 16 13 42 42 43 43 43 38 51 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (D) 1020X680X625 400L	1-87411-168-0	01	1	0105-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0105-		●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0105-		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112		●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>, FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404	●	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (E) 720X610X496 200L	1-22401-212-0	01	1	0405-	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	0105-0112		●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M18X12	1-09604-081-0	01	1	0105-0112	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> M14X14	9-09862-156-0	01	1	0201-	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0105-	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 300L<RF5>, FUEL TANK 400L<SDH> ID=14.2 OD=23.0	9-09572-014-0	01	1	0201-	●	●
16	GASKET; PLUG EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	0105-0112		●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	0105-0112	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	0201-0509	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	8-98030-453-0	01	1	0510-	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (B) L=580	1-22553-003-0	02	1	0105-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0105-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A) L=650	1-22553-022-1	02	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (A) L=1156	1-22553-039-1	02	1	0105-	●
40	BELT; SUPPORT,FUEL TANK MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FUEL TANK 300L<RF5> L=1040	1-22550-194-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0105-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0105-0207		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0105-0207	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. MIXER TRUCK<RA2>,FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1030	1-22550-204-2	02	1	0208-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> L=1030	1-22550-204-2	02	1	0208-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1205	1-22550-227-2	02	1	0105-	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0105-0512		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (C)	1-53461-435-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-436-4	01	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0105-		●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 300L<RF5> (C)	1-53461-409-1	02	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0105-		●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0105-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53461-279-4	03	1	0105-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (E)	1-53461-525-1	02	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0105-	●
43	BRACKET; FUEL TANK MUFFLER TWIN VERTICAL<NBS> EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	02	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (A)	1-53461-279-4	01	1	0105-	●
43	BRACKET; FUEL TANK EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL TANK 400L<SDH> (D)	1-53461-375-0	01	1	0105-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	22	1	0105-0512	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	22	1	0601-	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	10	1	0105-0305	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	9-99110-512-0	06	1	0306-0512	●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> M12	0-91110-512-0	06	1	0601-	●
49	NUT; BRKT M12	9-99110-512-0	08	1	0105-0512		●
49	NUT; BRKT M12	0-91110-512-0	08	1	0601-		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0105-0512	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28051-250-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	0105-0512		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28651-240-0	08	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0105-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	24	1	0601-	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0105-0512	●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28651-240-0	12	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
