Sayfa 1-31B - Isuzu EPC

1-31B — AIR DUCT (#13523) — 195 parça

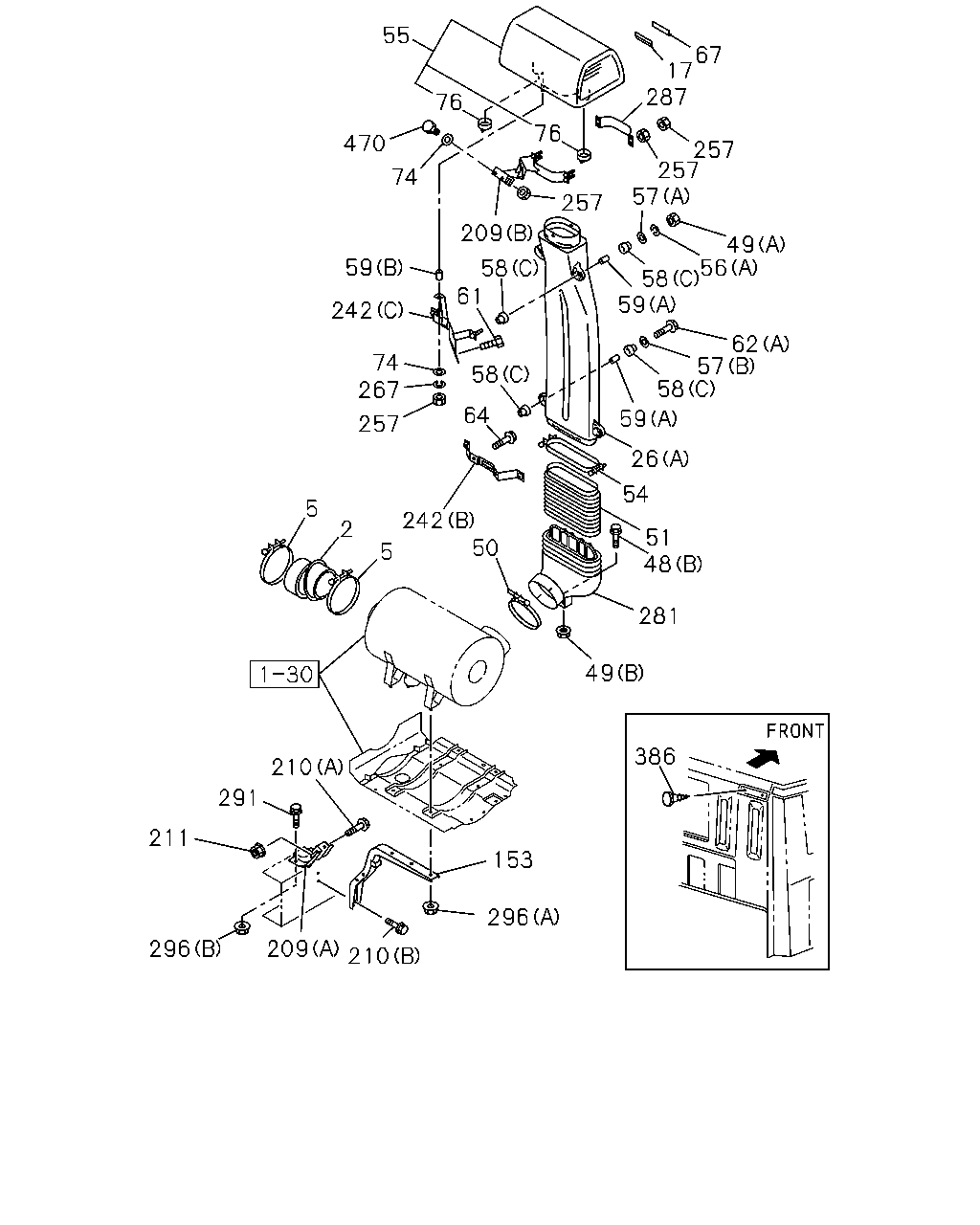

386 153 296 210 209 296 211 291 210 49 5 2 5 281 48 51 54 26 59 50 242 257 267 74 242 59 74 470 55 76 76 287 17 67 257 257 57 257 209 58 61 58 64 58 57 62 49 56 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-860-0	01	1	0208-0302	●	●	●
2	HOSE; ACL	1-14231-937-0	01	1	0105-0207	●	●	●
2	HOSE; ACL ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-937-0	01	1	0306-	●	●	●
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>	1-14231-937-0	01	1	0306-	●	●	●
2	HOSE; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14231-937-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	01	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=130-169	1-09707-157-0	01	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=130-169	1-09707-157-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-0207	●	●	●
5	CLIP; AIR DUCT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2> ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
5	CLIP; AIR DUCT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-134-1	01	1	0105-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> PRE CLEANER<W17> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=183.5	1-09707-098-2	01	1	0306-	●	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-0208	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2> ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>,PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),PRE CLEANER<W17>,CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0501-	●	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-	●	●	●
54	CLIP; GASKET,AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-	●	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-	●	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-	●	●	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-	●	●	●
281	DUCT; AIR,VERTICAL INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14230-191-0	01	1	0208-0305	●	●	●
281	DUCT; AIR,VERTICAL INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14230-191-0	01	1	0306-	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-136-1	01	1	0105-0207	●	●	●
281	DUCT; AIR,VERTICAL INT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> PRE CLEANER<W17>	1-14230-136-1	01	1	0208-0305	●	●	●
281	DUCT; AIR,VERTICAL INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>	1-14230-136-1	01	1	0208-0305	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14230-136-1	01	1	0208-0305	●	●	●
281	DUCT; AIR,VERTICAL INT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> PRE CLEANER<W17>	1-14230-136-1	01	1	0306-	●	●	●
281	DUCT; AIR,VERTICAL INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>	1-14230-136-1	01	1	0306-	●	●	●
281	DUCT; AIR,VERTICAL INT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14230-136-1	01	1	0306-	●	●	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-	●	●	●

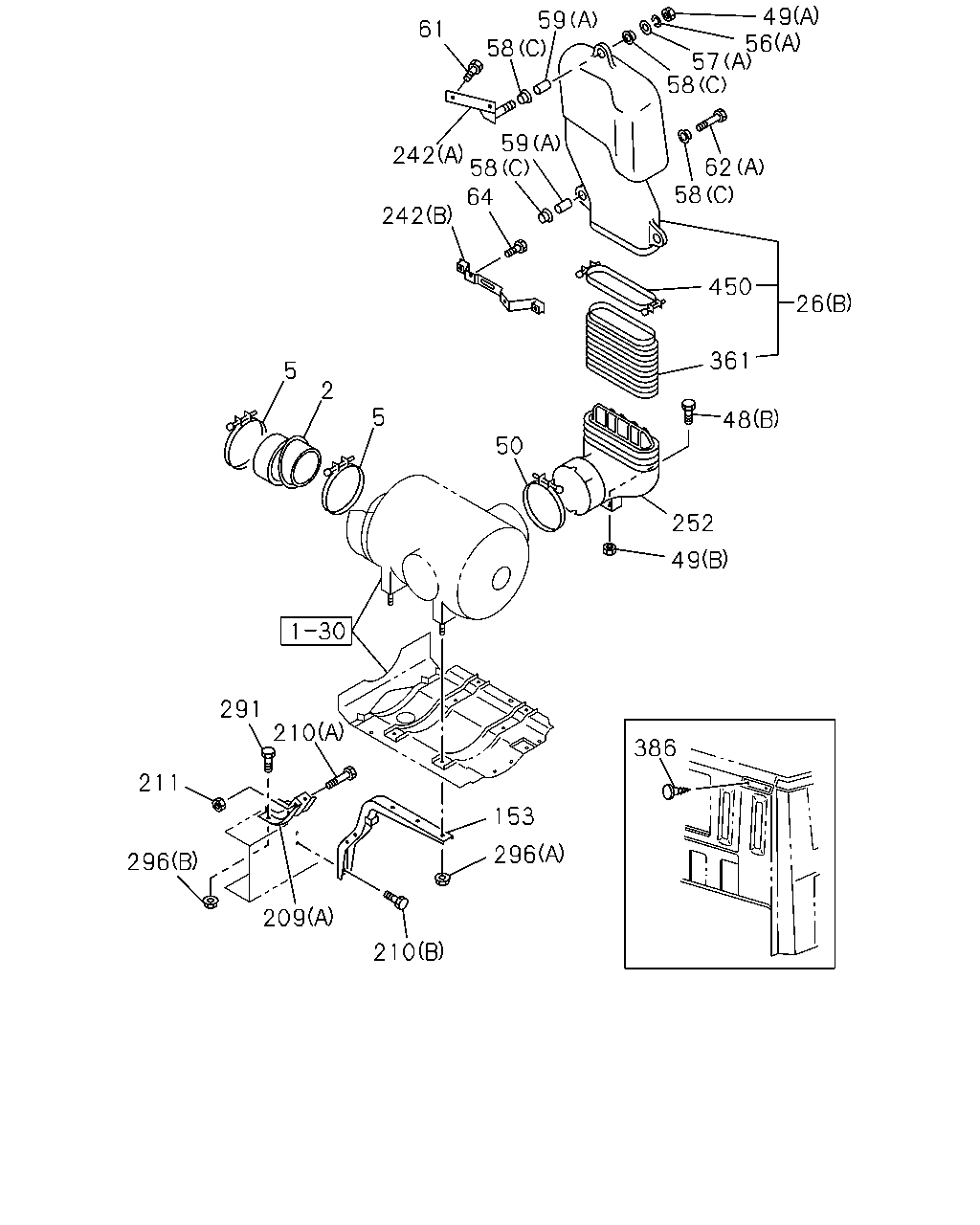

386 153 296 210 209 296 211 291 210 5 2 5 50 252 49 48 361 450 26 58 62 58 57 59 61 242 242 64 58 59 58 56 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-860-0	01	1	0208-0302	●	●	●
2	HOSE; ACL	1-14231-937-0	01	1	0105-0207	●	●	●
2	HOSE; ACL ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14231-937-0	01	1	0208-0305	●	●	●
2	HOSE; ACL ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14231-937-0	01	1	0306-	●	●	●
2	HOSE; ACL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>	1-14231-937-0	01	1	0306-	●	●	●
2	HOSE; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14231-937-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	01	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=130-169	1-09707-157-0	01	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=130-169	1-09707-157-0	01	1	0306-	●	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-0207	●	●	●
5	CLIP; AIR DUCT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2> ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=104-142	1-09707-155-0	02	1	0208-0305	●	●	●
5	CLIP; AIR DUCT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
5	CLIP; AIR DUCT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
5	CLIP; AIR DUCT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=104-142	1-09707-155-0	02	1	0306-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-134-1	01	1	0105-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> PRE CLEANER<W17> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) PRE CLEANER<W17> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=183.5	1-09707-098-2	01	1	0306-	●	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-0208	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2> ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0209-0305	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5> ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0306-0412	●	●	●
50	CLIP; JOINT HOSE ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>,PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),PRE CLEANER<W17>,CHINA EQUIPMENT(YT2) ID=158	1-09707-097-1	01	1	0501-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-	●	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●	●
252	DUCT; AIR INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,PRE CLEANER<W17>	1-14230-191-0	01	1	0208-0305	●	●	●
252	DUCT; AIR INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,PRE CLEANER<W17>	1-14230-191-0	01	1	0306-	●	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0105-0207	●	●	●
252	DUCT; AIR INT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0208-0305	●	●	●
252	DUCT; AIR INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>	1-14230-136-1	01	1	0208-0305	●	●	●
252	DUCT; AIR INT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14230-136-1	01	1	0208-0305	●	●	●
252	DUCT; AIR INT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0306-	●	●	●
252	DUCT; AIR INT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, MIXERTRUCK<RA2>,CONCRETE PUMP<RA5>	1-14230-136-1	01	1	0306-	●	●	●
252	DUCT; AIR INT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-14230-136-1	01	1	0306-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
