Sayfa 1-31A - Isuzu EPC

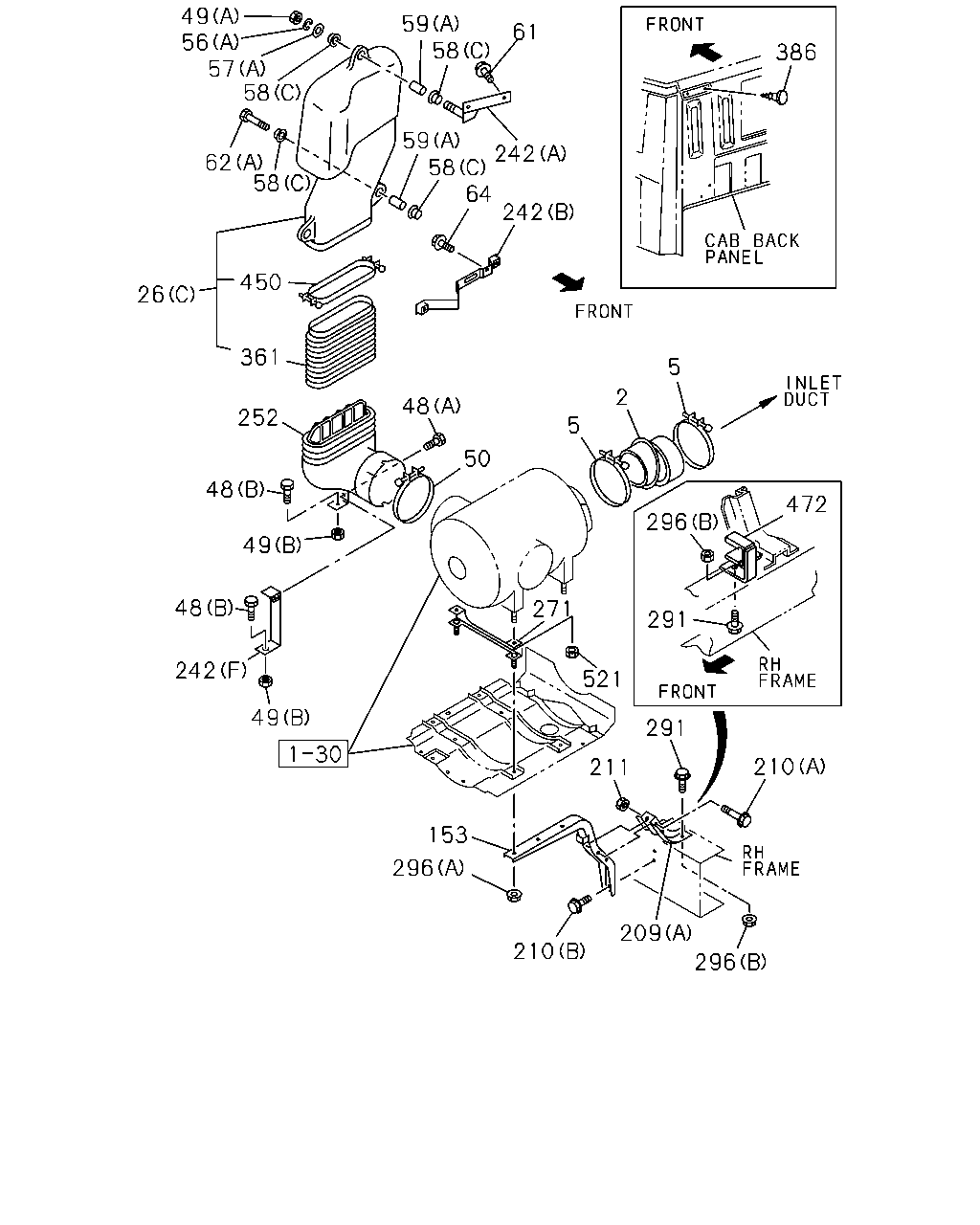

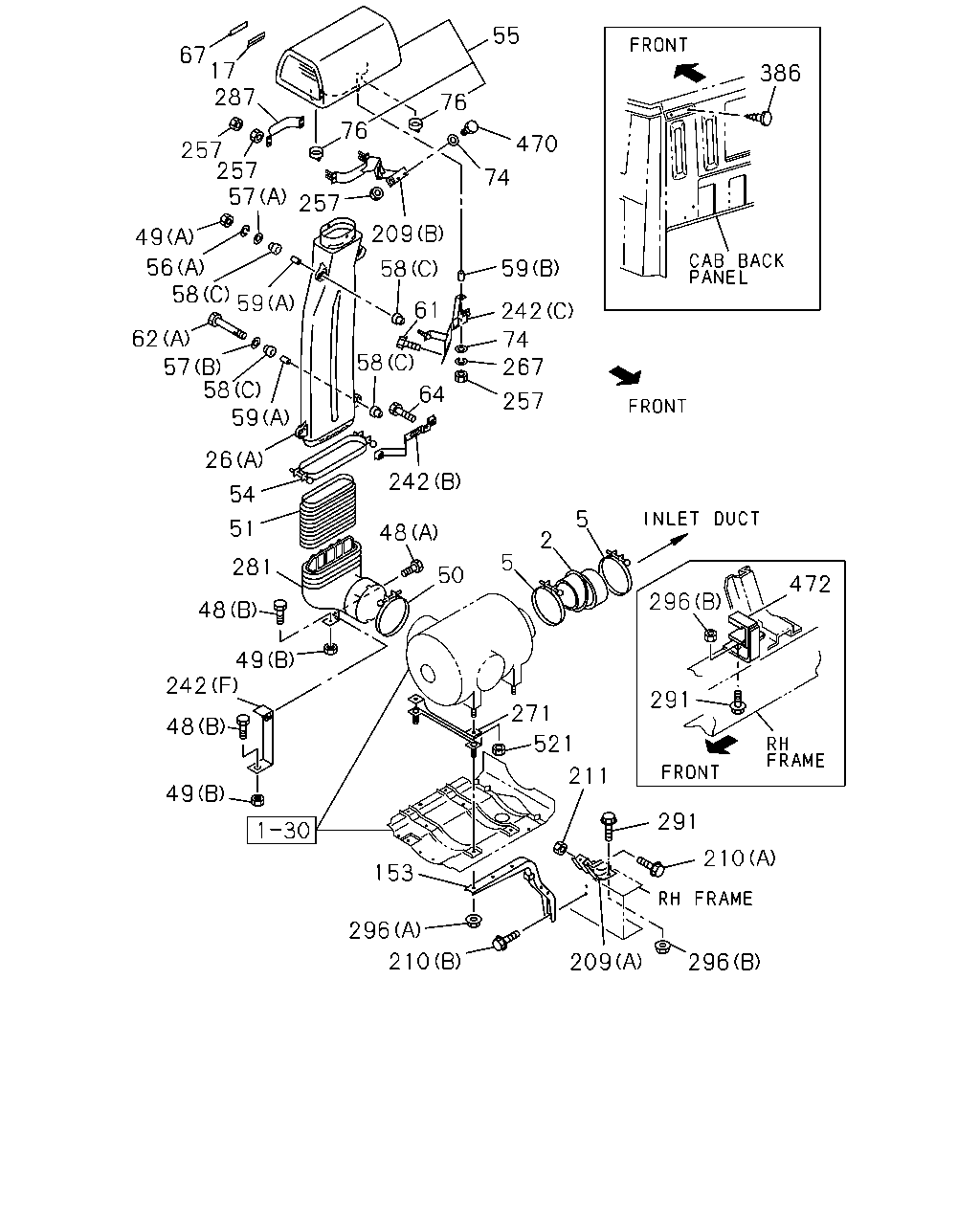

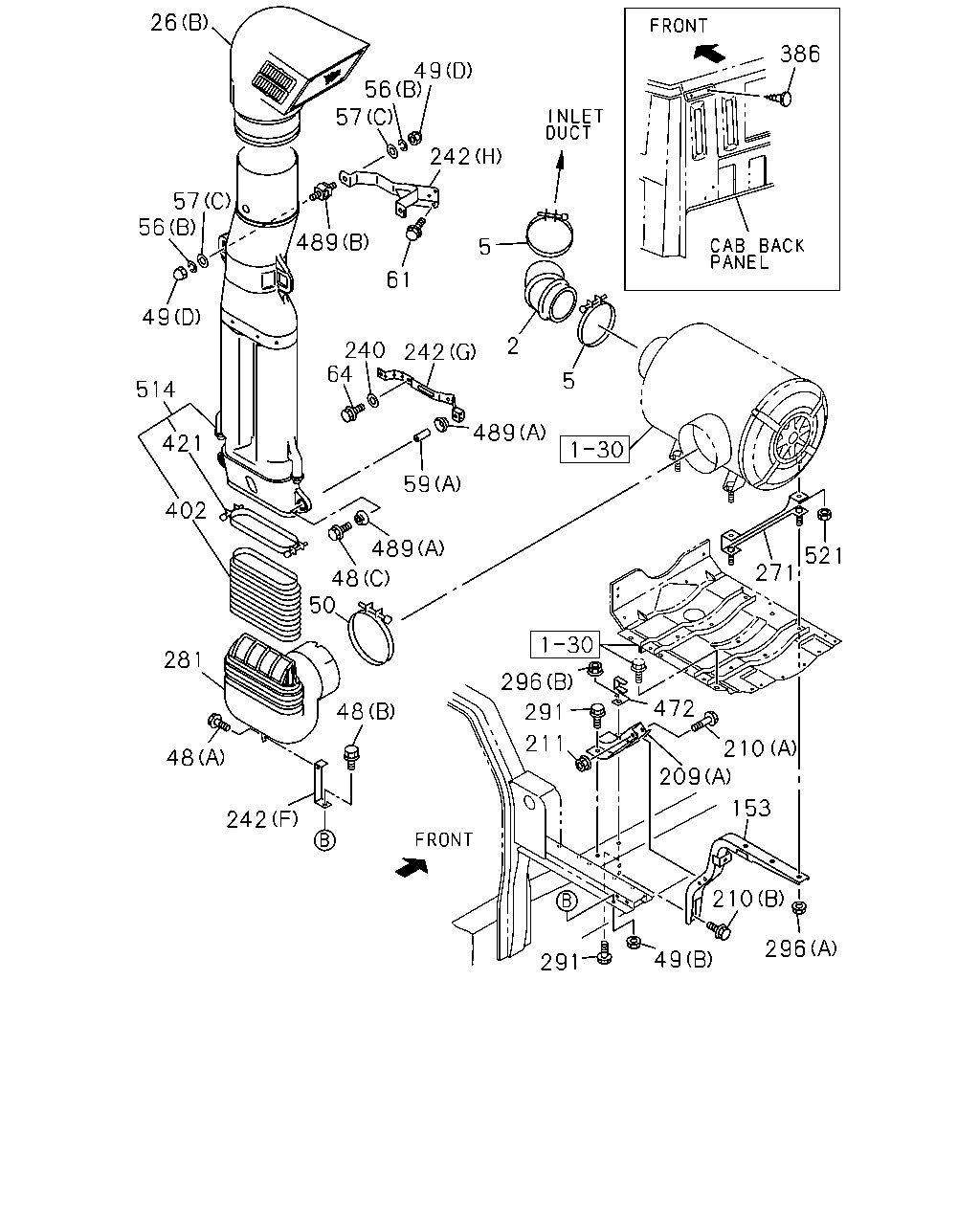

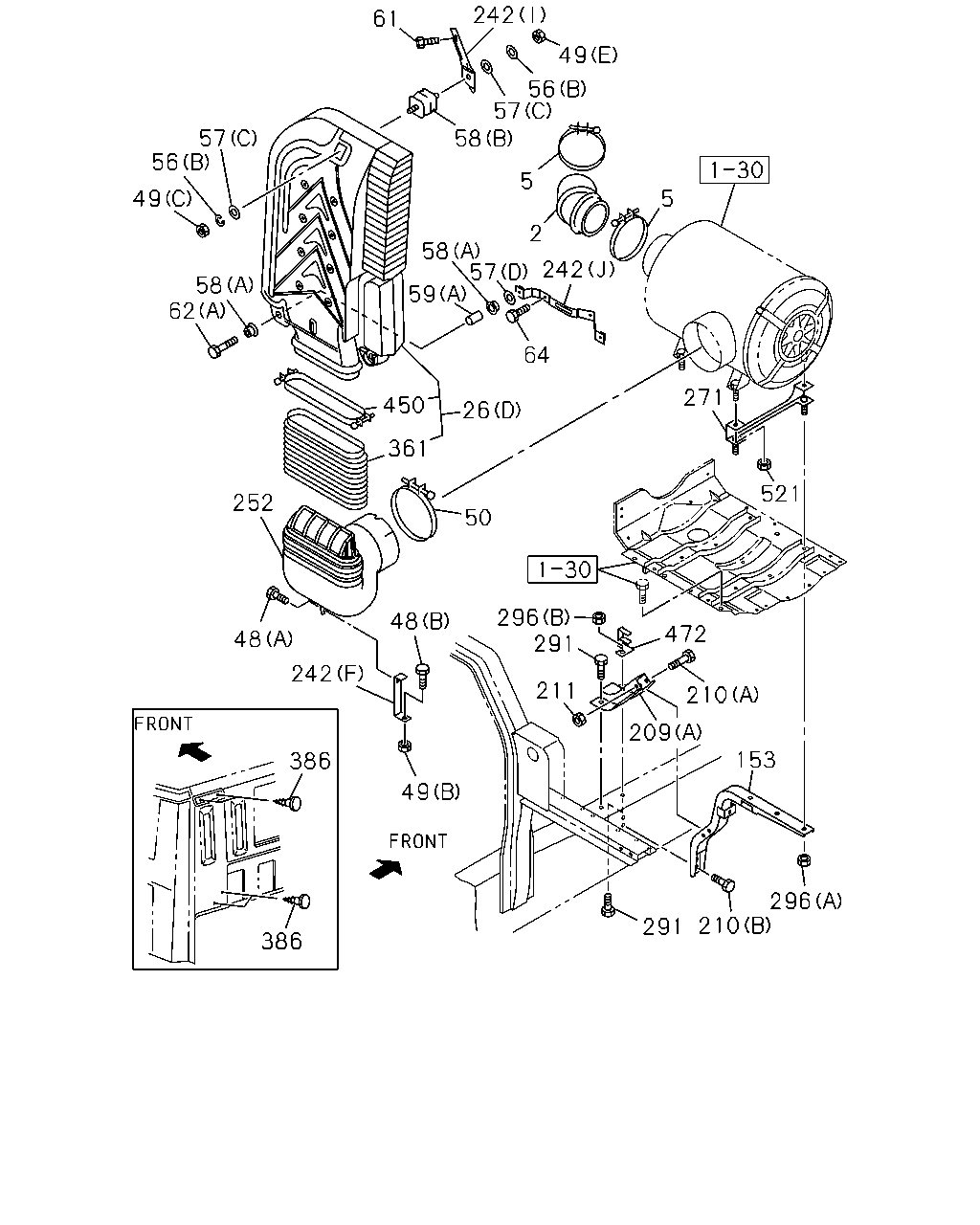

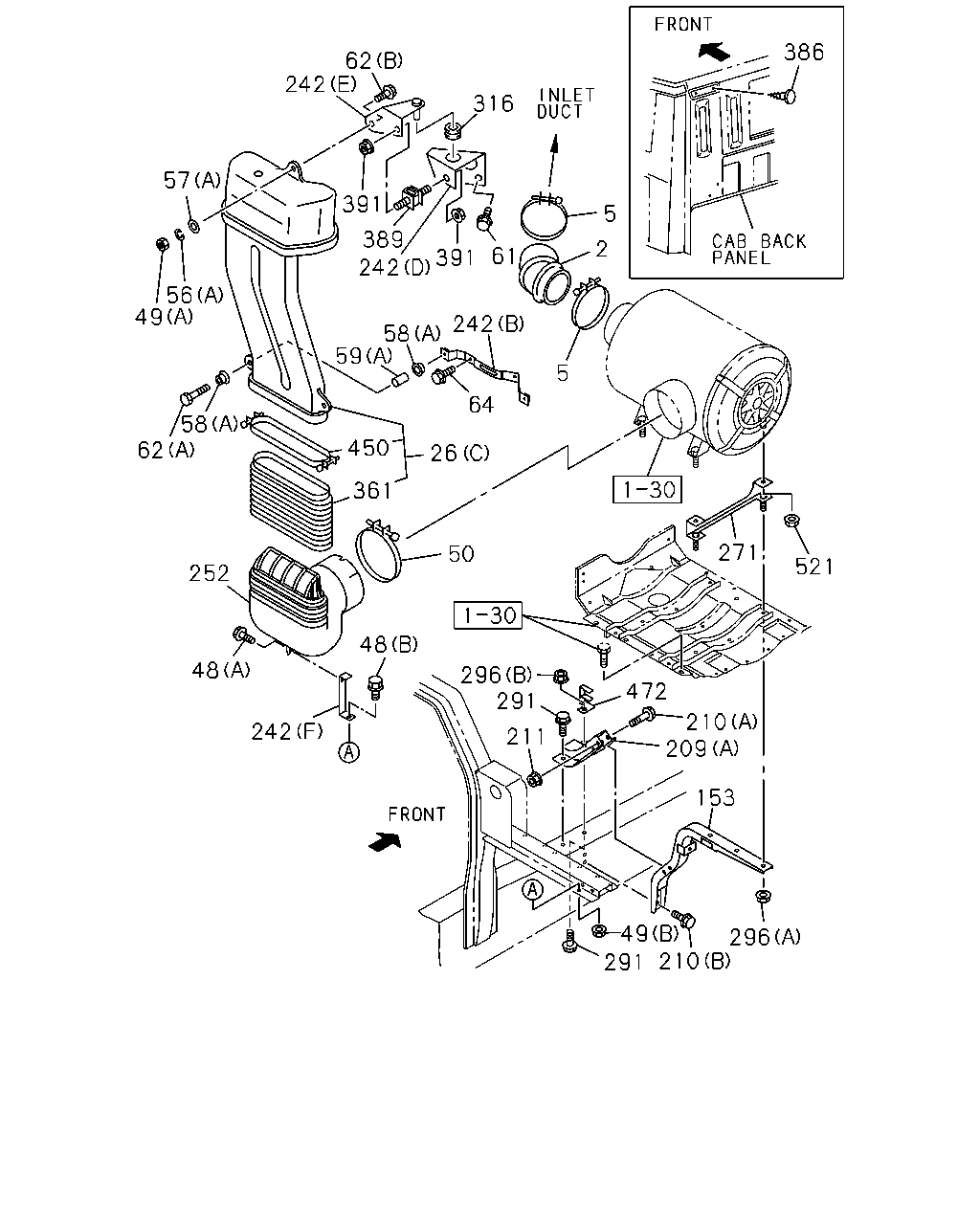

1-31A — AIR DUCT (#13522) — 524 parça

291 49 296 210 153 209 211 210 472 291 296 48 242 48 281 50 48 489 402 421 514 49 56 57 26 49 56 57 5 242 61 240 64 242 489 5 2 489 59 271 521 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0406-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0105-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-0208	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0306-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09503-154-1	01	1	0105-			●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●	●
209	BRACKET; ACL PRE CLEANER<W17> HIGH ROOF<S2F> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-0207	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0208-0305	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0306-	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●		●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●		●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-		●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0105-	●		●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0105-	●		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●

386 55 76 76 287 17 67 257 257 257 57 49 74 470 209 59 58 56 62 59 58 242 61 58 59 58 57 74 64 257 267 242 26 48 54 51 281 50 5 2 5 472 291 296 211 521 271 210 291 209 296 210 296 153 49 48 242 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-		●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0406-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0105-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-0208	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0306-	●	●	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-		●
54	CLIP; GASKET,AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-		●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09503-154-1	01	1	0105-			●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-		●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-		●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●	●
209	BRACKET; ACL PRE CLEANER<W17> HIGH ROOF<S2F> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-		●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-		●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> CAB UP +110MM<TGG>	1-14230-194-0	01	1	0105-	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-0207	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0208-0305	●	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0306-	●	●	●	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-		●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-		●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●

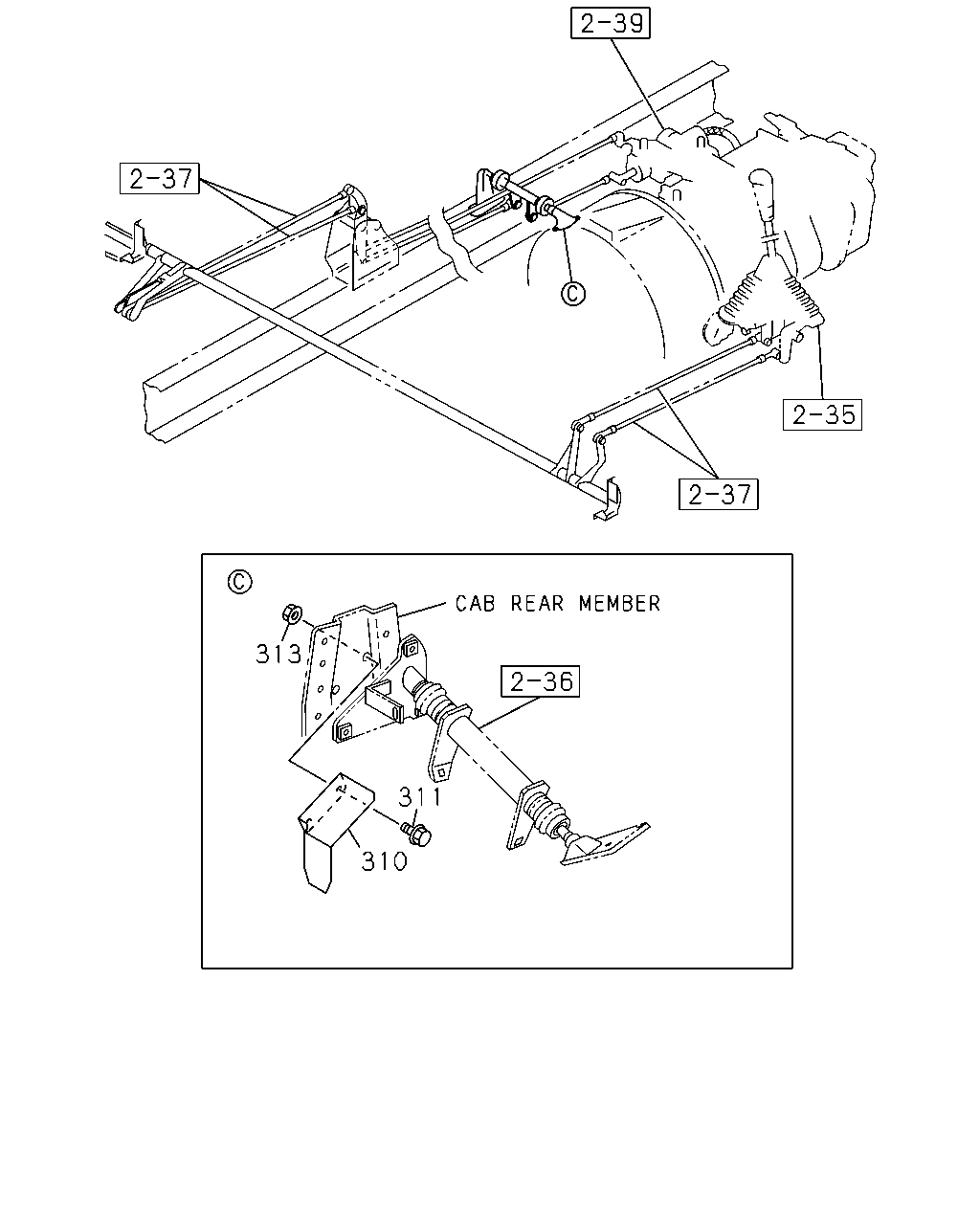

310 311 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
310	PROTECTOR; HEAT,ACL EXC. CAB UP +110MM<TGG>	1-14181-287-1	01	1	0105-	●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-	●

521 271 210 209 153 296 210 291 49 211 296 291 472 48 242 48 252 50 26 361 450 62 58 49 56 57 242 62 316 5 2 5 64 242 58 59 61 391 242 389 391 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0406-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0105-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-0208	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0306-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09503-154-1	01	1	0105-			●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●	●
209	BRACKET; ACL PRE CLEANER<W17> HIGH ROOF<S2F> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●	●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-0207	●	●	●	●
252	DUCT; AIR INT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0208-0305	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0306-	●	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
316	RUBBER; CUSHION,DUCT EXC. PRE CLEANER<W17>	9-09575-525-0	01	1	0105-			●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR EXC. PRE CLEANER<W17>	8-97080-149-0	01	1	0105-			●	●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91150-108-0	02	1	0105-0602			●	●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●

386 242 64 61 58 59 59 62 58 58 57 56 49 26 450 361 252 48 48 242 49 48 5 2 5 50 472 291 210 291 211 521 271 153 49 210 209 296 296 242 58 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0406-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0105-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-0208	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0306-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09503-154-1	01	1	0105-			●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●	●
209	BRACKET; ACL PRE CLEANER<W17> HIGH ROOF<S2F> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●	●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-0207	●	●	●	●
252	DUCT; AIR INT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0208-0305	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0306-	●	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●

5 5 2 57 56 58 61 242 49 242 57 58 64 59 62 58 49 56 57 26 450 361 252 50 521 271 153 209 211 210 472 291 296 48 242 48 49 386 386 291 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●	●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-		●	●	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-		●	●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-		●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-	●		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0406-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	0-91110-508-0	01	1	0601-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-		●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-	●		●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (E) M8	9-09110-408-0	01	1	0105-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-0208	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0209-0305	●	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0306-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-		●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-	●		●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09503-154-1	01	1	0105-			●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-	●		●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-	●		●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	0105-		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308		●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308	●		●	●
209	BRACKET; ACL PRE CLEANER<W17> HIGH ROOF<S2F> (B)	1-14239-257-0	01	1	0105-		●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-		●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0110	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-	●		●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●	●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-0207	●	●	●	●
252	DUCT; AIR INT EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0208-0305	●	●	●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0306-	●	●	●	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-		●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●	●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-		●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
