◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10B - RADIATOR ▶
1-10B — RADIATOR (#13517) — 137 parça

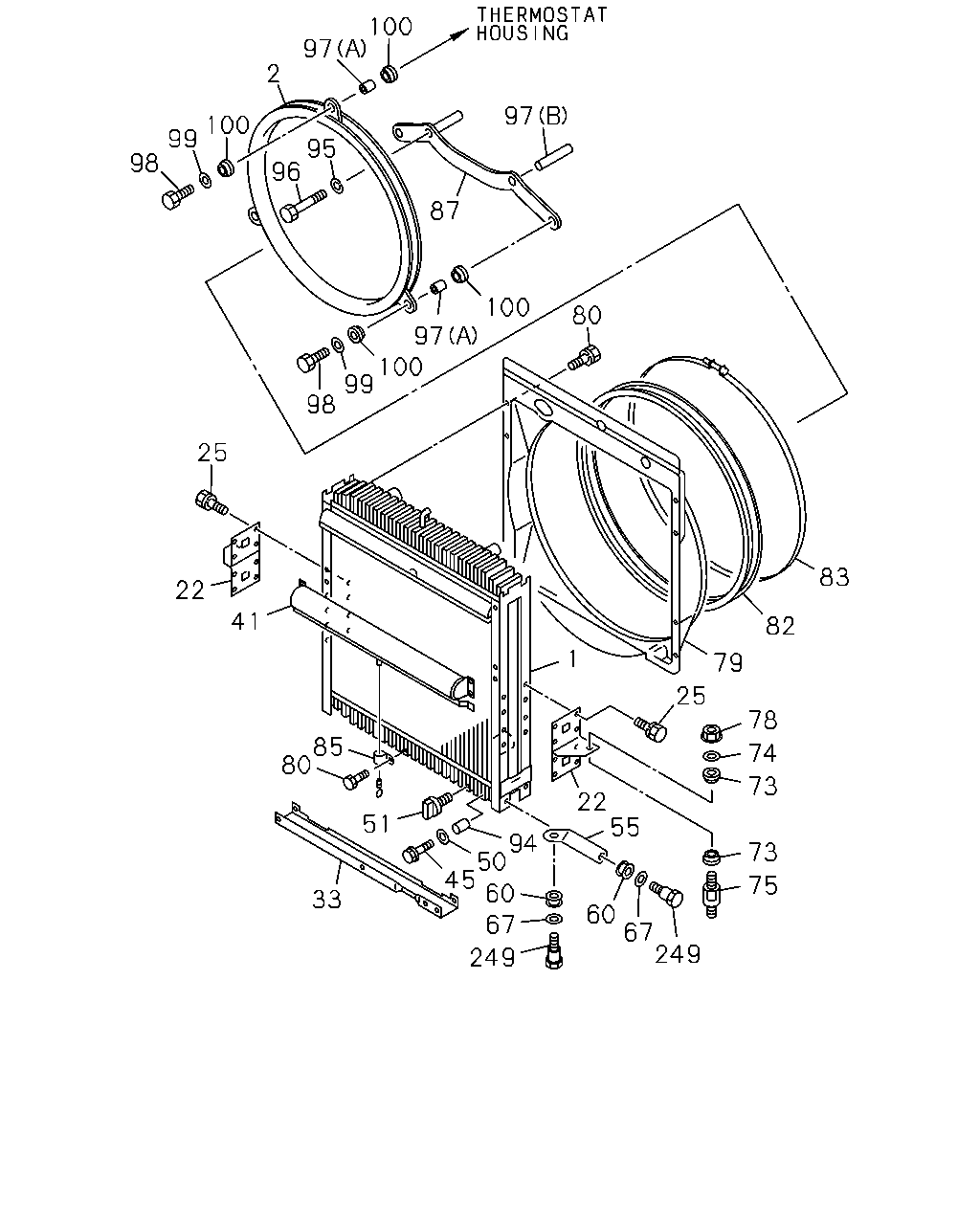

çizim 23270
80 100 97 100 99 98 98 99 100 2 97 100 97 87 95 96 25 22 41 1 25 78 79 83 82 73 75 73 74 55 22 94 50 45 33 80 51 85 60 67 249 67 60 249
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21410-795-0 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21410-795-0 01 1 0304- ● ● ●
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9> 		1-21410-685-1 01 1 0105-0211 ● ● ●
1 RADIATOR ASM
RADIATOR CURTAIN<SK7> EXC. CHINA GB VAR1<JAC> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
SHORT CHASSIS & LHD(CXZ6MC) RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
LONG CHASSIS & LHD(CXZ6MF) EXC. FIRE TRUCK<RA9> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
SHORT CHASSIS & LHD(CXZ6MC) EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
FIRE TRUCK<RA9> 		1-21410-706-0 01 1 0105- ●
2 GUIDE; FAN 1-21551-235-3 01 1 0105- ● ● ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9> 		1-21464-381-0 01 1 0105-0211 ● ● ●
22 BRACKET; RAD MTG
RADIATOR CURTAIN<SK7> EXC. CHINA GB VAR1<JAC> 		1-21464-381-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21464-381-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> 		1-21464-381-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
SHORT CHASSIS & LHD(CXZ6MC) RADIATOR CURTAIN<SK7> 		1-21464-381-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
LONG CHASSIS & LHD(CXZ6MF) EXC. FIRE TRUCK<RA9> 		1-21464-381-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
SHORT CHASSIS & LHD(CXZ6MC) EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21464-381-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
EXC. FIRE TRUCK<RA9> 		1-21464-382-0 01 1 0105-0211 ● ● ●
22 BRACKET; RAD MTG
RADIATOR CURTAIN<SK7> EXC. CHINA GB VAR1<JAC> 		1-21464-382-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21464-382-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> 		1-21464-382-0 01 1 0212-0303 ● ● ●
22 BRACKET; RAD MTG
SHORT CHASSIS & LHD(CXZ6MC) RADIATOR CURTAIN<SK7> 		1-21464-382-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
LONG CHASSIS & LHD(CXZ6MF) EXC. FIRE TRUCK<RA9> 		1-21464-382-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
SHORT CHASSIS & LHD(CXZ6MC) EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21464-382-0 01 1 0304- ● ● ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> 		1-21464-379-0 01 1 0105- ●
22 BRACKET; RAD MTG
FIRE TRUCK<RA9> 		1-21464-380-0 01 1 0105- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 0105- ● ● ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> 		1-21419-050-0 01 1 0105-0211 ● ● ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> EXC. FIRE TRUCK<RA9> 		1-21419-050-0 01 1 0212-0303 ● ● ●
33 PROTECTOR; RAD
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0212-0303 ● ● ●
33 PROTECTOR; RAD
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0212-0303 ● ● ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0304-0309 ● ● ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> 		1-21419-050-0 01 1 0304-0309 ● ● ●
33 PROTECTOR; RAD
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0304-0309 ● ● ●
33 PROTECTOR; RAD
RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0310- ● ● ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> 		1-21419-050-0 01 1 0310- ● ● ●
33 PROTECTOR; RAD
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21419-050-0 01 1 0310- ● ● ●
33 PROTECTOR; RAD
FIRE TRUCK<RA9> 		1-21419-051-0 01 1 0105- ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-105-1 01 1 0105- ● ● ●
45 BOLT; RAD SHUTTER
RADIATOR CURTAIN<SK7> M8X20 FLANGE 		0-28080-820-0 01 1 0105- ● ● ●
45 BOLT; RAD SHUTTER
FIRE TRUCK<RA9> EXC. RADIATOR CURTAIN<SK7> M8X20 FLANGE 		0-28080-820-0 01 1 0105- ●
50 WASHER; PL,RAD SHUTTER
RADIATOR CURTAIN<SK7> ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ● ● ●
50 WASHER; PL,RAD SHUTTER
FIRE TRUCK<RA9> EXC. RADIATOR CURTAIN<SK7> ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ●
51 PLUG; DRAIN
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-023-0 01 1 0212-0303 ● ● ●
51 PLUG; DRAIN
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-023-0 01 1 0304-0309 ● ● ●
51 PLUG; DRAIN
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-023-0 01 1 0310- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0105-0211 ● ● ●
51 PLUG; DRAIN
RADIATOR CURTAIN<SK7> EXC. FIRE TRUCK<RA9> W/GASKET 		1-09609-009-0 01 1 0212-0303 ● ● ●
51 PLUG; DRAIN
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0212-0303 ● ● ●
51 PLUG; DRAIN
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0212-0303 ● ● ●
51 PLUG; DRAIN
FIRE TRUCK<RA9> W/GASKET 		1-09609-009-0 01 1 0212-0303 ●
51 PLUG; DRAIN
RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0304-0309 ● ● ●
51 PLUG; DRAIN
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0304-0309 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0304-0309 ● ● ●
51 PLUG; DRAIN
RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0310- ● ● ●
51 PLUG; DRAIN
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> W/GASKET 		1-09609-009-0 01 1 0310- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0310- ● ● ●
55 STAY; RAD TO UPR MBR
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> 		1-21464-563-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
MIXER TRUCK<RA2> 		1-21464-563-0 01 1 0304- ● ● ●
55 STAY; RAD TO UPR MBR
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> 		1-21464-564-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
MIXER TRUCK<RA2> 		1-21464-564-0 01 1 0304- ● ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9> 		1-21464-385-0 01 1 0105-0211 ● ● ●
55 STAY; RAD TO UPR MBR
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC> 		1-21464-385-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> 		1-21464-385-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> 		1-21464-385-0 01 1 0304- ● ● ●
55 STAY; RAD TO UPR MBR
EXC. FIRE TRUCK<RA9> 		1-21464-386-0 01 1 0105-0211 ● ● ●
55 STAY; RAD TO UPR MBR
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC> 		1-21464-386-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> 		1-21464-386-0 01 1 0212-0303 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> 		1-21464-386-0 01 1 0304- ● ● ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-383-0 01 1 0105- ●
55 STAY; RAD TO UPR MBR
FIRE TRUCK<RA9> 		1-21464-384-0 01 1 0105- ●
60 GROMMET 1-09332-117-0 04 1 0105- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0105- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0105- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 0105- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0105- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
79 GUIDE; FAN,RAD
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21551-534-0 01 1 0403- ● ● ●
79 GUIDE; FAN,RAD
EXC. FIRE TRUCK<RA9> 		1-21551-484-0 01 1 0112-0402 ● ● ●
79 GUIDE; FAN,RAD
SHORT CHASSIS & LHD(CXZ6MC) RADIATOR CURTAIN<SK7> 		1-21551-484-0 01 1 0403- ● ● ●
79 GUIDE; FAN,RAD
LONG CHASSIS & LHD(CXZ6MF) EXC. FIRE TRUCK<RA9> 		1-21551-484-0 01 1 0403- ● ● ●
79 GUIDE; FAN,RAD
SHORT CHASSIS & LHD(CXZ6MC) EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21551-484-0 01 1 0403- ● ● ●
79 GUIDE; FAN,RAD 1-21551-450-0 01 1 0105-0111 ● ● ●
79 GUIDE; FAN,RAD
FIRE TRUCK<RA9> 		1-21551-450-0 01 1 0112- ●
80 BOLT; FAN GUIDE
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> M8X16 FLANGE 		0-28080-816-0 08 1 0212-0303 ● ● ●
80 BOLT; FAN GUIDE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> M8X16 FLANGE 		0-28080-816-0 08 1 0304-0402 ● ● ●
80 BOLT; FAN GUIDE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 08 1 0403- ● ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 0105-0107 ● ● ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 17 1 0108- ● ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 0105-0211 ● ● ●
80 BOLT; FAN GUIDE
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 0212-0303 ● ● ●
80 BOLT; FAN GUIDE
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 0212-0303 ● ● ●
80 BOLT; FAN GUIDE
EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 0304- ● ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE 		0-28080-812-0 12 1 0304- ● ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 0105- ● ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 0105- ● ● ●
85 CLIP
RADIATOR CURTAIN<SK7> 		9-09520-835-0 01 1 0105- ● ● ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 0105- ● ● ●
94 TUBE; DIST
RADIATOR CURTAIN<SK7> 		1-21419-052-0 01 1 0105- ● ● ●
94 TUBE; DIST
FIRE TRUCK<RA9> EXC. RADIATOR CURTAIN<SK7> 		1-21419-052-0 01 1 0105- ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 0105- ● ● ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 0105- ● ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 0105- ● ● ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 0105- ● ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 0105-0512 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28050-845-0 03 1 0601- ● ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 0105- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0105- ● ● ●
249 BOLT; STAY,RAD MBR
M8X26 		1-09009-175-0 02 1 0202- ● ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0105-0201 ● ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0202- ● ● ●

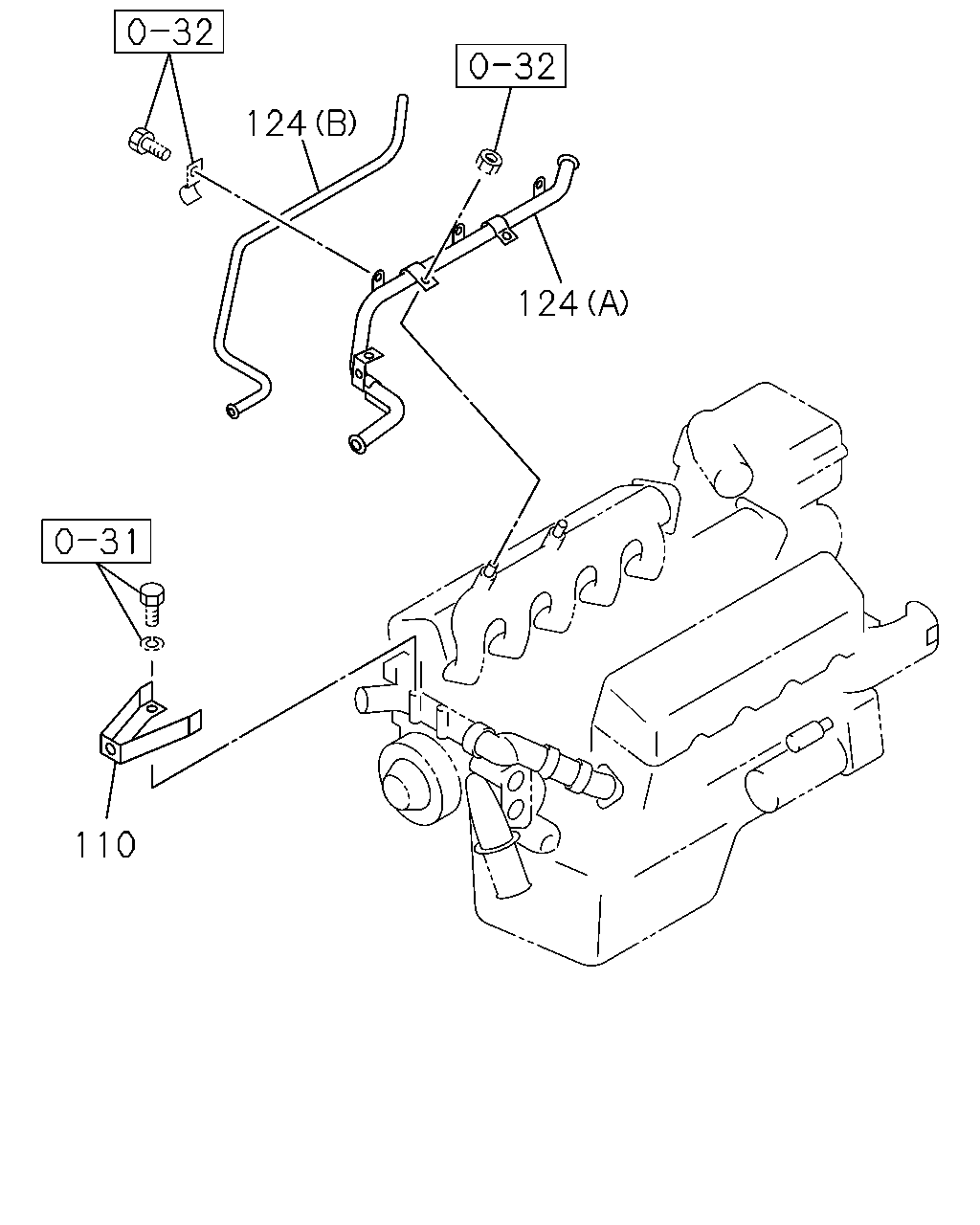

çizim 23377
124 124 110
BalonParca AdiParca NoAdetTipApplied Date A B C
110 STAY; FAN GUIDE 1-21559-104-2 01 1 0105- ● ● ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 0105- ● ● ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 0105- ● ● ●
çizim 80955
1 528 529 527 528 529 526
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21410-795-0 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21410-795-0 01 1 0304- ● ● ●
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9> 		1-21410-685-1 01 1 0105-0211 ● ● ●
1 RADIATOR ASM
RADIATOR CURTAIN<SK7> EXC. CHINA GB VAR1<JAC> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
MIXER TRUCK<RA2> EXC. CHINA GB VAR1<JAC>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0212-0303 ● ● ●
1 RADIATOR ASM
SHORT CHASSIS & LHD(CXZ6MC) RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
LONG CHASSIS & LHD(CXZ6MF) EXC. FIRE TRUCK<RA9> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
SHORT CHASSIS & LHD(CXZ6MC) EXC. MIXER TRUCK<RA2>,RADIATOR CURTAIN<SK7> 		1-21410-685-1 01 1 0304- ● ● ●
1 RADIATOR ASM
FIRE TRUCK<RA9> 		1-21410-706-0 01 1 0105- ●
526 TANK; UPR,RADIATOR CORE
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21414-030-0 01 1 0212-0303 ● ● ●
526 TANK; UPR,RADIATOR CORE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21414-030-0 01 1 0304- ● ● ●
527 TANK; LWR,RADIATOR CORE
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21415-030-0 01 1 0212-0303 ● ● ●
527 TANK; LWR,RADIATOR CORE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21415-030-0 01 1 0304- ● ● ●
528 PLATE; SIDE,RADIATOR CORE
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21416-059-0 01 1 0212-0303 ● ● ●
528 PLATE; SIDE,RADIATOR CORE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21416-059-0 01 1 0304- ● ● ●
528 PLATE; SIDE,RADIATOR CORE
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21416-060-0 01 1 0212-0303 ● ● ●
528 PLATE; SIDE,RADIATOR CORE
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21416-060-0 01 1 0304- ● ● ●
529 GASKET; CORE,RADIATOR
CHINA GB VAR1<JAC> MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21439-121-0 02 1 0212-0303 ● ● ●
529 GASKET; CORE,RADIATOR
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21439-121-0 02 1 0304-0309 ● ● ●
529 GASKET; CORE,RADIATOR
MIXER TRUCK<RA2> EXC. RADIATOR CURTAIN<SK7> 		1-21439-121-0 02 1 0310- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
