Sayfa 1-10A - Isuzu EPC

1-10A — RADIATOR (#13516) — 251 parça

526 528 527 528 529 529 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0105-	●
1	RADIATOR ASM	1-21410-870-1	01	1	0105-0309		●
1	RADIATOR ASM	1-21410-900-0	01	1	0310-		●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	0105-			●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21410-730-1	01	1	0105-			●	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-807-0	01	1	0105-				●
526	TANK; UPR,RADIATOR CORE	1-21414-029-0	01	1	0310-		●
527	TANK; LWR,RADIATOR CORE	1-21415-031-0	01	1	0310-		●
528	PLATE; SIDE,RADIATOR CORE	1-21416-113-0	01	1	0310-		●
528	PLATE; SIDE,RADIATOR CORE	1-21416-114-0	01	1	0310-		●
529	GASKET; CORE,RADIATOR	1-21439-121-0	02	1	0310-		●

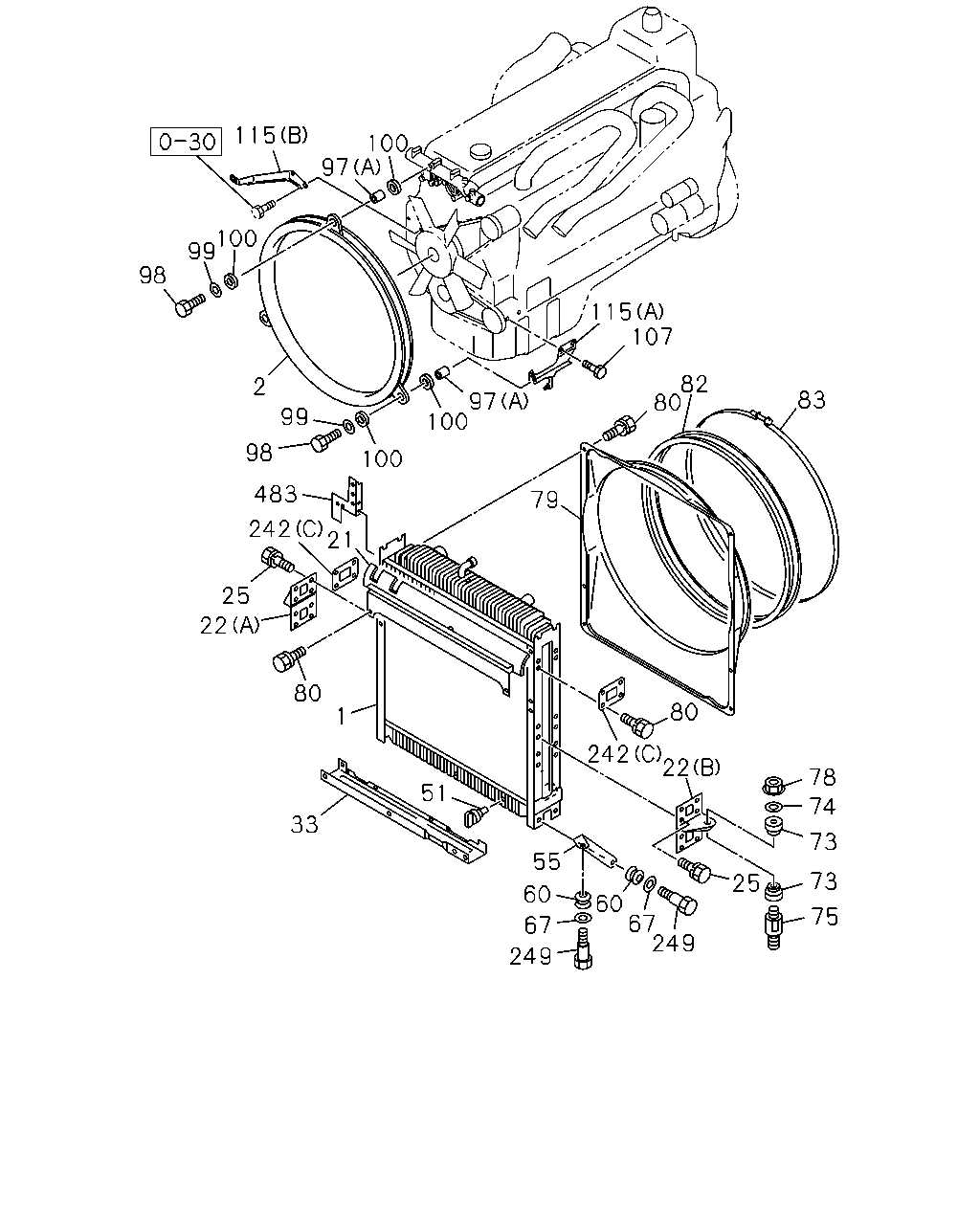

83 82 79 242 242 22 25 80 483 98 99 100 100 97 107 115 21 98 99 100 97 2 115 78 74 73 80 25 22 73 75 249 67 60 55 249 51 33 1 67 60 100 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0105-	●
1	RADIATOR ASM	1-21410-870-1	01	1	0105-0309		●
1	RADIATOR ASM	1-21410-900-0	01	1	0310-		●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	0105-			●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21410-730-1	01	1	0105-			●	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-807-0	01	1	0105-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0105-0105	●	●	●	●
2	GUIDE; FAN EURO2 SPECIFICATION<THN>	1-21551-420-0	01	1	0106-		●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-			●	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-129-0	01	1	0112-	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-098-0	01	1	0105-0111	●
21	SEAL; RAD	1-21460-098-0	01	1	0105-0111			●	●
21	SEAL; RAD	1-21460-098-0	01	1	0112-			●	●
21	SEAL; RAD	1-21460-125-0	01	1	0105-0309		●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0105-0309	●	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-503-0	01	1	0105-0309			●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-503-0	01	1	0310-	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-503-0	01	1	0310-			●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0105-0309	●	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-504-0	01	1	0105-0309			●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-504-0	01	1	0310-	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-504-0	01	1	0310-			●	●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0105-0107			●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0108-			●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (A)	1-21464-658-0	01	1	0108-				●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (B)	1-21464-659-0	01	1	0105-			●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (B)	1-21464-659-0	01	1	0105-				●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (A)	1-21464-660-0	01	1	0105-0107				●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0105-			●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0105-0309		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	09	1	0310-		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0105-0211	●	●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0105-0211			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0212-0303	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0212-0303		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0212-0303			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0304-0309	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0304-0309		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0304-0309			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0310-	●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0310-			●	●
33	PROTECTOR; RAD TUNISIA EQUIPMENT(NGT)	1-21419-049-0	01	1	0105-			●
33	PROTECTOR; RAD FIRE TRUCK<RA9>	1-21419-049-0	01	1	0105-				●
51	PLUG; DRAIN W/GASKET	1-09609-023-0	01	1	0310-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0105-0211	●	●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0212-0303	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0212-0303		●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0304-0309	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0304-0309		●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0310-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR	1-21464-766-0	01	1	0310-		●
55	STAY; RAD TO UPR MBR	1-21464-767-0	01	1	0310-		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-498-0	01	1	0105-0309		●	●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-498-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-499-0	01	1	0105-0309		●	●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-499-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-652-0	01	1	0105-			●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-652-0	01	1	0105-				●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-653-0	01	1	0105-			●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-653-0	01	1	0105-				●
60	GROMMET	1-09332-117-0	04	1	0105-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0105-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0105-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0105-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0105-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
79	GUIDE; FAN,RAD	1-21551-541-0	01	1	0310-		●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-438-0	01	1	0105-0111	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0105-0309		●	●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0310-			●	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0105-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0105-0309		●
80	BOLT; FAN GUIDE TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	17	1	0105-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0108-			●	●
80	BOLT; FAN GUIDE EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> M8X12 FLANGE	0-28080-812-0	18	1	0105-0107			●	●
80	BOLT; FAN GUIDE EXC. FIRE TRUCK<RA9> M8X12 FLANGE	0-28080-812-0	18	1	0105-0107				●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0105-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0105-		●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0105-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0105-		●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0105-	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X40 FLANGE	0-28081-040-0	01	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X60 FLANGE	0-28081-060-0	02	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0105-0512	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0105-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0105-	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0105-0512	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0105-	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0105-0307	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●	●
242	BRACKET; RAD CAB UP +110MM<TGG> (C)	1-21464-461-1	02	1	0105-	●
242	BRACKET; RAD (A)	1-21464-729-0	01	1	0105-0309		●
242	BRACKET; RAD (A)	1-21402-383-0	01	1	0310-		●
242	BRACKET; RAD (B)	1-21464-730-0	01	1	0105-0309		●
242	BRACKET; RAD (B)	1-21402-384-0	01	1	0310-		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (A)	1-21464-661-0	01	1	0105-			●
242	BRACKET; RAD FIRE TRUCK<RA9> (A)	1-21464-661-0	01	1	0105-				●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (B)	1-21464-662-0	01	1	0105-			●
242	BRACKET; RAD FIRE TRUCK<RA9> (B)	1-21464-662-0	01	1	0105-				●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-629-0	01	1	0105-			●	●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-630-0	01	1	0105-			●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0105-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-130-0	01	1	0112-	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0105-0111	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0105-0111			●
483	BRACKET; SEAL EXC. FIRE TRUCK<RA9>	1-21460-092-1	01	1	0105-0111				●
483	BRACKET; SEAL EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21460-092-1	01	1	0112-			●	●

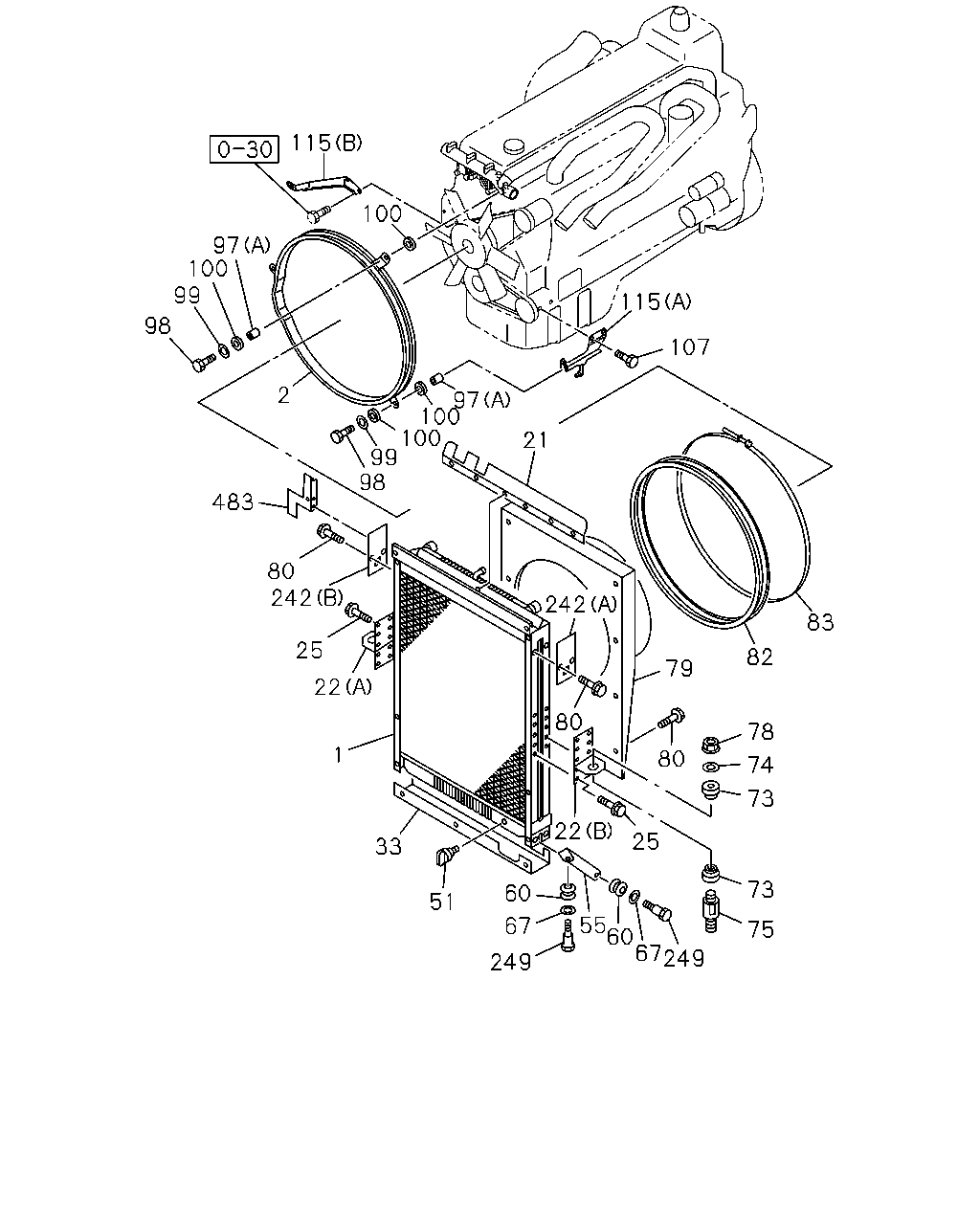

83 82 80 79 100 100 97 21 242 25 22 483 98 99 2 98 99 100 115 100 97 75 249 249 25 67 60 60 67 55 73 73 74 78 22 80 242 51 33 1 80 107 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0105-	●
1	RADIATOR ASM	1-21410-870-1	01	1	0105-0309		●
1	RADIATOR ASM	1-21410-900-0	01	1	0310-		●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	0105-			●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21410-730-1	01	1	0105-			●	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-807-0	01	1	0105-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0105-0105	●	●	●	●
2	GUIDE; FAN EURO2 SPECIFICATION<THN>	1-21551-420-0	01	1	0106-		●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-			●	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-129-0	01	1	0112-	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-098-0	01	1	0105-0111	●
21	SEAL; RAD	1-21460-098-0	01	1	0105-0111			●	●
21	SEAL; RAD	1-21460-098-0	01	1	0112-			●	●
21	SEAL; RAD	1-21460-125-0	01	1	0105-0309		●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0105-0309	●	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-503-0	01	1	0105-0309			●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-503-0	01	1	0310-	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-503-0	01	1	0310-			●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0105-0309	●	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-504-0	01	1	0105-0309			●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-504-0	01	1	0310-	●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-504-0	01	1	0310-			●	●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0105-0107			●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0108-			●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (A)	1-21464-658-0	01	1	0108-				●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (B)	1-21464-659-0	01	1	0105-			●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (B)	1-21464-659-0	01	1	0105-				●
22	BRACKET; RAD MTG FIRE TRUCK<RA9> (A)	1-21464-660-0	01	1	0105-0107				●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0105-			●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0105-0309		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	09	1	0310-		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0105-0211	●	●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0105-0211			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0212-0303	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0212-0303		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0212-0303			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0304-0309	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0304-0309		●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0304-0309			●	●
33	PROTECTOR; RAD CAB UP +110MM<TGG>	1-21419-050-0	01	1	0310-	●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21419-050-0	01	1	0310-			●	●
33	PROTECTOR; RAD TUNISIA EQUIPMENT(NGT)	1-21419-049-0	01	1	0105-			●
33	PROTECTOR; RAD FIRE TRUCK<RA9>	1-21419-049-0	01	1	0105-				●
51	PLUG; DRAIN W/GASKET	1-09609-023-0	01	1	0310-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0105-0211	●	●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0212-0303	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0212-0303		●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0304-0309	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0304-0309		●	●	●
51	PLUG; DRAIN CAB UP +110MM<TGG> W/GASKET	1-09609-009-0	01	1	0310-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR	1-21464-766-0	01	1	0310-		●
55	STAY; RAD TO UPR MBR	1-21464-767-0	01	1	0310-		●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-498-0	01	1	0105-0309		●	●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-498-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-499-0	01	1	0105-0309		●	●	●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21464-499-0	01	1	0310-			●	●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-652-0	01	1	0105-			●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-652-0	01	1	0105-				●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-653-0	01	1	0105-			●
55	STAY; RAD TO UPR MBR FIRE TRUCK<RA9>	1-21464-653-0	01	1	0105-				●
60	GROMMET	1-09332-117-0	04	1	0105-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0105-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0105-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0105-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0105-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
79	GUIDE; FAN,RAD	1-21551-541-0	01	1	0310-		●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-438-0	01	1	0105-0111	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0105-0309		●	●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0310-			●	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0105-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0105-0309		●
80	BOLT; FAN GUIDE TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	17	1	0105-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0108-			●	●
80	BOLT; FAN GUIDE EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> M8X12 FLANGE	0-28080-812-0	18	1	0105-0107			●	●
80	BOLT; FAN GUIDE EXC. FIRE TRUCK<RA9> M8X12 FLANGE	0-28080-812-0	18	1	0105-0107				●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0105-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0105-		●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0105-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0105-		●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0105-	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X40 FLANGE	0-28081-040-0	01	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X60 FLANGE	0-28081-060-0	02	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0105-0512	●	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0105-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0105-	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0105-0512	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0105-	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0105-0307	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●	●
242	BRACKET; RAD CAB UP +110MM<TGG> (C)	1-21464-461-1	02	1	0105-	●
242	BRACKET; RAD (A)	1-21464-729-0	01	1	0105-0309		●
242	BRACKET; RAD (A)	1-21402-383-0	01	1	0310-		●
242	BRACKET; RAD (B)	1-21464-730-0	01	1	0105-0309		●
242	BRACKET; RAD (B)	1-21402-384-0	01	1	0310-		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (A)	1-21464-661-0	01	1	0105-			●
242	BRACKET; RAD FIRE TRUCK<RA9> (A)	1-21464-661-0	01	1	0105-				●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (B)	1-21464-662-0	01	1	0105-			●
242	BRACKET; RAD FIRE TRUCK<RA9> (B)	1-21464-662-0	01	1	0105-				●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (A)	1-21464-629-0	01	1	0105-			●	●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9> (B)	1-21464-630-0	01	1	0105-			●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0105-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-130-0	01	1	0112-	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0105-0111	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0105-0111			●
483	BRACKET; SEAL EXC. FIRE TRUCK<RA9>	1-21460-092-1	01	1	0105-0111				●
483	BRACKET; SEAL EXC. TUNISIA EQUIPMENT(NGT),FIRE TRUCK<RA9>	1-21460-092-1	01	1	0112-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
