1-01B — ACCELERATOR PEDAL AND CONTROL (#13515) — 83 parça

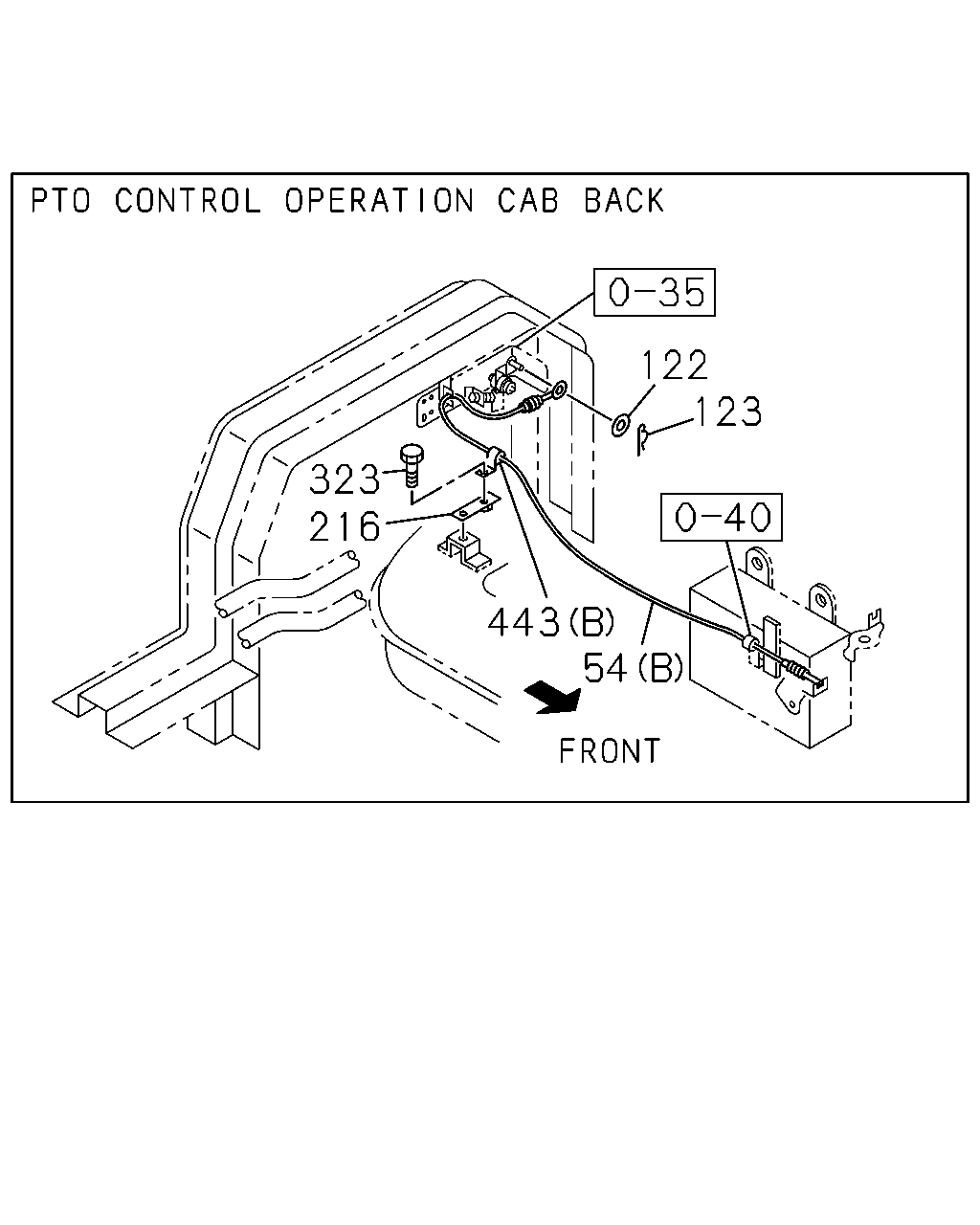

123 122 54 443 216 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT (A) L=2735	1-73907-421-3	01	1	0105-	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-654-0	01	1	0105-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=1234	1-23230-107-1	01	1	0105-			●
54	CABLE; ENG CONT EXC. PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-627-1	01	1	0105-			●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.4	9-09160-508-0	01	1	0105-			●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> L=27.7	1-09987-141-0	01	1	0105-			●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ>	1-47476-881-0	01	1	0105-			●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512			●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-			●

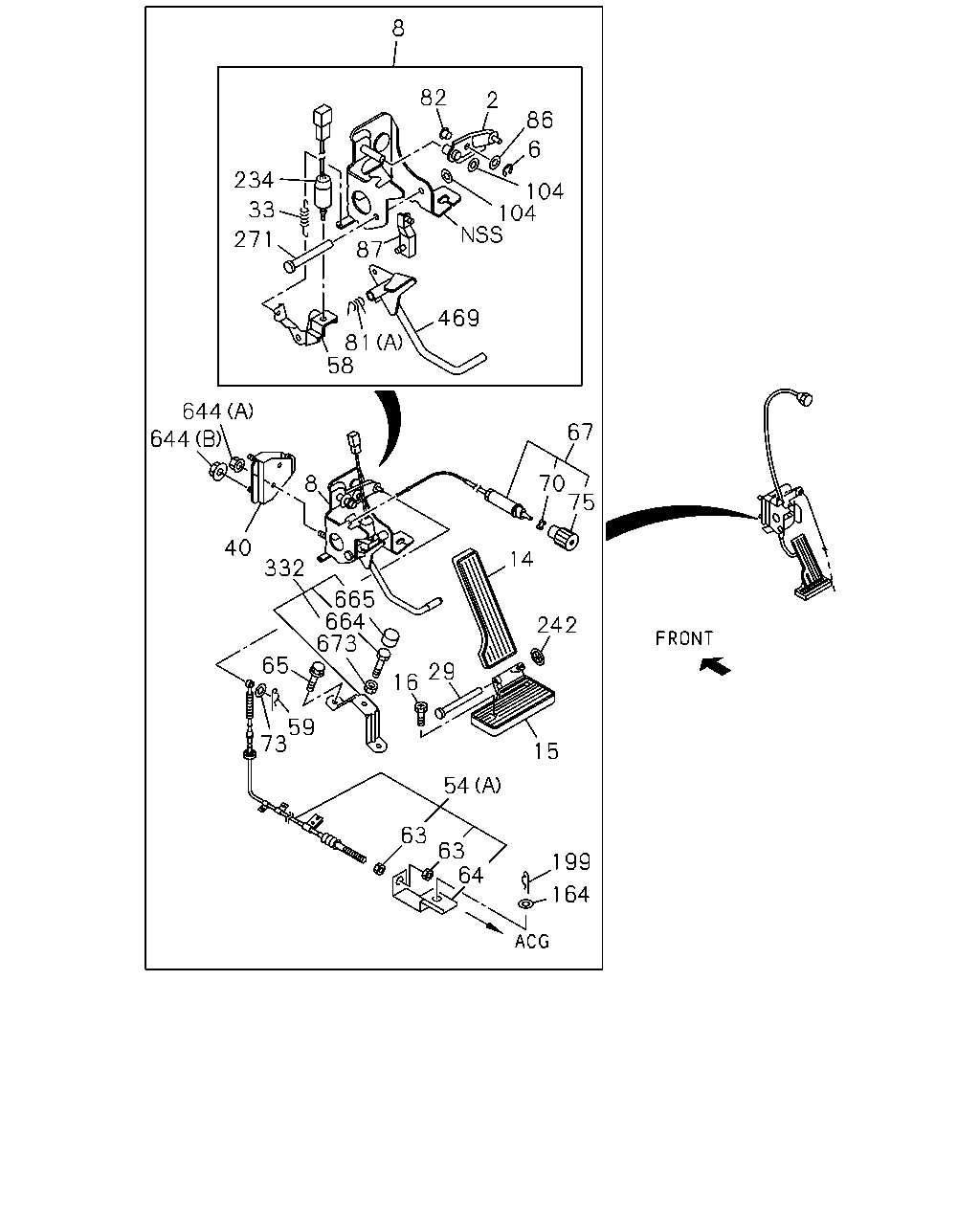

242 15 54 63 63 64 164 199 332 40 8 67 70 14 75 16 29 65 59 673 665 664 58 81 469 104 104 6 86 2 82 8 234 271 33 87 73 644 644

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-210-2	01	1	0105-	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=4	9-09185-404-0	02	1	0105-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-94414-815-0	01	1	0105-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0105-	●	●	●
54	CABLE; ENG CONT (A) L=2735	1-73907-421-3	01	1	0105-	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-654-0	01	1	0105-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=1234	1-23230-107-1	01	1	0105-			●
54	CABLE; ENG CONT EXC. PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-627-1	01	1	0105-			●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-242-1	01	1	0105-	●	●	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09747-005-0	01	1	0105-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0105-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	0105-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=399	1-73998-912-3	01	1	0105-0204	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=315	1-73908-423-0	01	1	0205-	●	●	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-045-1	01	1	0105-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0105-	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97066-797-1	01	1	0105-0109	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-409-0	01	1	0205-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-244-1	02	1	0105-	●	●	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-211-1	01	1	0105-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	0105-	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	0105-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-209-5	01	1	0105-	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●

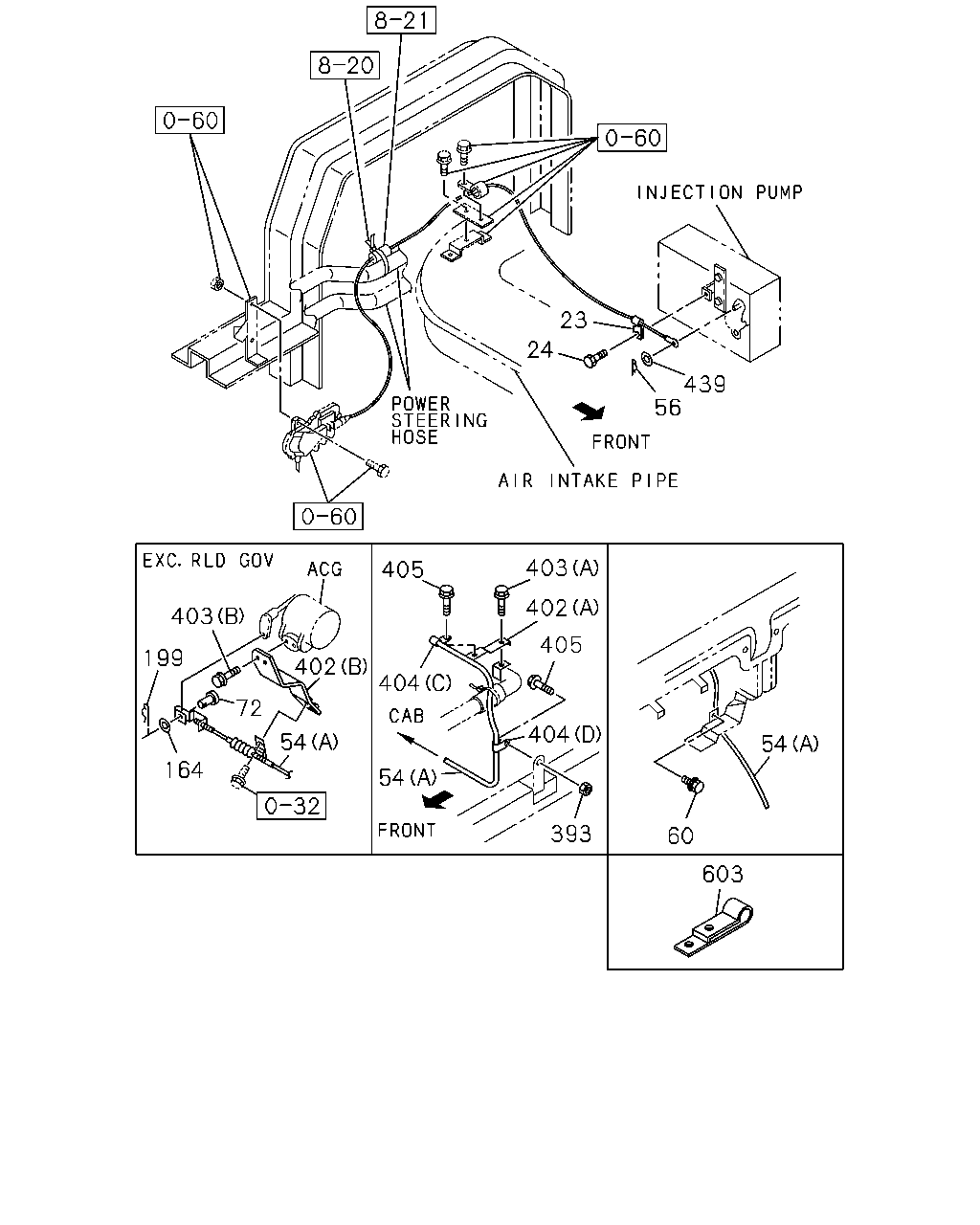

439 56 23 24 405 403 199 402 54 72 164 403 405 402 404 54 393 404 60 54 603

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0105-	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
54	CABLE; ENG CONT (A) L=2735	1-73907-421-3	01	1	0105-	●	●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-654-0	01	1	0105-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=1234	1-23230-107-1	01	1	0105-			●
54	CABLE; ENG CONT EXC. PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=2035	1-73907-627-1	01	1	0105-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	0105-	●	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	0105-	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	0105-	●	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
402	BRACKET; CABLE CLIP (A)	1-47476-527-0	01	1	0105-	●	●	●
402	BRACKET; CABLE CLIP EXC. RLD GOVERNOR(SD7) (B)	1-23335-379-0	01	1	0105-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●	●
403	BOLT; BRKT,ACCEL PEDAL (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0105-	●	●	●
404	CLIP; CABLE (D) ID=7 L=20	9-09524-635-0	01	1	0105-	●	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-	●	●	●
603	BRACKET; ENG CONT SHAFT L=30	1-09700-326-0	01	1	0105-	●	●	●
