0-90B — POWER TAKE OFF; FLYWHEEL (#13513) — 90 parça

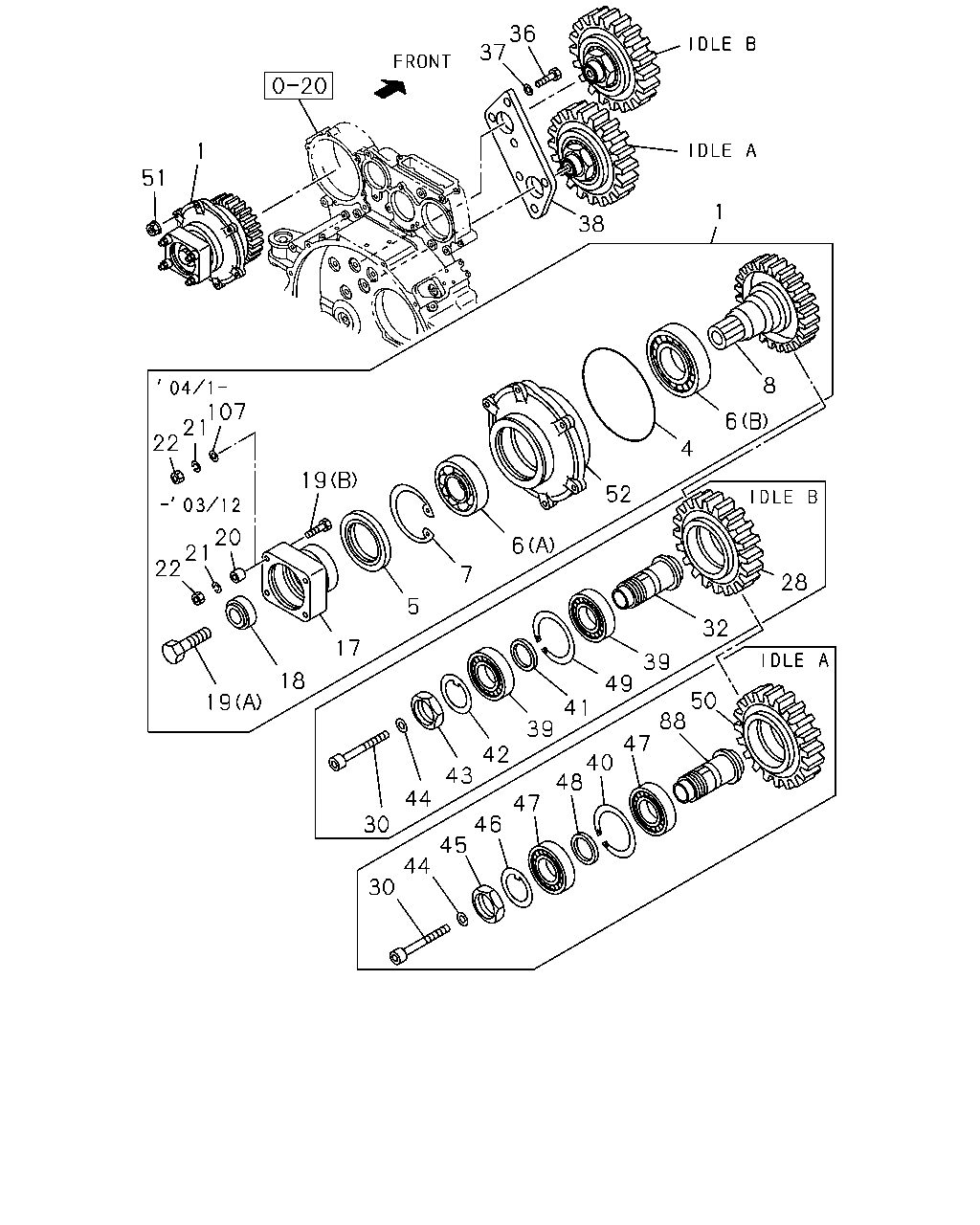

çizim 22825
51 1 37 36 1 38 19 19 22 21 20 22 21 107 18 17 5 7 6 52 4 6 8 28 32 39 49 41 39 42 43 44 30 30 44 45 46 50 88 47 40 48 47
BalonParca AdiParca NoAdetTipApplied Date A B C
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-350-0 01 1 0105-0203 ● ● ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-159-4 01 1 0204- ● ● ●
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09623-003-0 01 1 0105- ● ● ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09625-062-0 01 1 0105- ● ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) (A) NSK 		9-00090-047-0 01 1 0105- ● ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) (B) NSK 		9-00094-107-0 01 1 0105- ● ● ●
7 RING; SNAP BALL BRG
ENGINE REAR PTO(SV1) OD=105.5 		9-09180-100-0 01 1 0105- ● ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=47 		1-38240-023-0 01 1 0105-0203 ● ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=36 		1-38241-097-0 01 1 0204- ● ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-0 01 1 0105-0206 ● ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 0207- ● ● ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-0 01 1 0105-0206 ● ● ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-1 01 1 0207- ● ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X70 		9-92621-270-0 04 1 0105-0206 ● ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X70 		9-92621-270-0 04 1 0207-0505 ● ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X40 		9-92061-240-0 04 1 0506-0512 ● ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X40 		0-20951-240-0 04 1 0601- ● ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (A) M20X60 		9-92052-060-0 01 1 0105- ● ● ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 0105-0206 ● ● ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 0207-0310 ● ● ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 0311-0312 ● ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		9-09150-612-0 04 1 0105-0206 ● ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		9-09150-612-0 04 1 0207- ● ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		9-99110-512-0 04 1 0105-0206 ● ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		9-99110-512-0 04 1 0207-0512 ● ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0601- ● ● ●
28 GEAR; IDLE
ENGINE REAR PTO(SV1) Z=30 		1-38261-012-2 01 1 0105- ● ● ●
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		1-09054-007-1 02 1 0105- ● ● ●
32 SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1) 		1-12531-003-1 01 1 0105- ● ● ●
36 BOLT; HOLDER
ENGINE REAR PTO(SV1) 		1-09009-038-1 06 1 0105- ● ● ●
37 WASHER; HOLDER
ENGINE REAR PTO(SV1) ID=12.2 		1-09503-008-0 06 1 0105- ● ● ●
38 HOLDER; IDLE GEAR SPINDLE
ENGINE REAR PTO(SV1) 		1-11349-062-0 01 1 0105-0203 ● ● ●
38 HOLDER; IDLE GEAR SPINDLE
ENGINE REAR PTO(SV1) 		1-11349-256-0 01 1 0204- ● ● ●
39 BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1) ID=45 OD=85 		9-00032-209-0 02 1 0105- ● ● ●
40 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=3 		1-38226-015-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.05 		1-38226-016-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.12 		1-38226-017-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.19 		1-38226-018-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.26 		1-38226-019-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.33 		1-38226-020-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.40 		1-38226-021-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.47 		1-38226-022-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.54 		1-38226-023-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.61 		1-38226-024-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.68 		1-38226-025-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.75 		1-38226-026-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.82 		1-38226-027-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.89 		1-38226-028-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=6.96 		1-38226-029-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.03 		1-38226-030-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.10 		1-38226-031-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.17 		1-38226-032-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.24 		1-38226-033-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.31 		1-38226-034-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.38 		1-38226-035-0 01 1 0105- ● ● ●
41 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=7.45 		1-38226-036-0 01 1 0105- ● ● ●
42 WASHER; LK,BRG
ENGINE REAR PTO(SV1) ID=47 		1-09533-003-0 01 1 0105- ● ● ●
43 NUT; BRG IDLE GEAR
ENGINE REAR PTO(SV1) 		1-09840-005-0 01 1 0105- ● ● ●
44 WASHER; SPINDLE
ENGINE REAR PTO(SV1) ID=16.2 		1-09503-022-1 02 1 0105- ● ● ●
45 NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1) 		1-09840-005-0 01 1 0105- ● ● ●
46 WASHER; LK,BRG
ENGINE REAR PTO(SV1) ID=47 		1-09533-003-0 01 1 0105- ● ● ●
47 BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1) ID=45 OD=85 		9-00032-209-0 02 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.05 		1-38226-016-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.12 		1-38226-017-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.19 		1-38226-018-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.26 		1-38226-019-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.33 		1-38226-020-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.40 		1-38226-021-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.47 		1-38226-022-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.54 		1-38226-023-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.61 		1-38226-024-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.68 		1-38226-025-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.75 		1-38226-026-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.82 		1-38226-027-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.89 		1-38226-028-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.96 		1-38226-029-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.03 		1-38226-030-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.10 		1-38226-031-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.17 		1-38226-032-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.24 		1-38226-033-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.31 		1-38226-034-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.38 		1-38226-035-0 01 1 0105- ● ● ●
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.45 		1-38226-036-0 01 1 0105- ● ● ●
49 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=3 		1-38226-015-0 01 1 0105- ● ● ●
50 GEAR; IDLE A
ENGINE REAR PTO(SV1) Z=29 		1-38261-011-2 01 1 0105- ● ● ●
51 NUT; PTO
ENGINE REAR PTO(SV1) M10 FLANGE 		0-91150-110-0 06 1 0105-0602 ● ● ●
51 NUT; PTO
ENGINE REAR PTO(SV1) M10 FLANGE 		0-91180-110-0 06 1 0603- ● ● ●
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		1-38181-004-0 01 1 0105- ● ● ●
88 SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1) 		1-12531-003-1 01 1 0105- ● ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 		9-09160-512-0 04 1 0401- ● ● ●
