8-01 — LAMP; FRONT AND FRONT SIDE (#1351) — 144 parça

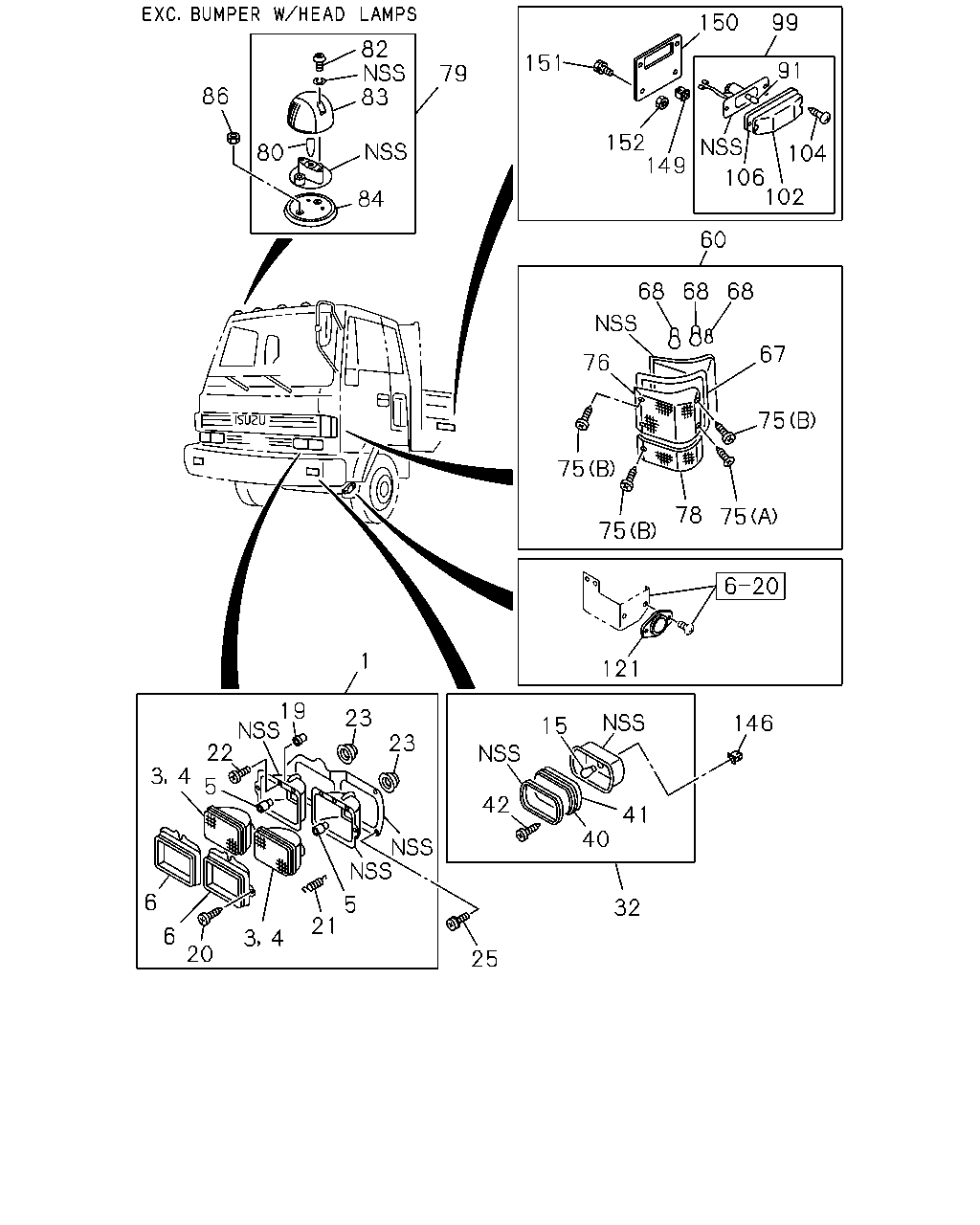

150 99 82 83 151 91 79 86 152 149 80 104 106 102 84 60 68 68 68 67 76 75 75 78 75 75 1 121 19 22 23 146 15 23 3 4 5 42 41 40 6 5 32 21 6 3 4 20 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9204-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5)	1-82110-218-4	01	1	9204-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5)	1-82110-217-4	01	1	9204-
1	LAMP ASM; HEAD HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB> BULB TYPE	1-82110-239-3	01	1	9204-
1	LAMP ASM; HEAD HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB> BULB TYPE	1-82110-238-3	01	1	9204-
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5) INNER 24V 55W	1-82191-021-0	02	1	9204-
3	SEALED BEAM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5) OUTER 24V 50/65W	1-82191-022-1	02	1	9204-
4	HEADLAMP UNIT HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W	1-82191-031-0	02	1	9204-
4	HEADLAMP UNIT HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9204-
5	BULB; HEADLAMP HALOGEN HEAD LAMP(TT5) OUTER 24V 75/70W	1-82193-006-0	02	1	9204-
5	BULB; HEADLAMP HALOGEN HEAD LAMP(TT5) INNER 24V 70W	1-82193-007-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) OUTER 24V 70W	1-82114-018-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) INNER 24V 75/70W	1-82114-019-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9204-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82114-027-0	04	1	9204-
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 24V 35W	1-82193-005-0	02	1	9204-
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82119-056-0	08	1	9204-
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10	9-09110-410-0	02	1	9204-
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> D=7X7 L=7.5	8-94291-927-0	08	1	9204-
20	SCREW; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-090-0	16	1	9204-9205
20	SCREW; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-104-0	16	1	9206-
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-023-0	16	1	9204-
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9204-
22	SCREW; ADJ,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-030-0	08	1	9204-9205
22	SCREW; ADJ,HEADLAMP	1-82119-095-0	08	1	9206-
22	SCREW; ADJ,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-024-0	08	1	9204-9205
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5)	8-94160-623-0	04	1	9204-
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB>	1-09981-315-0	08	1	9204-
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9204-
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-210-3	01	1	9204-
32	LAMP ASM; FOG EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82110-209-3	01	1	9204-
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82115-008-0	01	1	9204-
40	LENS; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82115-007-0	01	1	9204-
41	GASKET; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82116-007-0	02	1	9204-
42	SCREW; LENS,FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC>	1-82119-025-0	04	1	9204-
60	LAMP ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82210-159-0	01	1	9204-
60	LAMP ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82210-158-0	01	1	9204-
60	LAMP ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82210-141-1	01	1	9204-
60	LAMP ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82210-140-1	01	1	9204-
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9204-
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9204-
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9204-
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9204-
75	SCREW; FRT COMB LAMP (B)	1-82219-001-0	08	1	9204-
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9204-
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9204-
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9204-
78	LENS ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82215-051-0	01	1	9204-
78	LENS ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82215-050-0	01	1	9204-
78	LENS ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82215-034-0	01	1	9204-
78	LENS ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82215-035-0	01	1	9204-
79	LAMP; MARKER,ROOF LAMPS FOUR ROOF MARKER<PJ5> AMBER	1-82210-143-1	04	1	9305-
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> 24V 5W	8-94135-397-0	04	1	9305-
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-82219-011-0	08	1	9305-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-82215-040-0	04	1	9305-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> PURPLE	1-82216-018-0	04	1	9305-
86	NUT; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> M6 FLANGE	0-91150-106-0	08	1	9209-
91	BULB; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> 24V 5W	1-82194-042-0	02	1	9204-
99	LAMP; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82220-013-2	01	1	9204-
99	LAMP; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82220-012-2	01	1	9204-
102	LENS; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	8-94230-837-0	02	1	9204-
104	SCREW; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	1-82229-003-0	04	1	9204-
106	GASKET; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	5-82226-009-0	01	1	9204-
106	GASKET; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	5-82226-008-0	01	1	9204-
121	REFLECTOR; REFLEX LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB>	1-82290-020-0	02	1	9407-
146	GROMMET; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> D=9.7X9.7 L=8	8-94222-314-0	04	1	9204-
149	GROMMET; SCREW,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M4	5-09470-002-0	04	1	9204-
150	BRACKET; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82227-003-0	02	1	9204-
151	BOLT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8X25 W/LK WASHER	9-01900-825-0	02	1	9204-9204
151	BOLT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-
152	NUT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9204-

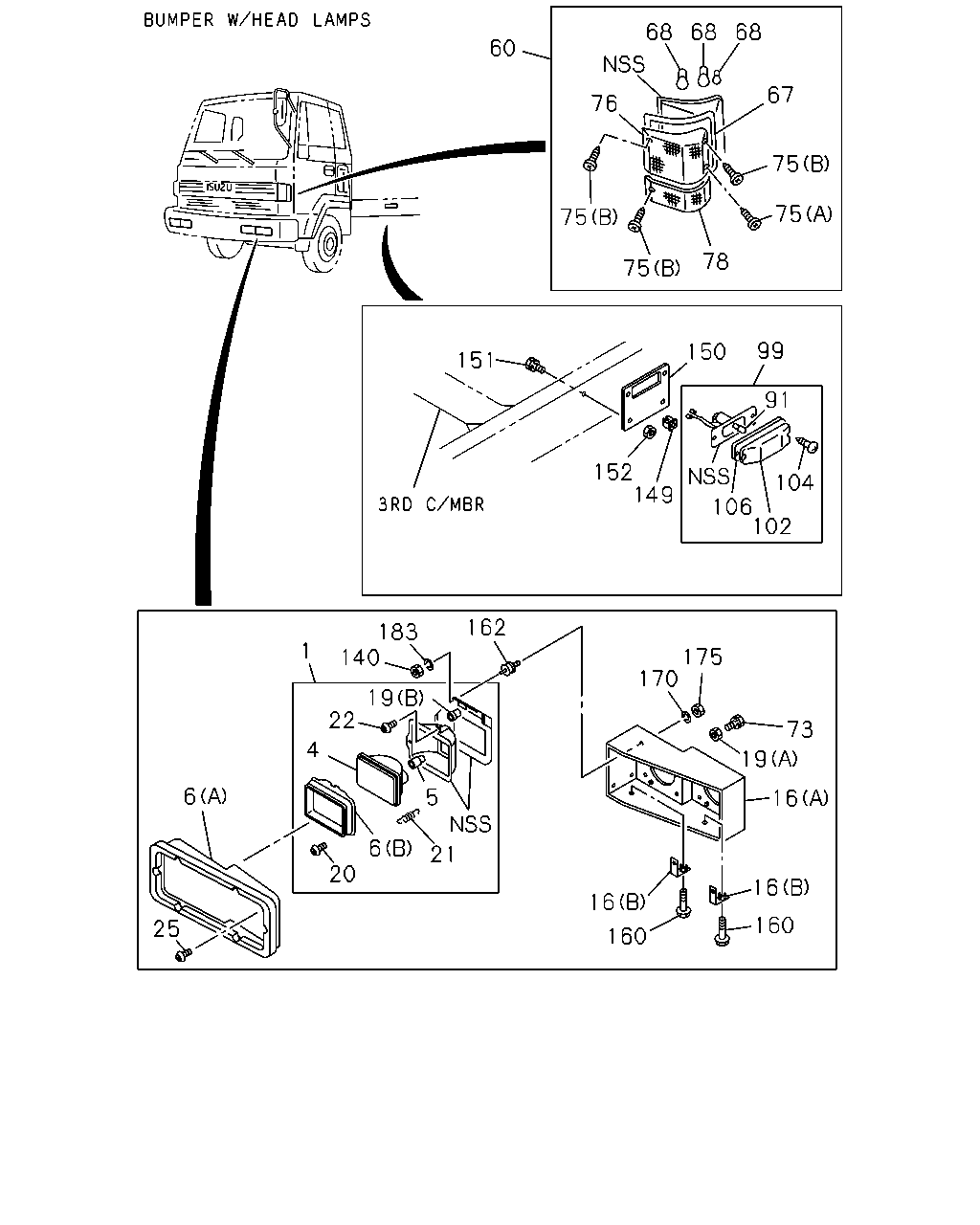

68 68 68 60 67 76 75 75 75 78 75 99 150 151 91 152 149 104 106 102 162 183 140 1 175 170 19 22 73 4 19 6 5 16 6 21 20 16 16 160 25 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9204-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9204-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5)	1-82110-218-4	01	1	9204-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5)	1-82110-217-4	01	1	9204-
1	LAMP ASM; HEAD HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB> BULB TYPE	1-82110-239-3	01	1	9204-
1	LAMP ASM; HEAD HALOGEN HEAD LAMP(TT5) EXC. BUMPER W/HEADLAMPS<SLB> BULB TYPE	1-82110-238-3	01	1	9204-
4	HEADLAMP UNIT HALOGEN HEAD LAMP(TT5) OUTER TYPE 2 24V 75/70W	1-82191-031-0	02	1	9204-
4	HEADLAMP UNIT HALOGEN HEAD LAMP(TT5) INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9204-
5	BULB; HEADLAMP HALOGEN HEAD LAMP(TT5) OUTER 24V 75/70W	1-82193-006-0	02	1	9204-
5	BULB; HEADLAMP HALOGEN HEAD LAMP(TT5) INNER 24V 70W	1-82193-007-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) OUTER 24V 70W	1-82114-018-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B) INNER 24V 75/70W	1-82114-019-0	02	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9204-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9204-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82114-027-0	04	1	9204-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-077-2	04	1	9204-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-073-2	01	1	9204-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-074-2	01	1	9204-
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82119-056-0	08	1	9204-
19	NUT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10	9-09110-410-0	02	1	9204-
19	NUT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> D=7X7 L=7.5	8-94291-927-0	08	1	9204-
20	SCREW; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-090-0	16	1	9204-9205
20	SCREW; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-104-0	16	1	9206-
20	SCREW; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-023-0	16	1	9204-
21	SPRING; ADJ HEADLAMP	1-82119-021-0	04	1	9204-
22	SCREW; ADJ,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82119-030-0	08	1	9204-9205
22	SCREW; ADJ,HEADLAMP	1-82119-095-0	08	1	9206-
22	SCREW; ADJ,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-024-0	08	1	9204-9205
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB>	1-09981-315-0	08	1	9204-
25	SCREW; LAMP EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> M6X12 W/LK&PL WASHER	1-09981-430-0	08	1	9204-
60	LAMP ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82210-159-0	01	1	9204-
60	LAMP ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82210-158-0	01	1	9204-
60	LAMP ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82210-141-1	01	1	9204-
60	LAMP ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82210-140-1	01	1	9204-
67	GASKET; FRT COMB LAMP	1-82216-015-0	01	1	9204-
67	GASKET; FRT COMB LAMP	1-82216-014-0	01	1	9204-
68	BULB; FRT COMB LAMP 24V 21W	1-82194-036-0	04	1	9204-
68	BULB; FRT COMB LAMP 24V 5W	1-82194-039-0	02	1	9204-
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 W/LK WASHER	9-01901-025-0	08	1	9204-9204
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 W/LK WASHER	0-50041-025-0	08	1	9205-
75	SCREW; FRT COMB LAMP (B)	1-82219-001-0	08	1	9204-
75	SCREW; FRT COMB LAMP (A)	1-82219-002-0	04	1	9204-
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9204-
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9204-
78	LENS ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82215-051-0	01	1	9204-
78	LENS ASM; FRT COMB LIGHTING SYSTEM ECE<SLC>	1-82215-050-0	01	1	9204-
78	LENS ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82215-034-0	01	1	9204-
78	LENS ASM; FRT COMB EXC. LIGHTING SYSTEM ECE<SLC>	1-82215-035-0	01	1	9204-
91	BULB; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC> 24V 5W	1-82194-042-0	02	1	9204-
99	LAMP; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82220-013-2	01	1	9204-
99	LAMP; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82220-012-2	01	1	9204-
102	LENS; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	8-94230-837-0	02	1	9204-
104	SCREW; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	1-82229-003-0	04	1	9204-
106	GASKET; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	5-82226-009-0	01	1	9204-
106	GASKET; SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	5-82226-008-0	01	1	9204-
140	NUT BUMPER W/HEADLAMPS<SLB> M5	9-99110-405-0	12	1	9204-
149	GROMMET; SCREW,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M4	5-09470-002-0	04	1	9204-
150	BRACKET; SIDE FLASHER LIGHTING SYSTEM ECE<SLC>	1-82227-003-0	02	1	9204-
151	BOLT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8X25 W/LK WASHER	9-01900-825-0	02	1	9204-9204
151	BOLT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-
152	NUT; BRKT,SIDE FLASHER LIGHTING SYSTEM ECE<SLC> M8	9-09110-408-0	02	1	9204-
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28010-816-0	04	1	9204-9204
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28080-816-0	04	1	9205-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-304-0	16	1	9204-
170	WASHER; LK BUMPER W/HEADLAMPS<SLB> ID=8.2	9-09150-508-0	16	1	9204-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8	9-09110-408-0	16	1	9204-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=5.1	9-09150-505-0	12	1	9204-
