0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#13506) — 19 parça

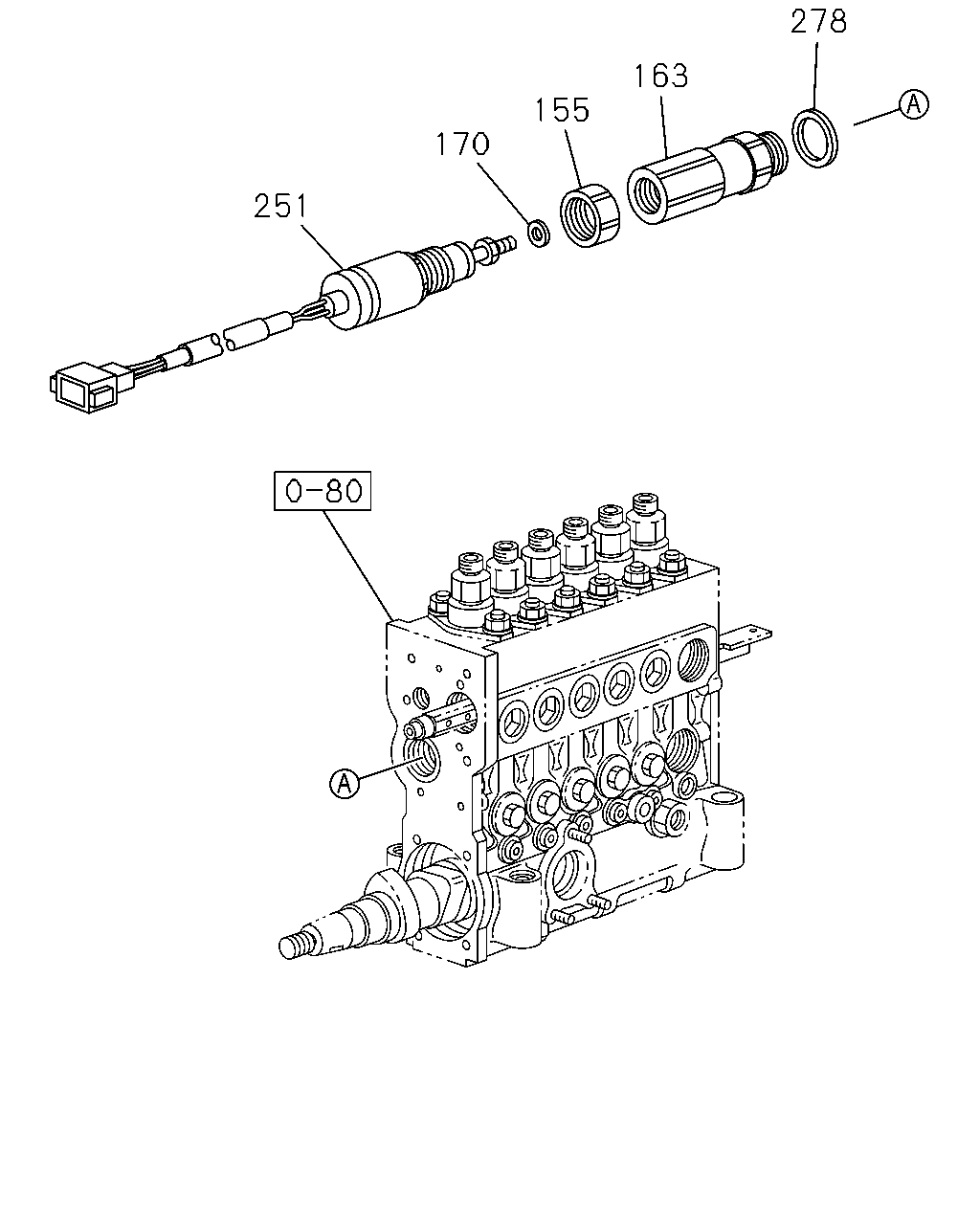

278 163 155 170 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	NUT; SENSOR ASM PART: B = 1-15603-290-6	1-15779-179-0	01	1	-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: B = 1-15603-290-6	1-15779-618-0	01	1	-
170	SHIM; CONN PIN,LOAD SENSOR,GOV ASM PART: B = 1-15603-290-6	1-15729-673-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 1-15603-290-6	1-15637-050-0	01	1	-
278	GASKET; SENSOR ASM PART: B = 1-15603-290-6	9-81325-528-0	01	1	-

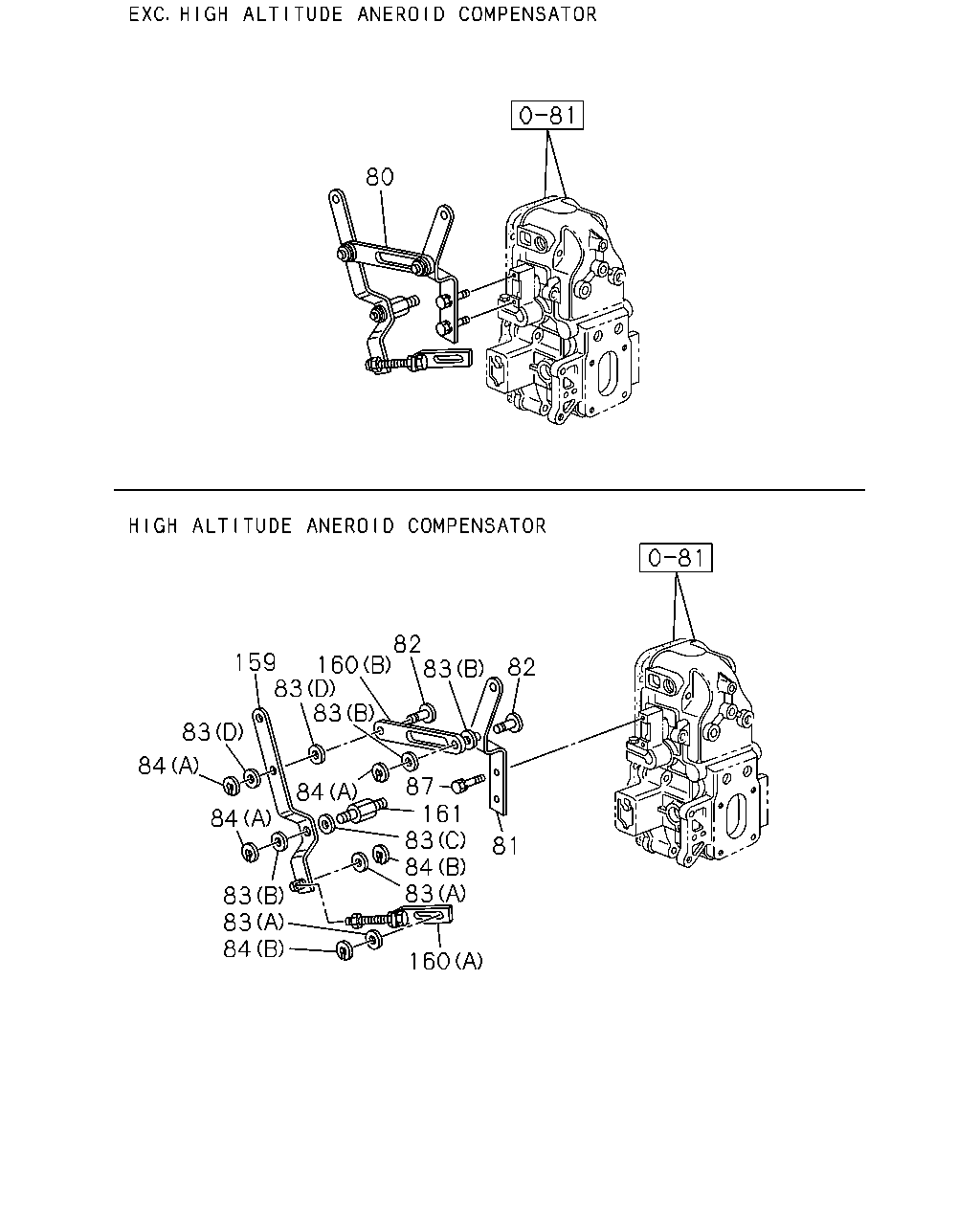

80 82 83 82 160 159 83 84 84 83 83 84 160 81 83 84 83 161 87 84 83 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	LEVER KIT ASM PART: A = 1-15603-206-2	1-15725-678-0	01	1	-
81	LEVER; INNER ASM PART: C = 1-15603-315-2	1-15725-662-0	01	1	-
82	PIN; LEVER TO LEVER ASM PART: C = 1-15603-315-2	1-15729-722-0	02	1	-
83	WASHER; LEVER (D), ID=10.5 OD=18 ASM PART: C = 1-15603-315-2	9-09160-510-0	02	1	-
83	WASHER; LEVER (A), ID=6.4 OD=14 ASM PART: C = 1-15603-315-2	9-09160-606-0	02	1	-
83	WASHER; LEVER (B), ID=10.5 ASM PART: C = 1-15603-315-2	9-09164-510-0	03	1	-
83	WASHER; LEVER (C), T=0.20 ASM PART: C = 1-15603-315-2	9-88410-421-0	01	1	-
84	RING; SNAP (A) ASM PART: C = 1-15603-315-2	1-15729-723-0	03	1	-
84	RING; SNAP (B) ASM PART: C = 1-15603-315-2	8-94244-599-0	02	1	-
87	BOLT; LEVER M6X16 W/LK WASHER ASM PART: C = 1-15603-315-2	9-01900-616-0	02	1	-
159	LEVER; OUTER ASM PART: C = 1-15603-315-2	1-15725-408-0	01	1	-
160	LINK; LEVER (A) ASM PART: C = 1-15603-315-2	1-15725-410-0	01	1	-
160	LINK; LEVER (B) ASM PART: C = 1-15603-315-2	1-15725-904-0	01	1	-
161	PIN; LEVER ASM PART: C = 1-15603-315-2	1-15729-724-0	01	1	-
