0-65 — STARTER (#13502) — 146 parça

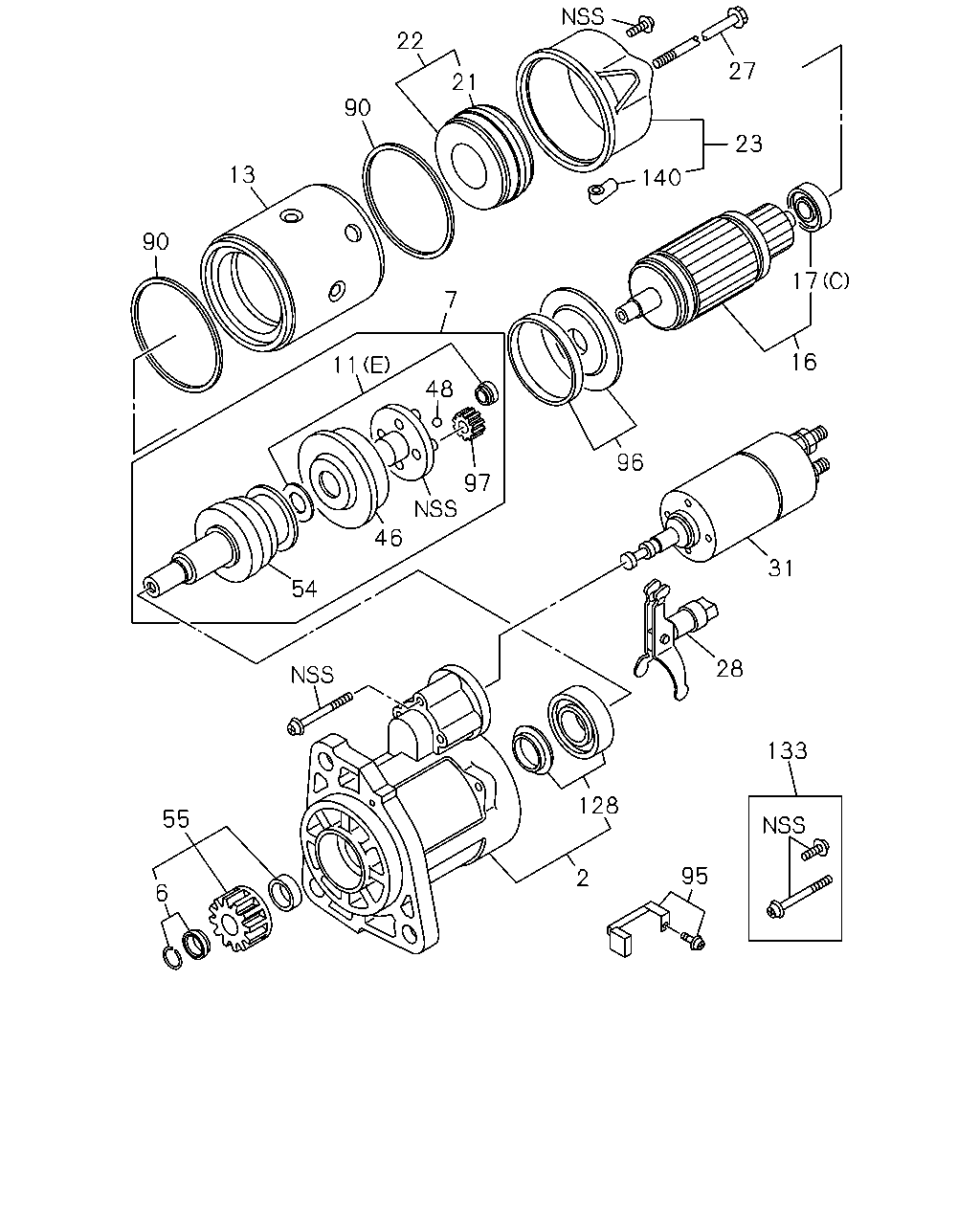

22 27 21 90 23 140 13 90 17 11 16 48 96 97 46 7 31 54 28 133 128 55 2 95 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81123-065-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81123-066-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81123-069-0	01	1	-
6	STOPPER; PINION STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) NIKKO ASM PART: A = 1-81100-334-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-592-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (E) MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (D) NIKKO ASM PART: A = 1-81100-334-1	5-81129-160-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-695-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-839-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81129-840-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81129-847-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-067-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-652-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-790-0	01	1	-0205
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81129-790-0	01	1	-0206
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-071-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-664-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81115-233-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-942-0	01	1	-
27	BOLT; THROUGH,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-665-0	02	1	-
27	BOLT; THROUGH,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-810-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-115-0	01	1	-0205
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-115-0	01	1	-0206
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-129-0	01	1	0207-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-129-0	01	1	0206-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81129-784-0	01	1	-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-838-0	01	1	-
90	GASKET; ARMATURE MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-827-0	02	1	-
95	BRUSH ASM; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81116-067-0	01	1	-
95	BRUSH ASM; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-663-1	04	1	-
96	GASKET; FRT CASE MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-796-0	01	1	-
97	GEAR; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81123-056-0	04	1	-
128	BEARING; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-780-0	01	1	-
133	SCREW SET; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-787-0	01	1	-
140	GROMMET; RR COVER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	8-97376-389-0	01	1	-

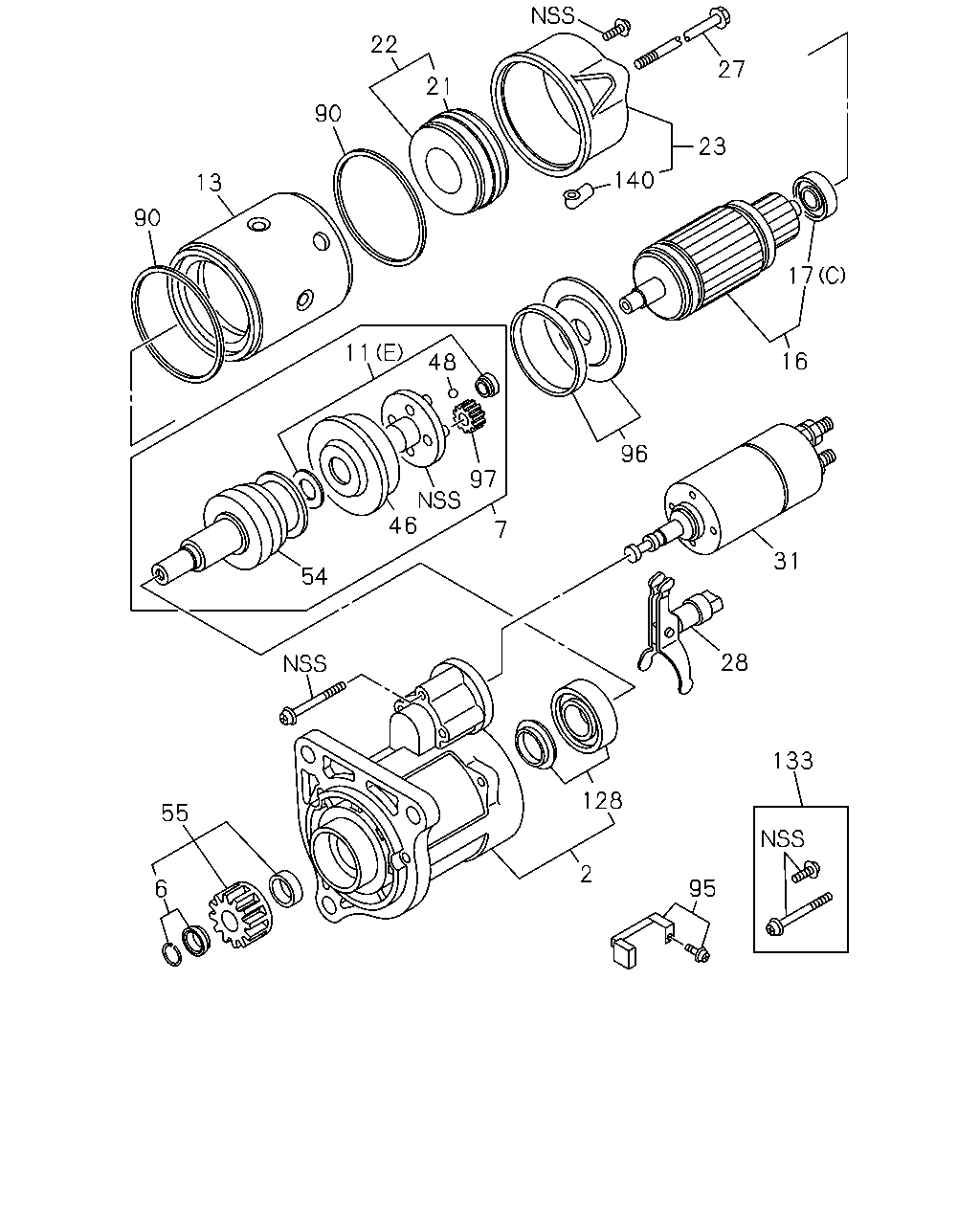

22 27 21 90 23 13 140 90 17 7 16 11 48 96 97 46 31 54 28 133 128 55 95 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81123-065-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81123-066-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81123-069-0	01	1	-
6	STOPPER; PINION STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) NIKKO ASM PART: A = 1-81100-334-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-592-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (E) MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (D) NIKKO ASM PART: A = 1-81100-334-1	5-81129-160-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-695-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-839-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81129-840-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81129-847-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-067-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-652-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-790-0	01	1	-0205
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81129-790-0	01	1	-0206
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-071-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-664-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81115-233-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-942-0	01	1	-
27	BOLT; THROUGH,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-665-0	02	1	-
27	BOLT; THROUGH,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-810-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-115-0	01	1	-0205
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-115-0	01	1	-0206
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-129-0	01	1	0207-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-129-0	01	1	0206-
46	GEAR; CLU STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81129-784-0	01	1	-
55	PINION; CLU,STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-838-0	01	1	-
90	GASKET; ARMATURE MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-827-0	02	1	-
95	BRUSH ASM; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81116-067-0	01	1	-
95	BRUSH ASM; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-663-1	04	1	-
96	GASKET; FRT CASE MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-796-0	01	1	-
97	GEAR; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81123-056-0	04	1	-
128	BEARING; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-780-0	01	1	-
133	SCREW SET; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-787-0	01	1	-
140	GROMMET; RR COVER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	8-97376-389-0	01	1	-

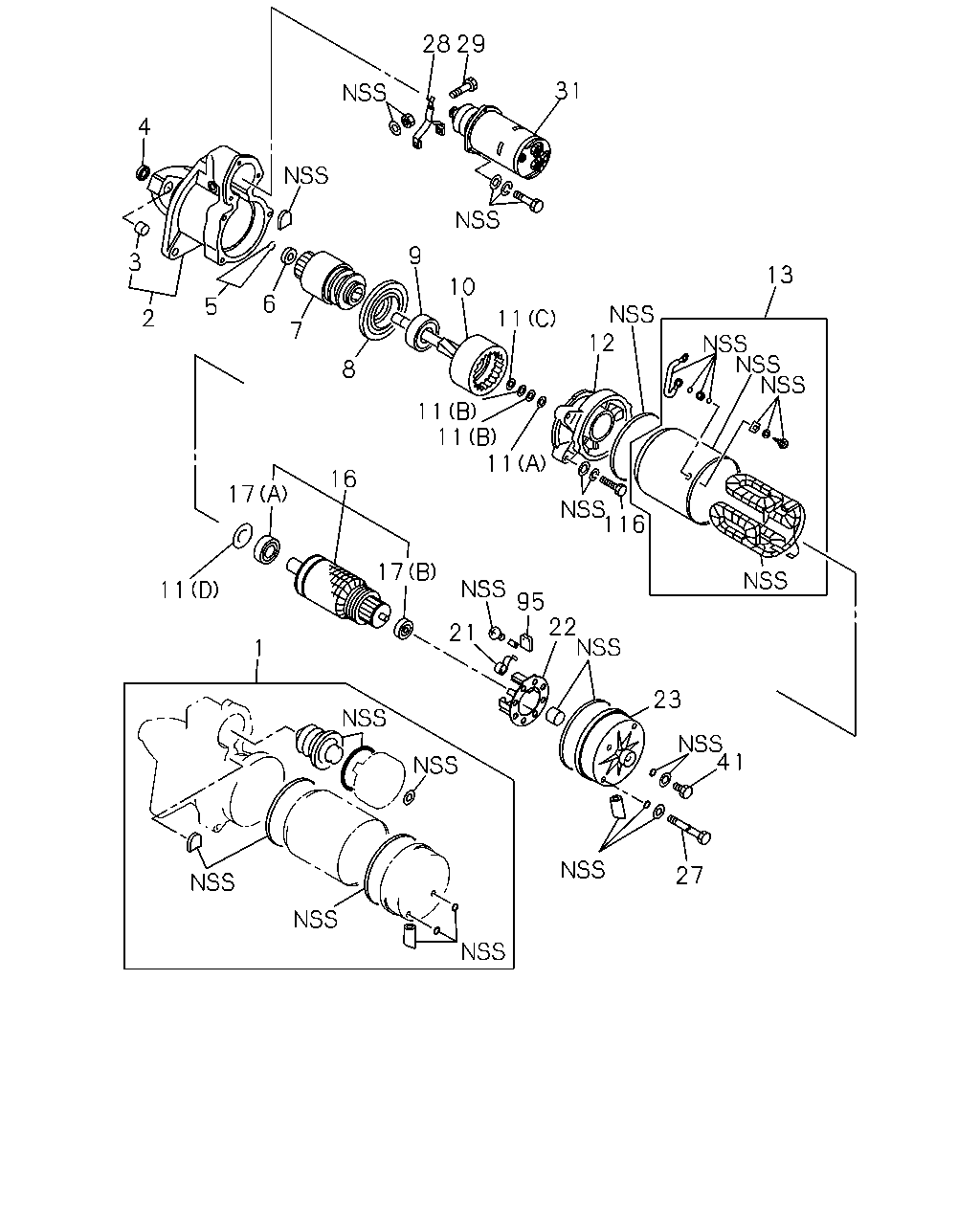

28 31 4 9 3 13 10 6 5 12 2 1 7 8 11 11 11 16 17 116 17 11 95 22 21 1 23 41 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-944-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81123-065-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81123-066-0	01	1	-
2	CASE; PINION,STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81123-069-0	01	1	-
4	COVER; PINION CASE STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-794-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-658-0	01	1	-
10	SHAFT; GEAR STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81123-047-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) NIKKO ASM PART: A = 1-81100-334-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-592-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (E) MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (D) NIKKO ASM PART: A = 1-81100-334-1	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-660-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-695-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-839-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3	1-81129-840-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: D = 1-81100-352-3	1-81129-847-0	01	1	-
16	ARMATURE; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-067-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-652-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) NIKKO ASM PART: A = 1-81100-334-1	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) NIKKO ASM PART: A = 1-81100-334-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: C = 1-81100-345-3	1-81129-790-0	01	1	-0205
17	BEARING; ARMATURE,STARTER (C) MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81129-790-0	01	1	-0206
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81121-071-0	01	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-664-0	01	1	-
23	COVER; RR COVER STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81115-233-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-942-0	01	1	-
27	BOLT; THROUGH,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-665-0	02	1	-
27	BOLT; THROUGH,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81129-783-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-185-0	01	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-810-0	01	1	-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-115-0	01	1	-0205
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-115-0	01	1	-0206
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, D = 1-81100-352-3	1-81151-129-0	01	1	0207-
31	SWITCH; ENGAGE STARTER MITSUBISHI ASM PART: C = 1-81100-345-3	1-81151-129-0	01	1	0206-
41	SCREW; RR COVER,STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-641-0	02	1	-
95	BRUSH ASM; STARTER MITSUBISHI ASM PART: B = 1-81100-341-3, C = 1-81100-345-3, D = 1-81100-352-3	1-81116-067-0	01	1	-
95	BRUSH ASM; STARTER NIKKO ASM PART: A = 1-81100-334-1	1-81129-663-1	04	1	-
116	BOLT; BRKT NIKKO ASM PART: A = 1-81100-334-1	1-81129-811-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
