◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#13501) — 72 parça
çizim 80637
76 21 73 21 76 9 18 9 18 18 21 73 21 100 28 18 18 99 21 23 101 12 24 13 99 81 22
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 0110- ● ●
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0110- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105- ● ●
18 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=19 L=60 		9-09525-896-0 01 1 0110- ● ●
18 CLIP; BATTERY CABLE
(A) ID=19 L=28 		9-09525-856-0 02 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=19 L=28 		9-09525-856-0 01 1 0110- ● ●
18 CLIP; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L) ZF M/T<X9E> (C) ID=19 L=60 		9-09525-896-0 01 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> PE-SERIES ENG<1A0> (C) ID=19 L=60 		9-09525-896-0 02 1 0110- ● ●
18 CLIP; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-R(75L) ISUZU M/T<X9A> (B) ID=19 L=28 		9-09525-856-0 01 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-R(75L) ISUZU M/T<X9A> (B) ID=19 L=28 		9-09525-856-0 02 1 0110- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 0105- ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 03 1 0105- ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 03 1 0105-0512 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
73 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) MAP5T M/T(Y4J) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82698-139-0 01 1 0105- ● ●
73 BRACKET; BATTERY CABLE
10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> (A) 		1-82698-139-0 01 1 0105- ● ●
73 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) MAP5T M/T(Y4J) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82699-493-0 01 1 0105- ● ●
73 BRACKET; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-R(75L) MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B) 		1-82699-493-0 01 1 0105- ● ●
76 NUT; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-R(75L) ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
76 NUT; BATTERY CABLE
6WF1 TC-C(1B8),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WG1 TC-R(75L) ISUZU M/T<X9A> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 0105- ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 0105- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

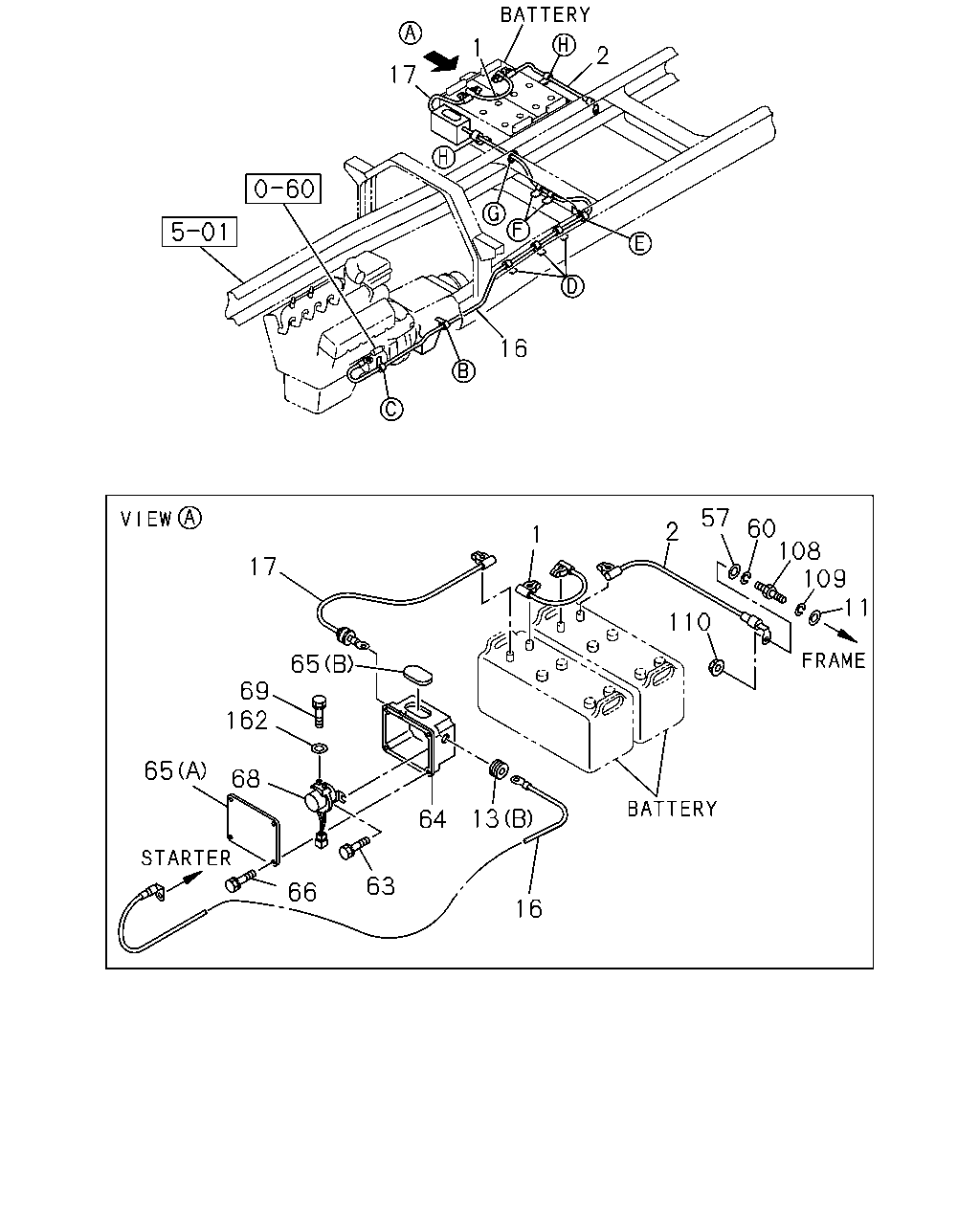

çizim 81328
1 2 17 16 57 60 108 109 11 2 1 17 110 65 69 162 65 68 13 64 63 66 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 0105- ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 0105- ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 0105- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105- ● ●
16 CABLE; STARTER TO RELAY
MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=3300 		1-82652-778-0 01 1 0112- ●
16 CABLE; STARTER TO RELAY
ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=3400 		1-82652-777-0 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
TRANSMISSION-ZF 16S221 OD(Y1U) W-SERIES ENG<1A2> L=3350 		1-82652-757-0 01 1 0112-0201 ● ●
16 CABLE; STARTER TO RELAY
CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=3350 		1-82652-757-0 01 1 0112-0201 ● ●
16 CABLE; STARTER TO RELAY
TRANSMISSION-ZF 16S221 OD(Y1U) W-SERIES ENG<1A2> L=3350 		1-82652-757-0 01 1 0202- ● ●
16 CABLE; STARTER TO RELAY
CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=3350 		1-82652-757-0 01 1 0202- ● ●
16 CABLE; STARTER TO RELAY
MAP5T M/T(Y4J) W-SERIES ENG<1A2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=3350 		1-82652-757-0 01 1 0202- ●
16 CABLE; STARTER TO RELAY
6WG1 TC-R(75L) MAP5T M/T(Y4J) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=3300 		1-82652-785-0 01 1 0202- ●
16 CABLE; STARTER TO RELAY
ZF M/T<X9E> PE-SERIES ENG<1A0> L=3630 		1-82652-770-1 01 1 0110- ● ●
16 CABLE; STARTER TO RELAY
10PE1S(60L),10PE1N(61L),10PE1H(68L) L=3450 		1-82652-742-3 01 1 0105-0109 ● ●
16 CABLE; STARTER TO RELAY
ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=3450 		1-82652-742-4 01 1 0110- ● ●
16 CABLE; STARTER TO RELAY
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) L=3350 		1-82652-743-2 01 1 0105-0111 ● ●
16 CABLE; STARTER TO RELAY
TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> L=3350 		1-82652-743-2 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
MIXER TRUCK<RA2> CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> L=3350 		1-82652-743-2 01 1 0112- ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 0105- ● ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0106- ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0106- ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0105- ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 0105- ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 0105- ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 0105- ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0105-0512 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 0601- ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 0105- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0105-0512 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601- ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0105- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0105- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0105- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0105- ● ●
