Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#13500) — 204 parça

449 450 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-C(72L),6WG1 TC-R(75L)	1-82563-871-2	02	1	0105-	●	●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
690	CONNECTOR 6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●	●

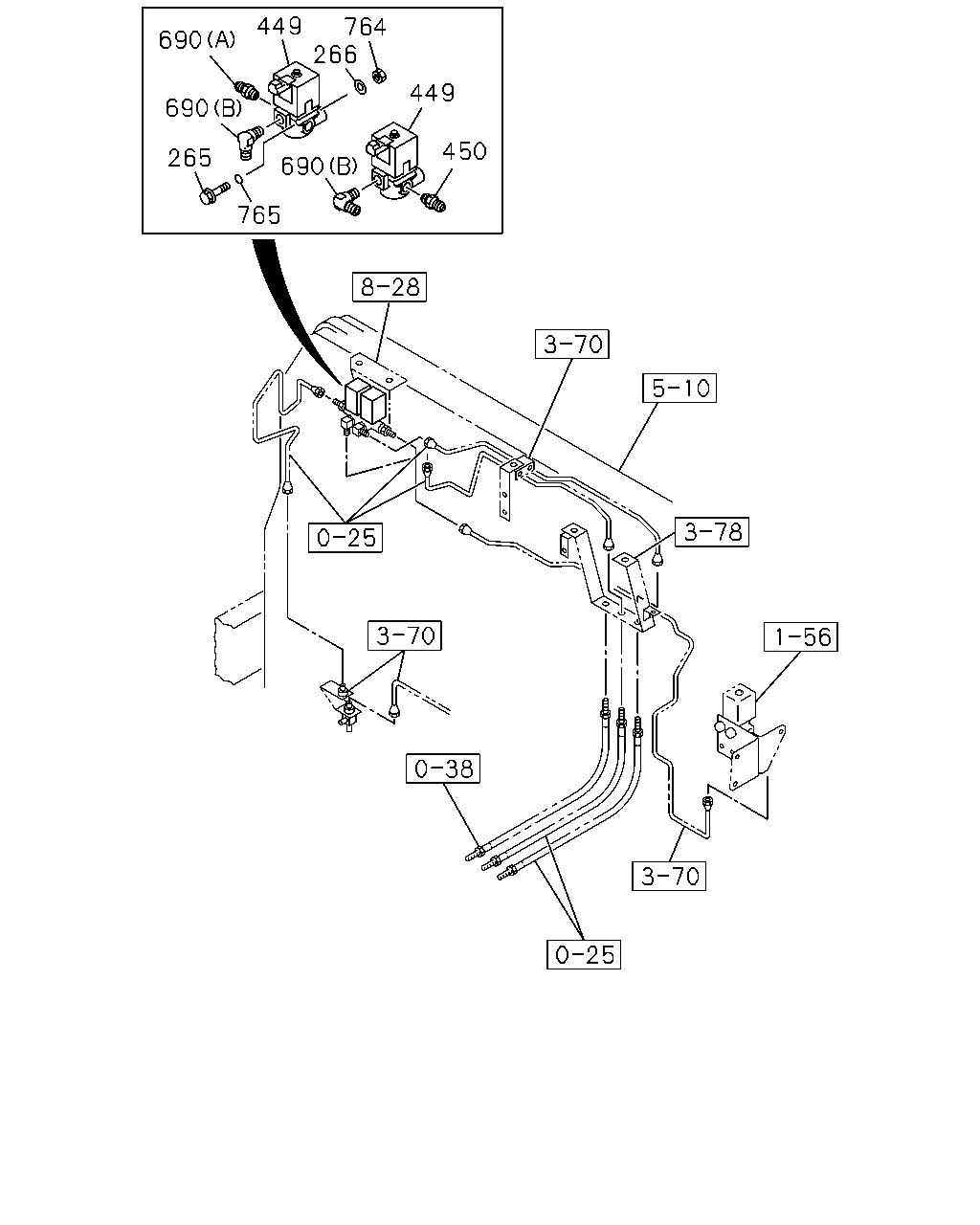

449 764 266 690 449 690 450 265 690 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BOLT; MAG VLV FIX 6WG1 TC-C(72L),6WG1 TC-R(75L) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512	●	●
265	BOLT; MAG VLV FIX 6WG1 TC-C(72L),6WG1 TC-R(75L) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
266	WASHER; PL,MAG VLV FIX 6WG1 TC-C(72L),6WG1 TC-R(75L)	1-82569-266-0	02	1	0105-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-C(72L),6WG1 TC-R(75L)	1-82563-871-2	02	1	0105-	●	●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
690	CONNECTOR 6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●	●
764	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
764	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
765	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-R(75L) ID=16.8	9-09565-117-0	01	1	0105-	●	●

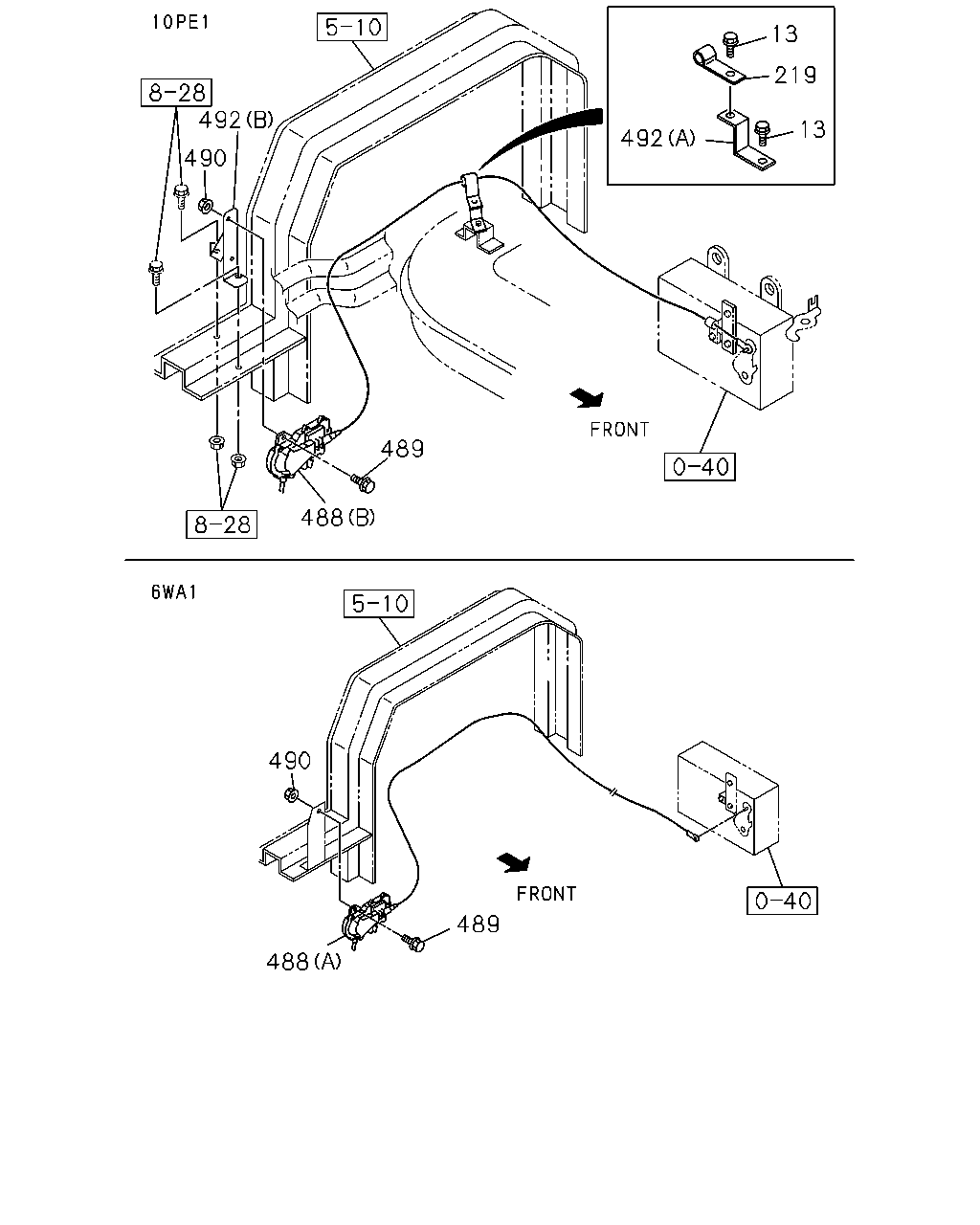

13 219 492 13 492 490 489 488 490 489 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28690-825-0	02	1	0105-0512	●	●
13	BOLT; BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28660-825-0	02	1	0601-	●	●
219	CLIP; ENG STOP CABLE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=7 L=40	9-09524-675-0	01	1	0105-	●	●
488	STOPPER; ENG 10PE1N(61L) RLD GOVERNOR(SD7) (B)	1-82840-133-2	01	1	0105-	●	●
488	STOPPER; ENG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. RLD GOVERNOR(SD7) (B)	1-82840-151-1	01	1	0105-	●	●
488	STOPPER; ENG 6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-82840-161-0	01	1	0105-	●	●
488	STOPPER; ENG 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A)	1-82840-145-1	01	1	0105-	●	●
489	BOLT; ENG STOPPER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0410	●	●
489	BOLT; ENG STOPPER 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0410	●	●
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0411-0512	●	●
489	BOLT; ENG STOPPER PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0411-0512	●	●
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
489	BOLT; ENG STOPPER PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
490	NUT; ENG STOP 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0410	●	●
490	NUT; ENG STOP 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8 FLANGE	0-91150-108-0	02	1	0105-0410	●	●
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0411-0602	●	●
490	NUT; ENG STOP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0411-0602	●	●
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
490	NUT; ENG STOP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
492	BRACKET; ENG STOPPER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A)	1-47477-415-0	01	1	0105-	●	●
492	BRACKET; ENG STOPPER 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. RLD GOVERNOR(SD7) (B)	1-47475-654-2	01	1	0105-0112	●	●
492	BRACKET; ENG STOPPER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-47475-654-2	01	1	0201-	●	●

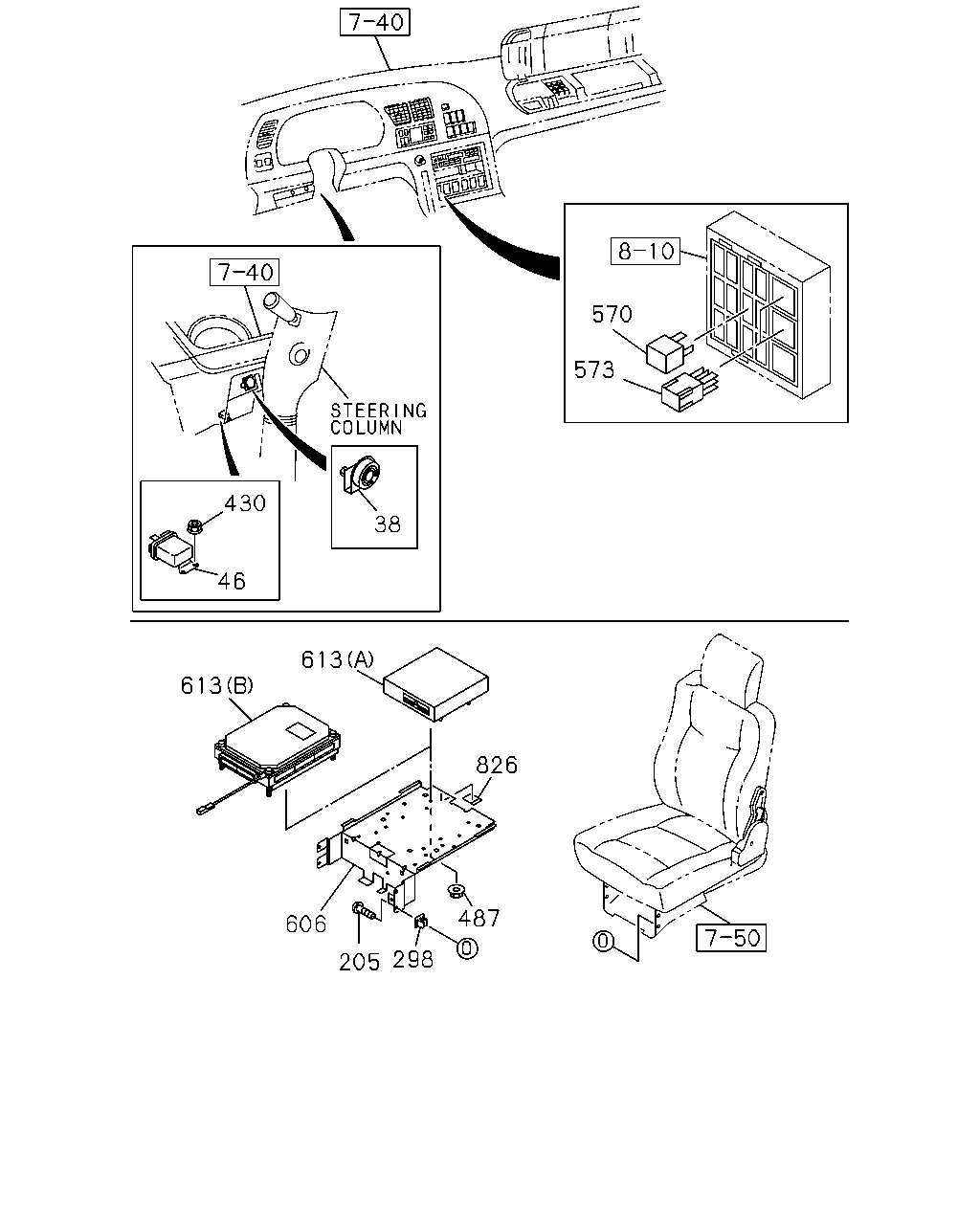

570 573 430 38 46 613 613 826 487 606 298 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	RESISTOR; CONT,GLOW PLUG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0105-	●	●
46	RELAY; GLOW PLUG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0105-	●	●
205	SCREW; BRKT 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0105-	●	●
205	SCREW; BRKT 6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0105-	●	●
298	GROMMET; SCREW 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
298	GROMMET; SCREW 6WA1 TC-C(55L) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
430	NUT; RELAY FIX 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
430	NUT; RELAY FIX 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
487	NUT 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6 FLANGE	0-91150-106-0	04	1	0105-0602	●	●
487	NUT 6WA1 TC-C(55L) M6 FLANGE	0-91150-106-0	04	1	0105-0602	●	●
487	NUT 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
487	NUT 6WA1 TC-C(55L) M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
570	RELAY; EXH SHUTTER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-	●	●
573	RELAY; ELEC GOV 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111	●	●
573	RELAY; ELEC GOV 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-0212	●	●
573	RELAY; ELEC GOV 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0301-	●	●
606	BRACKET; CONT UNIT 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-75558-598-3	01	1	0105-	●	●
606	BRACKET; CONT UNIT 6WA1 TC-C(55L)	1-75558-598-3	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-480-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-666-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B)	1-80110-440-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-759-1	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-761-1	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-439-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET STD(T1B) (A)	1-80110-622-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) EMISSION "94 US FEDERAL REQUIREMENT"<NAQ> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. FIRE TRUCK<RA9> (A)	1-80110-437-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) EMISSION "94 US FEDERAL REQUIREMENT"<NAQ> FIRE TRUCK<RA9> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-621-0	01	1	0105-	●	●
826	SEAL; NOISE INSULATION 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30	8-97866-626-0	03	1	0105-0309	●	●
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	8-97866-626-0	03	1	0105-0309	●	●
826	SEAL; NOISE INSULATION 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30	1-74998-128-0	03	1	0310-	●	●
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	1-74998-128-0	03	1	0310-	●	●

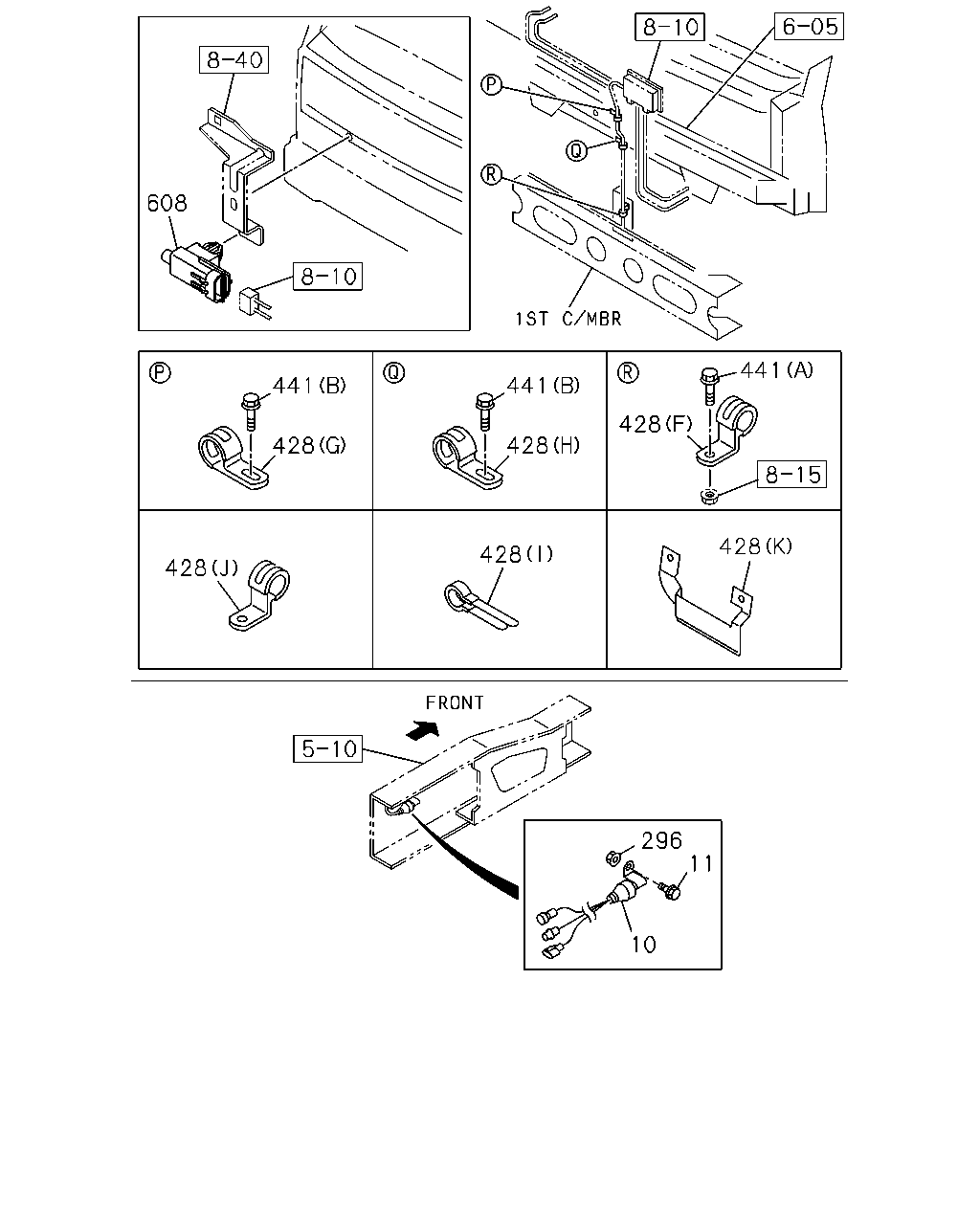

608 441 441 441 428 428 428 428 428 428 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) NIKKO	1-81171-075-1	01	1	0305-	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0105-0304	●	●
10	RELAY; STARTER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) HITACHI	1-81171-087-0	01	1	0305-	●	●
11	BOLT; RELAY STARTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
11	BOLT; RELAY STARTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
11	BOLT; RELAY STARTER EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
11	BOLT; RELAY STARTER EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
428	CLIP; HARNESS (K)	1-82698-392-0	01	1	0112-0112	●
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-	●	●
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0105-	●	●
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (D) L=36	8-94224-891-1	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (E) ID=11 L=28	9-09917-544-0	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) L=250	5-09707-030-1	02	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) L=140	5-09707-031-1	05	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> (I) ID=20 L=50	9-09917-430-0	03	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (I) ID=20 L=50	9-09917-430-0	02	1	0105-	●	●
441	BOLT; HARNESS TO FRAME 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0201-0211	●	●
441	BOLT; HARNESS TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X25 FLANGE	0-28680-825-0	01	1	0212-0512	●	●
441	BOLT; HARNESS TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0112	●	●
441	BOLT; HARNESS TO FRAME 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0112	●	●
441	BOLT; HARNESS TO FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0211	●	●
441	BOLT; HARNESS TO FRAME 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●	●
441	BOLT; HARNESS TO FRAME 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
608	SENSOR; AIR TEMP 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97177-549-0	01	1	0105-	●	●

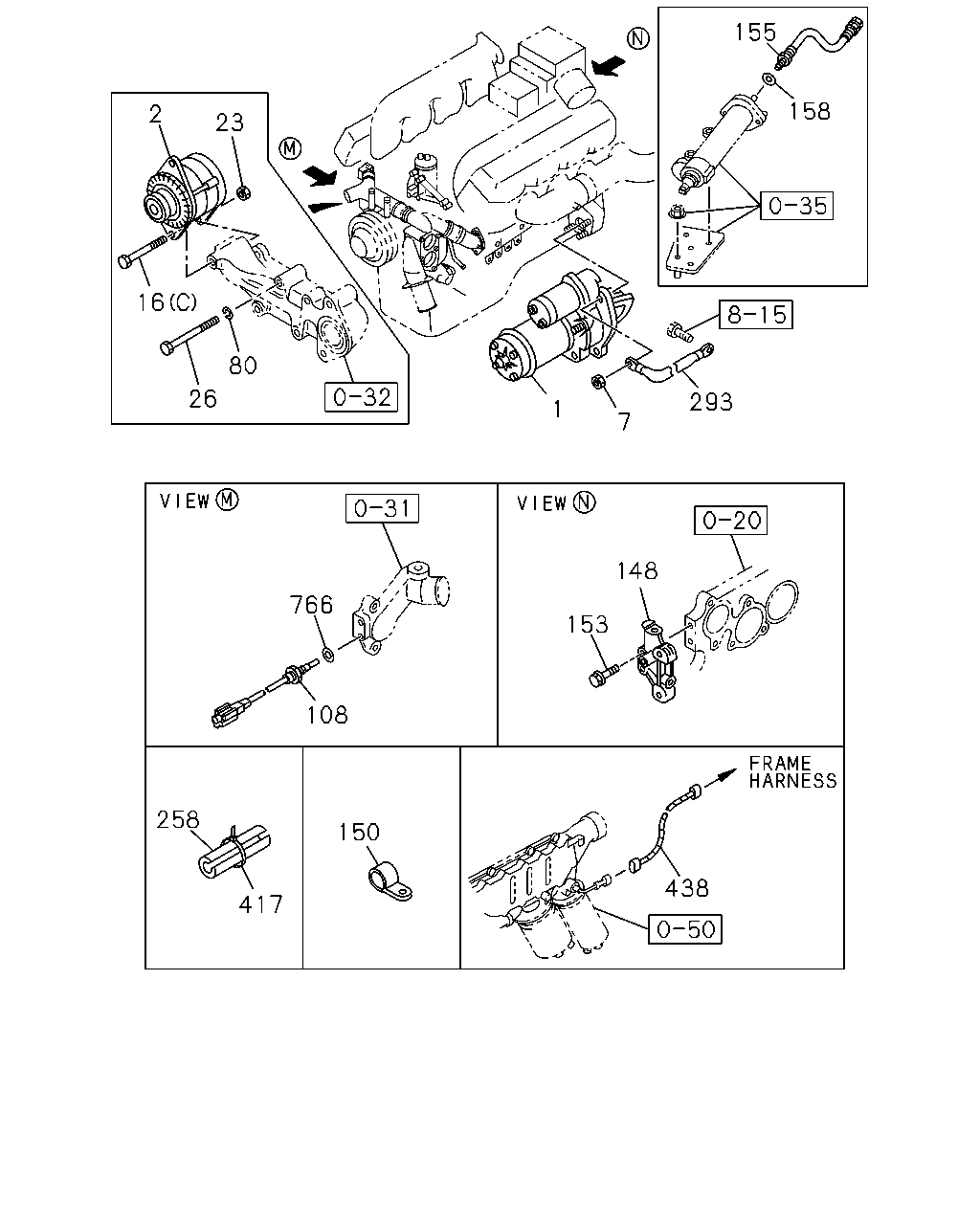

155 158 2 23 16 80 26 293 1 7 766 153 108 258 150 438 417 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 7.0KW MITSUBISHI	1-81100-345-2	01	1	0105-0109	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 7.0KW MITSUBISHI	1-81100-345-3	01	1	0110-0304	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 6.0KW NIKKO	1-81100-334-1	01	1	0305-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-R(75L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-2	01	1	0105-0206	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-R(75L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-3	01	1	0207-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-R(75L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0105-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 50A MITSUBISHI	1-81200-522-0	01	1	0105-0109	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 50A MITSUBISHI	1-81200-522-5	01	1	0110-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) 24V 50A MITSUBISHI	1-81200-517-2	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0105-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0105-	●	●
16	BOLT; GEN PE-SERIES ENG<1A0> (C) M14X123	9-09801-204-1	01	1	0105-	●	●
16	BOLT; GEN W-SERIES ENG<1A2> (A) M14X123	1-09040-105-0	01	1	0105-	●	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0512	●	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●	●
23	NUT; GEN PE-SERIES ENG<1A0> M14 FLANGE	0-91150-114-0	01	1	0105-	●	●
23	NUT; GEN W-SERIES ENG<1A2> M14 W/BRKT	1-19711-029-0	01	1	0105-	●	●
26	BOLT; GEN BRKT PE-SERIES ENG<1A0> M10X70	9-01661-070-0	03	1	0105-0512	●	●
26	BOLT; GEN BRKT PE-SERIES ENG<1A0> M10X70	0-16961-070-0	03	1	0601-	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28181-060-0	02	1	0105-0512	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
80	WASHER; LK,DUCT & BRKT PE-SERIES ENG<1A0> ID=10.2	9-09150-610-0	03	1	0105-	●	●
108	SWITCH; THERMO PE-SERIES ENG<1A0>	1-83161-031-1	01	1	0105-	●	●
148	BRACKET; SOLENOID VLV 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1)	1-81919-028-0	01	1	0105-	●	●
150	CLIP; HARNESS,SOLENOID VLV PE-SERIES ENG<1A0> ID=11 L=16	9-09525-025-0	01	1	0105-	●	●
153	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28181-040-0	02	1	0105-0512	●	●
153	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28151-040-0	02	1	0601-	●	●
155	HOSE; FLEX,VGS GOV CONT 10PE1S(60L) GOVERNOR CONTROL<W69>	0-07846-310-1	01	1	0105-		●
158	GASKET; FLEX HOSE 10PE1S(60L) GOVERNOR CONTROL<W69> ID=11 OD=18	9-09572-510-0	02	1	0105-		●
258	SLEEVE; RUBBER OIL PIPE PE-SERIES ENG<1A0> ID=6 L=30	5-09360-352-0	01	1	0105-	●	●
258	SLEEVE; RUBBER OIL PIPE PE-SERIES ENG<1A0> ID=10 OD=14 L=30	9-09956-682-0	01	1	0105-	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-	●	●
417	CLIP PE-SERIES ENG<1A0> L=140	5-09707-031-1	02	1	0105-	●	●
438	CABLE; OIL FILTER SW 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-82657-062-1	01	1	0105-	●	●
766	GASKET; SENSOR PE-SERIES ENG<1A0> ID=12.2	1-09630-084-0	01	1	0105-	●	●

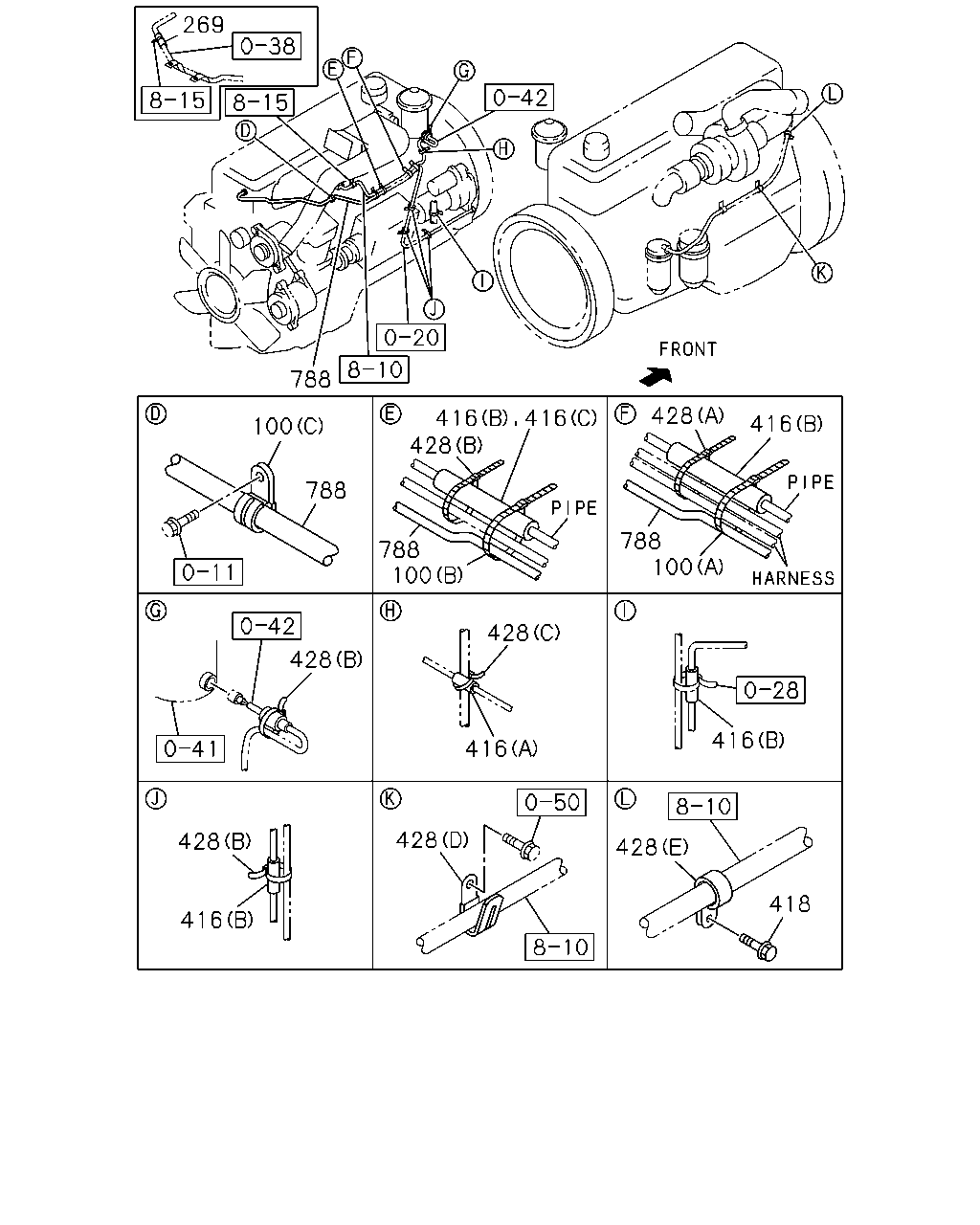

269 788 428 428 416 100 788 788 100 788 100 428 428 416 416 428 428 428 418 416 416 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CLIP; HARNESS W-SERIES ENG<1A2> (A) L=180	1-09707-162-1	01	1	0105-	●	●
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (C) ID=11 L=30	1-09700-511-0	01	1	0105-	●	●
100	CLIP; HARNESS 6WF1 TC-C(1B8) (C) ID=11 L=20	9-09525-035-0	01	1	0105-	●	●
100	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) L=140	5-09707-031-1	01	1	0105-	●	●
269	SLEEVE; RUBBER,CABLE W-SERIES ENG<1A2> ID=18 OD=22 L=25	8-94412-773-0	01	1	0111-	●	●
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0105-	●	●
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0105-	●	●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (A) ID=6 L=30	5-09360-352-0	01	1	0105-	●	●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0105-	●	●
416	SLEEVE; RUBBER 6WG1 TC-C(72L),6WG1 TC-R(75L) AIR COMPRESSOR HEAVY DUTY(E1Q) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-	●	●
416	SLEEVE; RUBBER 6WG1 TC-R(75L) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	0105-	●	●
418	BOLT; CLIP W-SERIES ENG<1A2> M10X16 FLANGE	0-28181-016-0	01	1	0105-0512	●	●
418	BOLT; CLIP W-SERIES ENG<1A2> M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●
428	CLIP; HARNESS (K)	1-82698-392-0	01	1	0112-0112	●
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-	●	●
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0105-	●	●
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (D) L=36	8-94224-891-1	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (E) ID=11 L=28	9-09917-544-0	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A) L=250	5-09707-030-1	02	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) L=140	5-09707-031-1	05	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) CAB UP +110MM<TGG> (I) ID=20 L=50	9-09917-430-0	03	1	0105-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) EXC. CAB UP +110MM<TGG> (I) ID=20 L=50	9-09917-430-0	02	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)	1-82641-186-0	02	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0105-	●	●

83 898 260 260 260 98 788 7 1 293 26 2 19 23 17 19 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 7.0KW MITSUBISHI	1-81100-345-2	01	1	0105-0109	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 7.0KW MITSUBISHI	1-81100-345-3	01	1	0110-0304	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 6.0KW NIKKO	1-81100-334-1	01	1	0305-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-R(75L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-2	01	1	0105-0206	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-R(75L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-3	01	1	0207-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-R(75L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0105-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 50A MITSUBISHI	1-81200-522-0	01	1	0105-0109	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. PE-SERIES ENG<1A0> 24V 50A MITSUBISHI	1-81200-522-5	01	1	0110-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) 24V 50A MITSUBISHI	1-81200-517-2	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0105-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0105-	●	●
16	BOLT; GEN PE-SERIES ENG<1A0> (C) M14X123	9-09801-204-1	01	1	0105-	●	●
16	BOLT; GEN W-SERIES ENG<1A2> (A) M14X123	1-09040-105-0	01	1	0105-	●	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0512	●	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-C(72L),6WG1 TC-R(75L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●	●
17	WASHER; PL,GEN W-SERIES ENG<1A2> ID=15	9-09160-514-0	01	1	0105-	●	●
19	BRACKET; GEN 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A)	1-19711-144-0	01	1	0105-	●	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (B)	1-19711-101-0	01	1	0105-0502	●	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (B)	8-97606-317-0	01	1	0503-	●	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (A)	1-19711-143-0	01	1	0105-0502	●	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (A)	8-97604-177-0	01	1	0503-	●	●
19	BRACKET; GEN 6WG1 TC-C(72L),6WG1 TC-R(75L) (B)	1-19711-082-0	01	1	0105-	●	●
23	NUT; GEN PE-SERIES ENG<1A0> M14 FLANGE	0-91150-114-0	01	1	0105-	●	●
23	NUT; GEN W-SERIES ENG<1A2> M14 W/BRKT	1-19711-029-0	01	1	0105-	●	●
26	BOLT; GEN BRKT PE-SERIES ENG<1A0> M10X70	9-01661-070-0	03	1	0105-0512	●	●
26	BOLT; GEN BRKT PE-SERIES ENG<1A0> M10X70	0-16961-070-0	03	1	0601-	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28181-060-0	02	1	0105-0512	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
83	THERMOMETER UNIT 6WG1 TC-R(75L) FIRE TRUCK<RA9>	1-83161-032-0	01	1	0105-	●	●
98	ADAPTER; TEMP SENSOR W-SERIES ENG<1A2>	1-09675-236-0	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (A)	1-80210-004-0	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) (B)	1-83161-038-0	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (C)	1-80210-005-1	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (B)	1-83161-040-0	01	1	0105-	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)	1-82641-186-0	02	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0105-	●	●
898	SENSOR; BOOST 6WF1 TC-C(1B8)	1-80220-014-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
