0-42B — FUEL PUMP AND PIPE (#13492) — 74 parça

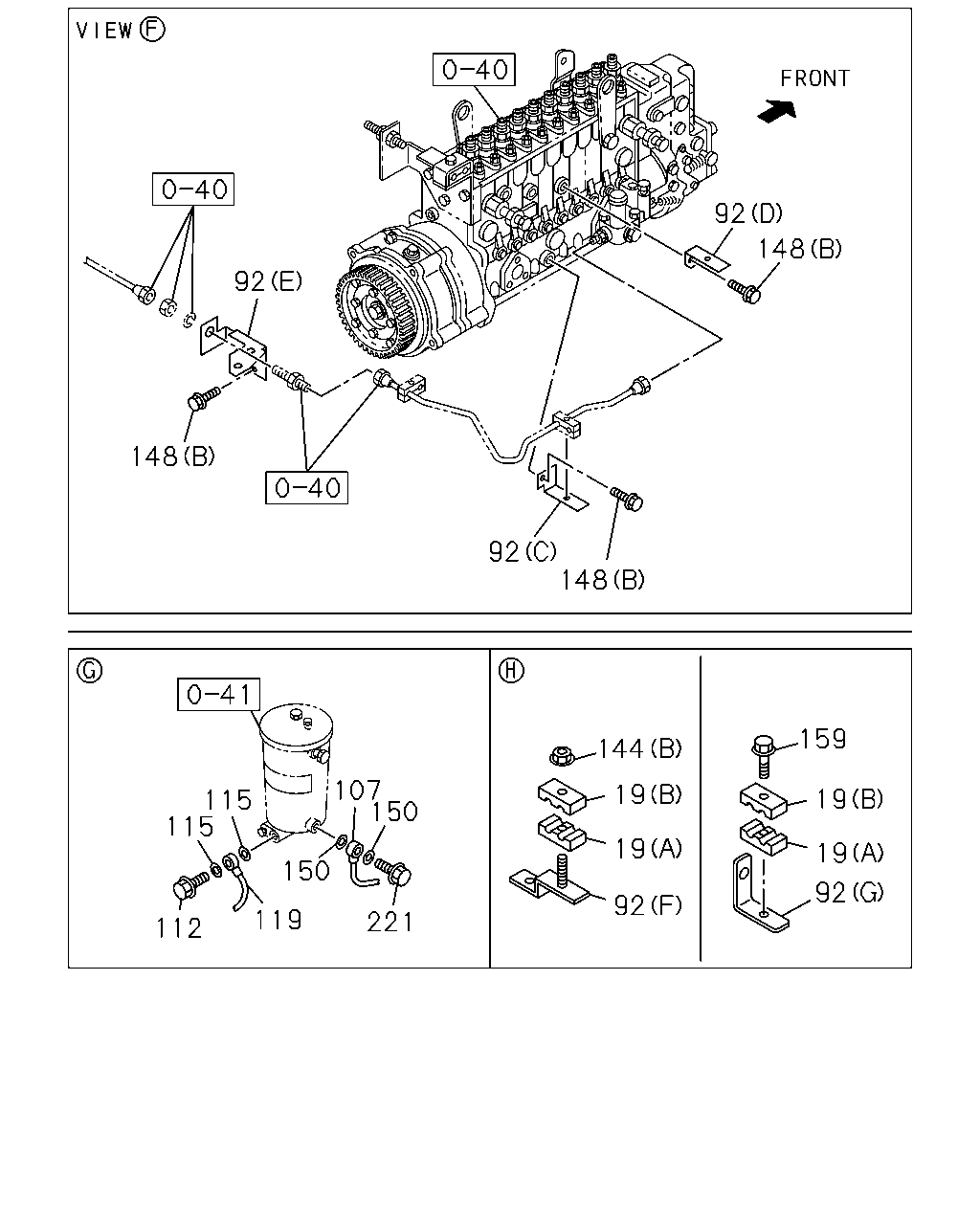

92 148 92 148 92 148 159 144 107 150 19 19 115 115 19 19 150 92 92 119 221 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0105-	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (F)	1-15419-622-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (A)	1-15419-462-0	01	1	0105-	●		●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (A)	1-15419-384-1	01	1	0105-0109		●
92	BRACKET; FUEL PIPE (A)	1-15419-384-1	01	1	0110-		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	0105-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0105-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-0312	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0401-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-641-1	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	0105-	●
144	NUT; CLIP (A) M6 FLANGE	0-91150-106-0	03	1	0105-0602	●	●	●
144	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0603-	●	●	●
144	NUT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●	●
144	NUT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0105-0512	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	06	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512		●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
148	BOLT; BRKT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (A) M10X25 FLANGE	0-28181-025-0	02	1	0105-0512	●		●
148	BOLT; BRKT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (A) M10X25 FLANGE	0-28151-025-0	02	1	0601-	●		●
148	BOLT; BRKT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●		●
148	BOLT; BRKT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	0105-0512	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28050-630-0	01	1	0601-	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●	●

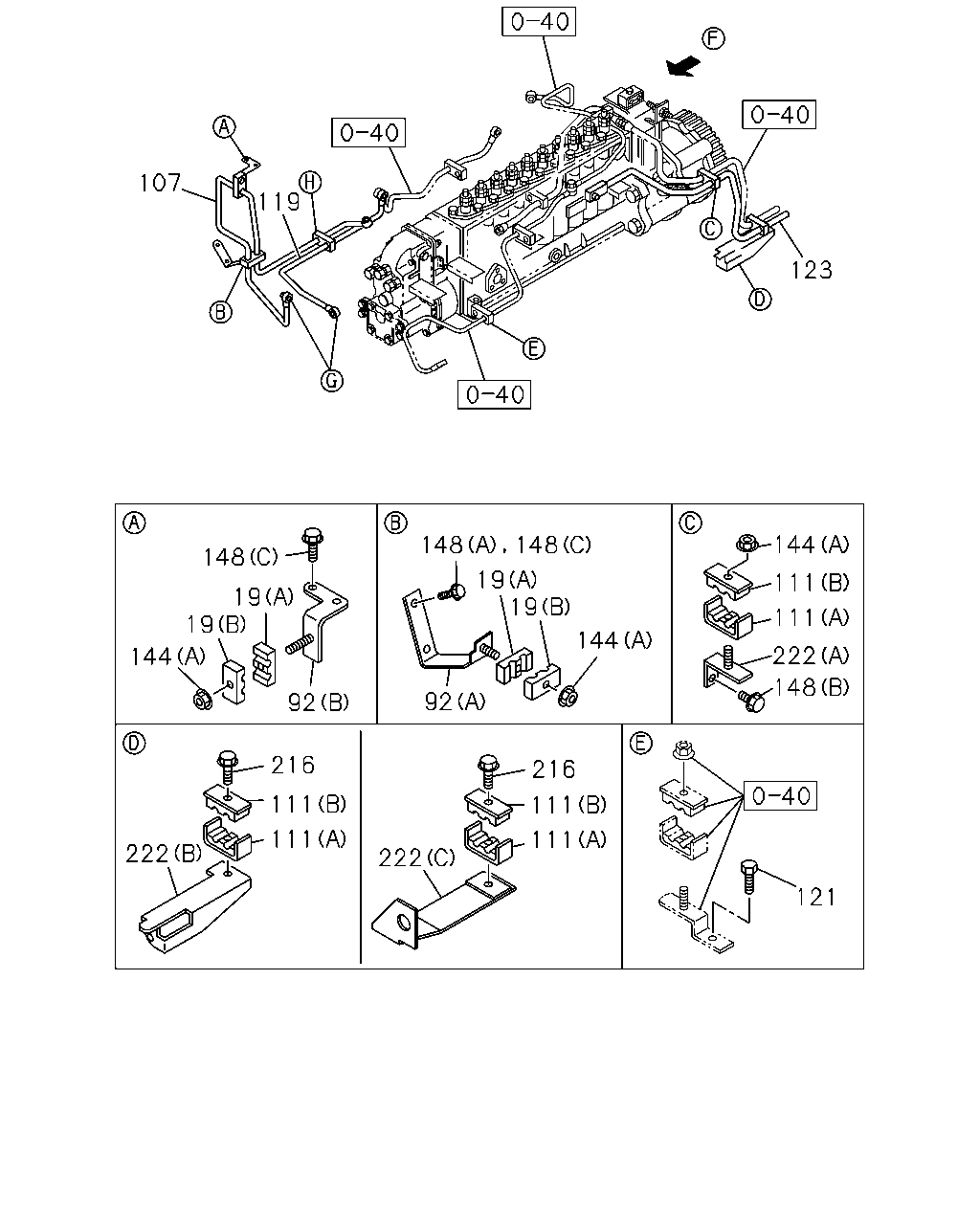

107 119 144 148 148 148 19 19 111 19 19 111 144 222 144 148 92 92 216 216 111 111 111 111 222 222 121 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0105-	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	03	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (F)	1-15419-622-0	01	1	0105-	●	●	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (A)	1-15419-462-0	01	1	0105-	●		●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (A)	1-15419-384-1	01	1	0105-0109		●
92	BRACKET; FUEL PIPE (A)	1-15419-384-1	01	1	0110-		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	0105-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0105-	●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	0105-	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-641-1	01	1	0105-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	0105-	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-0512	●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-	●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	0105-	●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	0105-	●	●	●
144	NUT; CLIP (A) M6 FLANGE	0-91150-106-0	03	1	0105-0602	●	●	●
144	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0603-	●	●	●
144	NUT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●	●
144	NUT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0105-0512	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	06	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-0512		●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
148	BOLT; BRKT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (A) M10X25 FLANGE	0-28181-025-0	02	1	0105-0512	●		●
148	BOLT; BRKT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (A) M10X25 FLANGE	0-28151-025-0	02	1	0601-	●		●
148	BOLT; BRKT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●		●
148	BOLT; BRKT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●		●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	0105-0512	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0601-	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	0105-	●	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (C)	1-13319-027-0	01	1	0105-	●	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	0105-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
