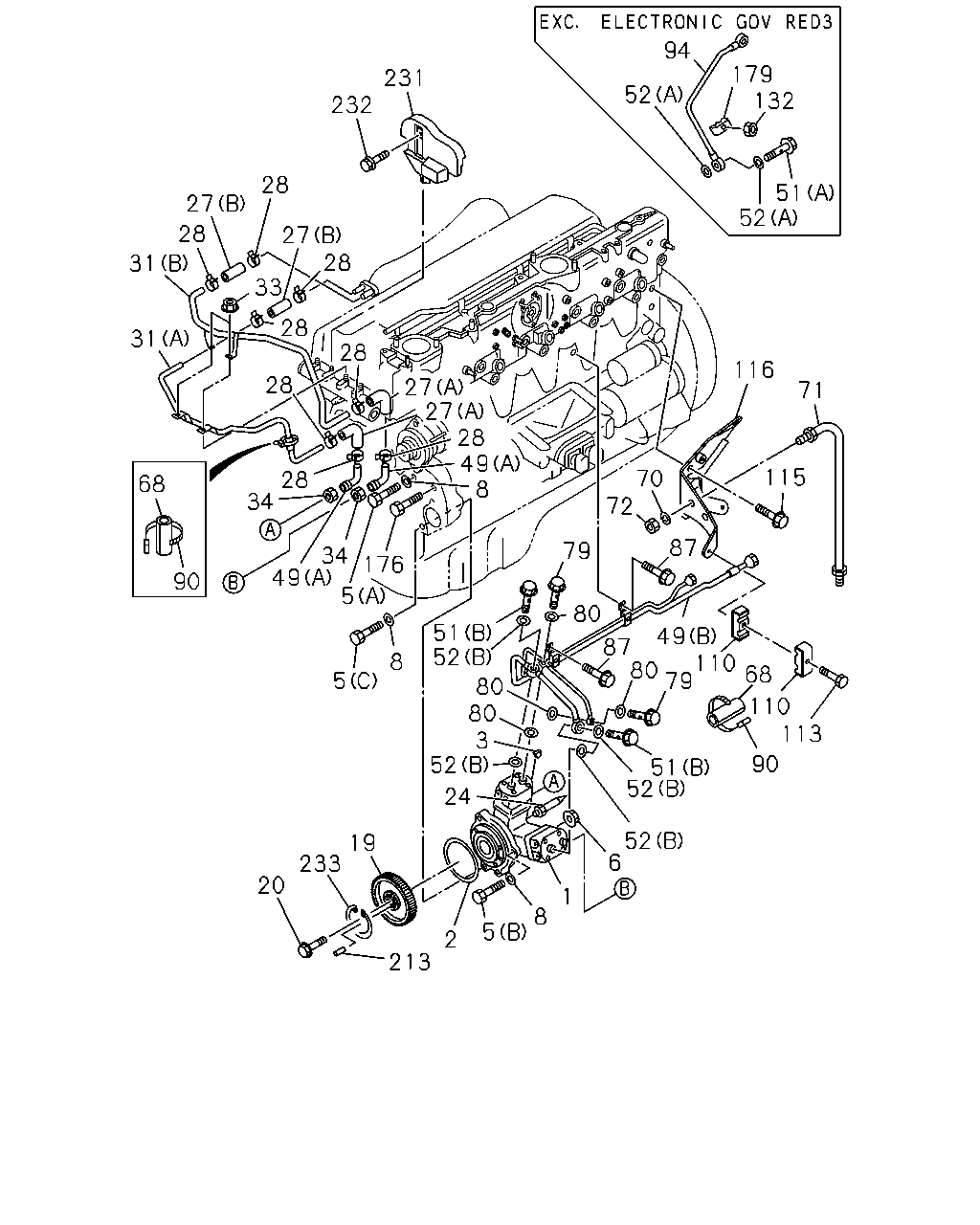

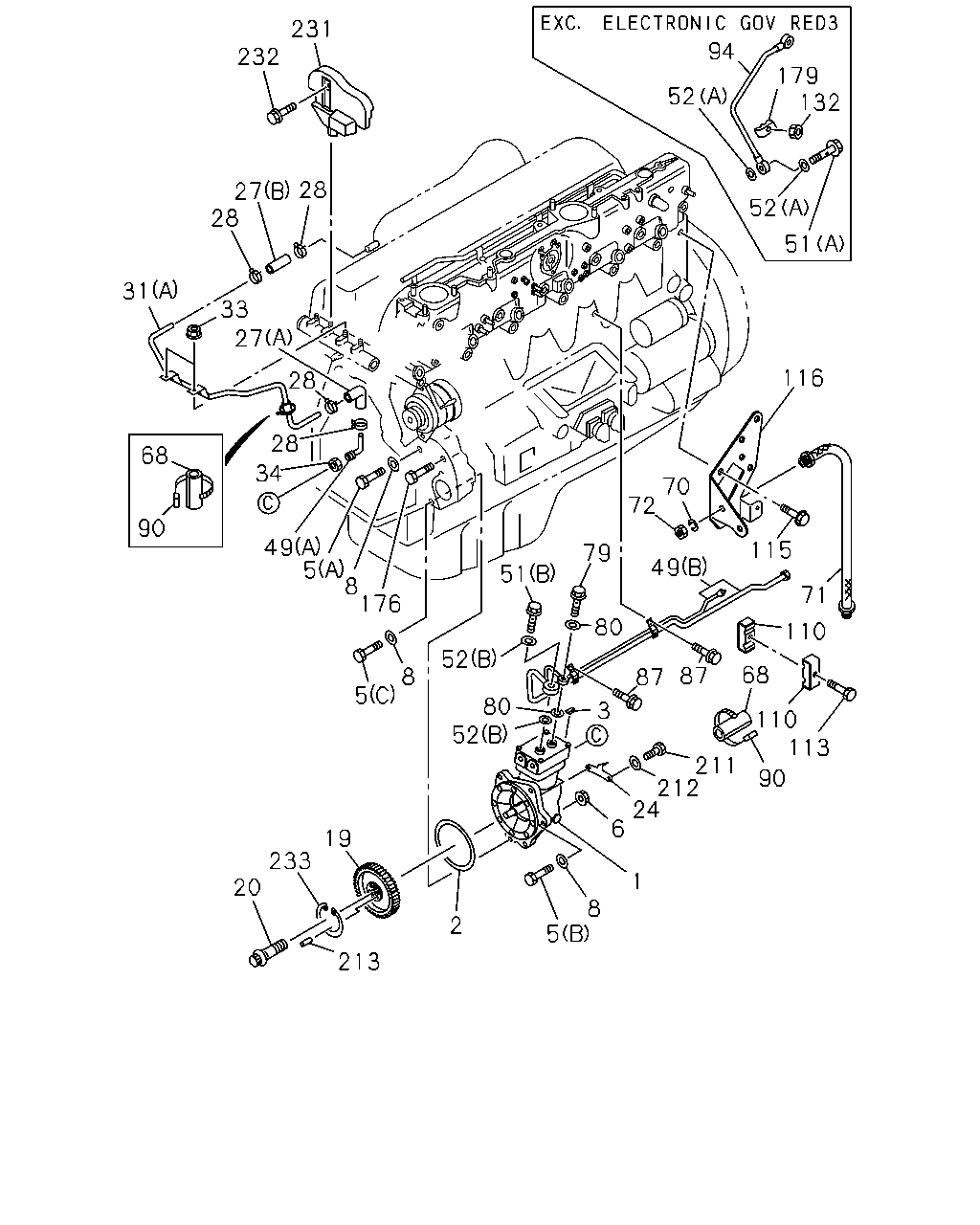

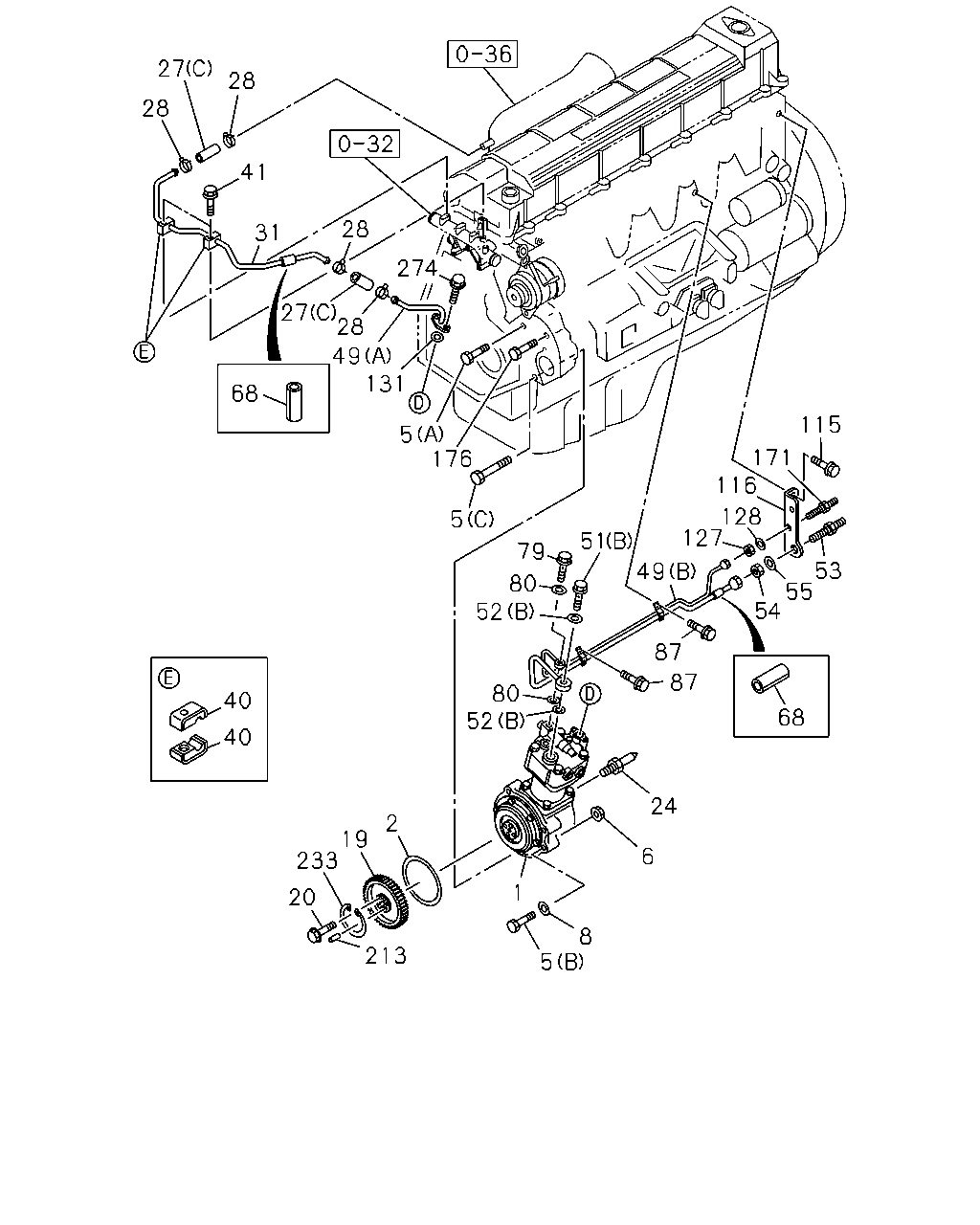

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#13483) — 317 parça

27 28 28 41 1 28 31 274 27 28 49 131 68 115 5 176 171 116 128 127 5 51 79 53 55 54 49 80 52 87 87 80 52 40 68 40 24 2 19 233 6 1 20 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0105-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-7	01	1	0105-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-151-0	01	1	0105-0205		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	0105-0206	●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0105-0206			●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-				●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-				●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0105-				●
40	CLIP; AIR PIPE	1-09701-281-1	04	1	0105-				●
41	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0105-0512				●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (B)	1-19192-785-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-019-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-				●
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) FIRE TRUCK<RA9> (B)	1-19193-293-1	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0105-				●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512				●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-				●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-	●	●	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-			●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE	1-19199-212-1	01	1	0105-			●
116	BRACKET; AIR PIPE	1-19199-308-0	01	1	0105-				●
127	NUT; UNION M12	9-09840-280-0	01	1	0105-				●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-				●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0105-0512				●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0601-				●

231 94 232 179 132 52 28 27 28 52 51 31 33 28 116 28 68 34 70 72 115 90 49 79 49 5 51 8 176 71 80 110 52 68 87 8 87 5 80 52 3 110 113 211 212 24 6 90 19 233 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0105-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-7	01	1	0105-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-151-0	01	1	0105-0205		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	0105-0206	●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0105-0206			●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-				●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-				●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0105-				●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0105-	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0105-			●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (B)	1-19192-785-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-019-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-				●
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) FIRE TRUCK<RA9> (B)	1-19193-293-1	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-	●	●	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-			●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0105-	●	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0105-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0105-	●	●	●
94	PIPE; AIR,BOOST EXC. ELECTRONIC GOV RED3(KG5)	1-19193-109-0	01	1	0105-	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	0105-	●	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	0105-			●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	0105-	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE	1-19199-212-1	01	1	0105-			●
116	BRACKET; AIR PIPE	1-19199-308-0	01	1	0105-				●
132	NUT; CLIP EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
132	NUT; CLIP EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91180-106-0	01	1	0603-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
179	CLIP; PIPE EXC. ELECTRONIC GOV RED3(KG5)	1-09701-132-1	02	1	0105-	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	0105-	●	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	0105-	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0105-		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0105-0512		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●

94 179 132 231 52 232 28 51 52 27 28 27 28 31 33 28 31 28 116 28 27 27 28 49 8 71 115 70 72 28 34 68 87 79 34 176 49 90 5 80 51 52 49 87 110 80 68 79 8 5 80 80 3 52 110 113 90 51 52 24 52 6 19 233 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0105-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	0105-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-7	01	1	0105-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-151-0	01	1	0105-0205		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	0105-0206	●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0105-0206			●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-	●	●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	0207-				●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	0105-	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-				●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-			●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	0105-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B)	1-19192-993-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (A)	1-19192-659-0	01	1	0105-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0105-				●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0105-	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0105-			●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1) (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-			●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (B)	1-19192-785-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-019-0	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-				●
49	PIPE; AIR,CHARGE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) FIRE TRUCK<RA9> (B)	1-19193-293-1	01	1	0105-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0105-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-	●	●	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-			●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	0105-	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0105-	●	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0105-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-			●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0105-	●	●	●
94	PIPE; AIR,BOOST EXC. ELECTRONIC GOV RED3(KG5)	1-19193-109-0	01	1	0105-	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	0105-	●	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	0105-			●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	0105-	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	0105-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE	1-19199-212-1	01	1	0105-			●
116	BRACKET; AIR PIPE	1-19199-308-0	01	1	0105-				●
132	NUT; CLIP EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
132	NUT; CLIP EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91180-106-0	01	1	0603-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
179	CLIP; PIPE EXC. ELECTRONIC GOV RED3(KG5)	1-09701-132-1	02	1	0105-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0105-		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0105-0512		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
