Sayfa 0-35B - Isuzu EPC

0-35B — ENGINE CONTROL VALVE AND LEVER (#13480) — 188 parça

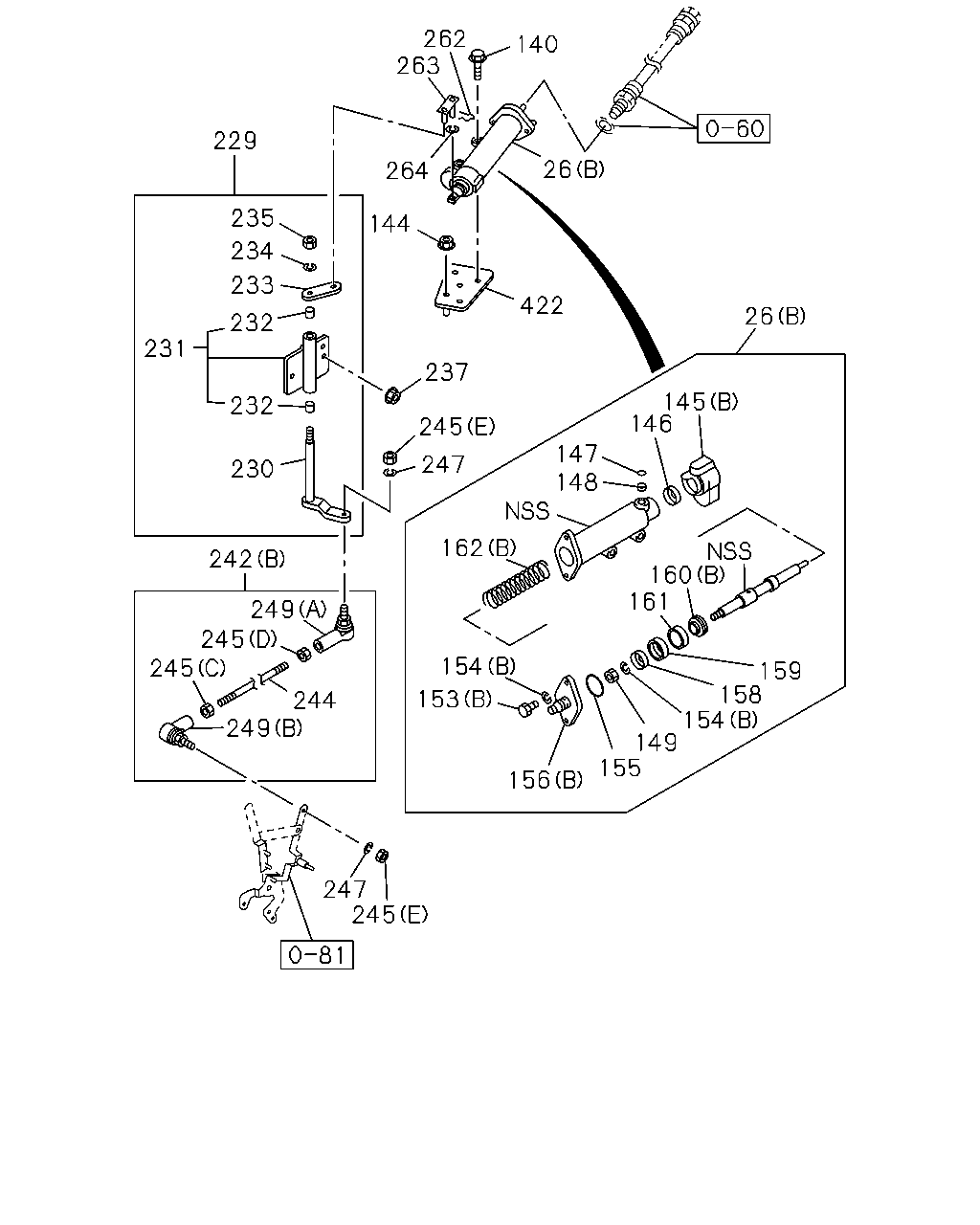

262 263 140 229 26 264 235 144 234 233 422 26 232 231 237 145 146 232 245 147 148 247 230 162 160 161 242 249 245 245 154 159 158 154 149 155 153 244 249 156 247 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	CYLINDER ASM; CONT (A)	1-22190-527-1	01	1	0105-	●	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (B)	1-22190-545-0	01	1	0105-	●
140	BOLT; CONNECTOR CYL GOVERNOR CONTROL<W69> M10X60 FLANGE	0-28081-060-0	02	1	0105-0512	●
140	BOLT; CONNECTOR CYL GOVERNOR CONTROL<W69> M10X60 FLANGE	0-28051-060-0	02	1	0601-	●
144	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	03	1	0105-0602	●
144	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91180-110-0	03	1	0603-	●
145	COVER; BREATHER (A)	1-22199-008-0	01	1	0105-	●	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (B)	1-22199-009-0	01	1	0105-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	0105-	●	●	●
146	SEAL; DUST,CONT GOVERNOR CONTROL<W69>	1-22189-016-0	01	1	0105-	●
147	RING; RET	9-88510-331-0	01	1	0105-	●	●	●
147	RING; RET GOVERNOR CONTROL<W69>	9-88510-331-0	01	1	0105-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	0105-	●	●	●
148	FILTER; CONT CYL GOVERNOR CONTROL<W69>	9-88510-330-0	01	1	0105-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	0105-	●	●	●
149	NUT; LOCK,CONT SHAFT GOVERNOR CONTROL<W69>	9-83315-085-0	01	1	0105-	●
153	BOLT; CONT CYL (A)	1-33739-326-0	02	1	0105-	●	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-267-0	02	1	0105-	●
154	WASHER; LK,CYL (A) ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (B) ID=8.2	9-09150-508-0	03	1	0105-	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	0105-	●	●	●
155	GASKET; CONT CYL GOVERNOR CONTROL<W69>	9-88510-372-0	01	1	0105-	●
156	COVER; CONT CYL (A)	1-22189-162-1	01	1	0105-	●	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-375-0	01	1	0105-	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	0105-	●	●	●
158	RETAINER; GASKET,CYL GOVERNOR CONTROL<W69>	9-88510-324-0	01	1	0105-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	0105-	●	●	●
159	GASKET; CONT CYL GOVERNOR CONTROL<W69>	9-88510-373-0	01	1	0105-	●
160	PLATE (A)	1-22199-020-0	01	1	0105-	●	●	●
160	PLATE GOVERNOR CONTROL<W69> (B)	1-22199-001-0	01	1	0105-	●
161	RING; WEAR	1-22199-002-0	01	1	0105-	●	●	●
161	RING; WEAR GOVERNOR CONTROL<W69>	1-22199-002-0	01	1	0105-	●
162	SPRING; CONT CYL (A)	1-22199-018-0	01	1	0105-	●	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-374-0	01	1	0105-	●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	0105-	●
230	SHAFT; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23331-107-0	01	1	0105-	●
231	BRACKET; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23335-398-1	01	1	0105-	●
232	BUSHING; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69>	1-23319-216-0	02	1	0105-	●
233	LEVER; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23311-269-0	01	1	0105-	●
234	WASHER; LK,LEVER,ENG SPD CONT GOVERNOR CONTROL<W69> ID=10.2	9-09150-510-0	01	1	0105-	●
235	NUT; LEVER ENG SPD CONT GOVERNOR CONTROL<W69> M10	9-09110-410-0	01	1	0105-0512	●
235	NUT; LEVER ENG SPD CONT GOVERNOR CONTROL<W69> M10	0-91110-510-0	01	1	0601-	●
237	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	02	1	0105-0602	●
237	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91180-110-0	02	1	0603-	●
242	LINK ASM RFD GOVERNOR(SD5) (A) L=216	1-23314-177-0	01	1	0105-	●		●
242	LINK ASM GOVERNOR CONTROL<W69> (B) L=186	1-22190-494-1	01	1	0105-	●
244	JOINT ASM; BALL GOVERNOR CONTROL<W69>	1-09765-210-1	01	1	0105-	●
245	NUT; LINK RFD GOVERNOR(SD5) (A) M5 LH THREAD	9-09840-277-0	02	1	0105-	●		●
245	NUT; LINK RFD GOVERNOR(SD5) (B) M5	9-99110-405-0	02	1	0105-	●		●
245	NUT; LINK GOVERNOR CONTROL<W69> (C) LH THREAD	1-09409-002-0	01	1	0105-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (E) M8	9-09110-408-0	02	1	0105-0512	●
245	NUT; LINK GOVERNOR CONTROL<W69> (E) M8	0-91110-508-0	02	1	0601-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (D) M8	9-09110-408-0	01	1	0105-0512	●
245	NUT; LINK GOVERNOR CONTROL<W69> (D) M8	0-91110-508-0	01	1	0601-	●
247	WASHER; LK,LINK GOVERNOR CONTROL<W69> ID=8.2	9-09150-508-0	02	1	0105-	●
249	ROD; LINK GOVERNOR CONTROL<W69> (A) RH THREAD	1-09760-009-0	01	1	0105-	●
249	ROD; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09760-010-0	01	1	0105-	●
262	PIN; SNAP,LINK,CONT CYL GOVERNOR CONTROL<W69> L=21.2	1-09747-003-0	02	1	0105-	●
263	LINK ASM; CONT CYL GOVERNOR CONTROL<W69>	1-22196-183-0	01	1	0105-	●
264	WASHER; LK,LINK,CONT CYL GOVERNOR CONTROL<W69> ID=6.4	9-09160-506-0	02	1	0105-	●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	0105-	●

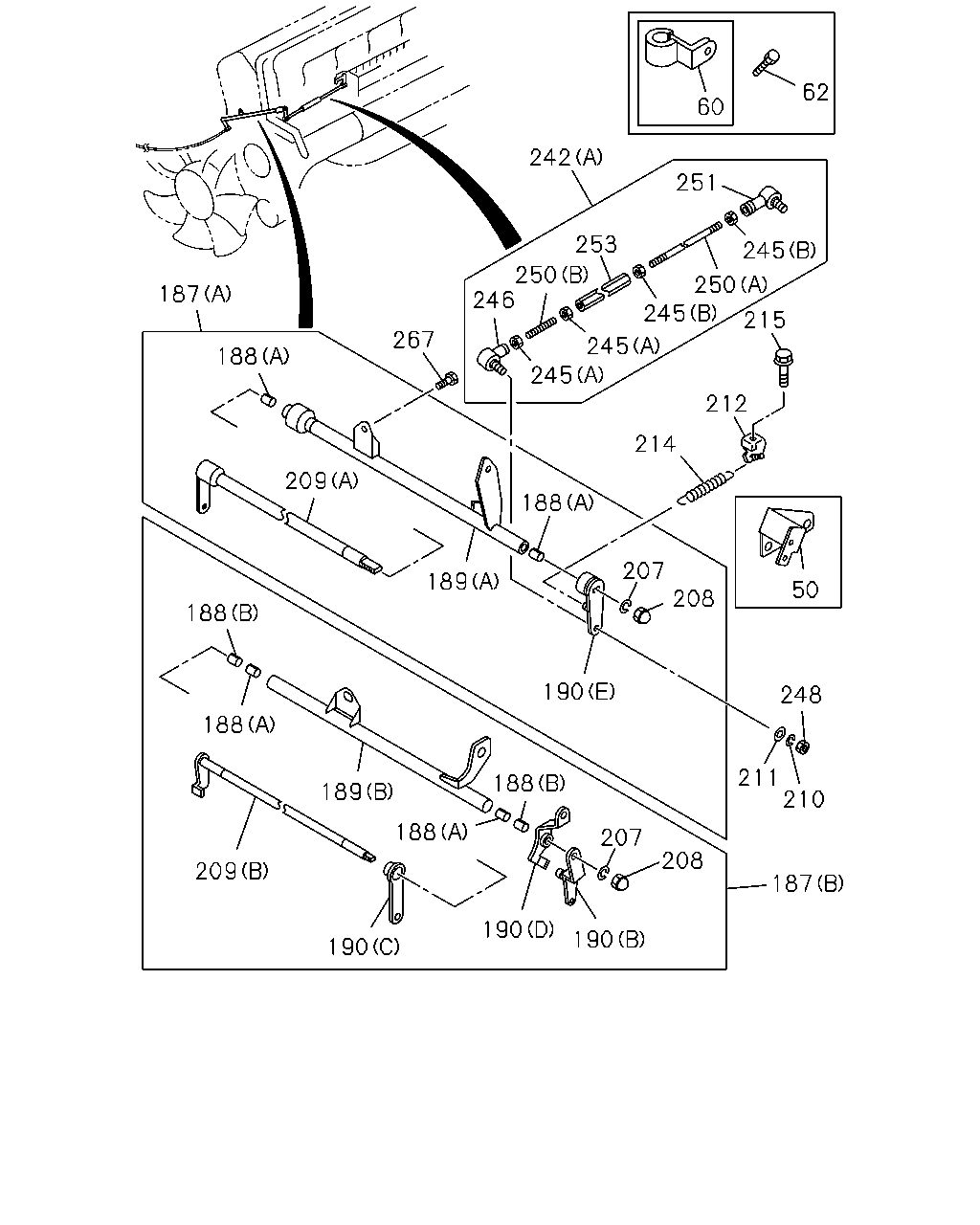

62 60 242 251 253 245 250 246 250 245 187 215 267 245 188 245 212 214 209 188 189 207 208 50 188 190 248 188 211 210 188 189 188 207 208 209 187 190 190 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5)	1-23335-493-0	01	1	0105-	●		●
60	CLIP; CABLE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23300-329-0	01	1	0105-	●		●
187	CONTROL ASM; ENG RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	0105-	●		●
188	BUSHING; CONT SHAFT (A)	1-09330-053-0	02	1	0105-	●		●
188	BUSHING; CONT SHAFT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-09330-059-0	02	1	0105-	●		●
189	BRACKET; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23335-492-0	01	1	0105-	●		●
189	BRACKET; ENG CONT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-23335-482-0	01	1	0105-	●		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-503-0	01	1	0105-		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23311-353-0	01	1	0105-	●		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (C)	1-23311-354-0	01	1	0105-	●		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (D)	1-23311-355-0	01	1	0105-	●		●
190	LEVER; ENG CONT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (E)	1-23311-352-0	01	1	0105-	●		●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	0105-	●		●
208	NUT; LEVER	1-09984-015-0	01	1	0105-	●		●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0105-0206		●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0207-		●
209	SHAFT; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23331-130-0	01	1	0105-	●		●
209	SHAFT; ENG CONT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-23331-128-0	01	1	0105-	●		●
210	WASHER; LK,JOINT BALL RFD GOVERNOR(SD5) ID=5.1	9-09150-505-0	02	1	0105-	●		●
211	WASHER; PL,JOINT BALL RFD GOVERNOR(SD5) ID=5.3 OD=16	9-09164-705-0	02	1	0105-	●		●
212	BRACKET; SPR EYE RFD GOVERNOR(SD5)	1-23335-486-0	01	1	0105-	●		●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206		●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0207-		●
214	SPRING; ENG CONT RETURN RFD GOVERNOR(SD5)	1-09583-315-0	01	1	0105-	●		●
215	BOLT; BRKT SPR EYE RFD GOVERNOR(SD5) M10X16 FLANGE	0-28181-016-0	01	1	0105-0512	●		●
215	BOLT; BRKT SPR EYE RFD GOVERNOR(SD5) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●		●
242	LINK ASM RFD GOVERNOR(SD5) (A) L=216	1-23314-177-0	01	1	0105-	●		●
242	LINK ASM GOVERNOR CONTROL<W69> (B) L=186	1-22190-494-1	01	1	0105-	●
245	NUT; LINK RFD GOVERNOR(SD5) (A) M5 LH THREAD	9-09840-277-0	02	1	0105-	●		●
245	NUT; LINK RFD GOVERNOR(SD5) (B) M5	9-99110-405-0	02	1	0105-	●		●
245	NUT; LINK GOVERNOR CONTROL<W69> (C) LH THREAD	1-09409-002-0	01	1	0105-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (E) M8	9-09110-408-0	02	1	0105-0512	●
245	NUT; LINK GOVERNOR CONTROL<W69> (E) M8	0-91110-508-0	02	1	0601-	●
245	NUT; LINK GOVERNOR CONTROL<W69> (D) M8	9-09110-408-0	01	1	0105-0512	●
245	NUT; LINK GOVERNOR CONTROL<W69> (D) M8	0-91110-508-0	01	1	0601-	●
246	JOINT; BALL,ENG CONT LINK RFD GOVERNOR(SD5)	1-09760-104-0	01	1	0105-	●		●
248	NUT; JOINT BALL RFD GOVERNOR(SD5) M5	9-99110-405-0	02	1	0105-0512	●		●
248	NUT; JOINT BALL RFD GOVERNOR(SD5) M5	0-91110-505-0	02	1	0601-	●		●
250	ROD; ROD TO JOINT RFD GOVERNOR(SD5) (B) M5X50 LH THREAD	1-09765-197-0	01	1	0105-	●		●
250	ROD; ROD TO JOINT RFD GOVERNOR(SD5) (A) M5X120	9-08400-512-0	01	1	0105-	●		●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK RFD GOVERNOR(SD5)	1-09760-103-0	01	1	0105-	●		●
253	JOINT; ROD TO ROD RFD GOVERNOR(SD5)	9-23319-194-0	01	1	0105-	●		●
267	BOLT; ENG CONT RFD GOVERNOR(SD5) M10X30 FLANGE	0-28181-030-0	01	1	0105-0512	●		●
267	BOLT; ENG CONT RFD GOVERNOR(SD5) M10X30 FLANGE	0-28151-030-0	01	1	0601-	●		●

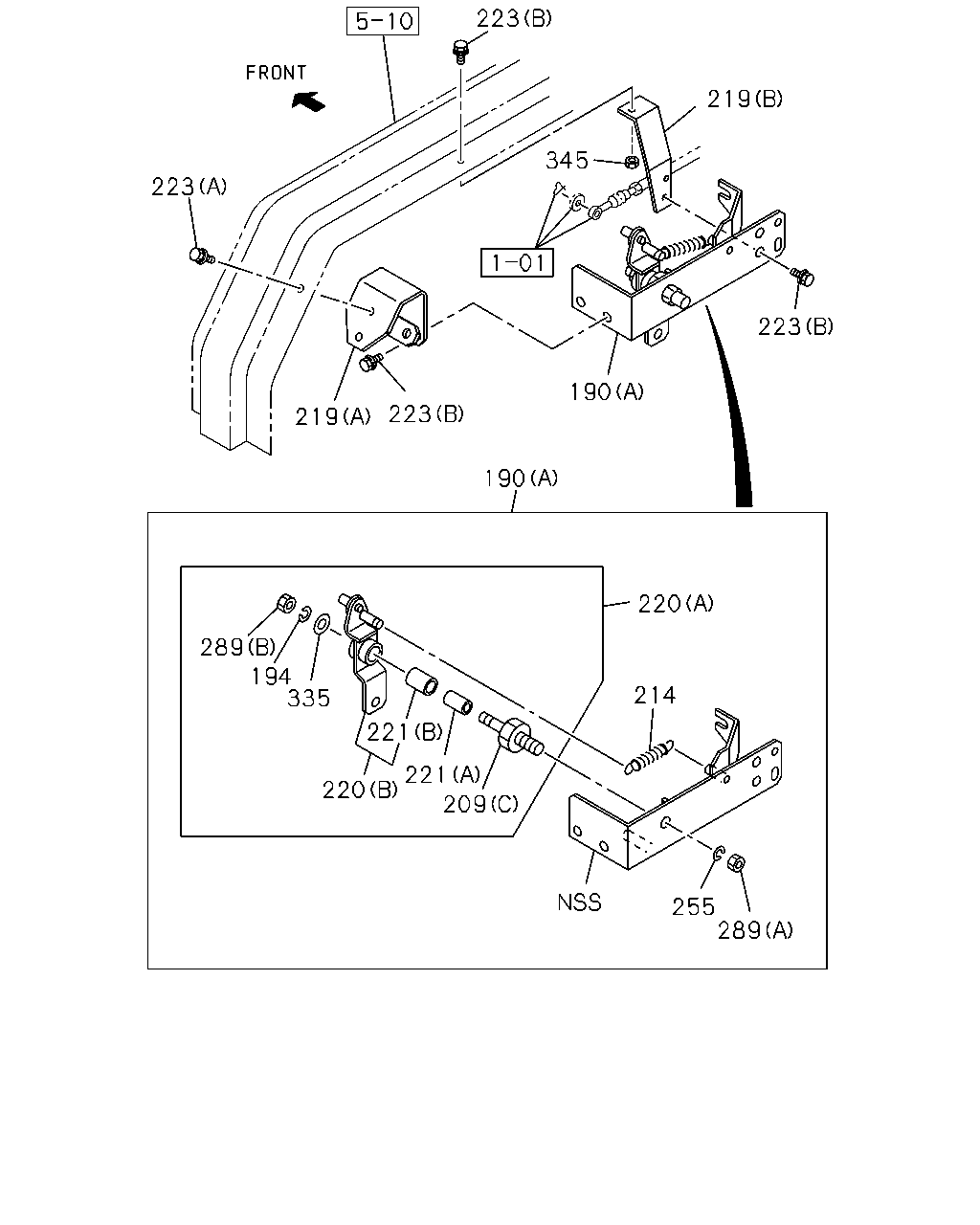

223 219 345 223 223 190 223 219 190 220 289 194 335 214 221 221 220 209 255 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-503-0	01	1	0105-		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23311-353-0	01	1	0105-	●		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (C)	1-23311-354-0	01	1	0105-	●		●
190	LEVER; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (D)	1-23311-355-0	01	1	0105-	●		●
190	LEVER; ENG CONT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (E)	1-23311-352-0	01	1	0105-	●		●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0105-0206		●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0207-		●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0105-0206		●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0207-		●
209	SHAFT; ENG CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> RFD GOVERNOR(SD5) (B)	1-23331-130-0	01	1	0105-	●		●
209	SHAFT; ENG CONT RFD GOVERNOR(SD5) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-23331-128-0	01	1	0105-	●		●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206		●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0207-		●
214	SPRING; ENG CONT RETURN RFD GOVERNOR(SD5)	1-09583-315-0	01	1	0105-	●		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0105-0206		●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	0207-	●	●	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	0105-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-359-0	01	1	0105-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23311-360-0	01	1	0105-		●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0105-0206		●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0207-		●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0105-0206		●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0207-		●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512		●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-		●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0105-0206		●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0207-		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0105-0206		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0207-0512		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	0-91110-510-0	01	1	0601-		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0105-0206		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0207-0512		●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	0-91111-508-0	01	1	0601-		●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0105-0206		●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0207-		●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0105-0602		●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-		●

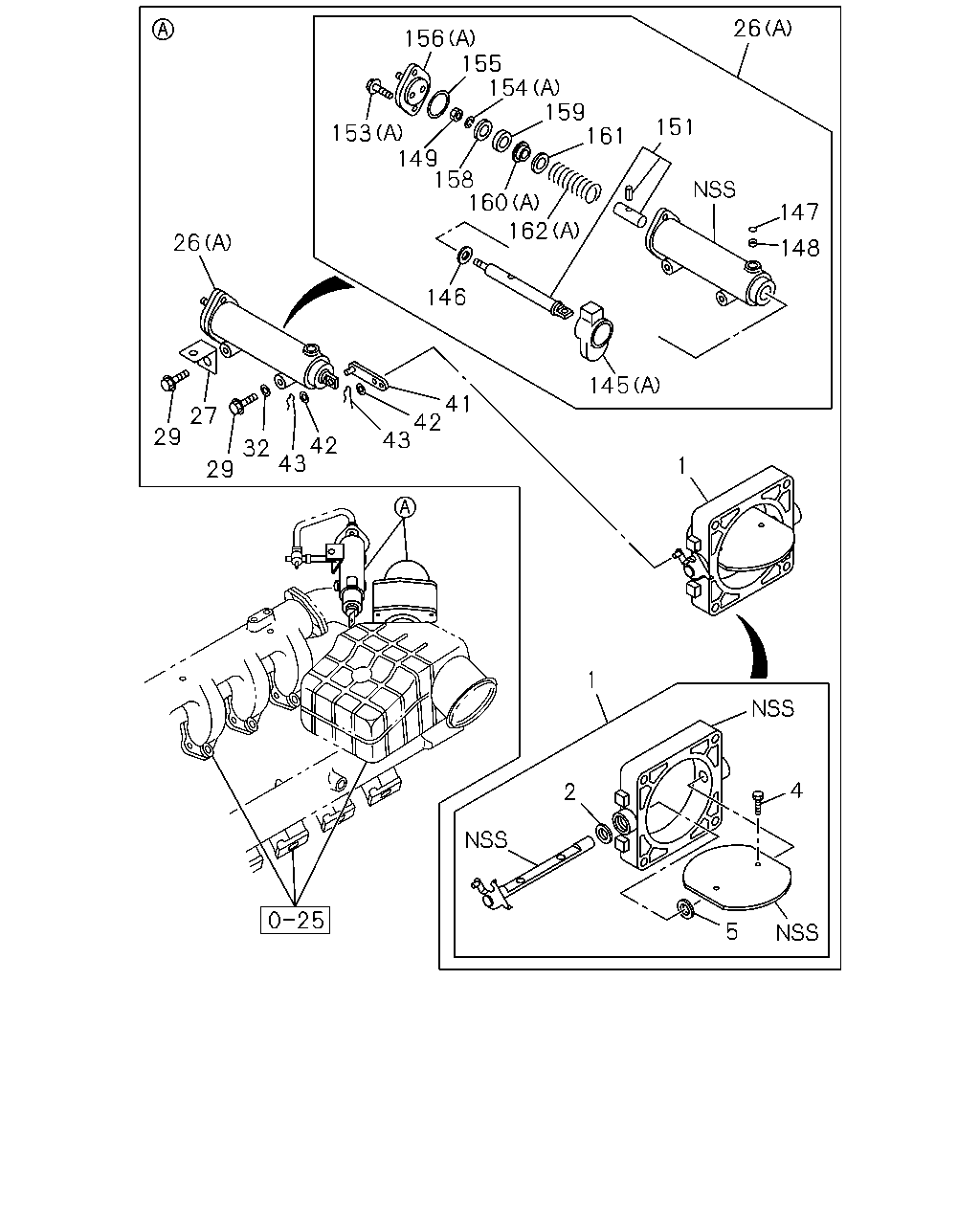

26 156 155 154 159 161 151 153 149 158 160 162 147 26 148 146 145 41 42 43 27 29 32 42 43 29 1 1 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHUTTER ASM; INT	1-14310-219-1	01	1	0105-	●	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	0105-	●	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	0105-	●	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	0105-	●	●	●
26	CYLINDER ASM; CONT (A)	1-22190-527-1	01	1	0105-	●	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (B)	1-22190-545-0	01	1	0105-	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	0105-	●	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●	●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	0105-	●	●	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	0105-	●	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	0105-	●	●	●
145	COVER; BREATHER (A)	1-22199-008-0	01	1	0105-	●	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (B)	1-22199-009-0	01	1	0105-	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	0105-	●	●	●
146	SEAL; DUST,CONT GOVERNOR CONTROL<W69>	1-22189-016-0	01	1	0105-	●
147	RING; RET	9-88510-331-0	01	1	0105-	●	●	●
147	RING; RET GOVERNOR CONTROL<W69>	9-88510-331-0	01	1	0105-	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	0105-	●	●	●
148	FILTER; CONT CYL GOVERNOR CONTROL<W69>	9-88510-330-0	01	1	0105-	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	0105-	●	●	●
149	NUT; LOCK,CONT SHAFT GOVERNOR CONTROL<W69>	9-83315-085-0	01	1	0105-	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	0105-	●	●	●
153	BOLT; CONT CYL (A)	1-33739-326-0	02	1	0105-	●	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-267-0	02	1	0105-	●
154	WASHER; LK,CYL (A) ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (B) ID=8.2	9-09150-508-0	03	1	0105-	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	0105-	●	●	●
155	GASKET; CONT CYL GOVERNOR CONTROL<W69>	9-88510-372-0	01	1	0105-	●
156	COVER; CONT CYL (A)	1-22189-162-1	01	1	0105-	●	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-375-0	01	1	0105-	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	0105-	●	●	●
158	RETAINER; GASKET,CYL GOVERNOR CONTROL<W69>	9-88510-324-0	01	1	0105-	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	0105-	●	●	●
159	GASKET; CONT CYL GOVERNOR CONTROL<W69>	9-88510-373-0	01	1	0105-	●
160	PLATE (A)	1-22199-020-0	01	1	0105-	●	●	●
160	PLATE GOVERNOR CONTROL<W69> (B)	1-22199-001-0	01	1	0105-	●
161	RING; WEAR	1-22199-002-0	01	1	0105-	●	●	●
161	RING; WEAR GOVERNOR CONTROL<W69>	1-22199-002-0	01	1	0105-	●
162	SPRING; CONT CYL (A)	1-22199-018-0	01	1	0105-	●	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (B)	9-88510-374-0	01	1	0105-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
