7-50 — FRONT SEAT (#1348) — 133 parça

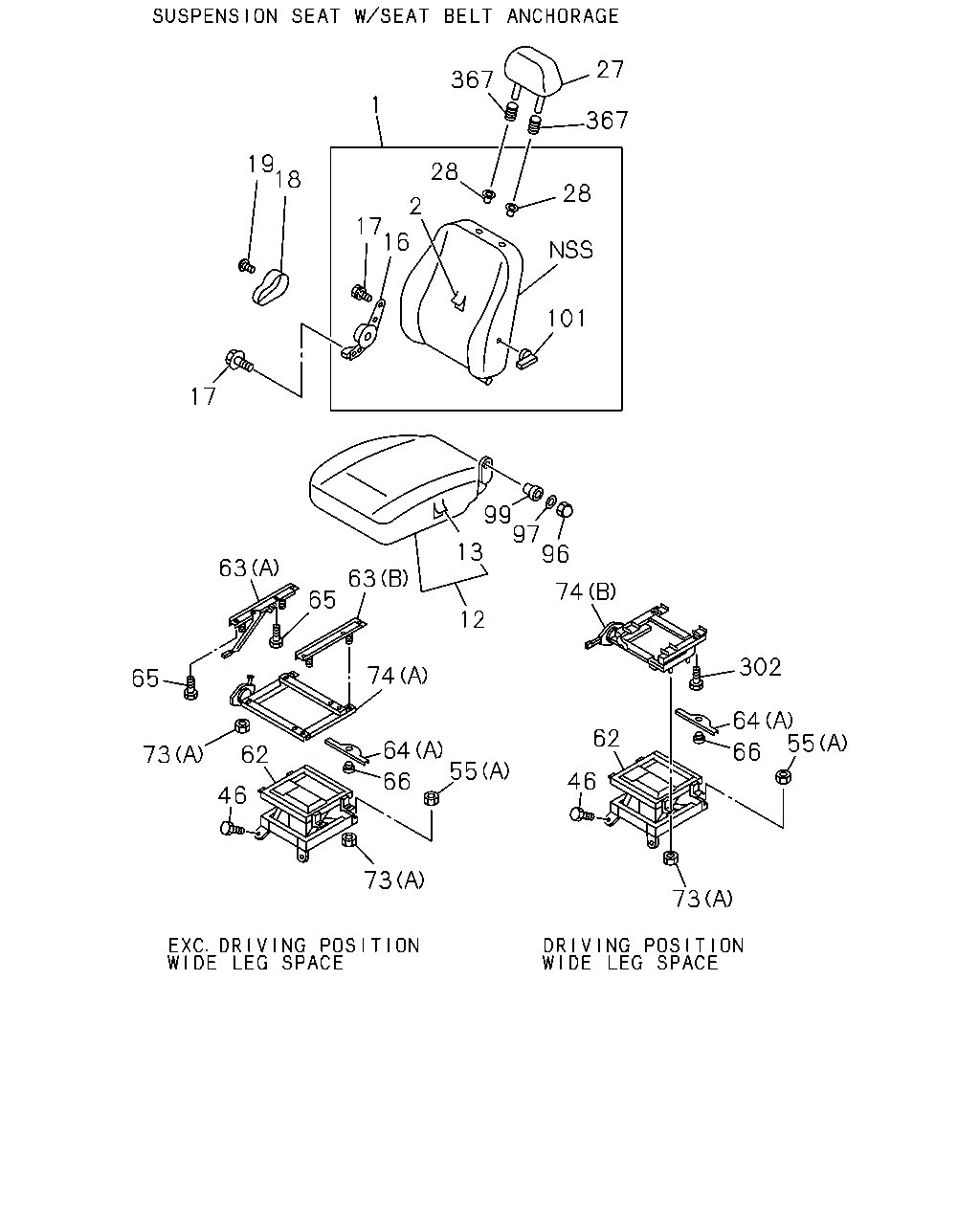

27 367 1 367 19 18 28 28 2 17 16 101 17 99 97 96 13 63 63 74 65 12 302 74 65 64 55 62 64 55 66 62 73 46 66 46 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9204-
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9204-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9204-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9204-
12	CUSHION; SEAT,FRT	1-75028-322-0	01	1	9204-
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9204-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9204-
16	ADJUSTER ASM; RECLINING	1-75418-014-2	01	1	9204-
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9204-
18	COVER; RECLINING	1-75417-060-0	01	1	9204-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9204-
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9204-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9204-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9204-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9204-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL (A) M8 FLANGE	8-94279-504-1	02	1	9204-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEATW/SEAT BELT ANCHORAGE<WN5> (B) M8 FLANGE	8-94279-504-1	04	1	9204-9504
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-113-7	01	1	9204-
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C)	1-75518-034-2	01	1	9204-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-019-1	01	1	9204-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-020-1	01	1	9204-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9204-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9204-
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X23 W/LK WASHER	8-94254-743-0	04	1	9204-
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8X23 W/LK WASHER	8-94254-743-0	04	1	9204-
66	RUBBER; LWR STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9204-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) M8 FLANGE	5-09440-005-0	04	1	9204-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEATW/SEAT BELT ANCHORAGE<WN5> (B) M8 FLANGE	8-94279-518-0	04	1	9505-
73	NUT; ADJ,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE	5-09440-005-0	08	1	9204-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75518-045-5	01	1	9204-
74	ADJUSTER; FRT SEAT,HEIGHT CONT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-013-7	01	1	9204-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9204-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9204-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9204-
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	1-75508-002-0	01	1	9204-
302	BOLT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	04	1	9204-
367	BOOT; HD REST	8-94412-828-0	04	1	9204-

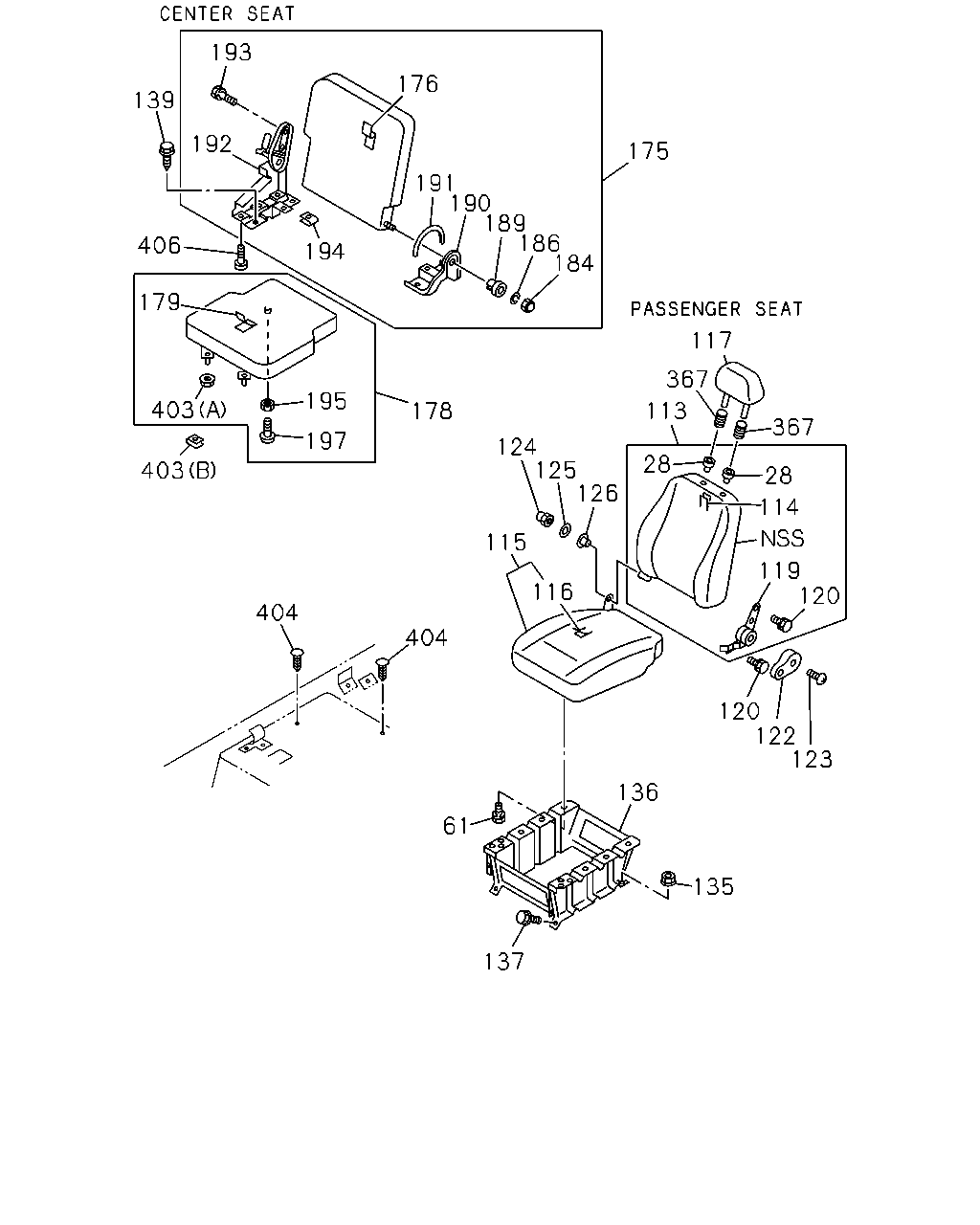

193 176 139 192 175 191 190 189 186 184 406 194 179 117 367 195 403 113 178 367 197 124 125 126 28 403 28 114 115 119 120 116 404 404 120 122 123 136 61 135 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9204-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9204-
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	9204-
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09980-566-0	04	1	9204-
113	BACK ASM; SEAT	1-75028-319-0	01	1	9204-
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-115-0	01	1	9204-
115	CUSHION ASM; PASSENGER SEAT	1-75028-327-0	01	1	9204-
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-113-0	01	1	9204-
117	REST; HD	1-75657-020-0	01	1	9204-
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75418-015-2	01	1	9204-
120	BOLT; RECLINING ADJ M8X20	1-09980-438-0	04	1	9204-
122	COVER; ADJ,RECLINING	1-75417-061-0	01	1	9204-
123	SCREW; COVER,RECLINING M6X6	1-09981-499-0	01	1	9204-
124	NUT; CAP,RECLINING M8	1-09984-109-0	01	1	9204-
125	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9204-
126	BUSHING; HINGE,RECLINING	1-75508-004-0	01	1	9204-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9204-
136	STAND; PASSENGER SEAT	1-75558-294-4	01	1	9204-
137	BOLT; STAND	1-09980-566-0	02	1	9204-
139	BOLT; PASSENGER SEAT	1-09980-566-0	04	1	9204-
175	BACK ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75028-307-0	01	1	9204-
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CENTER SEAT<WP2>	1-75028-303-0	01	1	9204-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75118-990-0	01	1	9204-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CENTER SEAT<WP2>	1-75118-989-0	01	1	9204-
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75028-313-0	01	1	9204-
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-75028-304-0	01	1	9204-
178	CUSHION ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14)	1-75028-302-0	01	1	9204-
178	CUSHION ASM; PASSENGER CENTER SEAT AUSTRALIA EQUIPMENT(RR3)	1-75028-302-0	01	1	9204-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75118-988-0	01	1	9204-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-75118-987-0	01	1	9204-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14)	1-75118-985-0	01	1	9204-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH AUSTRALIA EQUIPMENT(RR3)	1-75118-985-0	01	1	9204-
184	NUT; CAP,CENTER SEAT M8	1-09984-109-0	01	1	9204-
186	WASHER; PL,HINGE,CENTER SEAT BACK ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9204-
189	BUSHING; HINGE,CENTER SEAT BACK	1-75508-004-0	01	1	9204-
190	BRACKET ASM; HINGE,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75418-019-2	01	1	9204-
190	BRACKET ASM; HINGE,CENTER SEAT DELUXE CENTER SEAT<WP2>	1-75418-022-0	01	1	9204-
191	FINISHER; HINGE,CENTER SEAT BACK L=190	1-71998-300-0	01	1	9204-
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75418-016-3	01	1	9204-
192	ADJUSTER ASM; RECLINING,CENTER SEAT BA DELUXE CENTER SEAT<WP2>	1-75418-021-2	01	1	9204-
193	BOLT; RECLINING ADJ,CENTER SEAT BACK M10X16 FLANGE	1-75198-053-0	02	1	9204-
194	RUBBER; BUFFER,CENTER SEAT BACK EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14)	1-75198-054-0	01	1	9204-
195	SPACER; CUSHION,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14) M8	9-09110-408-0	01	1	9204-
197	SCREW; TAPPING,SPACER FIX,CENTER SEAT EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14) M6X16 TAPPING W/PL WASHER	0-74110-616-0	01	1	9204-
367	BOOT; HD REST	8-94412-828-0	04	1	9204-
403	NUT; CENTER SEAT (A) M8 FLANGE	8-94279-504-1	02	1	9204-
403	NUT; CENTER SEAT DELUXE CENTER SEAT<WP2> (B)	5-09466-004-1	02	1	9204-
404	PLUG; SEAT OD=15 L=14.5	1-76378-157-0	04	1	9204-
406	SCREW; CENTER SEAT DELUXE CENTER SEAT<WP2> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9204-

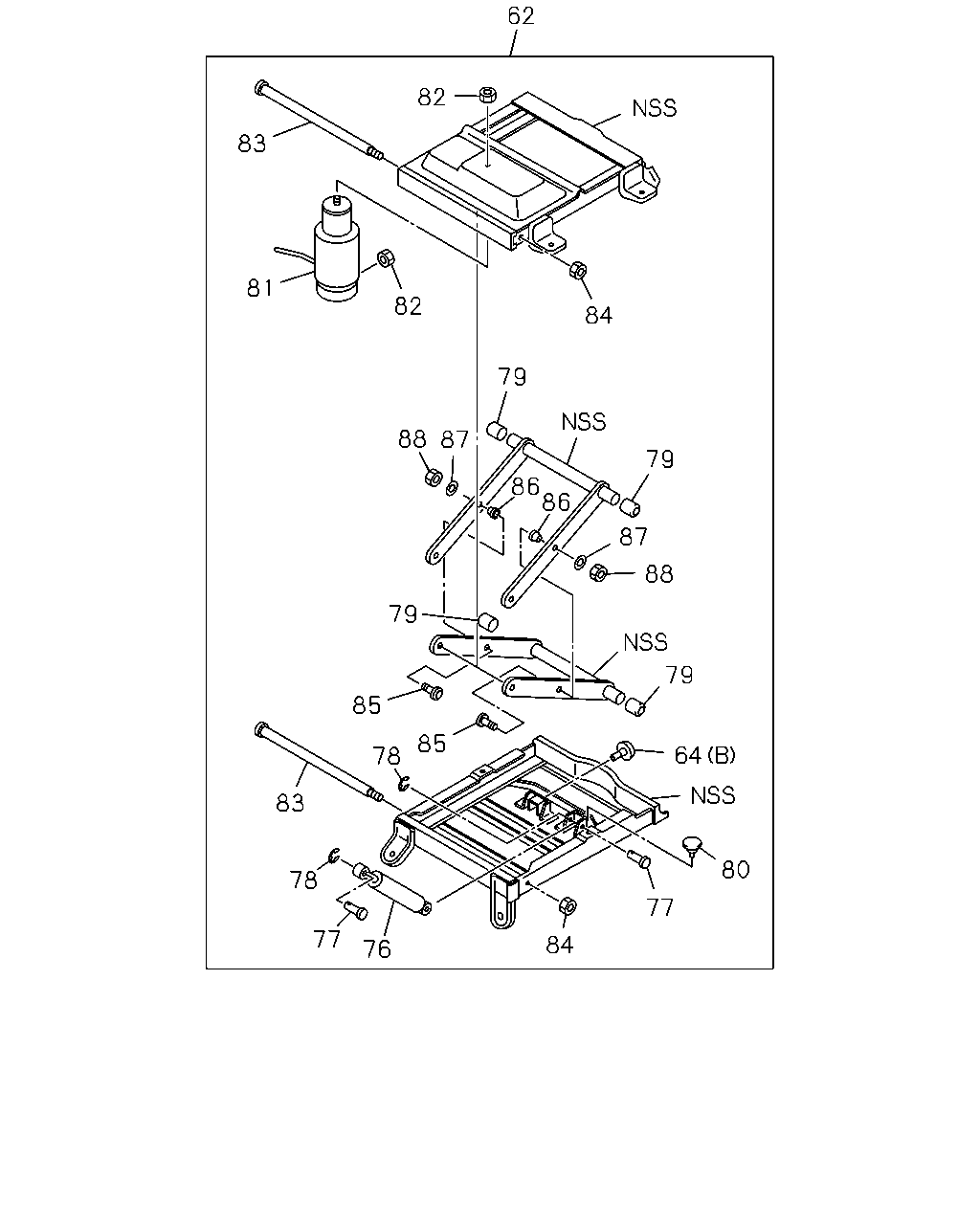

62 82 83 81 82 84 79 88 87 79 86 86 87 88 79 79 85 85 64 78 83 80 78 77 77 84 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-113-7	01	1	9204-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-09987-123-0	01	1	9204-
64	STOPPER; LWR,SUSPENSION DEVICE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-75537-194-0	01	1	9204-
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9204-
77	PIN; DAMPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9204-
78	RING; SNAP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9204-
79	ROLLER ASM; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9204-
80	RUBBER; STOPPER SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9204-
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-192-0	01	1	9204-
82	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9204-
83	PIN; LOW & UPR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9204-
84	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9204-
85	BOLT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9204-
86	BUSHING; GUIDE SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9204-
87	WASHER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9204-
88	NUT; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9204-

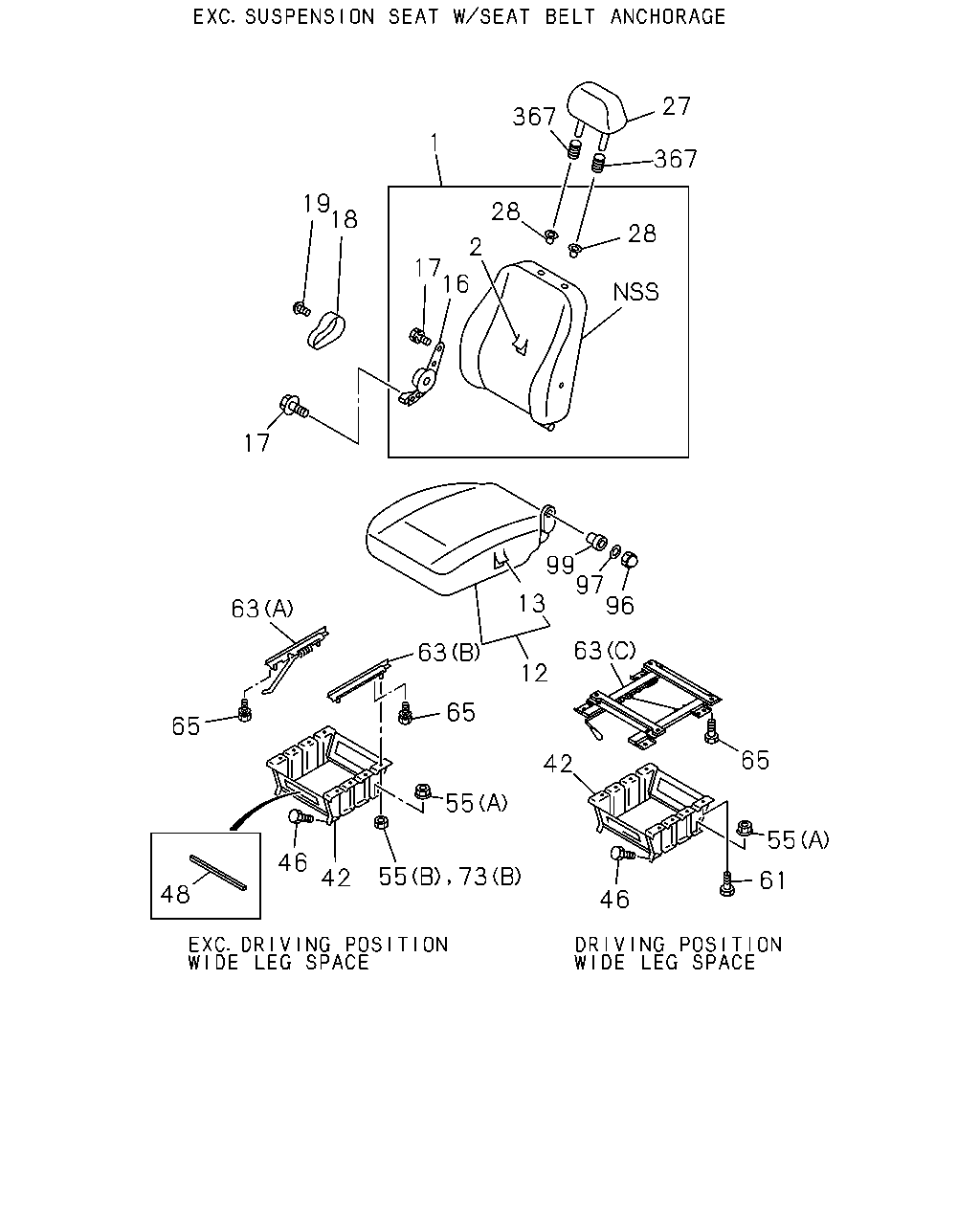

27 367 1 367 19 18 28 28 2 17 16 17 99 97 96 13 63 63 63 12 65 65 65 42 55 55 46 42 61 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-314-0	01	1	9204-
1	BACK ASM; SEAT EXC. DELUXE CAB(W14)	1-75028-315-0	01	1	9204-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-119-0	01	1	9204-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE CAB(W14)	1-75116-118-0	01	1	9204-
12	CUSHION; SEAT,FRT	1-75028-322-0	01	1	9204-
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-119-0	01	1	9204-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75116-111-0	01	1	9204-
16	ADJUSTER ASM; RECLINING	1-75418-014-2	01	1	9204-
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9204-
18	COVER; RECLINING	1-75417-060-0	01	1	9204-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9204-
27	REST; HD,FRT SEAT	1-75657-020-0	01	1	9204-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-441-0	02	1	9204-
28	HOLDER; GUIDE,HD REST LIGHT BLUE	8-94477-444-0	02	1	9204-
42	STAND; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75558-294-4	01	1	9204-
42	STAND; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75557-391-8	01	1	9204-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9204-
48	PROTECTOR; SEAT STAND EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEATW/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=500	1-79937-746-0	01	1	9204-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL (A) M8 FLANGE	8-94279-504-1	02	1	9204-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEATW/SEAT BELT ANCHORAGE<WN5> (B) M8 FLANGE	8-94279-504-1	04	1	9204-9504
61	BOLT; SEAT TO STAND	1-09980-566-0	04	1	9204-
61	BOLT; SEAT TO STAND DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09980-566-0	04	1	9204-
63	ADJUSTER; SEAT SLIDE DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C)	1-75518-034-2	01	1	9204-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75518-019-1	01	1	9204-
63	ADJUSTER; SEAT SLIDE EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B)	1-75518-020-1	01	1	9204-
65	SCREW; ADJ TO SEAT EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8X23 W/LK WASHER	8-94254-743-0	04	1	9204-
65	SCREW; ADJ TO SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8X23 W/LK WASHER	8-94254-743-0	04	1	9204-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9204-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9204-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9204-
367	BOOT; HD REST	8-94412-828-0	04	1	9204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
