0-32B — WATER PIPING; ENGINE (#13475) — 25 parça

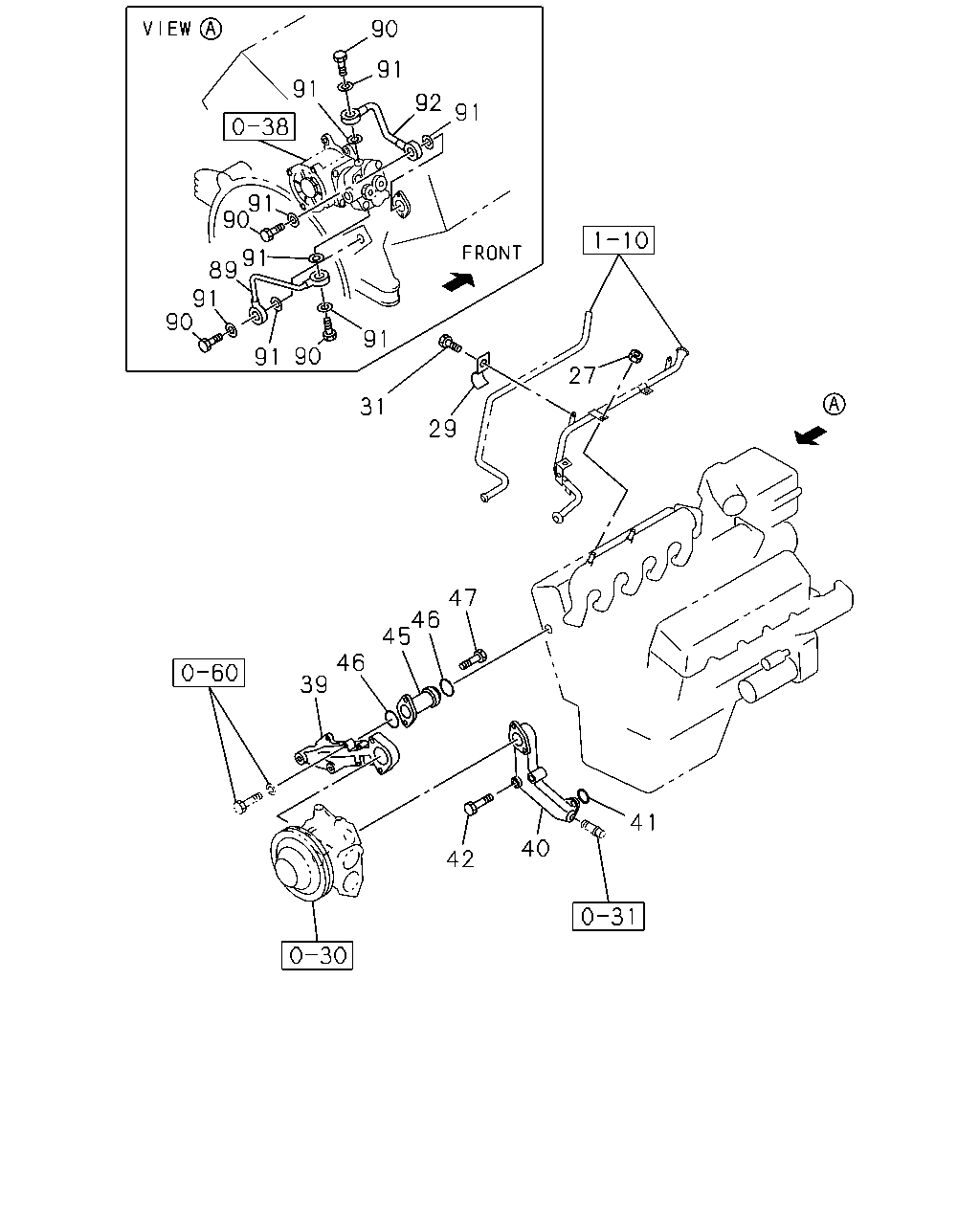

çizim 81004
90 91 91 92 91 91 90 91 89 91 90 91 90 91 27 31 29 47 46 45 46 39 41 40 42
BalonParca AdiParca NoAdetTipApplied Date A B C
27 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ●
27 NUT; PIPE FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
29 CLIP; PIPE
ID=9.7 L=20 		1-09700-878-1 04 1 0105- ● ● ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 04 1 0105-0512 ● ● ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ●
39 DUCT ASM; WATER,PUMP OUT 1-13711-544-1 01 1 0105- ● ● ●
40 DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-382-2 01 1 0105-0106 ● ● ●
40 DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-104-3 01 1 0107- ● ● ●
40 DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-623-3 01 1 0105-0108 ● ● ●
40 DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-074-3 01 1 0109- ● ● ●
41 GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 01 1 0105- ● ● ●
42 BOLT; DUCT,PUMP OUT
M10X30 FLANGE 		0-28181-030-0 04 1 0105-0512 ● ● ●
42 BOLT; DUCT,PUMP OUT
M10X30 FLANGE 		0-28151-030-0 04 1 0601- ● ● ●
45 DUCT; WATER,TO OIL COOLER 1-13711-334-1 01 1 0105-0108 ● ● ●
45 DUCT; WATER,TO OIL COOLER 1-13711-084-1 01 1 0109- ● ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 02 1 0105- ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE 		0-28081-025-0 02 1 0105-0512 ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ● ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-667-0 01 1 0105- ● ● ●
89 PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-223-0 01 1 0105- ● ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0105-0206 ● ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0207- ● ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0105- ● ● ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-668-0 01 1 0105- ● ● ●
92 PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-345-1 01 1 0105- ● ● ●
