◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28B - VENTILATION SYSTEM ▶
0-28B — VENTILATION SYSTEM (#13469) — 40 parça

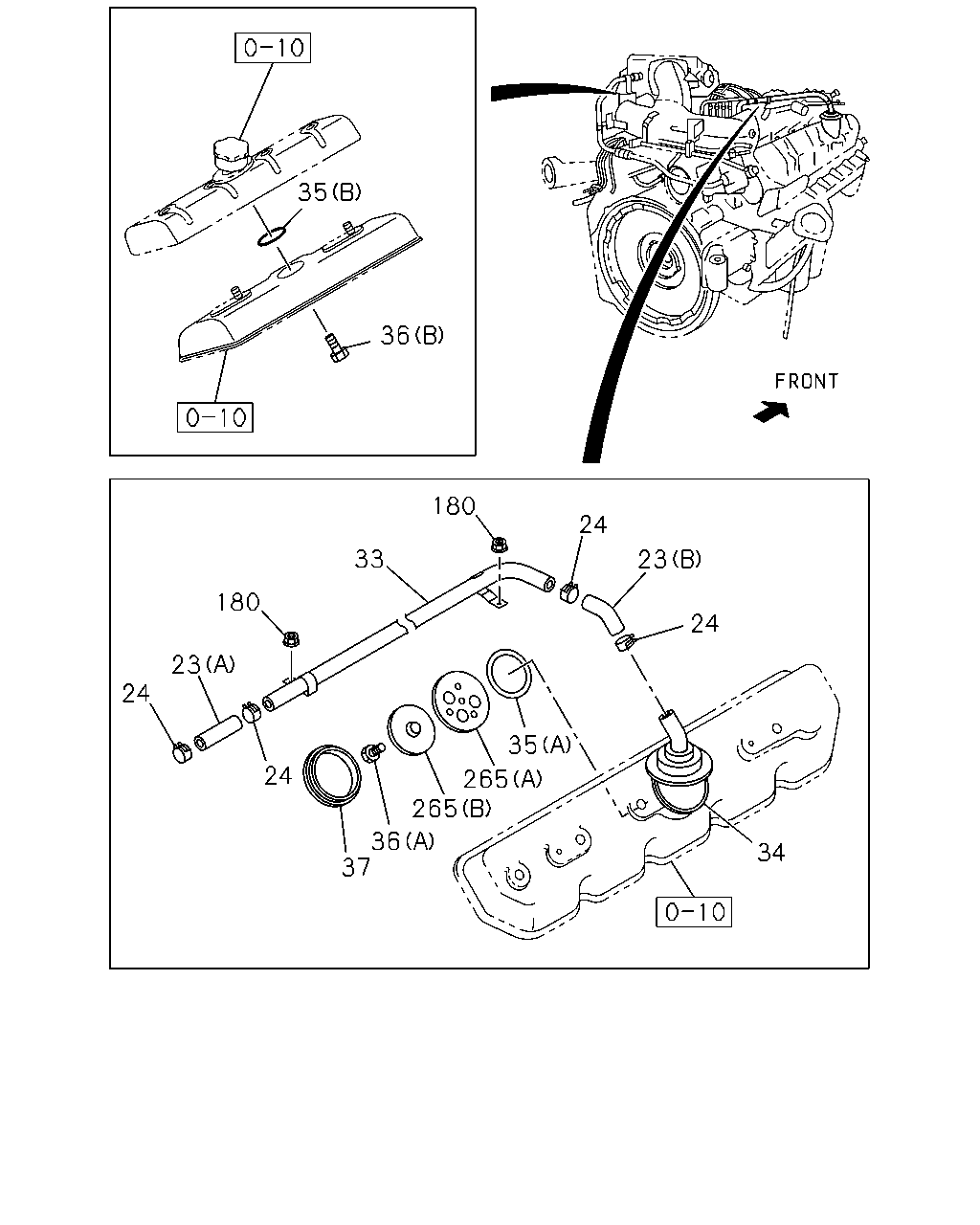

çizim 78986
35 36 180 24 33 23 180 24 23 24 35 24 265 265 36 37 34
BalonParca AdiParca NoAdetTipApplied Date A B C
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 0105- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 0105- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 0105- ● ● ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 0105- ● ● ●
34 VENTILATOR 1-14360-055-0 01 1 0105- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-09623-418-0 02 1 0105-0109 ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-09623-418-0 02 1 0105-0109 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-09623-418-0 02 1 0105-0109 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-09623-418-0 02 1 0110- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-09623-418-0 02 1 0110- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-09623-418-0 02 1 0110- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-09623-418-0 02 1 0110- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-09623-418-0 01 1 0105- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (A) 		1-09623-418-0 01 1 0105- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09623-418-0 01 1 0105- ●
36 BOLT; VENTILATOR
(B) M6X12 FLANGE 		0-28080-612-0 07 1 0105-0109 ● ●
36 BOLT; VENTILATOR
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M6X12 FLANGE 		0-28080-612-0 07 1 0105-0109 ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M6X12 FLANGE 		0-28080-612-0 07 1 0105-0109 ●
36 BOLT; VENTILATOR
(B) M6X12 FLANGE 		0-28080-612-0 07 1 0110-0512 ● ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M6X12 FLANGE 		0-28080-612-0 07 1 0110-0512 ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M6X12 FLANGE 		0-28080-612-0 07 1 0110-0512 ●
36 BOLT; VENTILATOR
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M6X12 FLANGE 		0-28080-612-0 07 1 0110-0512 ●
36 BOLT; VENTILATOR
(B) M6X12 FLANGE 		0-28050-612-0 07 1 0601- ● ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M6X12 FLANGE 		0-28050-612-0 07 1 0601- ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M6X12 FLANGE 		0-28050-612-0 07 1 0601- ●
36 BOLT; VENTILATOR
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M6X12 FLANGE 		0-28050-612-0 07 1 0601- ●
36 BOLT; VENTILATOR
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) M6X12 		0-20800-612-0 04 1 0105- ●
36 BOLT; VENTILATOR
INJ PUMP Q SET 2000M ALTITUDE(T1C) (A) M6X12 		0-20800-612-0 04 1 0105- ●
36 BOLT; VENTILATOR
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M6X12 		0-20800-612-0 04 1 0105- ●
37 GROMMET; BREATHER,HD COVER 1-09333-132-0 01 1 0105-0109 ● ●
37 GROMMET; BREATHER,HD COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0105-0109 ●
37 GROMMET; BREATHER,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09333-132-0 01 1 0105-0109 ●
37 GROMMET; BREATHER,HD COVER 1-09333-132-0 01 1 0110- ● ●
37 GROMMET; BREATHER,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0110- ●
37 GROMMET; BREATHER,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09333-132-0 01 1 0110- ●
37 GROMMET; BREATHER,HD COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0110- ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ● ●
180 NUT; PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 0105- ● ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 0105- ● ● ●
