0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#13461) — 98 parça

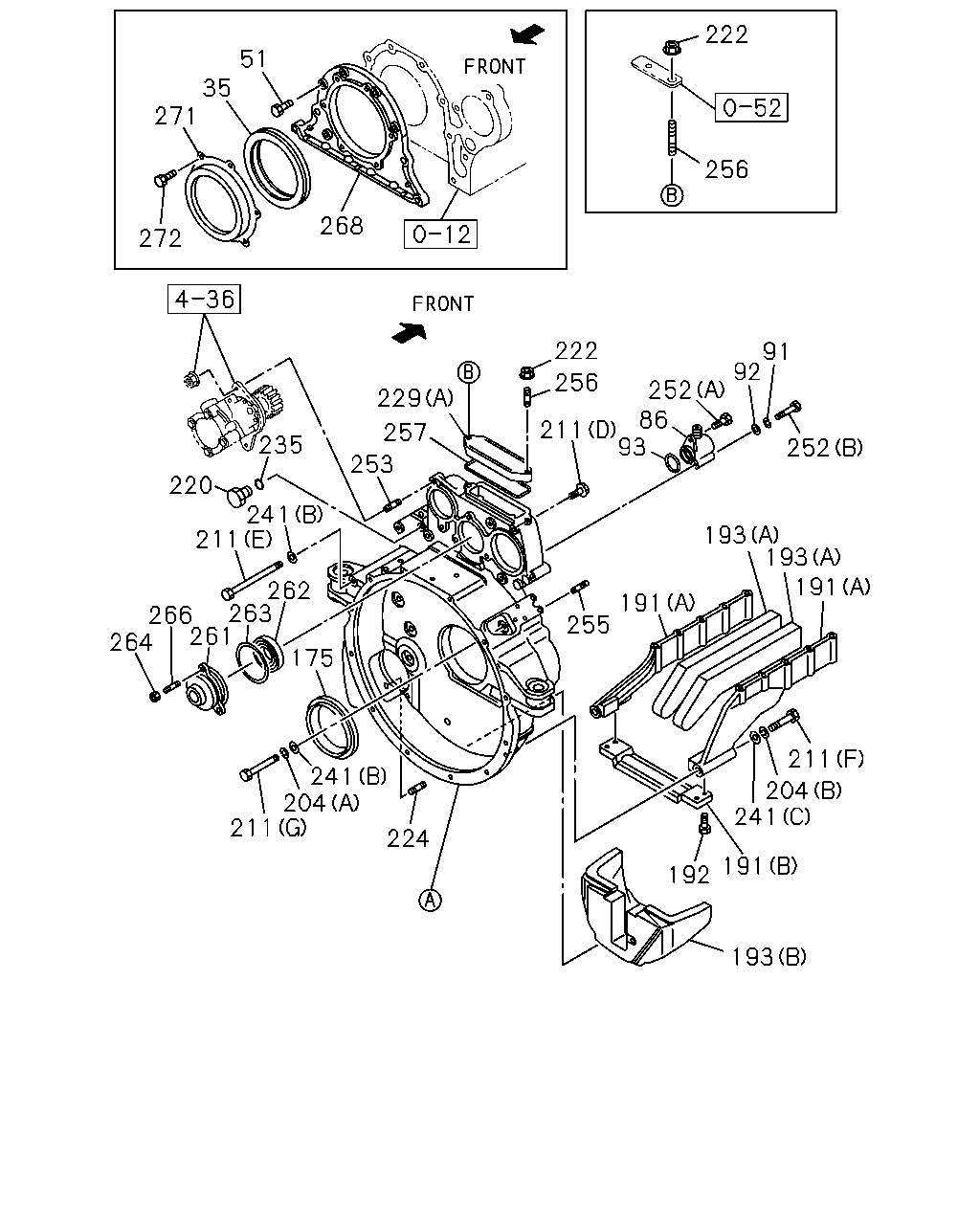

çizim 21440
222 51 35 271 256 268 272 222 256 91 92 252 86 211 93 229 257 253 235 252 220 241 211 193 193 191 262 266 264 261 191 255 175 241 204 211 211 204 241 224 191 192 193 263
BalonParca AdiParca NoAdetTipApplied Date A B C
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-3 01 1 0105- ● ● ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 0105- ● ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 0105- ● ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 0105- ● ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 0105- ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 0105- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 0105- ● ● ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 0105- ● ● ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 0105- ● ● ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 0105-0301 ● ● ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28181-030-0 04 1 0105-0301 ● ● ●
193 SPACER; STAY TO OIL,PAN
(B) 		1-19389-172-0 01 1 0105-0109 ● ●
193 SPACER; STAY TO OIL,PAN
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-19389-172-0 01 1 0105-0109 ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19389-172-0 01 1 0105-0109 ●
193 SPACER; STAY TO OIL,PAN
(B) 		1-19389-172-0 01 1 0110- ● ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-19389-172-0 01 1 0110- ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19389-172-0 01 1 0110- ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-19389-172-0 01 1 0110- ●
193 SPACER; STAY TO OIL,PAN
(A) 		1-19389-178-0 02 1 0105-0109 ● ●
193 SPACER; STAY TO OIL,PAN
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		1-19389-178-0 02 1 0105-0109 ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19389-178-0 02 1 0105-0109 ●
193 SPACER; STAY TO OIL,PAN
(A) 		1-19389-178-0 02 1 0110- ● ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		1-19389-178-0 02 1 0110- ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19389-178-0 02 1 0110- ●
193 SPACER; STAY TO OIL,PAN
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		1-19389-178-0 02 1 0110- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 0105- ● ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 02 1 0105- ● ● ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 0105- ● ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 0105- ● ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 0105-0512 ● ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ● ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 0105- ● ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 0105- ● ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 0105- ● ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (J) M10X22 FLANGE 		0-28181-022-0 01 1 0105- ● ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 0105- ● ● ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 0105- ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 0105- ● ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 0105- ● ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 0105- ● ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0105- ● ● ●
241 WASHER; PL,HSG
(B) ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 0105- ● ● ●
241 WASHER; PL,HSG
(C) ID=15 		9-09160-514-0 02 1 0105- ● ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 01 1 0105- ● ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 0105- ● ● ●
252 BOLT; GEAR BOX
(B) M8X70 		0-10805-870-0 01 1 0105-0512 ● ● ●
252 BOLT; GEAR BOX
(B) M8X70 		0-10855-870-0 01 1 0601- ● ● ●
252 BOLT; GEAR BOX
(A) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 0105- ● ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 0105- ● ● ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 0105- ● ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 0105- ● ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 0105- ● ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 0105- ● ● ●
262 BEARING 1-09810-126-0 01 1 0105- ● ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 0105- ● ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 0105-0602 ● ● ●
264 NUT; COVER
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ● ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 0105- ● ● ●
268 COVER; FRT 1-11320-056-1 01 1 0105- ● ● ●
271 COVER; DUST 1-11329-004-0 01 1 0105-0305 ● ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 0105-0305 ● ● ●

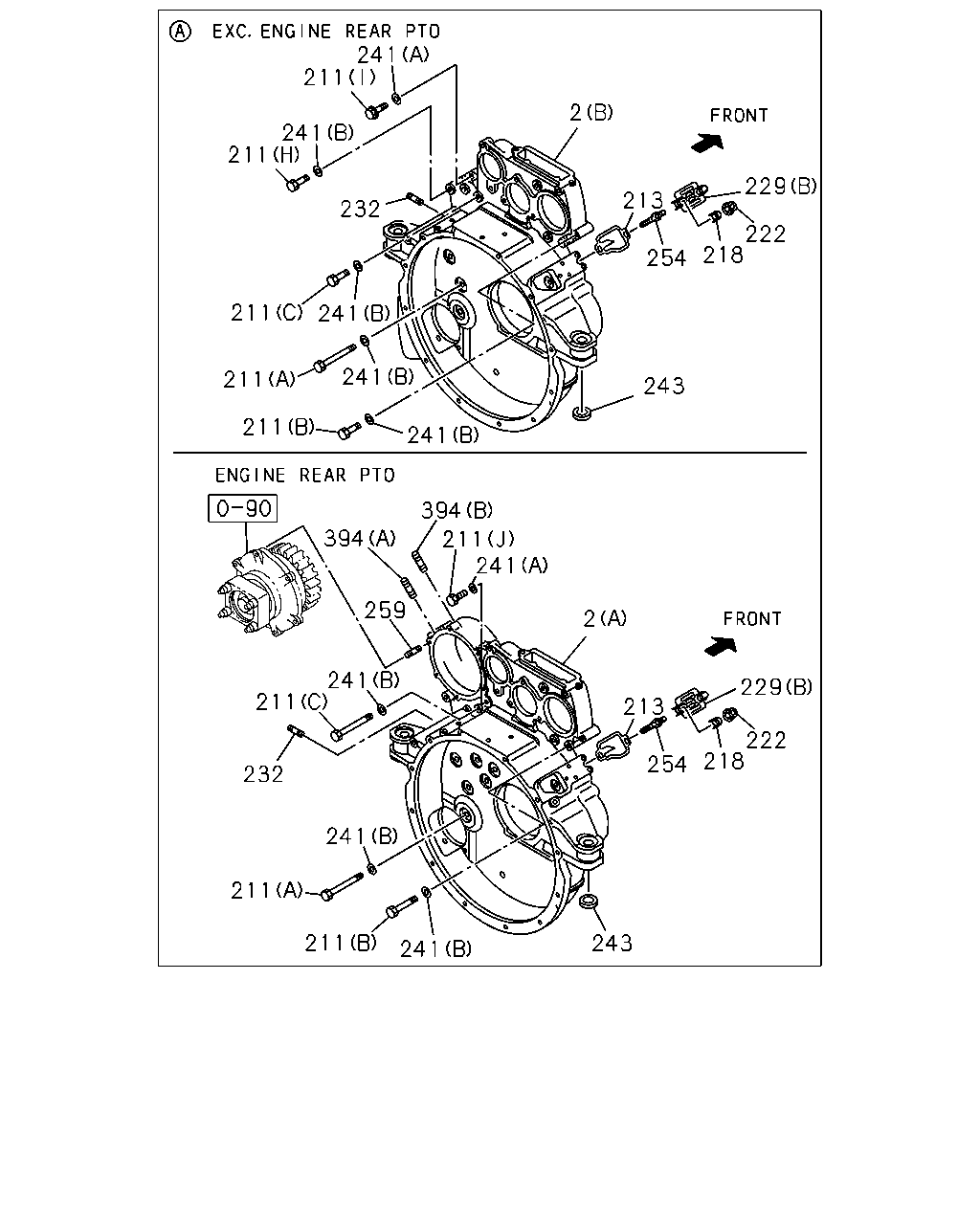

çizim 79062
241 211 2 241 211 229 222 218 213 232 254 241 211 243 211 241 394 211 241 259 394 2 241 211 229 222 218 213 254 232 241 211 211 243 241 211 241
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-11341-603-0 01 1 0105- ● ● ●
2 HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (B) 		1-11341-597-0 01 1 0105- ● ● ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (A) 		1-11341-630-0 01 1 0105-0209 ● ● ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (A) 		1-11341-681-2 01 1 0210- ● ● ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 0105- ● ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 0105- ● ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 0105-0512 ● ● ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ● ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 0105- ● ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 0105- ● ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 0105- ● ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (J) M10X22 FLANGE 		0-28181-022-0 01 1 0105- ● ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 0105- ● ● ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 0105- ● ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 0105- ● ● ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 0105- ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 0105- ● ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 0105- ● ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 0105- ● ● ●
241 WASHER; PL,HSG
(B) ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 0105- ● ● ●
241 WASHER; PL,HSG
(C) ID=15 		9-09160-514-0 02 1 0105- ● ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 01 1 0105- ● ● ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 0105- ● ● ●
243 SEAT; ENG FOOT 1-11349-016-1 02 1 0105- ● ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 0105- ● ● ●
259 STUD; PTO
ENGINE REAR PTO(SV1) M10X35 L=55 		9-04311-035-0 06 1 0105- ● ● ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO(SV1) (A) M10X25 L=40 		9-04411-025-0 01 1 0105- ● ● ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO(SV1) (B) M10X35 L=50 		9-04411-035-0 01 1 0105- ● ● ●
