7-43 — SUN VISOR AND ASSIST GRIP (#1346) — 51 parça

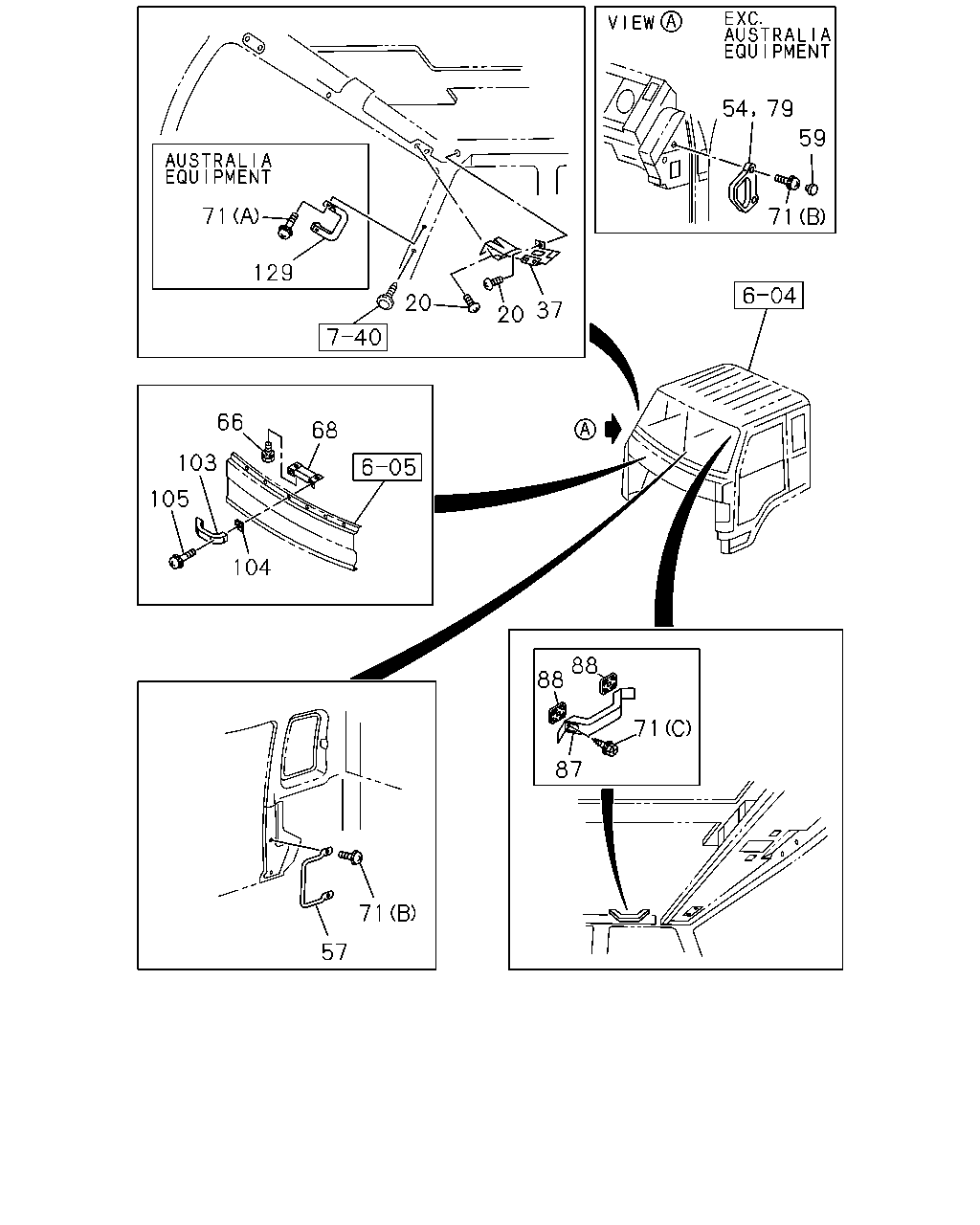

54 79 59 71 71 129 20 37 20 66 68 103 105 104 88 88 71 87 71 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SCREW; SUPPORT,HEADER SHELF DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	06	1	9204-
37	SUPPORT; SUN VISOR & HTR SHELF FRAME DELUXE CAB(W14)	1-73318-234-2	01	1	9204-
37	SUPPORT; SUN VISOR & HTR SHELF FRAME DELUXE CAB(W14)	1-73318-233-2	01	1	9204-
54	GRIP; ASSIST,QUARTER SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-055-1	01	1	9204-9208
54	GRIP; ASSIST,QUARTER SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-054-1	01	1	9204-9208
57	GRIP; ASSIST,RR PILLAR	1-71998-467-0	02	1	9204-
59	COVER; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-056-0	02	1	9204-9208
59	COVER; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-037-1	02	1	9209-
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9204-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	01	1	9204-
71	SCREW (B) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9204-
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) (B) M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9204-
71	SCREW AUSTRALIA EQUIPMENT(RR3) (A) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9204-
71	SCREW DELUXE CAB(W14) (C) M6X37 W/PL WASHER	1-09981-423-0	02	1	9204-
79	GRIP; ASSIST EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-036-5	01	1	9209-
79	GRIP; ASSIST EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-035-5	01	1	9209-
87	GRIP; ASSIST,CANT RAIL SIDE DELUXE CAB(W14)	1-73618-156-0	01	1	9204-
88	BASE; ASSIST GRIP DELUXE CAB(W14)	1-73618-157-0	02	1	9204-
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	01	1	9204-
104	SPACER; ASSIST GRIP	1-71997-529-2	02	1	9204-
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9204-
129	GRIP; ASSIST,FRT PILLAR AUSTRALIA EQUIPMENT(RR3)	1-73618-158-2	02	1	9204-

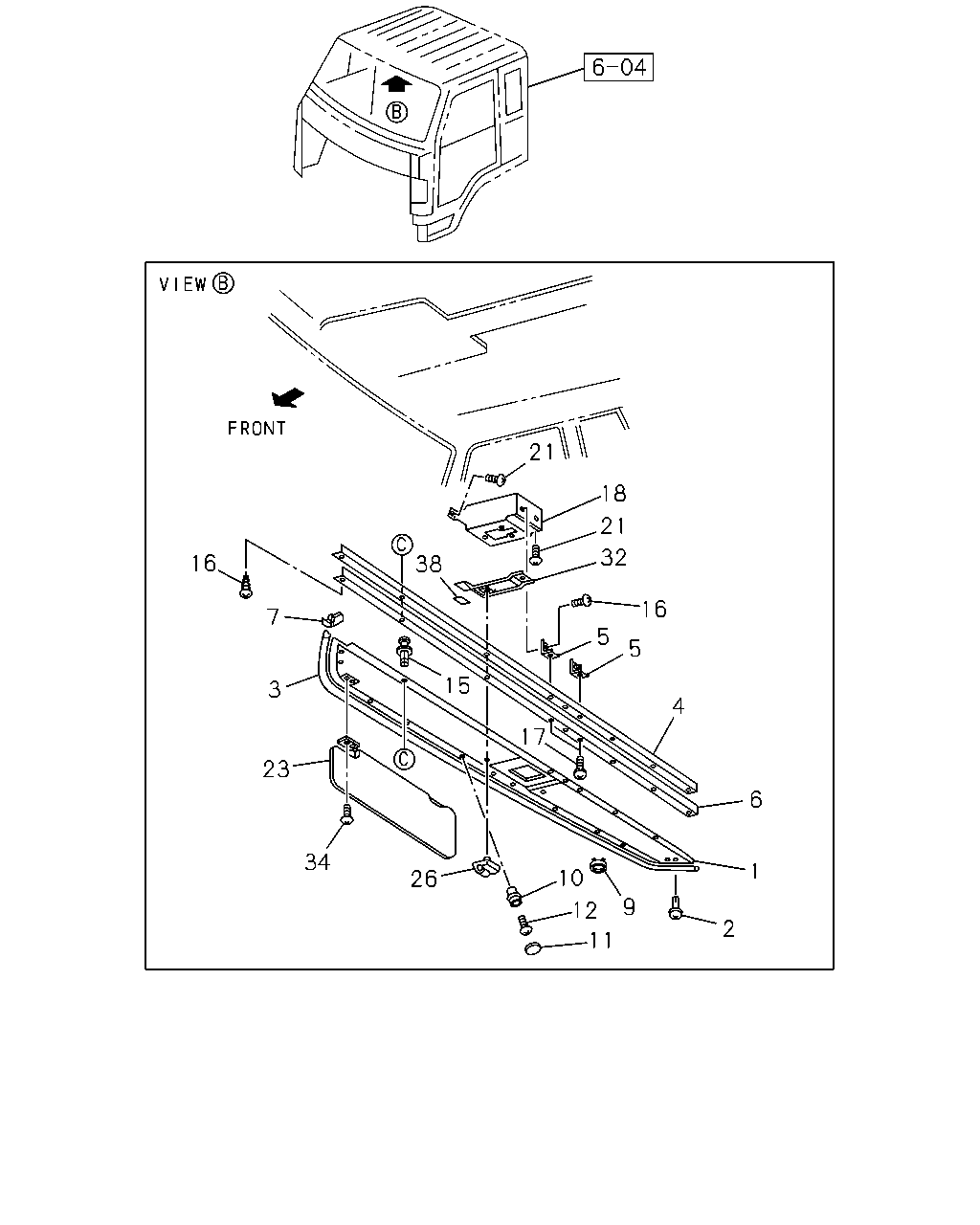

21 18 21 38 32 16 16 7 5 5 15 3 4 17 23 6 34 1 10 26 9 12 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF DELUXE CAB(W14)	1-73318-501-2	01	1	9204-
2	FASTENER; HEADER SHELF BOARD DELUXE CAB(W14) GRAY	1-73318-356-0	04	1	9204-
3	FINISHER; HEADER SHELF,FRT DELUXE CAB(W14) L=2030	1-73318-363-0	01	1	9204-
4	FRAME; HEADER SHELF DELUXE CAB(W14)	1-73318-204-5	01	1	9204-
5	BRACKET; HEADER SHELF FRAME DELUXE CAB(W14)	1-73318-206-0	02	1	9204-
6	FINISHER; HEADER SHELF,REAR DELUXE CAB(W14) L=1596	1-73318-147-4	01	1	9204-
7	FINISHER; HEADER SHELF,CORNER DELUXE CAB(W14)	1-73318-269-1	01	1	9204-
7	FINISHER; HEADER SHELF,CORNER DELUXE CAB(W14)	1-73318-268-1	01	1	9204-
9	COVER; HOLE,HEADER SHELF CENTER DELUXE CAB(W14) EXC. AM&TAPE PLAYER<UM1>	1-73317-231-0	02	1	9204-9208
9	COVER; HOLE,HEADER SHELF CENTER DELUXE CAB(W14) EXC. AM&TAPE PLAYER<UM1>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	1-73317-231-0	02	1	9209-9403
9	COVER; HOLE,HEADER SHELF CENTER DELUXE CAB(W14) EXC. AM&TAPE PLAYER<UM1>	1-73317-231-0	02	1	9404-
10	COLLAR; HEADER SHELF DELUXE CAB(W14)	1-73318-341-0	06	1	9204-
11	CAP; HEADER SHELF DELUXE CAB(W14) GRAY	1-73318-357-0	06	1	9204-
12	SCREW; HEADER SHELF DELUXE CAB(W14) M6X16	1-09981-531-0	06	1	9204-
15	FASTENER; HEADER SHELF BOARD DELUXE CAB(W14) D6.8X11 PUSH RIVET	1-73318-230-0	07	1	9204-
16	SCREW; FRAME,HEADER SHELF DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	9204-
17	SCREW; BRKT,HEADER SHELF FRAME DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	02	1	9204-
18	SUPPORT; HEADER SHELF CENTER DELUXE CAB(W14) AM&TAPE PLAYER<UM1>	1-73318-417-1	01	1	9204-9403
18	SUPPORT; HEADER SHELF CENTER DELUXE CAB(W14) AM&TAPE PLAYER<UM1> GRAY	1-73318-416-1	01	1	9404-
18	SUPPORT; HEADER SHELF CENTER DELUXE CAB(W14) EXC. AM&TAPE PLAYER<UM1>	1-73318-476-0	01	1	9204-
21	SCREW; SUPPORT,HEADER SHELF CENTER DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	9204-
23	SUN VISOR DELUXE CAB(W14)	1-73138-111-2	01	1	9204-
23	SUN VISOR DELUXE CAB(W14)	1-73138-110-2	01	1	9204-
23	SUN VISOR EXC. DELUXE CAB(W14)	1-73138-120-0	01	1	9204-
23	SUN VISOR EXC. DELUXE CAB(W14)	1-73138-119-0	01	1	9204-
26	HOLDER; SUN VISOR GRAY	1-73137-141-0	02	1	9204-
32	PLATE; HOLDER,SUN VISOR DELUXE CAB(W14)	1-73318-229-0	02	1	9204-
34	SCREW; SUN VISOR M6X20	1-09981-310-0	04	1	9204-
38	CUSHION; PLATE DELUXE CAB(W14)	1-73318-286-0	02	1	9204-
