Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10875 - CXZ LHD S-CAM BRAKE
▶
0 - Engine, Emission, Engine Electrical
▶
0-14B - CAMSHAFT AND VALVE
▶
0-14B — CAMSHAFT AND VALVE
(#13457) — 55 parça
Tümü
A - 10PE1S
B - 10PE1N
C - 10PE1H
◀

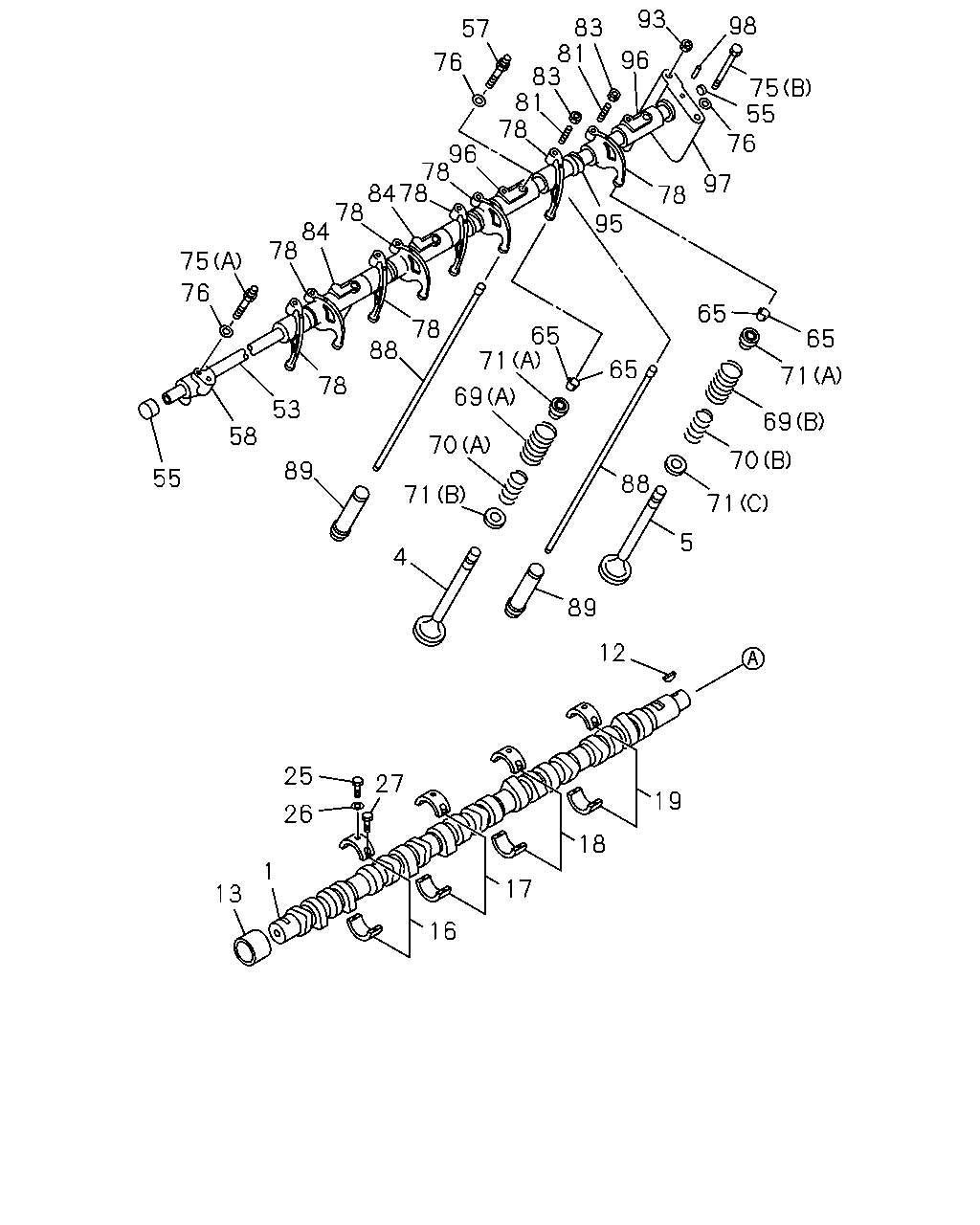

[014B] CAMSHAFT AND VALVE (43 parça)

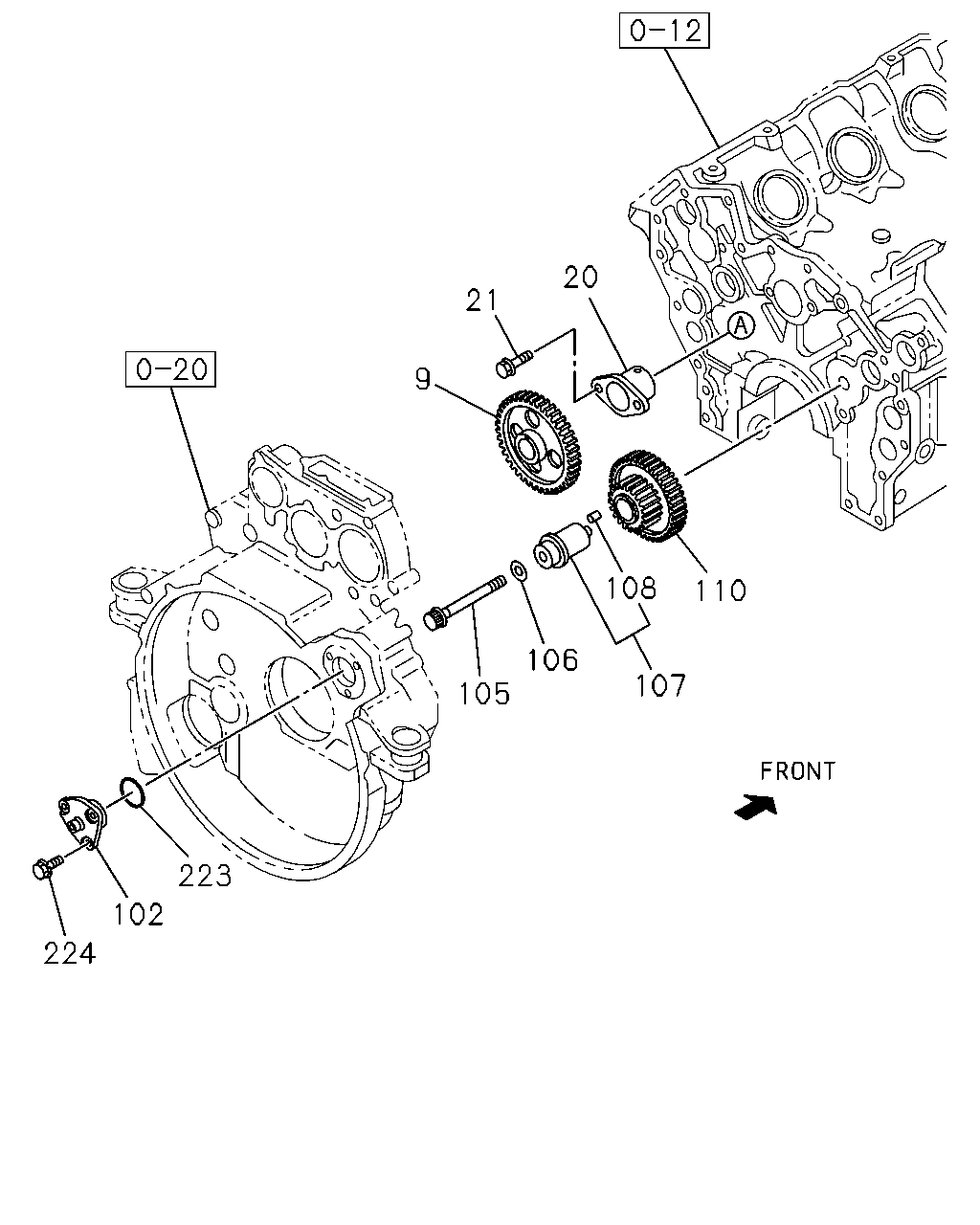

[014B] IDLE GEAR AND COVER (12 parça)
▶
93
98
83
81
83
81
78
96
78
78
84
78
57
76
96
75
55
76
97
78
95
75
76
65
65
71
69
78
88
65
65
71
78
53
58
69
70
70
89
55
88
71
71
5
4
89
12
25
27
19
26
18
1
17
13
16
78
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAMSHAFT
1-12511-189-3
01
1
0105-
●
●
●
4
VALVE; INL
1-12551-136-3
10
1
0105-
●
●
●
5
VALVE; EXH
1-12552-097-0
10
1
0105-
●
●
●
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
0105-
●
●
●
13
METAL; CM/SHF,NO 1
1-11611-003-2
01
1
0105-
●
●
●
16
METAL; CM/SHF,NO 3
1-11617-007-1
01
1
0105-
●
●
●
17
METAL; CM/SHF,NO 4
1-11618-006-1
01
1
0105-
●
●
●
18
METAL; CM/SHF,NO 5
1-11619-015-1
01
1
0105-
●
●
●
19
METAL; CM/SHF,NO 6
1-11619-018-1
01
1
0105-
●
●
●
25
SCREW; CM/SHF METAL
M8X31
1-09129-004-2
05
1
0105-
●
●
●
26
GASKET; SET SCREW
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
05
1
0105-
●
●
●
27
SCREW; CM/SHF METAL
M4X14 W/LK WASHER
9-03910-414-0
08
1
0105-
●
●
●
53
SHAFT; ROCKER ARM
1-12621-011-1
02
1
0105-
●
●
●
55
PLUG; ROCKER SHAFT END
OD=16
9-11129-081-0
04
1
0105-
●
●
●
57
BOLT; ROCKER ARM BRKT
M8X13,M10X70 L=90
1-09029-024-2
08
1
0105-
●
●
●
58
BRACKET; ROCKER SHAFT,FRT
1-12628-048-0
02
1
0105-
●
●
●
65
COLLAR; SPLIT
1-12565-007-0
40
1
0105-
●
●
●
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-074-0
10
1
0105-
●
●
●
69
SPRING; VLV,OUTER
(A) INLET
1-12561-075-0
10
1
0105-
●
●
●
70
SPRING; VLV,INNER
(B) EXHAUST
1-12562-046-0
10
1
0105-
●
●
●
70
SPRING; VLV,INNER
(A) INLET
1-12562-047-0
10
1
0105-
●
●
●
71
SEAT; SPR
(B) INLET
1-12563-027-0
10
1
0105-
●
●
●
71
SEAT; SPR
(C) EXHAUST
1-12563-034-1
10
1
0105-
●
●
●
71
SEAT; SPR
(A)
1-12563-059-1
20
1
0105-0401
●
●
●
71
SEAT; SPR
(A)
8-97603-239-0
20
1
0402-
●
●
●
75
BOLT; BRKT
(A) M8X13,M10X70 L=90
1-09029-024-2
02
1
0105-
●
●
●
75
BOLT; BRKT
(B) M10X70
9-01661-070-0
02
1
0105-0512
●
●
●
75
BOLT; BRKT
(B) M10X70
0-16961-070-0
02
1
0601-
●
●
●
76
WASHER; PL,BRKT
ID=10
1-09503-033-1
12
1
0105-
●
●
●
78
ARM; ROCKER
INLET
1-12611-282-0
10
1
0105-
●
●
●
78
ARM; ROCKER
EXHAUST
1-12611-283-0
10
1
0105-
●
●
●
81
SCREW; ADJ,ROCKER ARM
1-12616-001-0
20
1
0105-
●
●
●
83
NUT; ADJ SCREW,LK
M10
9-09840-310-0
20
1
0105-
●
●
●
84
BRACKET; ROCKER SHAFT,INTER
1-12628-012-1
04
1
0105-
●
●
●
88
ROD; PUSH
1-12575-061-0
20
1
0105-0109
●
●
●
88
ROD; PUSH
1-12575-065-0
20
1
0110-
●
●
●
89
TAPPET; VLV
1-12571-241-0
20
1
0105-
●
●
●
93
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0105-0602
●
●
●
93
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
●
95
SPRING; ROCKER SHAFT
9-09941-218-0
10
1
0105-
●
●
●
96
BRACKET; ROCKER ARM SHAFT
1-12628-011-1
04
1
0105-
●
●
●
97
BRACKET; ROCKER SHAFT,RR
1-12628-006-2
02
1
0105-
●
●
●
98
PIN; SHAFT SET
9-08160-430-0
02
1
0105-
●
●
●
20
21
9
108
110
106
105
107
223
102
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
9
GEAR; CM/SHF
Z=52
1-12522-033-2
01
1
0105-
●
●
●
20
METAL; CM/SHF,NO 7
1-11619-059-1
01
1
0105-
●
●
●
21
BOLT; CM/SHF METAL,NO 7
M10X22 FLANGE
0-28181-022-0
02
1
0105-
●
●
●
102
COVER; IDLE GEAR
1-11343-005-0
01
1
0105-
●
●
●
105
BOLT; IDLE GEAR SHAFT
M16X94 FLANGE
1-09070-031-1
01
1
0105-
●
●
●
106
WASHER; IDLE GEAR SHAFT
ID=16.2
1-09503-022-1
01
1
0105-
●
●
●
107
SHAFT; IDLE GEAR
1-12531-057-0
01
1
0105-
●
●
●
108
DOWEL; SHAFT
9-12539-079-0
01
1
0105-
●
●
●
110
GEAR ASM; IDLE
Z=48-26
1-12523-206-3
01
1
0105-
●
●
●
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-567-0
01
1
0105-
●
●
●
224
BOLT; COVER
M10X20 W/LK WASHER
0-50051-020-0
03
1
0105-0512
●
●
●
224
BOLT; COVER
M10X20 W/LK WASHER
0-50551-020-0
03
1
0601-
●
●
●
