0-12B — CYLINDER BLOCK (#13453) — 119 parça

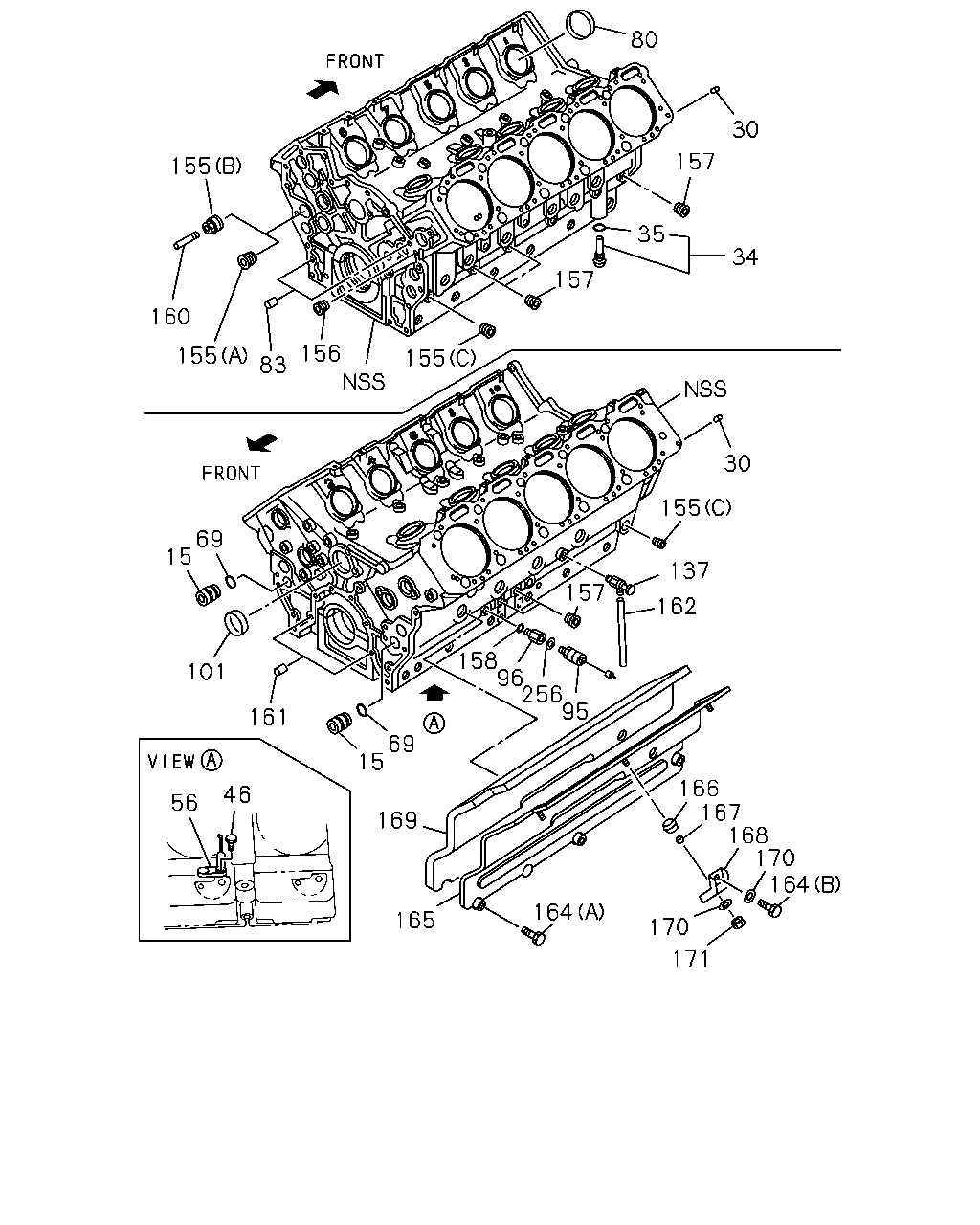

çizim 23890
80 155 30 157 155 35 34 157 160 156 155 83 157 30 155 69 15 137 162 158 96 256 95 101 161 69 15 166 167 168 170 164 46 56 169 164 165 170 171
BalonParca AdiParca NoAdetTipApplied Date A B C
15 PLUG; OIL GALLERY
M30X20 		1-09609-019-0 02 1 0105- ● ● ●
30 PIN; CYL HD GASKET SETTING
OD=8 L=16 		9-08150-816-0 04 1 0105- ● ● ●
34 VALVE; OIL RELIEF 1-13160-025-0 01 1 0105- ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-145-0 01 1 0105- ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-036-1 10 1 0105- ● ● ●
56 JET; OIL,PISTON COOLING 1-13342-135-1 10 1 0105- ● ● ●
69 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 02 1 0105- ● ● ●
80 CUP; SEALING,TAPPET CHAMBER
OD=62 		1-09600-021-1 10 1 0105- ● ● ●
83 PIN; FLYWHEEL HSG 1-09740-036-0 02 1 0105- ● ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0105- ● ● ●
96 ADAPTER; PRESS UNIT & SW 8-94390-391-0 01 1 0105- ● ● ●
101 CUP; SEALING CAM END 1-09600-022-1 01 1 0105- ● ● ●
137 COCK; DRAIN,WATER 1-09680-055-1 01 1 0105- ● ● ●
155 PLUG; OIL GALLERY END
(C) PT3/4 		1-09605-020-0 02 1 0105- ● ● ●
155 PLUG; OIL GALLERY END
ENGINE REAR PTO(SV1) (A) PT1 		1-09605-021-0 01 1 0105- ● ● ●
155 PLUG; OIL GALLERY END
ENGINE REAR PTO(SV1) (B) PT1,PT1/8 		1-09605-076-1 01 1 0105- ● ● ●
155 PLUG; OIL GALLERY END
EXC. ENGINE REAR PTO(SV1) (A) PT1 		1-09605-021-0 02 1 0105- ● ● ●
156 PLUG; IDLE GEAR
PT1/4 		1-09605-019-0 02 1 0105- ● ● ●
157 PLUG; OIL GALLERY SIDE
PT1/4 		1-09605-019-0 08 1 0105- ● ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0105- ● ● ●
160 JET ASM; OILING,PTO GEAR
ENGINE REAR PTO(SV1) 		9-13342-002-0 01 1 0105- ● ● ●
161 DOWEL; FRT COVER 1-11229-012-1 02 1 0105- ● ● ●
162 HOSE; WATER DRAIN,C/BL
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 0105- ● ● ●
164 BOLT; COVER BLOCK SKIRT
(A) M10X28 FLANGE 		0-28181-028-0 03 1 0105-0109 ● ●
164 BOLT; COVER BLOCK SKIRT
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) M10X28 FLANGE 		0-28181-028-0 03 1 0105-0109 ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X28 FLANGE 		0-28181-028-0 03 1 0105-0109 ●
164 BOLT; COVER BLOCK SKIRT
(A) M10X28 FLANGE 		0-28181-028-0 03 1 0110- ● ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) M10X28 FLANGE 		0-28181-028-0 03 1 0110- ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X28 FLANGE 		0-28181-028-0 03 1 0110- ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) M10X28 FLANGE 		0-28181-028-0 03 1 0110- ●
164 BOLT; COVER BLOCK SKIRT
(B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0105-0109 ● ●
164 BOLT; COVER BLOCK SKIRT
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0105-0109 ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0105-0109 ●
164 BOLT; COVER BLOCK SKIRT
(B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0110- ● ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0110- ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0110- ●
164 BOLT; COVER BLOCK SKIRT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) M10X16 W/LK WASHER 		1-09033-012-0 03 1 0110- ●
165 COVER; C/BL SKIRT 1-19381-320-1 01 1 0105-0109 ● ●
165 COVER; C/BL SKIRT
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-320-1 01 1 0105-0109 ●
165 COVER; C/BL SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19381-320-1 01 1 0105-0109 ●
165 COVER; C/BL SKIRT 1-19381-320-1 01 1 0110- ● ●
165 COVER; C/BL SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-320-1 01 1 0110- ●
165 COVER; C/BL SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19381-320-1 01 1 0110- ●
165 COVER; C/BL SKIRT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-320-1 01 1 0110- ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 06 1 0105-0109 ● ●
166 MOUNT; COVER BLOCK SKIRT
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-020-0 06 1 0105-0109 ●
166 MOUNT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09337-020-0 06 1 0105-0109 ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 06 1 0110- ● ●
166 MOUNT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-020-0 06 1 0110- ●
166 MOUNT; COVER BLOCK SKIRT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09337-020-0 06 1 0110- ●
166 MOUNT; COVER BLOCK SKIRT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-020-0 06 1 0110- ●
167 TUBE; DIST,SIDE COVER 5-23332-003-0 06 1 0105-0109 ● ●
167 TUBE; DIST,SIDE COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		5-23332-003-0 06 1 0105-0109 ●
167 TUBE; DIST,SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		5-23332-003-0 06 1 0105-0109 ●
167 TUBE; DIST,SIDE COVER 5-23332-003-0 06 1 0110- ● ●
167 TUBE; DIST,SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		5-23332-003-0 06 1 0110- ●
167 TUBE; DIST,SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		5-23332-003-0 06 1 0110- ●
167 TUBE; DIST,SIDE COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		5-23332-003-0 06 1 0110- ●
168 BRACKET; SIDE COVER 1-19386-012-3 03 1 0105-0109 ● ●
168 BRACKET; SIDE COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19386-012-3 03 1 0105-0109 ●
168 BRACKET; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19386-012-3 03 1 0105-0109 ●
168 BRACKET; SIDE COVER 1-19386-012-3 03 1 0110- ● ●
168 BRACKET; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19386-012-3 03 1 0110- ●
168 BRACKET; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19386-012-3 03 1 0110- ●
168 BRACKET; SIDE COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19386-012-3 03 1 0110- ●
169 INSULATOR; SIDE COVER 1-19389-197-0 01 1 0105-0109 ● ●
169 INSULATOR; SIDE COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-197-0 01 1 0105-0109 ●
169 INSULATOR; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19389-197-0 01 1 0105-0109 ●
169 INSULATOR; SIDE COVER 1-19389-197-0 01 1 0110- ● ●
169 INSULATOR; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-197-0 01 1 0110- ●
169 INSULATOR; SIDE COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19389-197-0 01 1 0110- ●
169 INSULATOR; SIDE COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-197-0 01 1 0110- ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 06 1 0105-0109 ● ●
170 WASHER; COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=10.5 OD=26 		9-09160-710-0 06 1 0105-0109 ●
170 WASHER; COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26 		9-09160-710-0 06 1 0105-0109 ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 06 1 0110- ● ●
170 WASHER; COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=10.5 OD=26 		9-09160-710-0 06 1 0110- ●
170 WASHER; COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26 		9-09160-710-0 06 1 0110- ●
170 WASHER; COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=10.5 OD=26 		9-09160-710-0 06 1 0110- ●
171 NUT; COVER & BRKT
M10 		9-09110-410-0 03 1 0105-0109 ● ●
171 NUT; COVER & BRKT
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10 		9-09110-410-0 03 1 0105-0109 ●
171 NUT; COVER & BRKT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M10 		9-09110-410-0 03 1 0105-0109 ●
171 NUT; COVER & BRKT
M10 		9-09110-410-0 03 1 0110-0512 ● ●
171 NUT; COVER & BRKT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10 		9-09110-410-0 03 1 0110-0512 ●
171 NUT; COVER & BRKT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M10 		9-09110-410-0 03 1 0110-0512 ●
171 NUT; COVER & BRKT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10 		9-09110-410-0 03 1 0110-0512 ●
171 NUT; COVER & BRKT
M10 		0-91110-510-0 03 1 0601- ● ●
171 NUT; COVER & BRKT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10 		0-91110-510-0 03 1 0601- ●
171 NUT; COVER & BRKT
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M10 		0-91110-510-0 03 1 0601- ●
171 NUT; COVER & BRKT
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M10 		0-91110-510-0 03 1 0601- ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105- ● ● ●

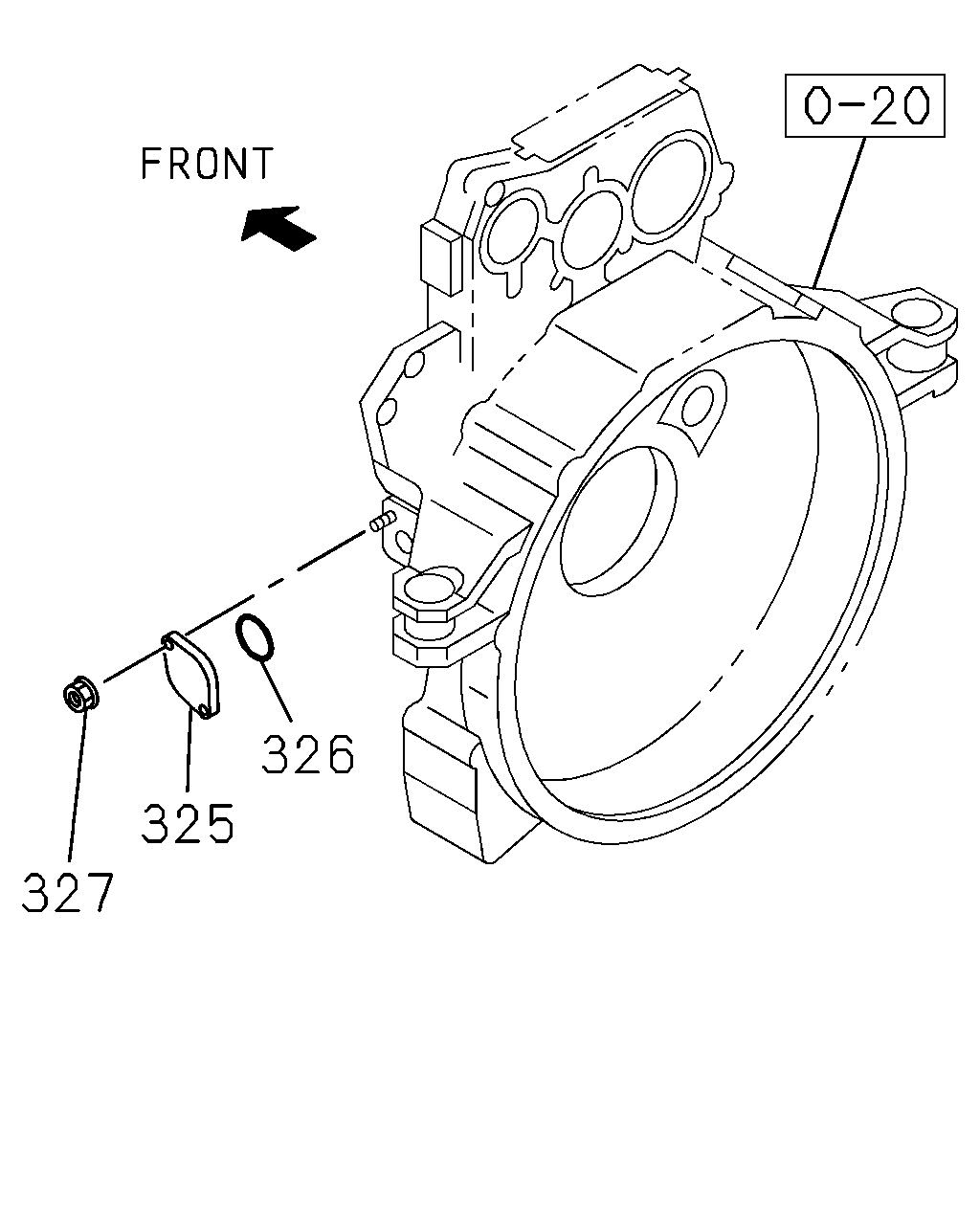

çizim 78861
326 325 327
BalonParca AdiParca NoAdetTipApplied Date A B C
325 COVER; OIL FILTER HOLE 1-11749-074-0 01 1 0105-0302 ● ● ●
325 COVER; OIL FILTER HOLE
EXC. ENGINE REAR PTO(SV1) 		1-11749-074-1 01 1 0303- ● ● ●
326 GASKET; COVER,OIL FILTER HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 0105-0302 ● ● ●
326 GASKET; COVER,OIL FILTER HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) ID=35.7 		1-09623-416-0 01 1 0303- ● ● ●
327 NUT; COVER,OIL FILTER HOLE
M10 FLANGE 		0-91150-110-0 02 1 0105-0302 ● ● ●
327 NUT; COVER,OIL FILTER HOLE
EXC. ENGINE REAR PTO(SV1) M10 FLANGE 		0-91150-110-0 02 1 0303-0602 ● ● ●
327 NUT; COVER,OIL FILTER HOLE
EXC. ENGINE REAR PTO(SV1) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ● ●

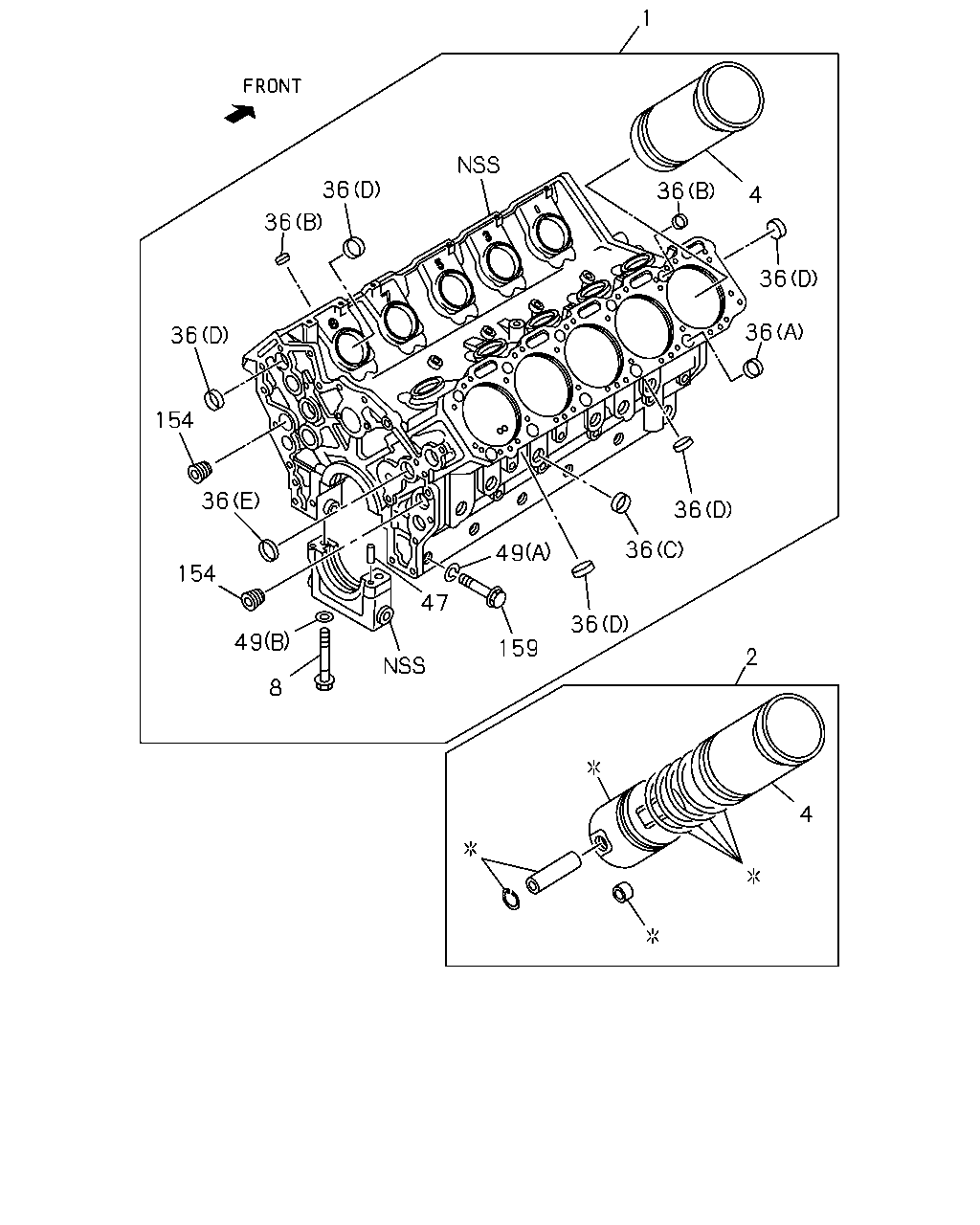

çizim 79558
1 36 36 36 4 36 36 36 154 36 49 36 36 154 47 36 49 159 2 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL
ENGINE REAR PTO(SV1) 		1-11210-585-7 01 1 0105- ● ● ●
1 BLOCK ASM; CYL
EXC. ENGINE REAR PTO(SV1) 		1-11210-584-7 01 1 0105- ● ● ●
2 LINER SET; ENG CYL
RFD GOVERNOR(SD5) GRADE=1X 		1-87811-789-3 10 1 0105- ● ●
2 LINER SET; ENG CYL
RFD GOVERNOR(SD5) GRADE=3X 		1-87811-790-3 10 1 0105- ● ●
2 LINER SET; ENG CYL
RLD GOVERNOR(SD7) GRADE=1X 		1-87811-807-1 10 1 0105-0109 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-807-3 10 1 0110- ●
2 LINER SET; ENG CYL
RLD GOVERNOR(SD7) GRADE=3X 		1-87811-808-1 10 1 0105-0109 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-808-3 10 1 0110- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-372-1 10 1 0105- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-373-1 10 1 0105- ● ● ●
8 BOLT; BRG CAP
M16X138 		1-09070-140-0 12 1 0105- ● ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=45 		1-09600-005-2 27 1 0105- ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 08 1 0105- ● ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 14 1 0105- ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-020-1 09 1 0105- ● ● ●
36 CUP; SEALING,WATER JACKET
(E) OD=45 		1-09600-058-1 04 1 0105- ● ● ●
47 PIN; BRG CAP
OD=8 L=16 		9-08150-816-0 02 1 0105- ● ● ●
49 WASHER; BRG CAP
(A) ID=14.2 		1-09503-050-0 12 1 0105- ● ● ●
49 WASHER; BRG CAP
(B) ID=16.2 		9-09851-672-2 12 1 0105- ● ● ●
154 PLUG; WATER DUCT 1-09605-022-0 02 1 0105- ● ● ●
159 BOLT; BRG CAP SIDE FIX
M14X80 FLANGE 		1-09070-138-0 12 1 0105- ● ● ●
