0-10B — CYLINDER HEAD COVER (#13449) — 138 parça

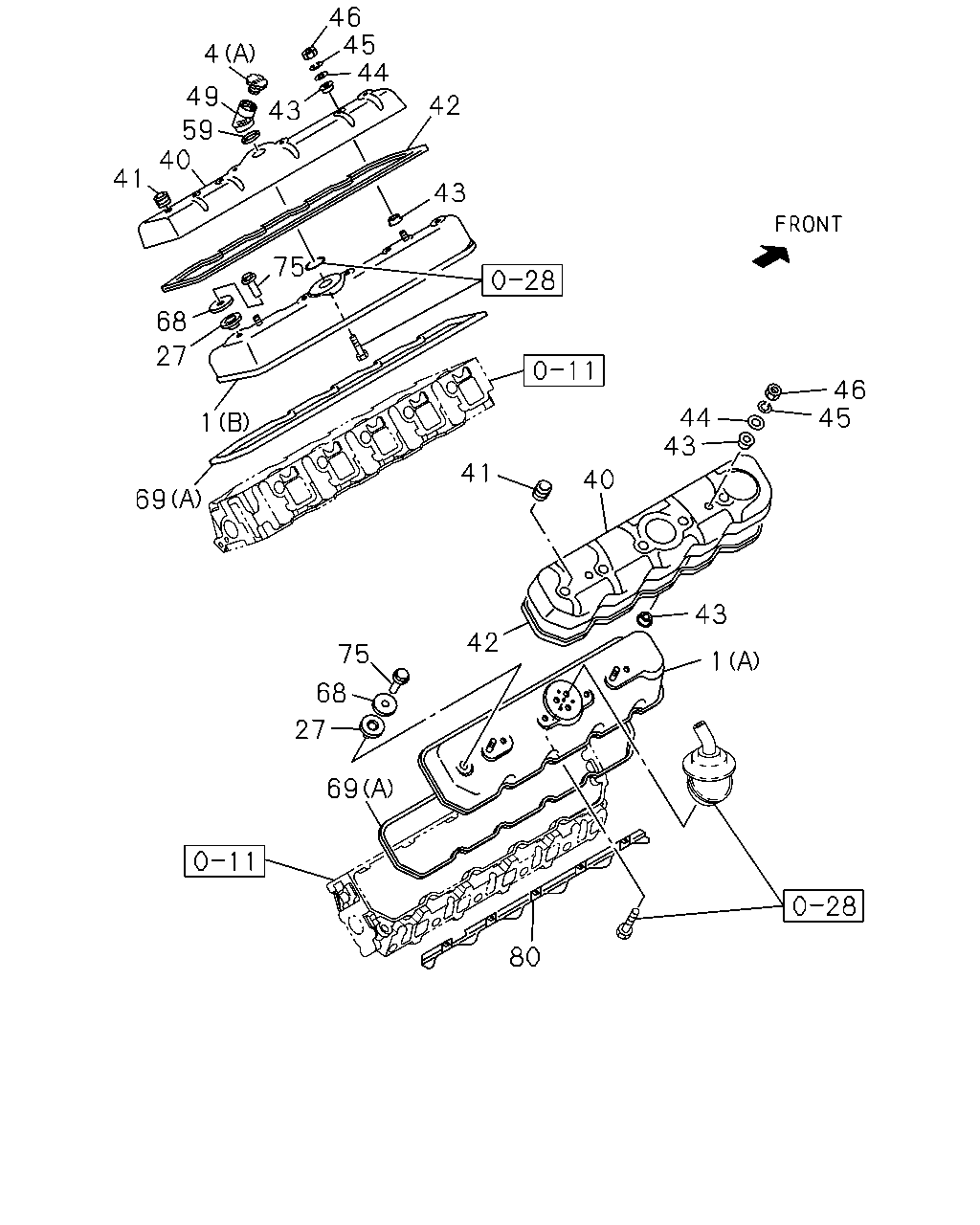

çizim 78193
46 45 44 4 49 42 43 59 40 41 43 75 68 27 46 45 44 43 1 41 40 69 43 42 75 1 68 27 69 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
(A) RH BANK 		1-11171-340-2 01 1 0105- ● ● ●
1 COVER; CYL HD
(B) LH BANK 		1-11171-404-1 01 1 0105-0109 ● ●
1 COVER; CYL HD
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0105-0109 ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) LH BANK 		1-11171-404-1 01 1 0105-0109 ●
1 COVER; CYL HD
(B) LH BANK 		1-11171-404-1 01 1 0110- ● ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) LH BANK 		1-11171-345-2 01 1 0105- ●
1 COVER; CYL HD
INJ PUMP Q SET 2000M ALTITUDE(T1C) (C) LH BANK 		1-11171-345-2 01 1 0105- ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) LH BANK 		1-11171-345-2 01 1 0105- ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0105-0109 ● ●
4 CAP; OIL FILLER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0105-0109 ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-723-0 01 1 0105-0109 ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0110- ● ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-11750-020-0 01 1 0105- ●
4 CAP; OIL FILLER
INJ PUMP Q SET 2000M ALTITUDE(T1C) (B) 		1-11750-020-0 01 1 0105- ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-11750-020-0 01 1 0105- ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-031-0 10 1 0105-0109 ● ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09639-031-0 10 1 0105-0109 ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09639-031-0 10 1 0105-0109 ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-031-0 10 1 0110- ● ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09639-031-0 10 1 0110- ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09639-031-0 10 1 0110- ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09639-031-0 10 1 0110- ●
40 COVER 1-19381-341-0 02 1 0105-0109 ● ●
40 COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-341-0 02 1 0105-0109 ●
40 COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19381-341-0 02 1 0105-0109 ●
40 COVER 1-19381-341-0 02 1 0110- ● ●
40 COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-341-0 02 1 0110- ●
40 COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19381-341-0 02 1 0110- ●
40 COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19381-341-0 02 1 0110- ●
41 GROMMET; HD COVER,OUTER 1-19389-004-0 10 1 0105-0109 ● ●
41 GROMMET; HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-004-0 10 1 0105-0109 ●
41 GROMMET; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19389-004-0 10 1 0105-0109 ●
41 GROMMET; HD COVER,OUTER 1-19389-004-0 10 1 0110- ● ●
41 GROMMET; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-004-0 10 1 0110- ●
41 GROMMET; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19389-004-0 10 1 0110- ●
41 GROMMET; HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-19389-004-0 10 1 0110- ●
42 SEAL; RUBBER,HD COVER,OUTER
L=1820 		1-19387-007-0 02 1 0105-0109 ● ●
42 SEAL; RUBBER,HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1820 		1-19387-007-0 02 1 0105-0109 ●
42 SEAL; RUBBER,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) L=1820 		1-19387-007-0 02 1 0105-0109 ●
42 SEAL; RUBBER,HD COVER,OUTER
L=1820 		1-19387-007-0 02 1 0110- ● ●
42 SEAL; RUBBER,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1820 		1-19387-007-0 02 1 0110- ●
42 SEAL; RUBBER,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) L=1820 		1-19387-007-0 02 1 0110- ●
42 SEAL; RUBBER,HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1820 		1-19387-007-0 02 1 0110- ●
43 RUBBER; MTG,HD COVER,OUTER 1-09337-027-0 08 1 0105-0109 ● ●
43 RUBBER; MTG,HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-027-0 08 1 0105-0109 ●
43 RUBBER; MTG,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09337-027-0 08 1 0105-0109 ●
43 RUBBER; MTG,HD COVER,OUTER 1-09337-027-0 08 1 0110- ● ●
43 RUBBER; MTG,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-027-0 08 1 0110- ●
43 RUBBER; MTG,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09337-027-0 08 1 0110- ●
43 RUBBER; MTG,HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09337-027-0 08 1 0110- ●
44 WASHER; PL,HD COVER,OUTER
ID=8.4 OD=18 		9-09160-608-0 04 1 0105-0109 ● ●
44 WASHER; PL,HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.4 OD=18 		9-09160-608-0 04 1 0105-0109 ●
44 WASHER; PL,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=18 		9-09160-608-0 04 1 0105-0109 ●
44 WASHER; PL,HD COVER,OUTER
ID=8.4 OD=18 		9-09160-608-0 04 1 0110- ● ●
44 WASHER; PL,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.4 OD=18 		9-09160-608-0 04 1 0110- ●
44 WASHER; PL,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4 OD=18 		9-09160-608-0 04 1 0110- ●
44 WASHER; PL,HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.4 OD=18 		9-09160-608-0 04 1 0110- ●
45 WASHER; LK,HD COVER,OUTER
ID=8.2 		9-09150-508-0 04 1 0105-0109 ● ●
45 WASHER; LK,HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.2 		9-09150-508-0 04 1 0105-0109 ●
45 WASHER; LK,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2 		9-09150-508-0 04 1 0105-0109 ●
45 WASHER; LK,HD COVER,OUTER
ID=8.2 		9-09150-508-0 04 1 0110- ● ●
45 WASHER; LK,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.2 		9-09150-508-0 04 1 0110- ●
45 WASHER; LK,HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2 		9-09150-508-0 04 1 0110- ●
45 WASHER; LK,HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ID=8.2 		9-09150-508-0 04 1 0110- ●
46 NUT; HD COVER,OUTER
M8 		9-09110-408-0 04 1 0105-0109 ● ●
46 NUT; HD COVER,OUTER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8 		9-09110-408-0 04 1 0105-0109 ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M8 		9-09110-408-0 04 1 0105-0109 ●
46 NUT; HD COVER,OUTER
M8 		9-09110-408-0 04 1 0110-0512 ● ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8 		9-09110-408-0 04 1 0110-0512 ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M8 		9-09110-408-0 04 1 0110-0512 ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8 		9-09110-408-0 04 1 0110-0512 ●
46 NUT; HD COVER,OUTER
M8 		0-91110-508-0 04 1 0601- ● ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8 		0-91110-508-0 04 1 0601- ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) M8 		0-91110-508-0 04 1 0601- ●
46 NUT; HD COVER,OUTER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8 		0-91110-508-0 04 1 0601- ●
49 FILLER; OIL,HD COVER 1-11741-177-1 01 1 0105-0109 ● ●
49 FILLER; OIL,HD COVER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-11741-177-1 01 1 0105-0109 ●
49 FILLER; OIL,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11741-177-1 01 1 0105-0109 ●
49 FILLER; OIL,HD COVER 1-11741-177-1 01 1 0110- ● ●
49 FILLER; OIL,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-11741-177-1 01 1 0110- ●
49 FILLER; OIL,HD COVER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11741-177-1 01 1 0110- ●
49 FILLER; OIL,HD COVER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-11741-177-1 01 1 0110- ●
59 GROMMET; OIL FILLER 1-09333-132-0 01 1 0105-0109 ● ●
59 GROMMET; OIL FILLER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0105-0109 ●
59 GROMMET; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09333-132-0 01 1 0105-0109 ●
59 GROMMET; OIL FILLER 1-09333-132-0 01 1 0110- ● ●
59 GROMMET; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0110- ●
59 GROMMET; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09333-132-0 01 1 0110- ●
59 GROMMET; OIL FILLER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09333-132-0 01 1 0110- ●
68 WASHER; CAP NUT,HD COVER 1-11179-048-0 10 1 0105- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		1-11173-105-0 02 1 0105- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-09639-031-0 10 1 0105- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (B) 		1-09639-031-0 10 1 0105- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-09639-031-0 10 1 0105- ●
75 NUT; CAP,HD COVER 1-11175-008-0 10 1 0110- ● ● ●
80 PROTECTOR; HEAT,SEAL RUBBER 1-14181-183-1 02 1 0105-0109 ● ●
80 PROTECTOR; HEAT,SEAL RUBBER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-14181-183-1 02 1 0105-0109 ●
80 PROTECTOR; HEAT,SEAL RUBBER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14181-183-1 02 1 0105-0109 ●
80 PROTECTOR; HEAT,SEAL RUBBER 1-14181-183-1 02 1 0110- ● ●
80 PROTECTOR; HEAT,SEAL RUBBER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-14181-183-1 02 1 0110- ●
80 PROTECTOR; HEAT,SEAL RUBBER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14181-183-1 02 1 0110- ●
80 PROTECTOR; HEAT,SEAL RUBBER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-14181-183-1 02 1 0110- ●

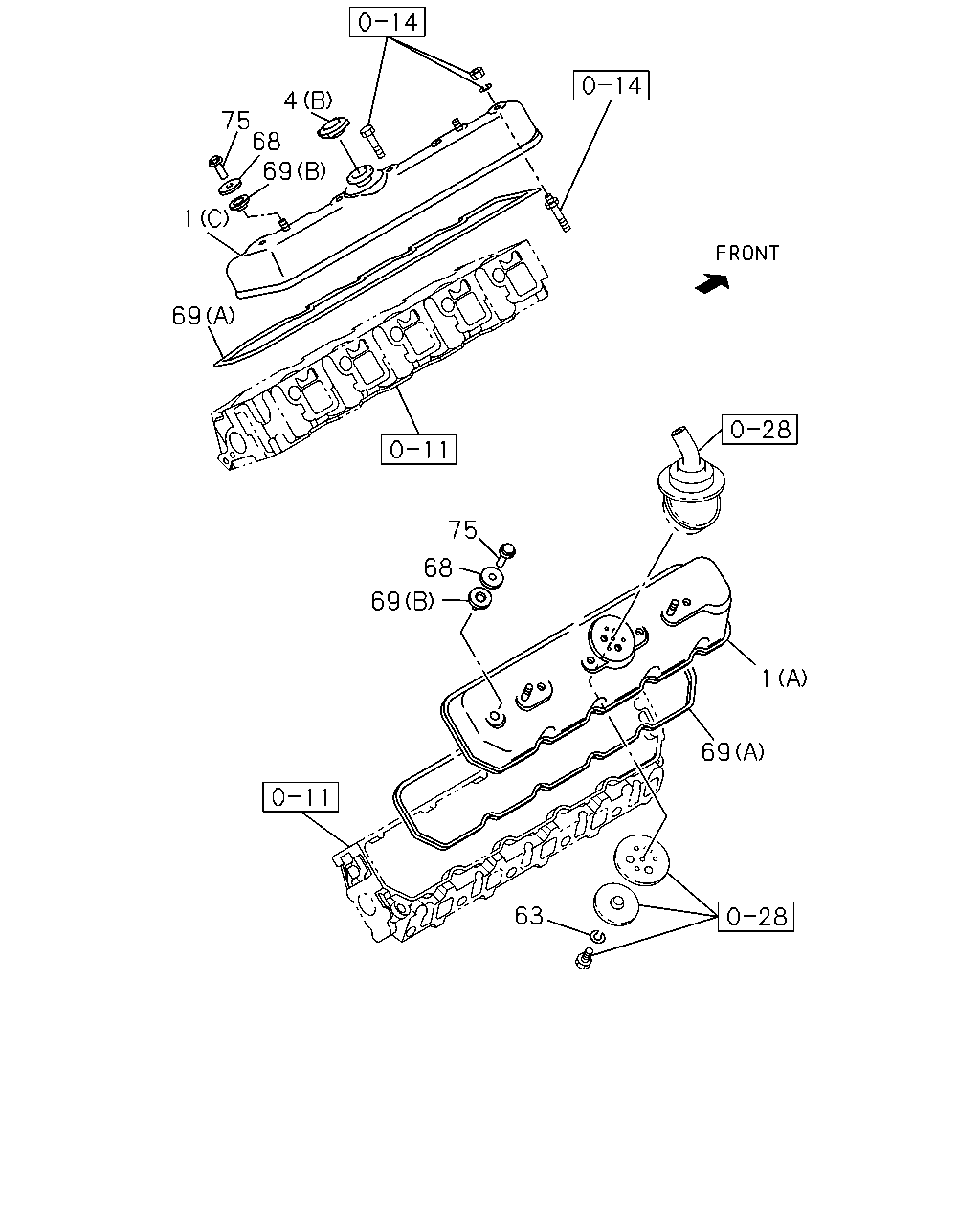

çizim 78257
4 75 68 69 1 69 75 68 69 1 69 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
(A) RH BANK 		1-11171-340-2 01 1 0105- ● ● ●
1 COVER; CYL HD
(B) LH BANK 		1-11171-404-1 01 1 0105-0109 ● ●
1 COVER; CYL HD
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0105-0109 ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) LH BANK 		1-11171-404-1 01 1 0105-0109 ●
1 COVER; CYL HD
(B) LH BANK 		1-11171-404-1 01 1 0110- ● ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) LH BANK 		1-11171-404-1 01 1 0110- ●
1 COVER; CYL HD
ENGINE OIL TEMPERATURE GAUGE<UG3> (C) LH BANK 		1-11171-345-2 01 1 0105- ●
1 COVER; CYL HD
INJ PUMP Q SET 2000M ALTITUDE(T1C) (C) LH BANK 		1-11171-345-2 01 1 0105- ●
1 COVER; CYL HD
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) LH BANK 		1-11171-345-2 01 1 0105- ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0105-0109 ● ●
4 CAP; OIL FILLER
EXC. INJ PUMP Q SET 2000M ALTITUDE(T1C),ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0105-0109 ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-723-0 01 1 0105-0109 ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0110- ● ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
INJ PUMP Q SET STD(T1B) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		8-94399-723-0 01 1 0110- ●
4 CAP; OIL FILLER
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-11750-020-0 01 1 0105- ●
4 CAP; OIL FILLER
INJ PUMP Q SET 2000M ALTITUDE(T1C) (B) 		1-11750-020-0 01 1 0105- ●
4 CAP; OIL FILLER
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-11750-020-0 01 1 0105- ●
63 WASHER; LK,BAFFLE PLATE
ENGINE OIL TEMPERATURE GAUGE<UG3> ID=6.1 		9-09150-506-0 04 1 0105- ●
63 WASHER; LK,BAFFLE PLATE
INJ PUMP Q SET 2000M ALTITUDE(T1C) ID=6.1 		9-09150-506-0 04 1 0105- ●
63 WASHER; LK,BAFFLE PLATE
INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=6.1 		9-09150-506-0 04 1 0105- ●
68 WASHER; CAP NUT,HD COVER 1-11179-048-0 10 1 0105- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		1-11173-105-0 02 1 0105- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-09639-031-0 10 1 0105- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (B) 		1-09639-031-0 10 1 0105- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-09639-031-0 10 1 0105- ●
75 NUT; CAP,HD COVER 1-11175-008-0 10 1 0110- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
