0-10A — CYLINDER HEAD COVER (#13448) — 22 parça

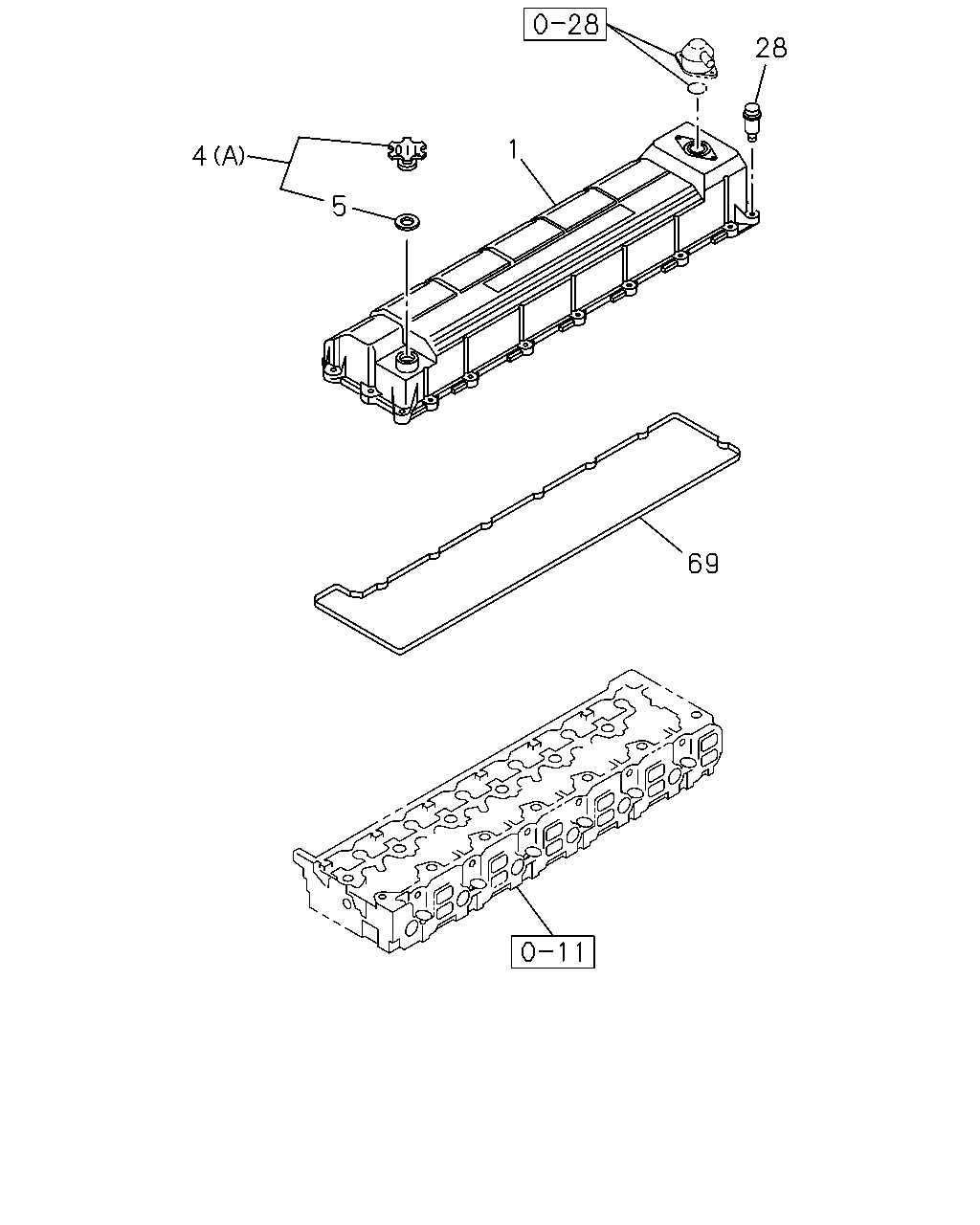

çizim 77670
28 1 4 5 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COVER; CYL HD 1-11180-416-0 01 1 0105-0106 ● ● ● ●
1 COVER; CYL HD 1-11180-464-0 01 1 0107- ● ● ● ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0105-0109 ● ● ● ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0110- ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0105- ● ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 0105-0106 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28080-835-0 20 1 0107-0512 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28050-835-0 20 1 0601- ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 0105-0106 ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-110-2 01 1 0107- ● ● ● ●

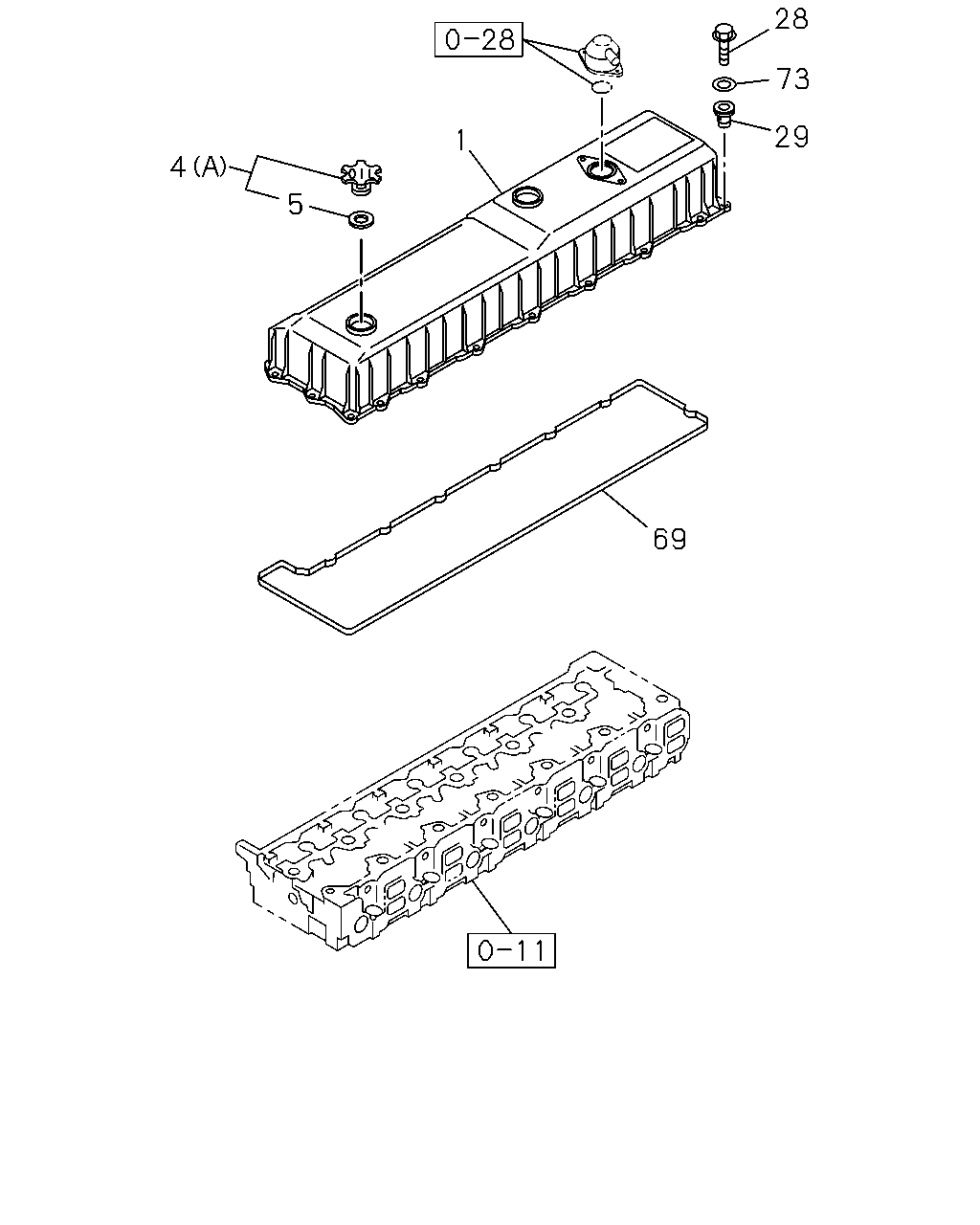

çizim 79630
28 73 29 1 4 5 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COVER; CYL HD 1-11180-416-0 01 1 0105-0106 ● ● ● ●
1 COVER; CYL HD 1-11180-464-0 01 1 0107- ● ● ● ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0105-0109 ● ● ● ●
4 CAP; OIL FILLER
(A) 		8-94399-723-0 01 1 0110- ● ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 0105- ● ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 0105-0106 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28080-835-0 20 1 0107-0512 ● ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28050-835-0 20 1 0601- ● ● ● ●
29 RUBBER; MTG,HD COVER 8-97601-849-1 20 1 0107- ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 0105-0106 ● ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-110-2 01 1 0107- ● ● ● ●
73 WASHER; PL,HD COVER
ID=8.4 OD=22 		9-09160-708-0 20 1 0107- ● ● ● ●
