Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#13442) — 260 parça

30 35 1 150 30 35 150

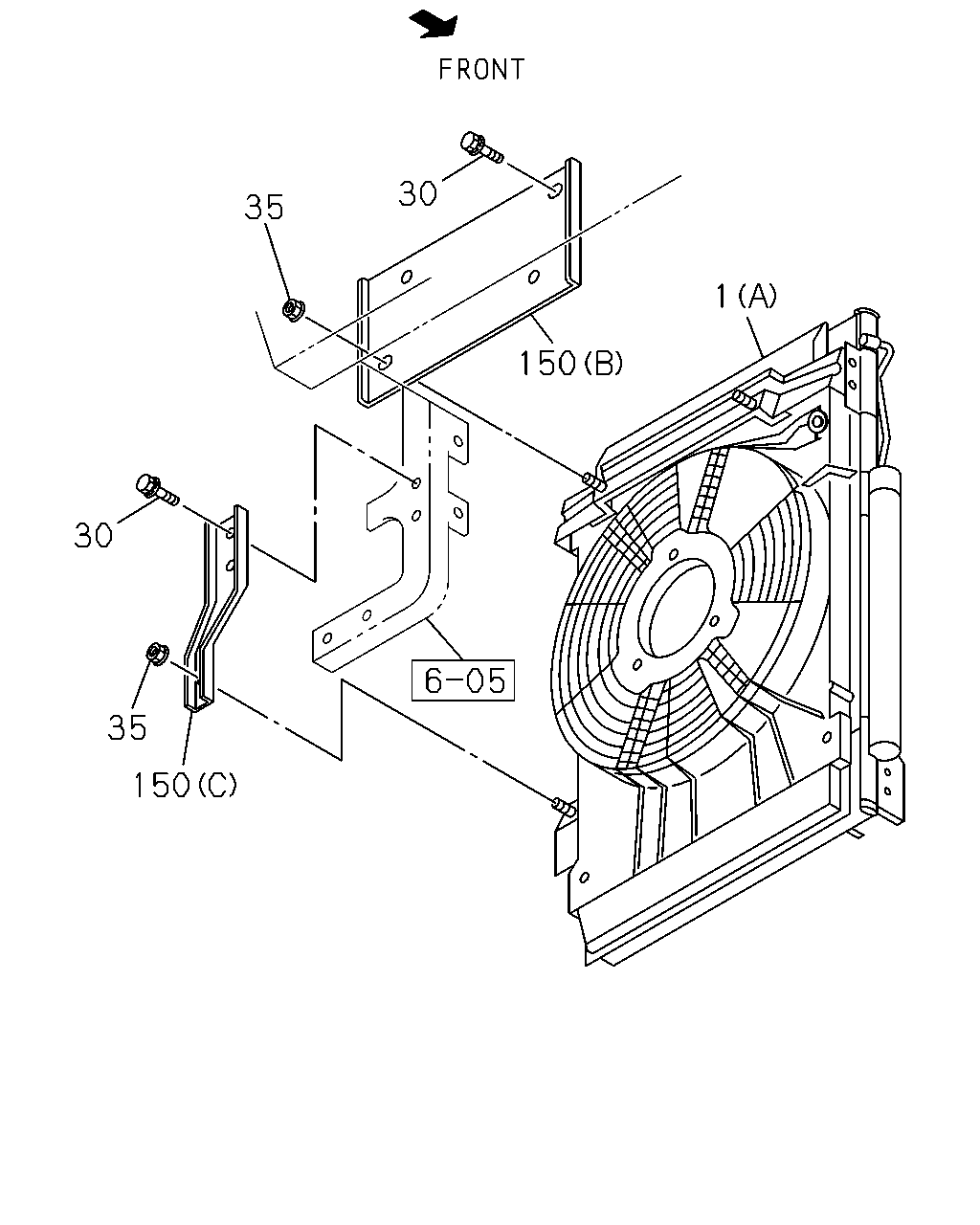

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106	●
1	CONDENSER; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106		●
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0107-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-2	01	1	0210-0509	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98024-412-1	01	1	0510-	●	●
1	CONDENSER; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-213-2	01	1	0105-0209	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0107-0206	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0207-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-826-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-827-1	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0105-0209	●	●

1 129 188 187 15 12 4 29 18 65 27 187 29 5 29 201 9 29 22 60 26 150 29 29 27 79 29 35 9

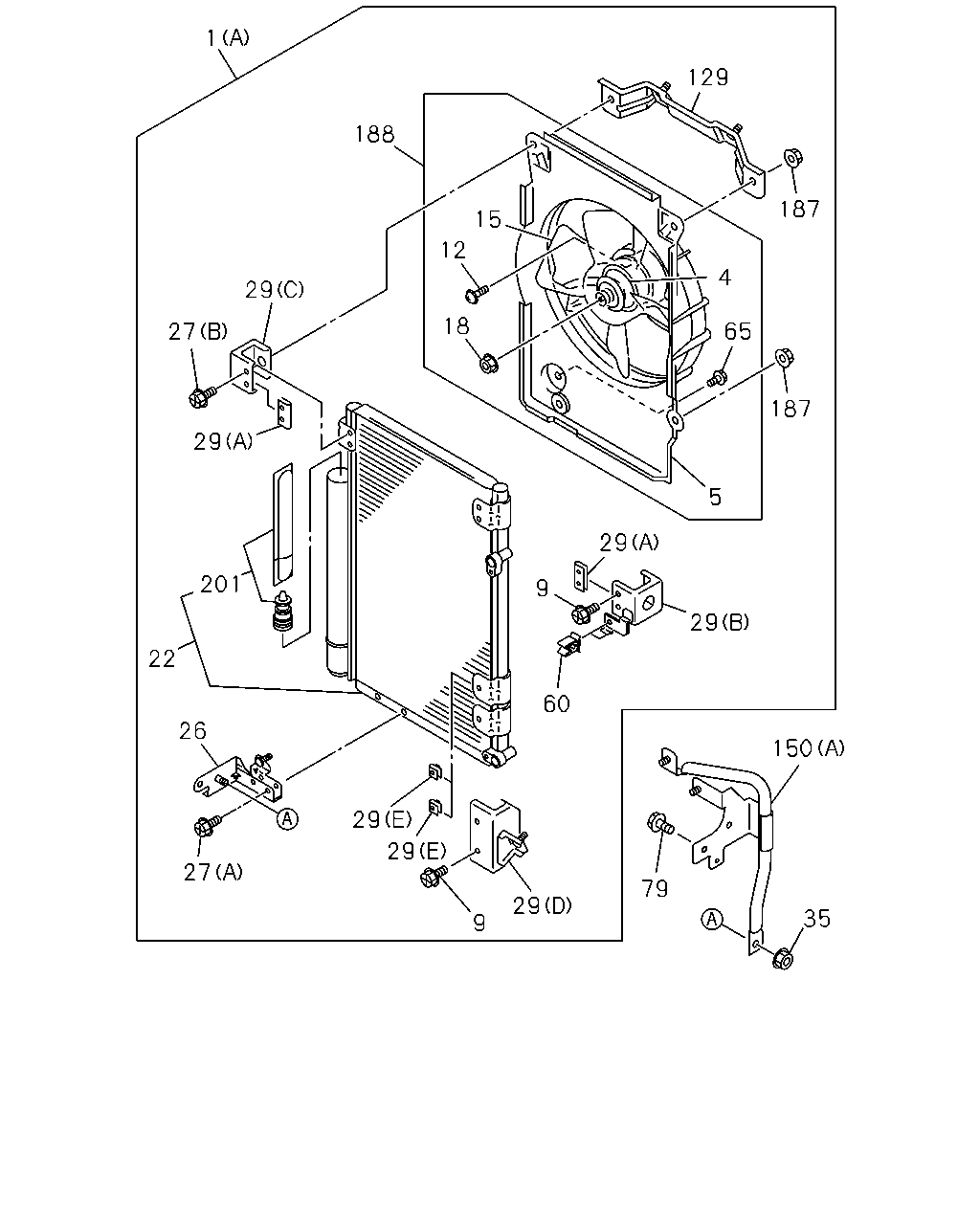

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106	●
1	CONDENSER; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106		●
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0107-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-2	01	1	0210-0509	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98024-412-1	01	1	0510-	●	●
1	CONDENSER; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-213-2	01	1	0105-0209	●	●
4	MOTOR ASM; FAN 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0106	●
4	MOTOR ASM; FAN 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0106		●
4	MOTOR ASM; FAN 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0107-0209	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0210-0509	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98014-458-0	01	1	0510-	●	●
4	MOTOR ASM; FAN 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0106	●
5	SHROUD; FAN MOTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0106		●
5	SHROUD; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0107-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0210-	●	●
5	SHROUD; FAN MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	0105-0209	●	●
9	BOLT; BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-0106	●
9	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-0106		●
9	BOLT; BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0107-0209	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0210-	●	●
9	BOLT; BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0105-0209	●	●
12	BOLT; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0105-0106	●
12	BOLT; FAN MOTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0105-0106		●
12	BOLT; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0107-0209	●	●
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0210-	●	●
15	FAN; MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0106	●
15	FAN; MOTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0106		●
15	FAN; MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0107-0209	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0210-	●	●
15	FAN; MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-0106	●
18	NUT; FAN,CENTER 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-0106		●
18	NUT; FAN,CENTER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0107-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0210-	●	●
18	NUT; FAN,CENTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0105-0106	●
22	CONDENSER ASM; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0105-0106		●
22	CONDENSER ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0107-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-1	01	1	0210-	●	●
22	CONDENSER ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	0105-0209	●	●
26	BRACKET; LOW 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-128-1	01	1	0105-0106	●
26	BRACKET; LOW 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-128-1	01	1	0105-0106		●
26	BRACKET; LOW 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-128-1	01	1	0107-0209	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-128-1	01	1	0210-	●	●
27	BOLT; BRKT,LOW SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16	8-97096-525-0	02	1	0105-0106	●
27	BOLT; BRKT,LOW SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16	8-97096-525-0	02	1	0105-0106		●
27	BOLT; BRKT,LOW SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16	8-97096-525-0	02	1	0107-0209	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16	8-97096-525-0	02	1	0210-	●	●
27	BOLT; BRKT,LOW SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25	8-97178-770-0	02	1	0105-0106	●
27	BOLT; BRKT,LOW SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25	8-97178-770-0	02	1	0105-0106		●
27	BOLT; BRKT,LOW SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25	8-97178-770-0	02	1	0107-0209	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25	8-97178-770-0	02	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0210-	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0105-0209	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	0105-0209	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	0105-0209	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
60	CLIP; PIPE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-0106	●
60	CLIP; PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-0106		●
60	CLIP; PIPE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0107-0209	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0210-	●	●
60	CLIP; PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0105-0209	●	●
65	BOLT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-0106	●
65	BOLT; SHROUD 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-0106		●
65	BOLT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0107-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0210-	●	●
65	BOLT; SHROUD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	0105-0209	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0105-0204	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> M8X35	8-97103-452-0	01	1	0205-0209	●	●
129	BRACKET; UPR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-0106	●
129	BRACKET; UPR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-0106		●
129	BRACKET; UPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0107-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0210-	●	●
129	BRACKET; UPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0107-0206	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0207-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-826-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-827-1	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0105-0209	●	●
187	NUT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0105-0106	●
187	NUT; SHROUD 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0105-0106		●
187	NUT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0107-0209	●	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0210-	●	●
188	BLOWER ASM; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-1	01	1	0105-0106	●
188	BLOWER ASM; SHROUD 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-1	01	1	0105-0106		●
188	BLOWER ASM; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-1	01	1	0107-0209	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-2	01	1	0210-	●	●
201	DRYER ASM; CONDENSER 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97255-561-0	01	1	0105-0106	●
201	DRYER ASM; CONDENSER 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97255-561-0	01	1	0105-0106		●
201	DRYER ASM; CONDENSER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97255-561-0	01	1	0107-0209	●	●
201	DRYER ASM; CONDENSER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-097-0	01	1	0210-0210	●	●
201	DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-097-0	01	1	0210-	●	●

150 30 1 35 30 35 150 79 35 150 35

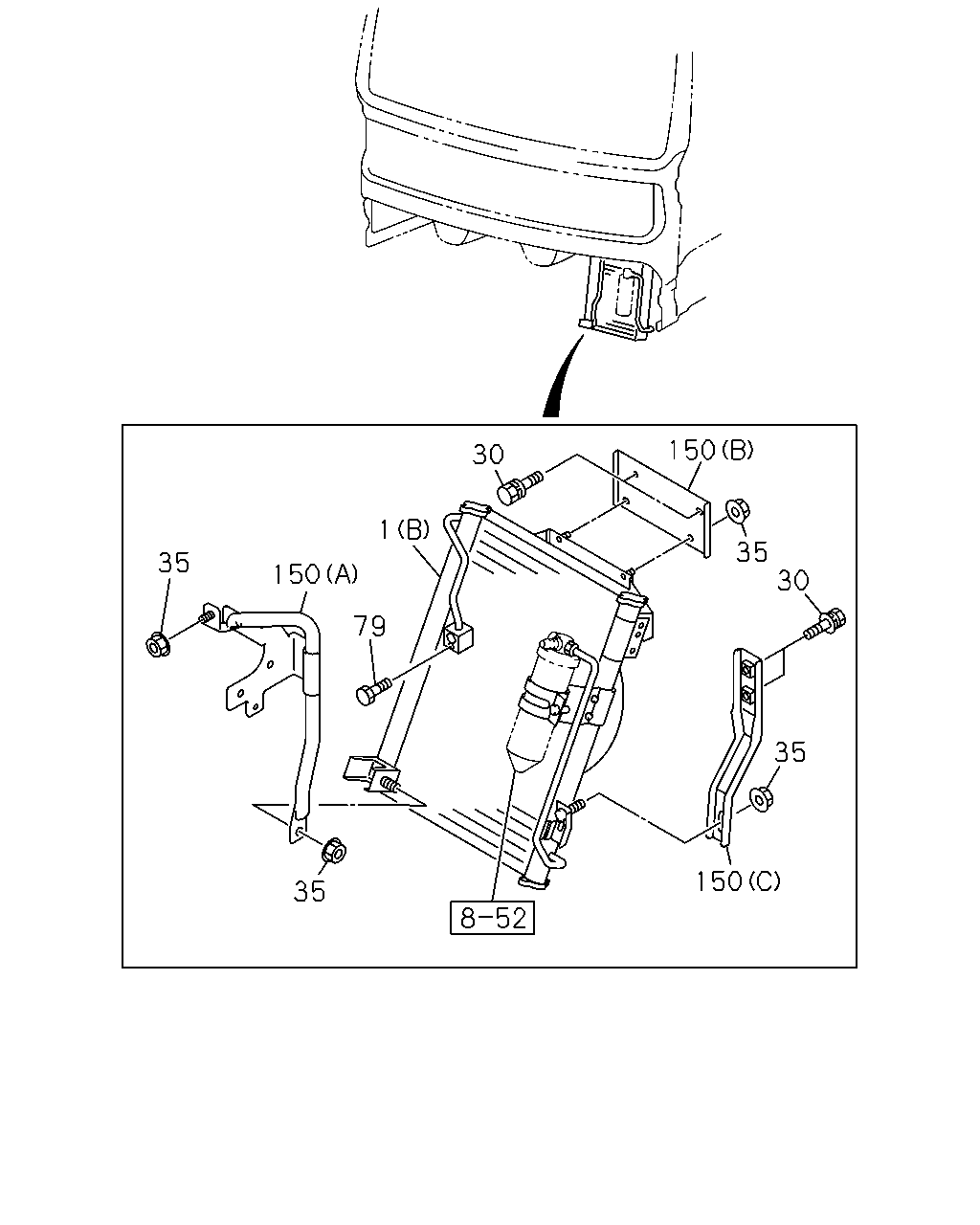

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106	●
1	CONDENSER; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106		●
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0107-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-2	01	1	0210-0509	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98024-412-1	01	1	0510-	●	●
1	CONDENSER; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-213-2	01	1	0105-0209	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0105-0204	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> M8X35	8-97103-452-0	01	1	0205-0209	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0107-0206	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0207-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106	●
150	BRACKET; CONDENSER,MTG 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-0106		●
150	BRACKET; CONDENSER,MTG 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0107-0209	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0210-	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-826-0	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-827-1	01	1	0105-0209	●	●
150	BRACKET; CONDENSER,MTG 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0105-0209	●	●

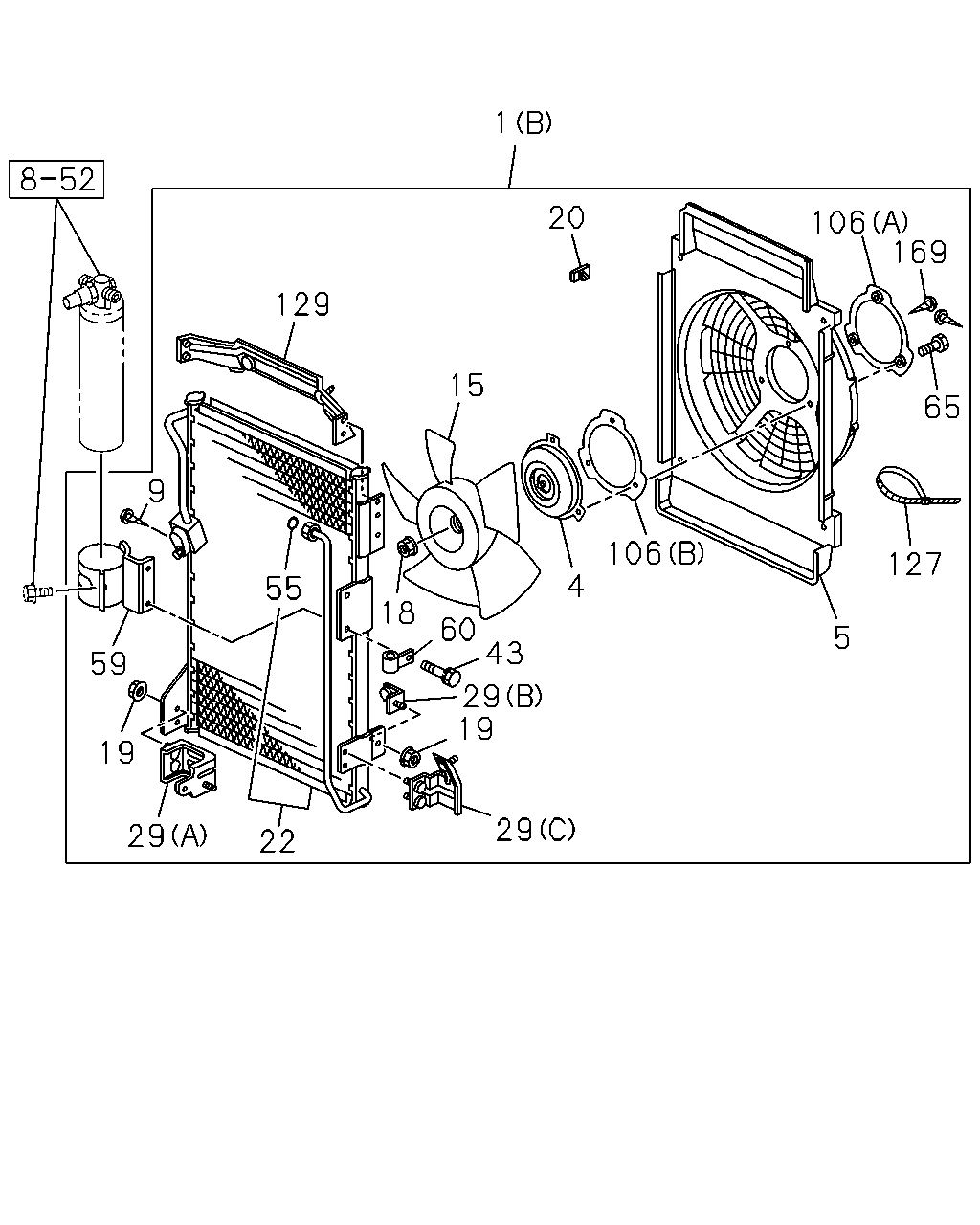

1 20 106 169 129 15 65 9 106 127 4 55 18 60 43 5 59 29 19 19 29 29 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106	●
1	CONDENSER; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0105-0106		●
1	CONDENSER; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-1	01	1	0107-0209	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83534-206-2	01	1	0210-0509	●	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98024-412-1	01	1	0510-	●	●
1	CONDENSER; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83534-213-2	01	1	0105-0209	●	●
4	MOTOR ASM; FAN 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0106	●
4	MOTOR ASM; FAN 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0106		●
4	MOTOR ASM; FAN 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0107-0209	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0210-0509	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98014-458-0	01	1	0510-	●	●
4	MOTOR ASM; FAN 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	0105-0209	●	●
5	SHROUD; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0106	●
5	SHROUD; FAN MOTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0106		●
5	SHROUD; FAN MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0107-0209	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0210-	●	●
5	SHROUD; FAN MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	0105-0209	●	●
9	BOLT; BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-0106	●
9	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-0106		●
9	BOLT; BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0107-0209	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0210-	●	●
9	BOLT; BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0105-0209	●	●
15	FAN; MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0106	●
15	FAN; MOTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0106		●
15	FAN; MOTOR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0107-0209	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0210-	●	●
15	FAN; MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	0105-0209	●	●
18	NUT; FAN,CENTER 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-0106	●
18	NUT; FAN,CENTER 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-0106		●
18	NUT; FAN,CENTER 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0107-0209	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0210-	●	●
18	NUT; FAN,CENTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0105-0209	●	●
19	NUT; BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	0105-0209	●	●
20	CLIP; CONDENSER 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	0105-0209	●	●
22	CONDENSER ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0105-0106	●
22	CONDENSER ASM; A/C 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0105-0106		●
22	CONDENSER ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-0	01	1	0107-0209	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-1	01	1	0210-	●	●
22	CONDENSER ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	0105-0209	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0210-	●	●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-0106	●
29	BRACKET; SIDE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-0106		●
29	BRACKET; SIDE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0107-0209	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0210-	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0105-0209	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	0105-0209	●	●
29	BRACKET; SIDE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	0105-0209	●	●
43	BOLT; BRKT,CONDENSER 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	0105-0209	●	●
55	GASKET; PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0105-0209	●	●
59	BRACKET; CONDENSER 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	0105-0209	●	●
60	CLIP; PIPE 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-0106	●
60	CLIP; PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-0106		●
60	CLIP; PIPE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0107-0209	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0210-	●	●
60	CLIP; PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0105-0209	●	●
65	BOLT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-0106	●
65	BOLT; SHROUD 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-0106		●
65	BOLT; SHROUD 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0107-0209	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0210-	●	●
65	BOLT; SHROUD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	0105-0209	●	●
106	BRACKET; FAN MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	0105-0209	●	●
106	BRACKET; FAN MOTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	0105-0209	●	●
127	CLIP; SHROUD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	0105-0209	●	●
129	BRACKET; UPR 6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-0106	●
129	BRACKET; UPR 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-0106		●
129	BRACKET; UPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0107-0209	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0210-	●	●
129	BRACKET; UPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	0105-0209	●	●
169	SCREW; SHROUD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	0105-0209	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
