8-71 — COMPRESSOR; AIR CONDITIONING (#13439) — 108 parça

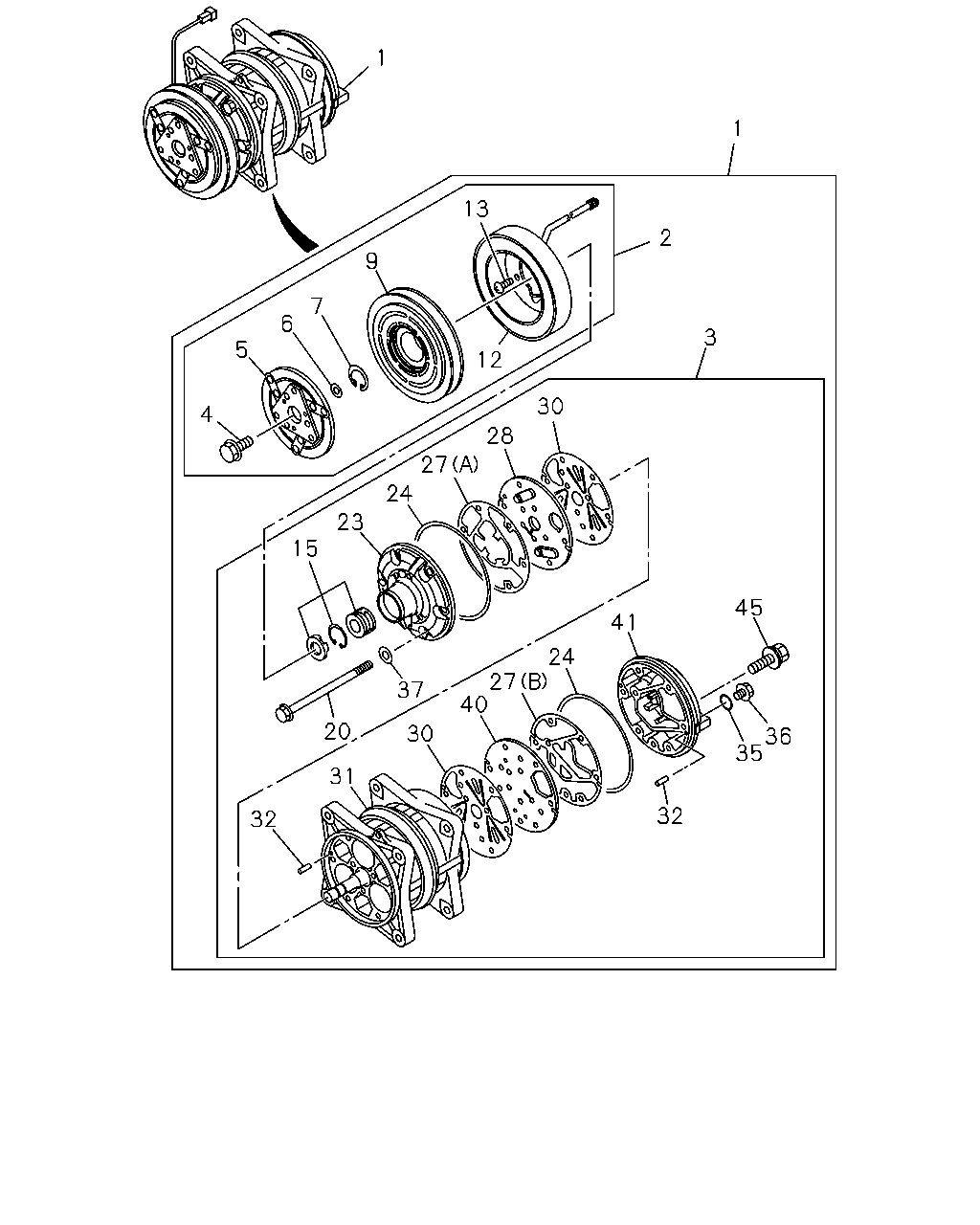

1 1 13 2 9 7 6 3 5 12 30 4 28 27 24 23 15 45 41 24 27 40 37 20 30 36 35 31 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-278-0	01	1	0105-0209	●	●
1	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-1	01	1	0105-0106	●	●
1	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-2	01	1	0107-0209	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-2	01	1	0210-	●	●
2	CLUTCH; MAGNET,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	0105-0209	●	●
2	CLUTCH; MAGNET,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0105-0106	●	●
2	CLUTCH; MAGNET,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0107-0209	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0210-	●	●
3	COMPRESSOR ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-292-0	01	1	0105-0209	●	●
3	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0105-0106	●	●
3	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0107-0209	●	●
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0210-	●	●
4	BOLT; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	0105-0209	●	●
4	BOLT; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0105-0106	●	●
4	BOLT; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0107-0209	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0210-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	0105-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0105-0106	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0107-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0210-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0105-0106	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0107-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0210-	●	●
6	SHIM; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	0105-0209	●	●
6	SHIM; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	0105-0209	●	●
6	SHIM; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	0105-0209	●	●
7	RING; SNAP,PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	0105-0209	●	●
7	RING; SNAP,PULLEY 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0105-0106	●	●
7	RING; SNAP,PULLEY 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0107-0209	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0210-	●	●
9	PULLEY; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-1	01	1	0105-0209	●	●
9	PULLEY; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0105-0106	●	●
9	PULLEY; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0107-0209	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0210-	●	●
12	COIL; FIELD,MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-093-0	01	1	0105-0209	●	●
12	COIL; FIELD,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0105-0106	●	●
12	COIL; FIELD,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0107-0209	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0210-	●	●
13	SCREW; COIL FIELD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	0105-0209	●	●
15	SEAL; SHAFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-090-0	01	1	0105-0209	●	●
20	BOLT; CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-738-0	06	1	0105-0209	●	●
23	HEAD; CYL,FRT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97178-401-0	01	1	0105-0209	●	●
24	GASKET; CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-953-0	02	1	0105-0209	●	●
27	GASKET; CYL HD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97170-930-0	01	1	0105-0209	●	●
27	GASKET; CYL HD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97170-933-0	01	1	0105-0209	●	●
28	PLATE; VLV,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-932-1	01	1	0105-0209	●	●
30	VALVE; SUCTION 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	0105-0209	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	0105-0209	●	●
32	PIN; CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	0105-0209	●	●
35	GASKET; PLUG,CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	0105-0209	●	●
36	PLUG; CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	0105-0209	●	●
37	GASKET; CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-739-0	06	1	0105-0209	●	●
40	PLATE; VLV,RR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-931-1	01	1	0105-0209	●	●
41	HEAD; CYL,RR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-929-1	01	1	0105-0209	●	●
45	BOLT; PLATE TO CYL HD 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0105-0209	●	●

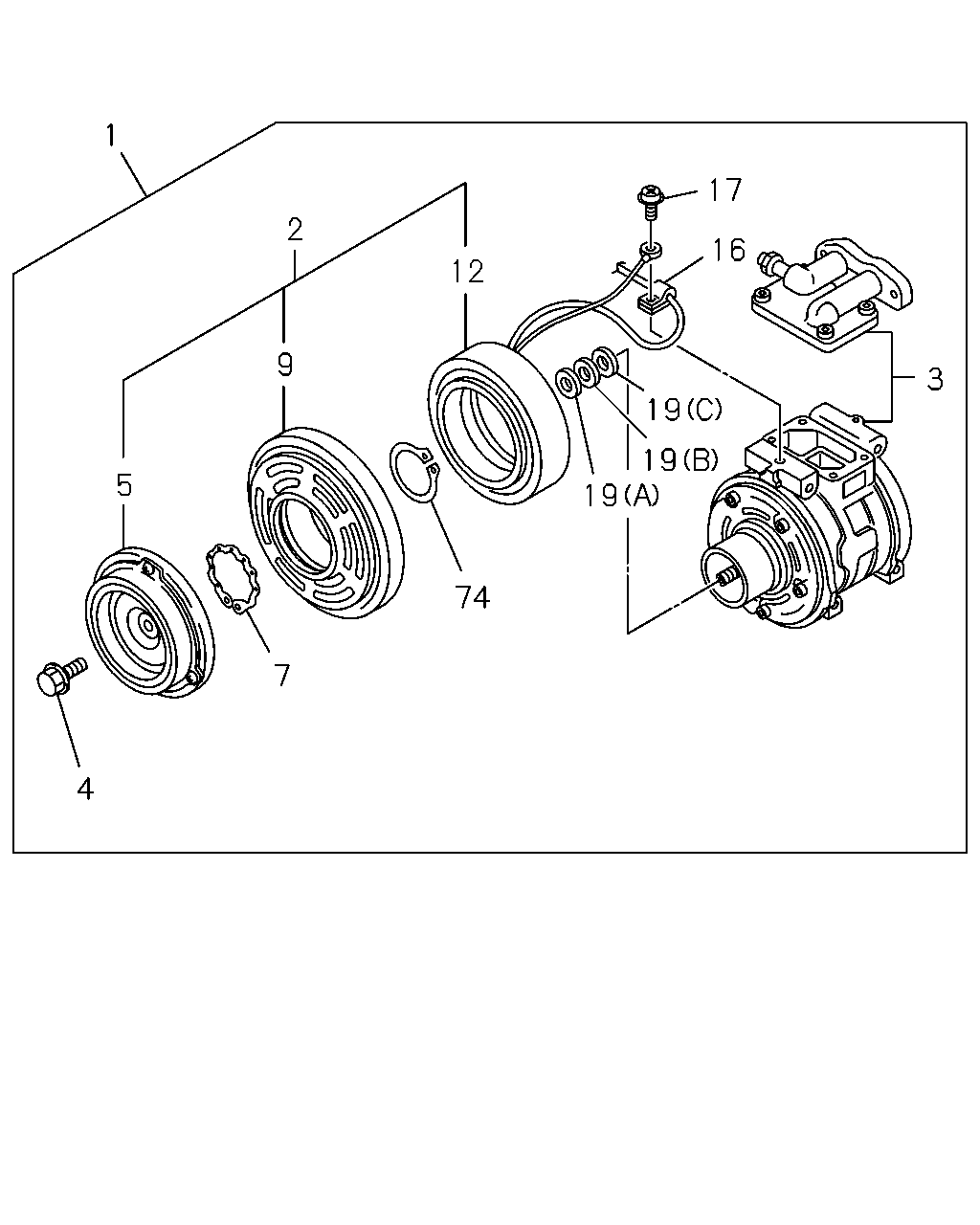

1 17 2 16 19 12 9 3 19 19 5 74 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-278-0	01	1	0105-0209	●	●
1	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-1	01	1	0105-0106	●	●
1	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-2	01	1	0107-0209	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-270-2	01	1	0210-	●	●
2	CLUTCH; MAGNET,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	0105-0209	●	●
2	CLUTCH; MAGNET,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0105-0106	●	●
2	CLUTCH; MAGNET,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0107-0209	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-043-0	01	1	0210-	●	●
3	COMPRESSOR ASM; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-292-0	01	1	0105-0209	●	●
3	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0105-0106	●	●
3	COMPRESSOR ASM; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0107-0209	●	●
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-274-0	01	1	0210-	●	●
4	BOLT; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	0105-0209	●	●
4	BOLT; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0105-0106	●	●
4	BOLT; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0107-0209	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-323-0	01	1	0210-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	0105-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0105-0106	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0107-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60) PRESS	1-83579-886-0	01	1	0210-	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0105-0106	●	●
5	ARMATURE ASM; MAGNET CLU,A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0107-0209	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60) FORGING	1-83579-887-0	01	1	0210-	●	●
7	RING; SNAP,PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	0105-0209	●	●
7	RING; SNAP,PULLEY 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0105-0106	●	●
7	RING; SNAP,PULLEY 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0107-0209	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-888-0	01	1	0210-	●	●
9	PULLEY; MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-1	01	1	0105-0209	●	●
9	PULLEY; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0105-0106	●	●
9	PULLEY; MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0107-0209	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-885-0	01	1	0210-	●	●
12	COIL; FIELD,MAGNET CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-093-0	01	1	0105-0209	●	●
12	COIL; FIELD,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0105-0106	●	●
12	COIL; FIELD,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0107-0209	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-322-0	01	1	0210-	●	●
16	CLIP; WIRE,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	0105-0106	●	●
16	CLIP; WIRE,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	0107-0209	●	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	0210-	●	●
17	SCREW; WIRE CLIP MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	0105-0106	●	●
17	SCREW; WIRE CLIP MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	0107-0209	●	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	0210-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1	1-83579-890-0	01	1	0105-0106	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1	1-83579-890-0	01	1	0107-0209	●	●
19	WASHER; LK,PULLEY,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1	1-83579-890-0	01	1	0210-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3	1-83579-891-0	01	1	0105-0106	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3	1-83579-891-0	01	1	0107-0209	●	●
19	WASHER; LK,PULLEY,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3	1-83579-891-0	01	1	0210-	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5	1-83579-892-0	01	1	0105-0106	●	●
19	WASHER; LK,PULLEY,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5	1-83579-892-0	01	1	0107-0209	●	●
19	WASHER; LK,PULLEY,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5	1-83579-892-0	01	1	0210-	●	●
74	RING; SNAP,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-889-0	01	1	0105-0106	●	●
74	RING; SNAP,MAGNET CLU 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-889-0	01	1	0107-0209	●	●
74	RING; SNAP,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-889-0	01	1	0210-	●	●
