◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#13437) — 587 parça

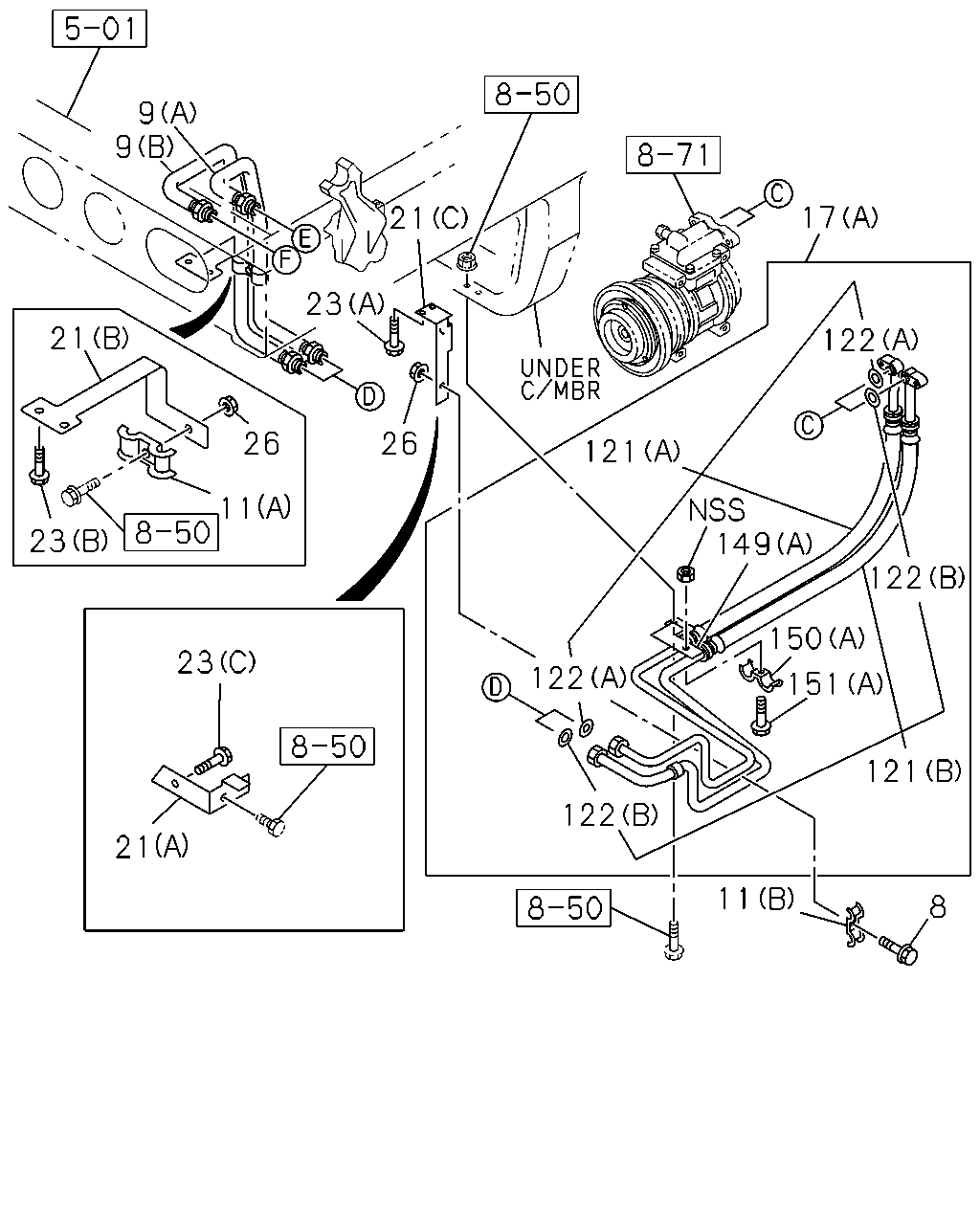

çizim 77003
17 122 122 121 150 151 149 121 122 122 11 8 23 21 23 11 26 26 23 21 9 9 21
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83567-643-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) 		1-83567-645-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) 		1-83572-553-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-632-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-873-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) 		1-83572-557-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-633-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-874-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83567-642-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) 		1-83567-644-0 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-850-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-616-1 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-646-0 01 1 0105-0209 ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-695-0 01 1 0210- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) 		1-83571-998-0 01 1 0105- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83571-777-1 01 1 0105- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83573-018-0 01 1 0105- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (C) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (I) 		1-83572-835-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (H) 		1-83572-836-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-0 01 1 0207-0209 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0210- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105-0105 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83572-687-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-686-1 01 1 0105- ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-023-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0107-0109 ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83573-025-0 01 1 0105- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0105-0209 ● ●
150 CLIP; HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0107-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0105-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0210- ● ●

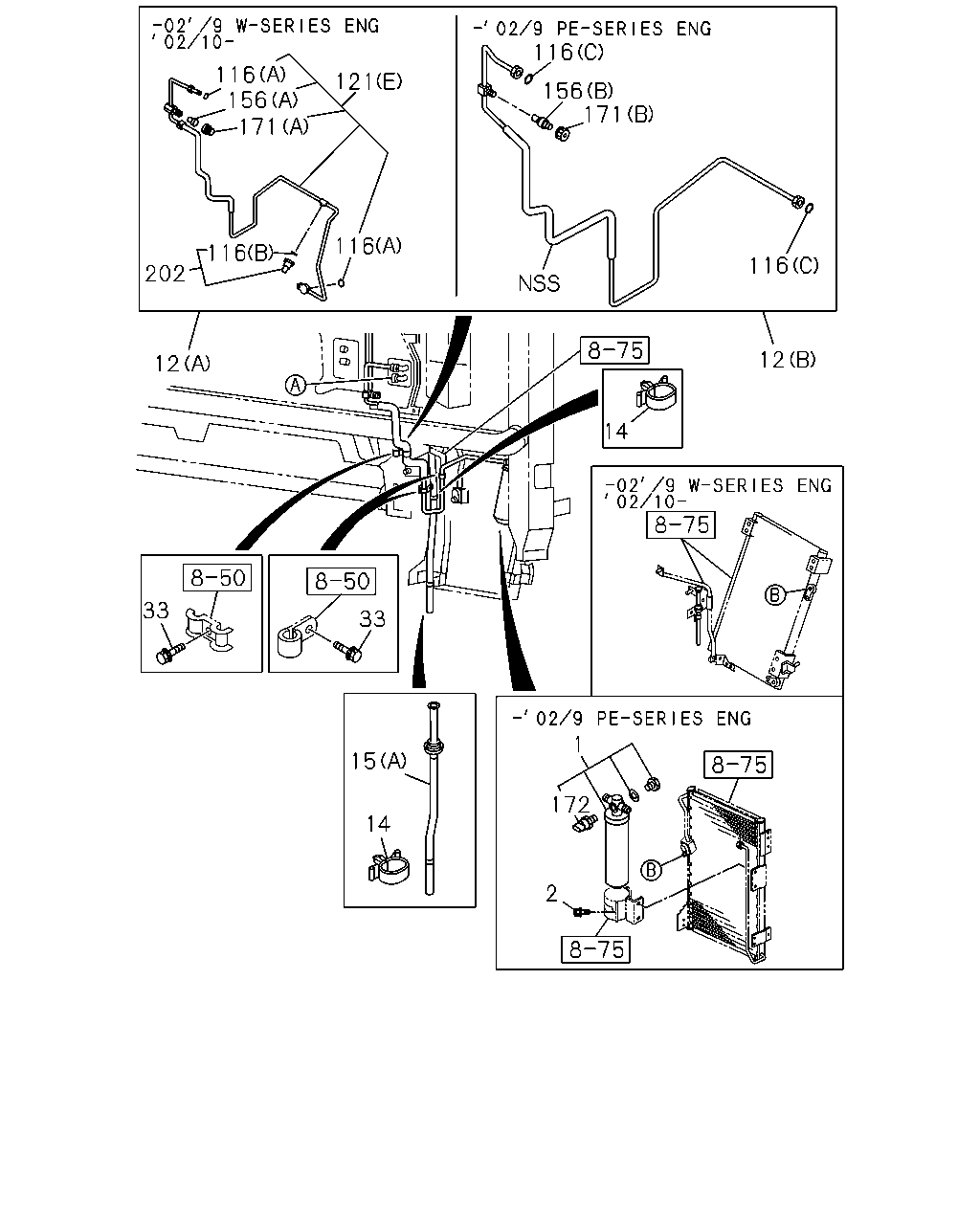

çizim 77524
12 116 171 156 116 116 121 156 171 116 116 202 12 14 172 1 2 14 15 33 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; RECEIVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-085-0 01 1 0105-0209 ● ●
2 BOLT; RECEIVER TANK
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-0209 ● ●
12 PIPE; COOLER,EVAP TO TANK
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-658-1 01 1 0105-0106 ●
12 PIPE; COOLER,EVAP TO TANK
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-658-1 01 1 0105-0106 ●
12 PIPE; COOLER,EVAP TO TANK
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-658-1 01 1 0107-0206 ● ●
12 PIPE; COOLER,EVAP TO TANK
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-852-0 01 1 0207-0209 ● ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-852-2 01 1 0210- ● ●
12 PIPE; COOLER,EVAP TO TANK
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-668-0 01 1 0105-0209 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 0105-0105 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0106- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-411-0 01 1 0105-0105 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0106- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0105- ● ●
33 BOLT; CLIP
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0207-0209 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0206 ● ●
33 BOLT; CLIP
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0207-0209 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0210- ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=14.5 		1-83539-324-0 01 1 0210- ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0105-0106 ●
116 GASKET; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0105-0106 ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0107-0206 ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0207-0209 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0210- ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0105-0106 ●
116 GASKET; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0105-0106 ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0107-0209 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0210- ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-97161-776-0 02 1 0105-0209 ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7 		1-83539-317-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (I) 		1-83572-835-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (H) 		1-83572-836-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-0 01 1 0207-0209 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0210- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105-0105 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83572-687-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-686-1 01 1 0105- ● ●
156 VALVE; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
156 VALVE; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
156 VALVE; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0107-0206 ● ●
156 VALVE; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97095-909-0 01 1 0207-0209 ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97095-909-0 01 1 0210- ● ●
156 VALVE; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97083-100-0 01 1 0105-0209 ● ●
171 CAP; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H 		8-97095-911-0 01 1 0105-0106 ●
171 CAP; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H 		8-97095-911-0 01 1 0105-0106 ●
171 CAP; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H 		8-97095-911-0 01 1 0107-0209 ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK H 		8-97095-911-0 01 1 0210- ● ●
171 CAP; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) CAP MARK H 		8-97083-101-0 01 1 0105-0209 ● ●
172 SWITCH; PRESS,RECEIVER TANK
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-044-0 01 1 0105-0209 ● ●
202 SWITCH; PRESSURE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-0 01 1 0105-0106 ●
202 SWITCH; PRESSURE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-0 01 1 0105-0106 ●
202 SWITCH; PRESSURE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-0 01 1 0107-0209 ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0210- ● ●

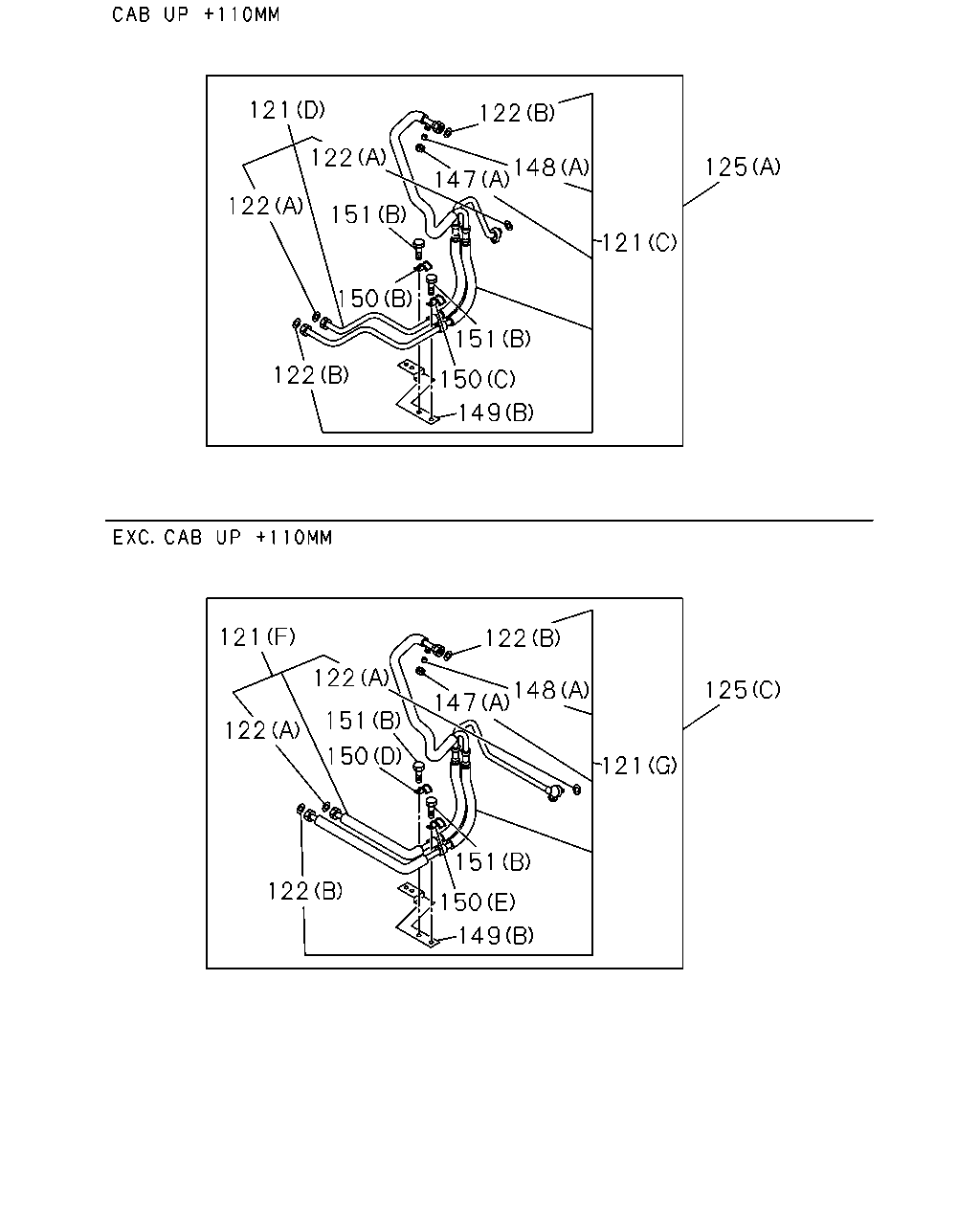

çizim 77623
125 121 148 122 147 122 121 122 151 150 122 151 150 149 125 121 148 122 147 122 121 122 150 151 151 149 150 122
BalonParca AdiParca NoAdetTipApplied Date A B
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (I) 		1-83572-835-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (H) 		1-83572-836-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-0 01 1 0207-0209 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0210- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105-0105 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83572-687-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-686-1 01 1 0105- ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-1 01 1 0210-0302 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-966-0 01 1 0303- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0107-0109 ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0210- ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-465-0 01 1 0105-0209 ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-543-0 01 1 0105-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) CAP MARK L 		8-97095-910-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0107-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0210-0301 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) CAP MARK L 		1-83539-331-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) CAP MARK L 		8-97083-102-0 01 1 0105-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		8-97095-909-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0107-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0210-0301 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83539-330-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97083-100-0 01 1 0105-0209 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-023-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0107-0109 ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83573-025-0 01 1 0105- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0105-0209 ● ●
150 CLIP; HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0107-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0105-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0210- ● ●

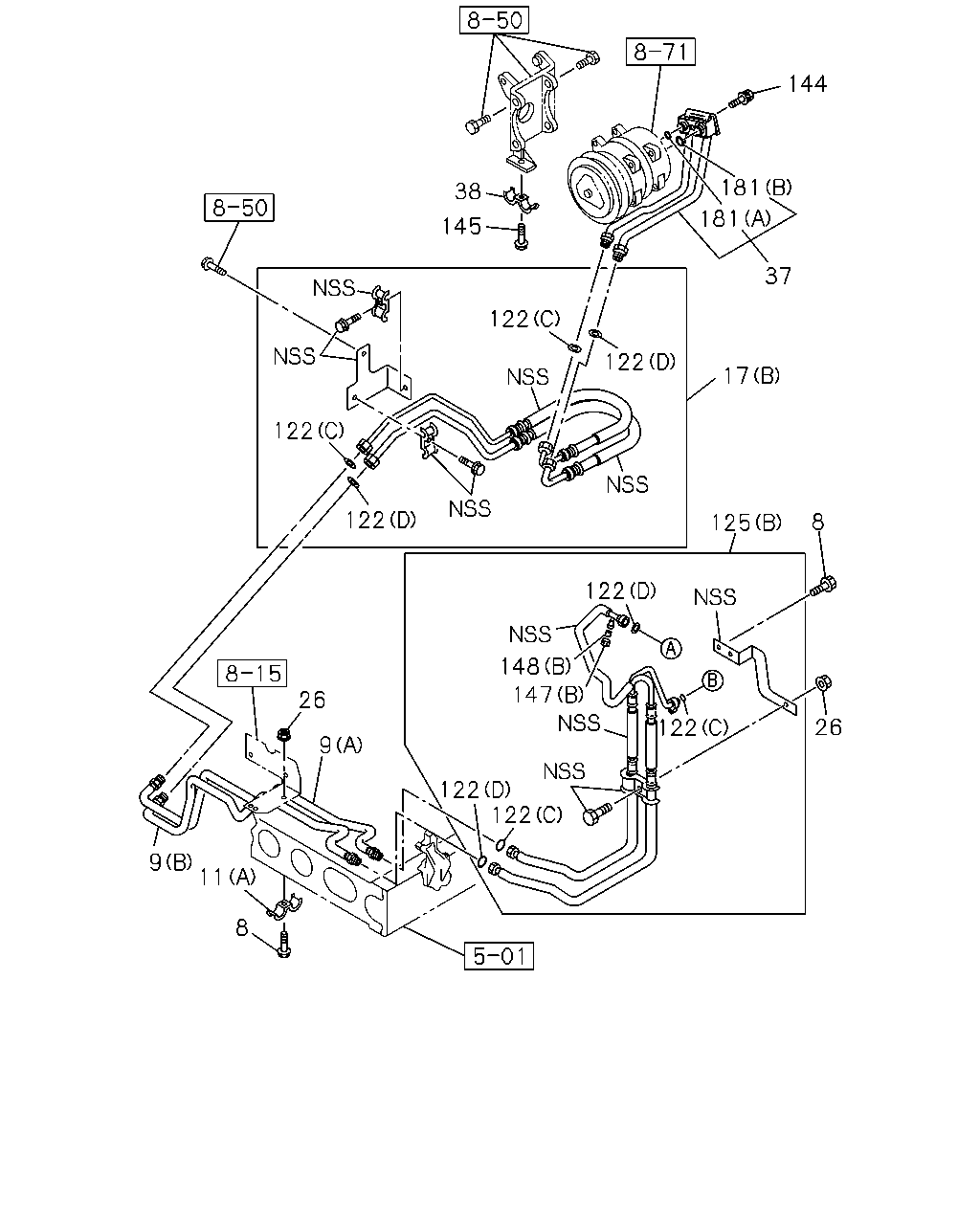

çizim 77713
26 8 125 122 148 147 122 122 122 11 8 9 9 26 122 122 17 122 145 38 181 144 181 37 122
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83567-643-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) 		1-83567-645-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) 		1-83572-553-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-632-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-873-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) 		1-83572-557-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-633-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-874-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83567-642-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) 		1-83567-644-0 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-850-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-616-1 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-646-0 01 1 0105-0209 ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-695-0 01 1 0210- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
37 CONNECTOR; CMPR TO FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 0105-0209 ● ●
38 CLIP; CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-1 01 1 0210-0302 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-966-0 01 1 0303- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0107-0109 ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0210- ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-465-0 01 1 0105-0209 ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-543-0 01 1 0105-0209 ● ●
144 BOLT; CONN TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 0105-0209 ● ●
145 BOLT; CLIP,CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 0105-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) CAP MARK L 		8-97095-910-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0107-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0210-0301 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) CAP MARK L 		1-83539-331-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) CAP MARK L 		8-97083-102-0 01 1 0105-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		8-97095-909-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0107-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0210-0301 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83539-330-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97083-100-0 01 1 0105-0209 ● ●
181 GASKET; CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 0105-0209 ● ●
181 GASKET; CONNECTOR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 0105-0209 ● ●
çizim 77727
158 141 110 116 116 110 111 141 17 122 122 150 121 149 151 122 122 150 121 151 26 162 125 125 11 9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83567-643-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) 		1-83567-645-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) 		1-83572-553-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-632-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) 		1-83567-873-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) 		1-83572-557-0 01 1 0105-0209 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-633-1 01 1 0210-0312 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (D) 		1-83567-874-0 01 1 0401- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83567-642-0 01 1 0105- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) 		1-83567-644-0 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 0105- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-850-0 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-616-1 01 1 0105- ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-646-0 01 1 0105-0209 ● ●
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-695-0 01 1 0210- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
110 CLAMP; PIPE TO MTG BRKT
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-243-0 01 1 0210- ● ●
110 CLAMP; PIPE TO MTG BRKT
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-244-0 01 1 0210- ● ●
111 BOLT; CLAMP
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		1-83539-326-0 01 1 0210- ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=14.5 		1-83539-324-0 01 1 0210- ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0105-0106 ●
116 GASKET; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0105-0106 ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.5 		1-83539-316-0 02 1 0107-0206 ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0207-0209 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0210- ● ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0105-0106 ●
116 GASKET; PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0105-0106 ●
116 GASKET; PIPE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0107-0209 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0210- ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-97161-776-0 02 1 0105-0209 ● ●
116 GASKET; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7 		1-83539-317-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (I) 		1-83572-835-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (H) 		1-83572-836-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-0 01 1 0207-0209 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0210- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105-0105 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83572-687-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-686-1 01 1 0105- ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-1 01 1 0210-0302 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-966-0 01 1 0303- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0107-0109 ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0210- ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-465-0 01 1 0105-0209 ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-543-0 01 1 0105-0209 ● ●
141 PIPE; COOLER,CMPR HOSE TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-843-0 01 1 0210- ● ●
141 PIPE; COOLER,CMPR HOSE TO PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-844-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-023-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0107-0109 ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83573-025-0 01 1 0105- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0105-0209 ● ●
150 CLIP; HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0107-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0105-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0210- ● ●
158 BOLT; PIPE FIX
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE 		1-83539-325-0 02 1 0210- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M6X25 FLANGE 		0-28680-625-0 02 1 0205-0209 ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0210-0409 ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0512 ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601- ● ●

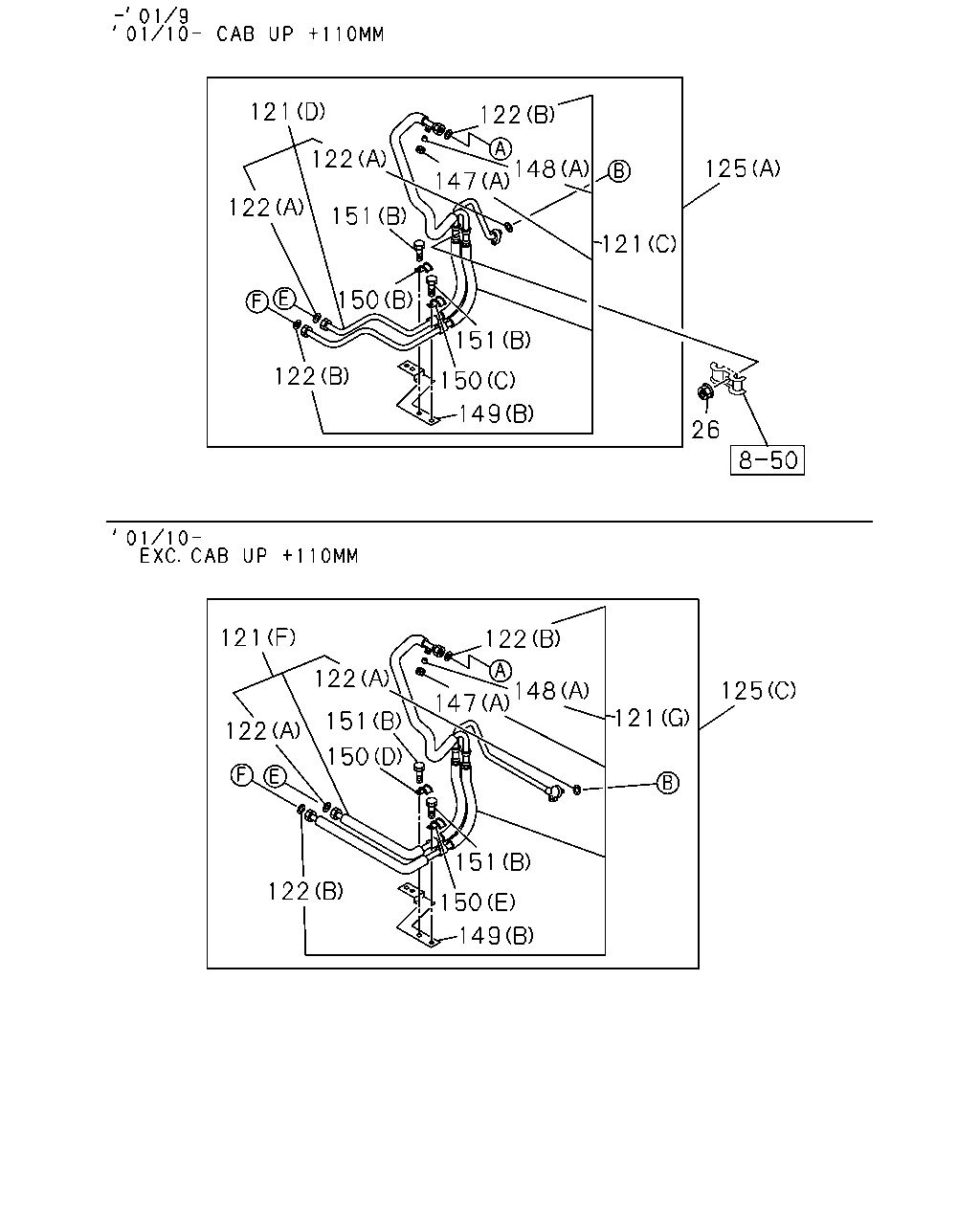

çizim 78603
125 148 121 151 147 121 26 151 150 122 150 149 122 121 125 148 147 122 121 122 151 150 151 150 149 122 122 122 122
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (I) 		1-83572-835-0 01 1 0210- ● ●
121 HOSE; COOLER
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (H) 		1-83572-836-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (F) 		1-83572-663-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (G) 		1-83572-664-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-723-0 01 1 0107-0206 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-0 01 1 0207-0209 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-863-1 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-706-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83572-706-0 01 1 0210- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0105-0106 ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-707-0 01 1 0107-0109 ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0110-0209 ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D) 		1-83572-707-0 01 1 0210- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105-0105 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) 		1-83572-859-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) 		1-83572-687-0 01 1 0105- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-83572-686-1 01 1 0105- ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=15.5 		8-97161-777-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=18.3 		8-97161-778-0 02 1 0105-0209 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0105- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-443-1 01 1 0210-0302 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-83572-966-0 01 1 0303- ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0105-0106 ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-484-0 01 1 0107-0109 ● ●
125 HOSE; FLEX,UNIT TO CMPR
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0110-0209 ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83572-484-0 01 1 0210- ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83572-465-0 01 1 0105-0209 ● ●
125 HOSE; FLEX,UNIT TO CMPR
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-543-0 01 1 0105-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) CAP MARK L 		8-97095-910-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0105-0106 ●
147 CAP; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0107-0209 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) CAP MARK L 		1-83539-331-0 01 1 0210-0301 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) CAP MARK L 		1-83539-331-0 01 1 0302- ● ●
147 CAP; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) CAP MARK L 		8-97083-102-0 01 1 0105-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		8-97095-909-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0105-0106 ●
148 VALVE; FLEX HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0107-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-330-0 01 1 0210-0301 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83539-330-0 01 1 0302- ● ●
148 VALVE; FLEX HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97083-100-0 01 1 0105-0209 ● ●
149 BRACKET; COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-023-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83573-016-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0105-0106 ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-017-0 01 1 0107-0109 ● ●
149 BRACKET; COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0110-0209 ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83573-017-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83573-025-0 01 1 0105- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0105-0209 ● ●
150 CLIP; HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83574-246-0 02 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83574-254-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-0106 ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0107-0109 ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83574-255-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) 		1-83574-262-0 01 1 0210- ● ●
150 CLIP; HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0110-0209 ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (E) 		1-83574-263-0 01 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-0106 ●
151 BOLT; CLIP FIX,COOLER HOSE
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0107-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0105-0209 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0210- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) 		1-83539-328-0 02 1 0210- ● ●
çizim 81553
189 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-411-0 01 1 0105-0105 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-635-0 01 1 0106- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83572-412-0 01 1 0105- ● ●
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
