Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#13436) — 193 parça

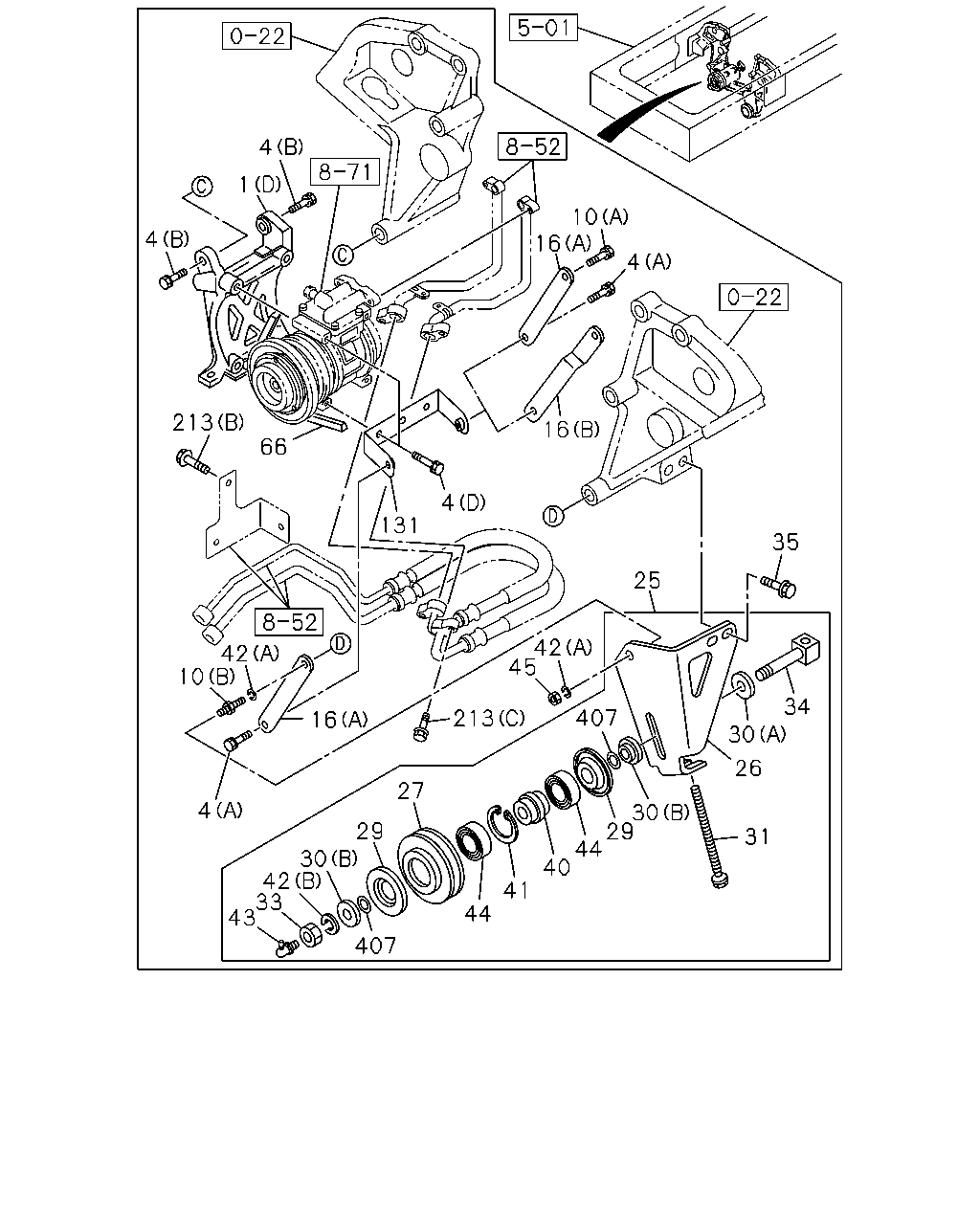

10 4 16 66 25 35 34 30 26 31 30 29 44 40 41 44 407 27 407 42 45 29 30 42 33 43 4 16 42 10 213 4 4 49 49 1 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-590-0	01	1	0105-0209	●	●
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-011-0	01	1	0210-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0107-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0107-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28051-240-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X90 WASHER	1-83539-327-0	04	1	0210-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0107-0512	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28050-880-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0107-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	0105-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0107-0512	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28151-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0107-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	02	1	0211-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-0	01	1	0105-0106	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-1	01	1	0107-	●	●
25	PULLEY ASM; IDLER,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-1	01	1	0105-	●	●
26	BRACKET; IDLE PULLEY,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	0105-	●	●
27	PULLEY; IDLE,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-1	01	1	0105-	●	●
29	COVER; DUST,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	0105-	●	●
30	COLLAR; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	0105-	●	●
30	COLLAR; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	0105-	●	●
31	BOLT; ADJ,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	0105-	●	●
33	NUT; IDLER PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	0105-	●	●
34	SHAFT; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	0105-	●	●
35	BOLT; IDLER PULLEY TO C/BL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	0105-0512	●	●
35	BOLT; IDLER PULLEY TO C/BL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28061-235-0	02	1	0601-	●	●
40	BUSHING; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	0105-	●	●
41	RING; SNAP,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	0105-	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	0105-0603	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	0105-	●	●
43	NIPPLE; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	0105-	●	●
44	BEARING; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	0105-	●	●
45	NUT; BOLT,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	0105-0512	●	●
45	NUT; BOLT,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12	0-91110-512-0	01	1	0601-	●	●
49	COLLAR; BRKT,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	0105-0209	●	●
49	COLLAR; BRKT,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	0105-0209	●	●
66	BELT; A/C CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	0105-	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0105-0106	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0107-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28080-630-0	02	1	0312-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) M6X30 FLANGE	0-28080-630-0	01	1	0105-0209	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28680-640-0	02	1	0210-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28650-640-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
407	RUBBER; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	0105-	●	●

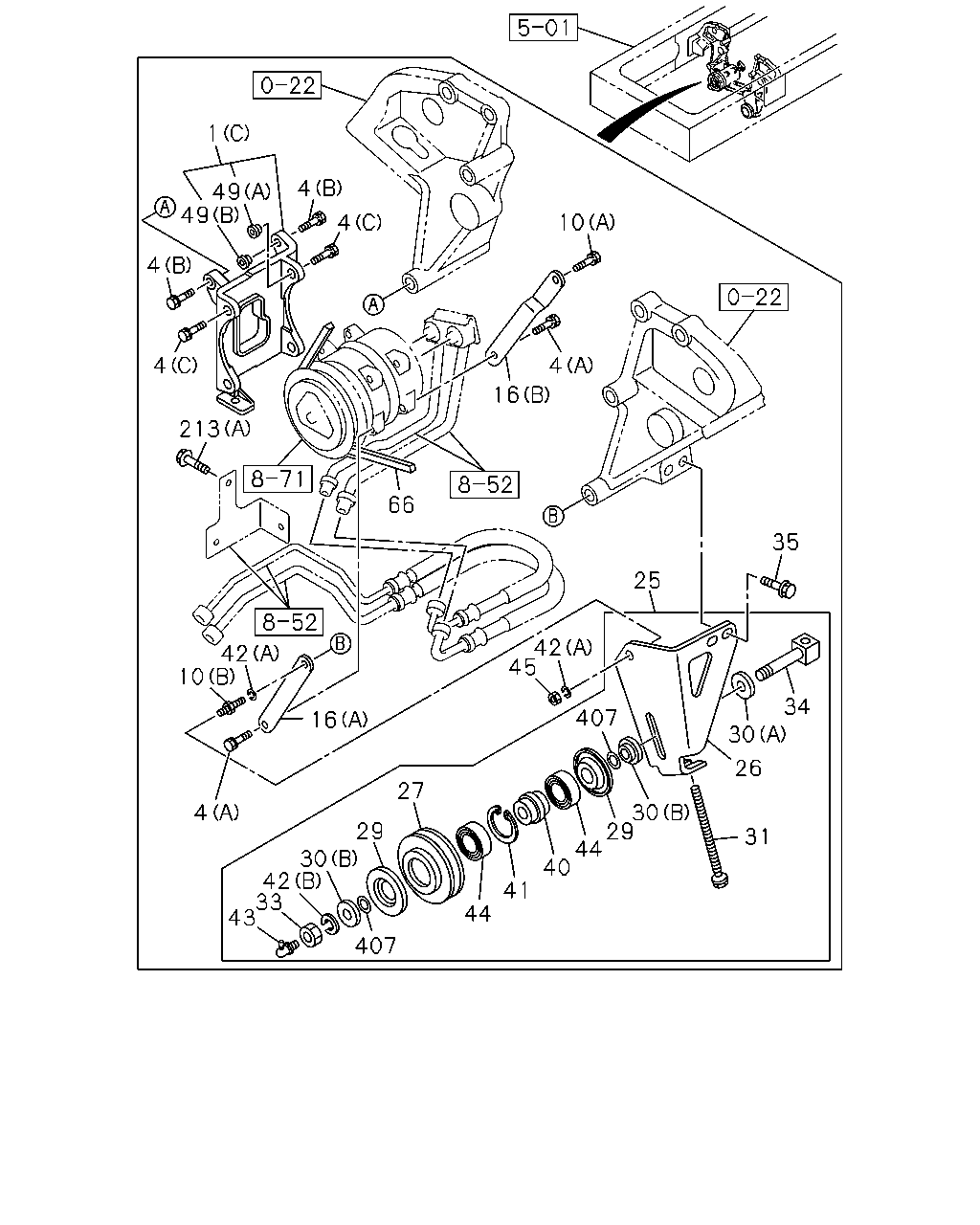

35 34 30 26 31 30 29 44 40 41 44 27 29 30 42 33 43 4 16 213 25 42 45 16 4 131 42 10 66 213 4 10 16 1 4 4 407 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-590-0	01	1	0105-0209	●	●
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-011-0	01	1	0210-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0107-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0107-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28051-240-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X90 WASHER	1-83539-327-0	04	1	0210-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0107-0512	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28050-880-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0107-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	0105-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0107-0512	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28151-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0107-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	02	1	0211-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-0	01	1	0105-0106	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-1	01	1	0107-	●	●
25	PULLEY ASM; IDLER,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-1	01	1	0105-	●	●
26	BRACKET; IDLE PULLEY,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	0105-	●	●
27	PULLEY; IDLE,A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-1	01	1	0105-	●	●
29	COVER; DUST,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	0105-	●	●
30	COLLAR; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13666-021-1	01	1	0105-	●	●
30	COLLAR; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13666-040-0	02	1	0105-	●	●
31	BOLT; ADJ,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-1	01	1	0105-	●	●
33	NUT; IDLER PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	0105-	●	●
34	SHAFT; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	0105-	●	●
35	BOLT; IDLER PULLEY TO C/BL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	0105-0512	●	●
35	BOLT; IDLER PULLEY TO C/BL 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28061-235-0	02	1	0601-	●	●
40	BUSHING; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	0105-	●	●
41	RING; SNAP,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	0105-	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	0105-0603	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●
42	WASHER; PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	0105-	●	●
43	NIPPLE; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	0105-	●	●
44	BEARING; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	0105-	●	●
45	NUT; BOLT,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	0105-0512	●	●
45	NUT; BOLT,IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) M12	0-91110-512-0	01	1	0601-	●	●
66	BELT; A/C CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	0105-	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0105-0106	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0107-	●	●
131	STAY; CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-012-0	01	1	0210-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28080-630-0	02	1	0312-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) M6X30 FLANGE	0-28080-630-0	01	1	0105-0209	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28680-640-0	02	1	0210-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28650-640-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
407	RUBBER; IDLE PULLEY 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	0105-	●	●

84 84 84 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	CLIP; PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	0207-0209	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0105-	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	0105-	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	0105-0206	●	●
84	CLIP; PIPE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	01	1	0207-0209	●
84	CLIP; PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	01	1	0207-0209		●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	01	1	0210-	●	●
316	BOLT; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
316	BOLT; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●

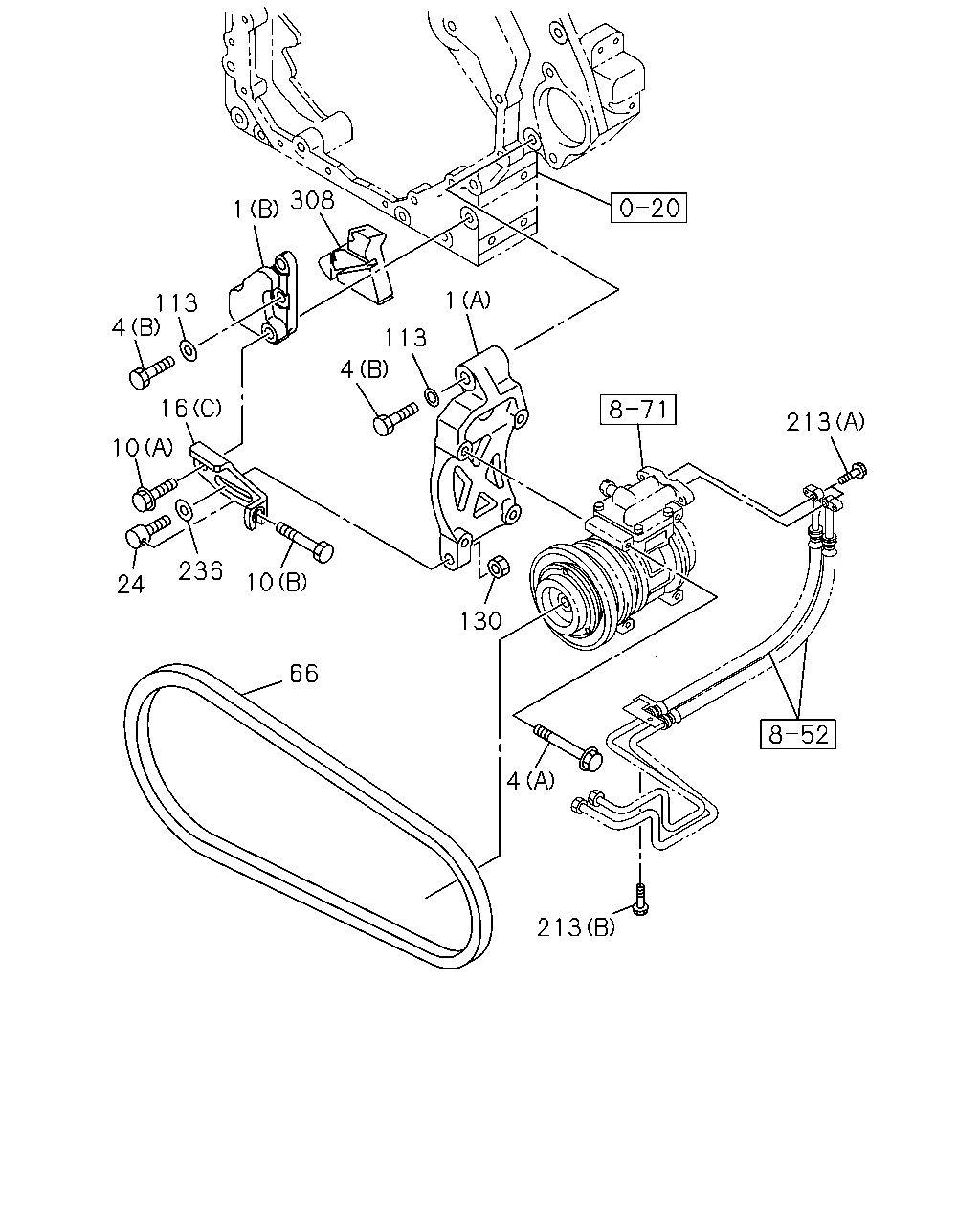

213 213 4 130 66 10 236 24 10 16 113 4 4 113 1 1 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-590-0	01	1	0105-0209	●	●
1	BRACKET; A/C 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-011-0	01	1	0210-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-987-0	01	1	0107-	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0105-0106	●	●
1	BRACKET; A/C 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-001-0	01	1	0107-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	0105-0512	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28051-240-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X90 WASHER	1-83539-327-0	04	1	0210-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	0105-0209	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28080-880-0	04	1	0107-0512	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE	0-28050-880-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0105-0106	●	●
4	BOLT; A/C CMPR BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130	9-09804-194-1	02	1	0107-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	0105-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	0107-0512	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28151-225-0	01	1	0601-	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0105-0106	●	●
10	BOLT; ADJ PLATE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	0107-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	02	1	0211-	●	●
16	PLATE; ADJ,CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	0105-0210	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-0	01	1	0105-0106	●	●
16	PLATE; ADJ,CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-253-1	01	1	0107-	●	●
24	PIECE; SLIDING 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	0105-0106	●	●
24	PIECE; SLIDING 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	0107-	●	●
66	BELT; A/C CMPR 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	0105-	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0105-0106	●	●
66	BELT; A/C CMPR 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	0107-	●	●
113	WASHER; PL,BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	02	1	0105-0106	●	●
113	WASHER; PL,BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	02	1	0107-	●	●
130	NUT; ADJ BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	0105-0106	●	●
130	NUT; ADJ BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	0107-0602	●	●
130	NUT; ADJ BRKT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91180-112-0	01	1	0603-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28080-630-0	02	1	0312-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (A) M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (A) M6X30 FLANGE	0-28080-630-0	01	1	0105-0209	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28680-640-0	02	1	0210-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (C) M6X40 FLANGE	0-28650-640-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
236	WASHER; PL,ADJ BOLT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	0105-0106	●	●
236	WASHER; PL,ADJ BOLT 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	0107-	●	●
308	INSULATOR; COOLER 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR CONDITIONER MANUAL CONTROL(C60)	1-19389-213-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
