Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#13433) — 403 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-0604	●	●
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●

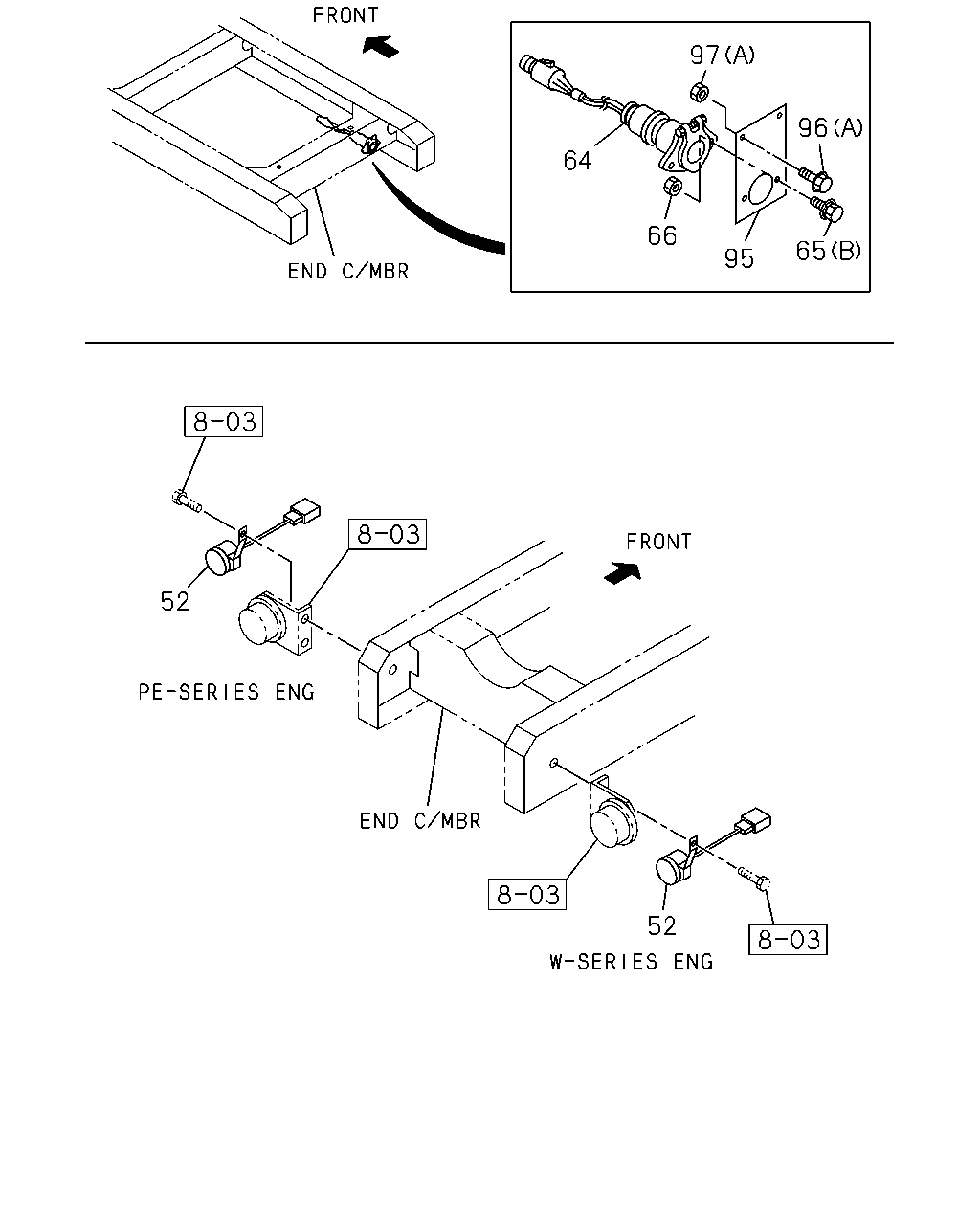

64 97 96 65 95 66 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-1	01	1	0105-	●	●
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> 7P	1-82523-014-0	01	1	0105-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	0105-	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-0108	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0105-0108	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602	●	●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602	●
97	NUT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
97	NUT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M8 FLANGE	0-91150-108-0	04	1	0107-0108	●	●

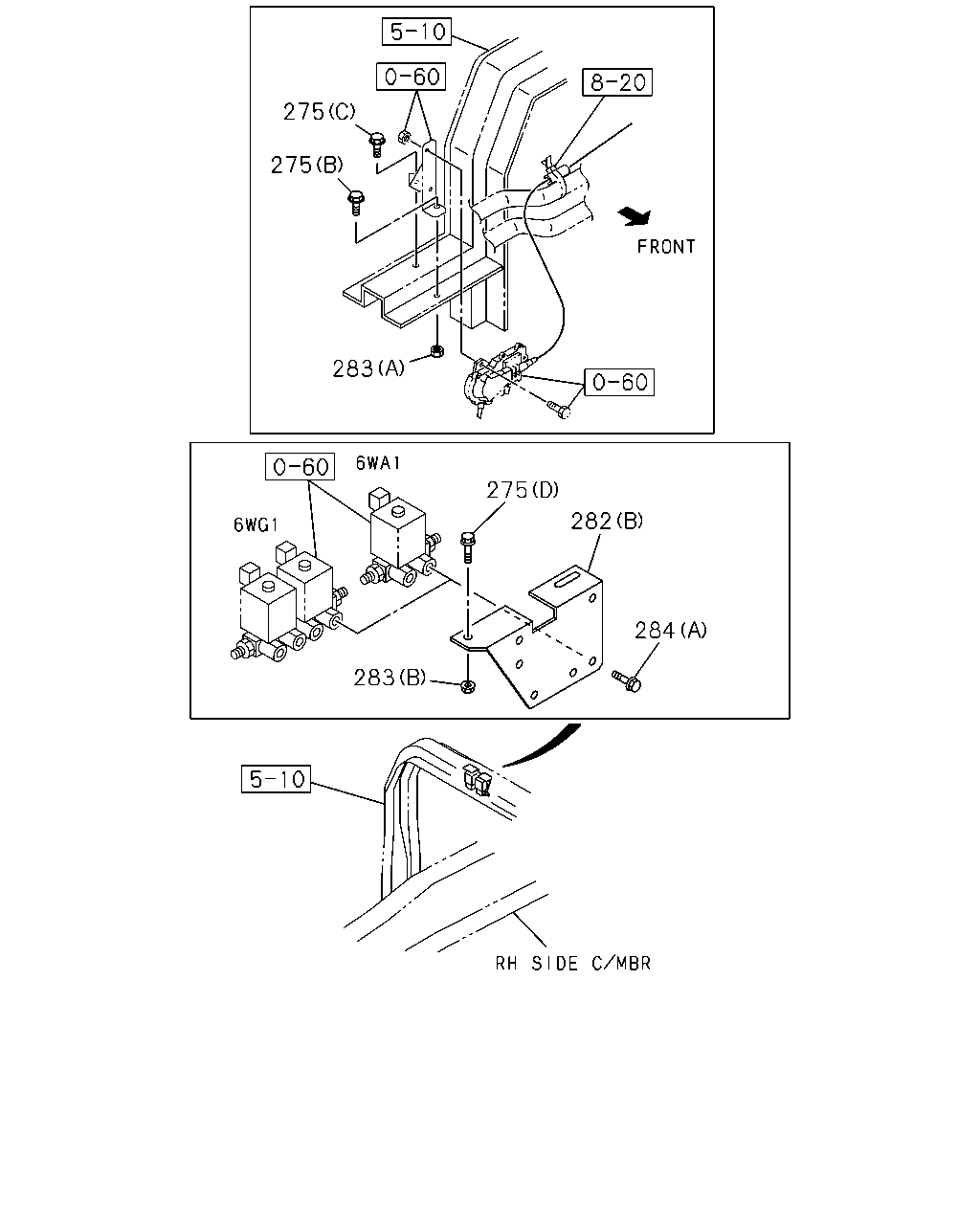

275 275 283 275 284 282 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X25 FLANGE	0-28690-825-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X25 FLANGE	0-28660-825-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-		●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-0108	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-		●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0602		●
283	NUT; BRKT PE-SERIES ENG<1A0> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M10 FLANGE	0-91180-210-0	01	1	0603-		●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●

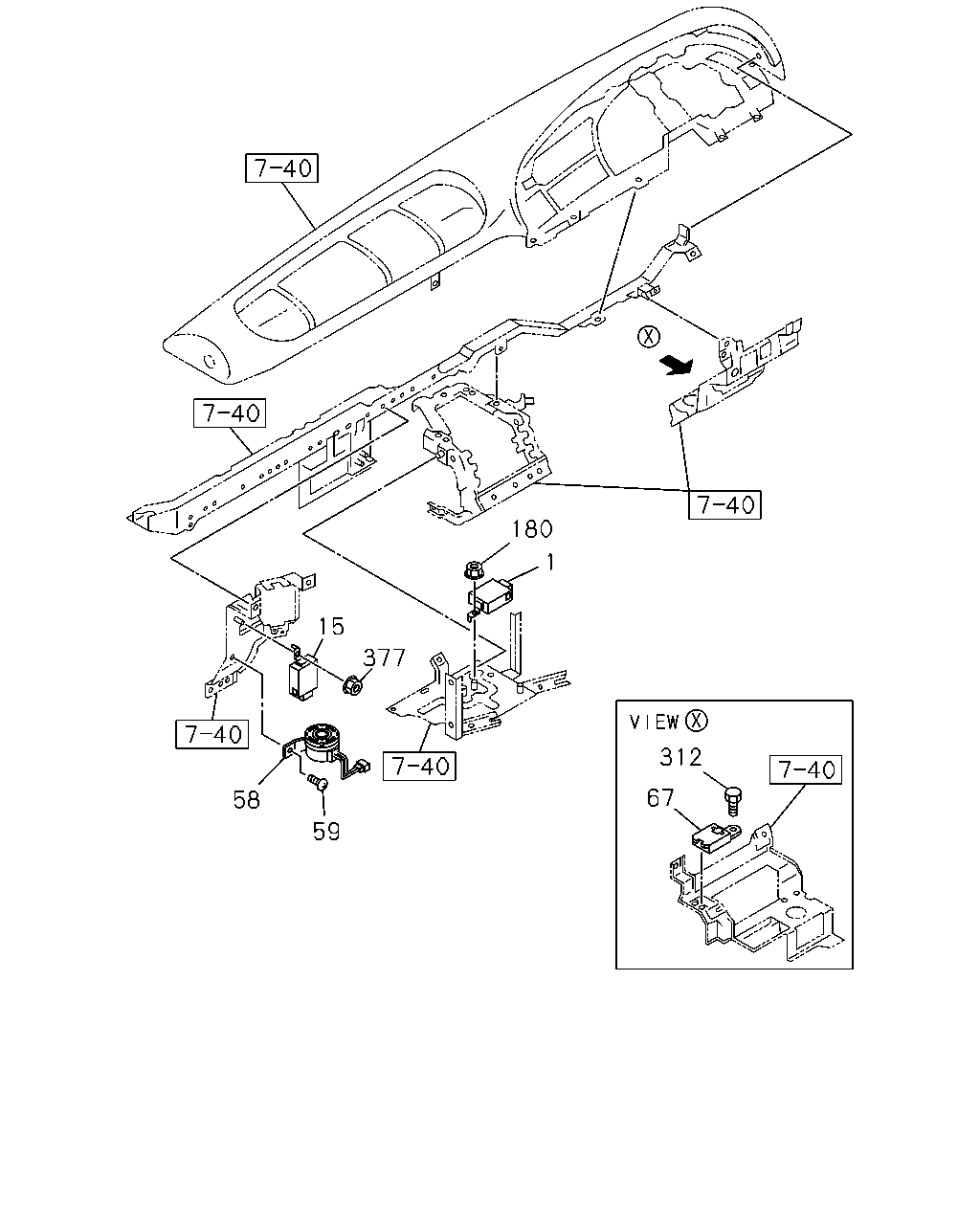

312 67 180 1 377 15 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-1	01	1	0105-	●	●
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-1	01	1	0105-	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0105-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. W-SERIES ENG<1A2>	1-83460-051-1	01	1	0105-	●	●
67	BUZZER; ENG OVERRUN W-SERIES ENG<1A2>	1-83460-051-1	01	1	0105-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305	●	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

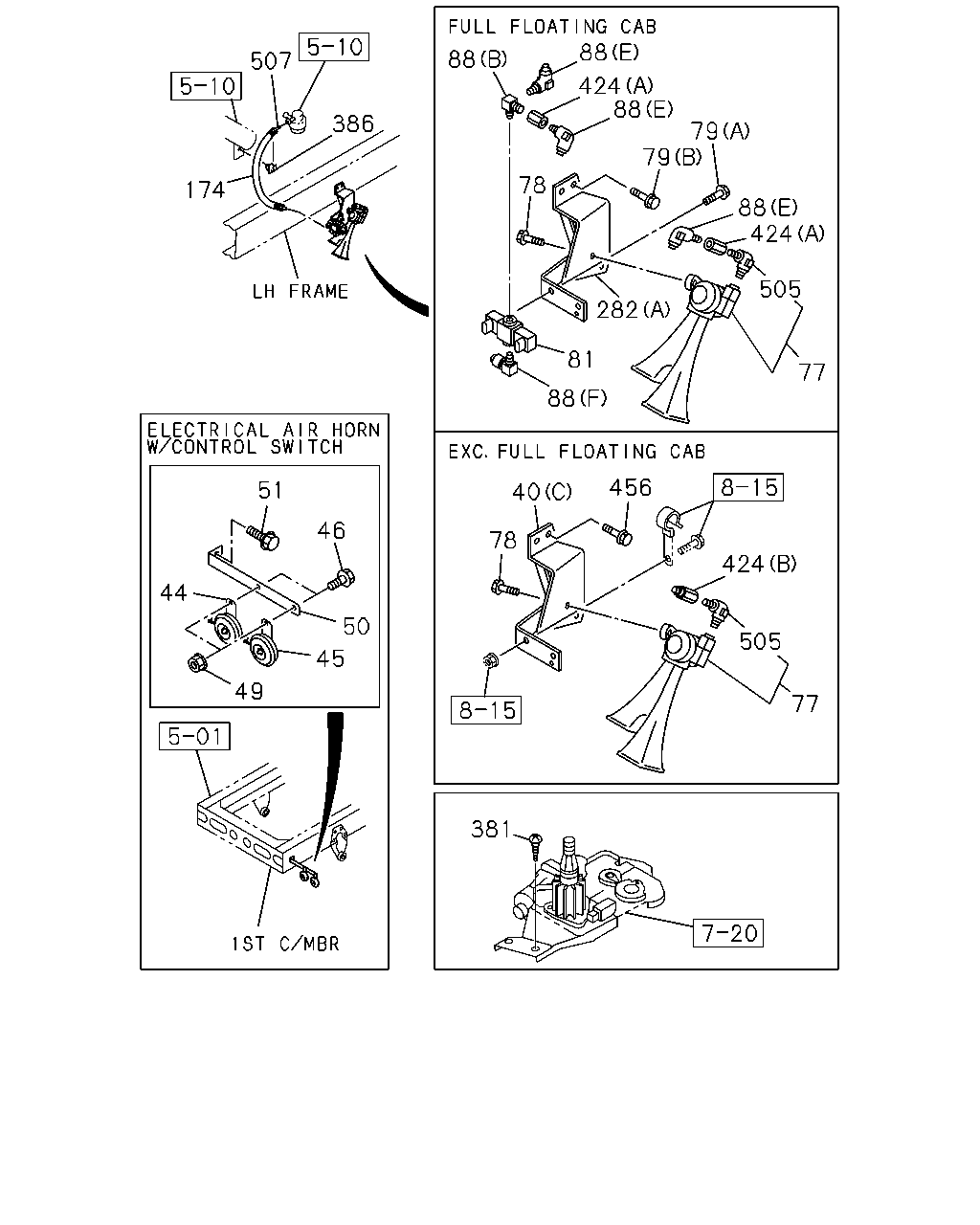

507 174 386 88 88 79 88 424 79 78 88 505 424 77 282 81 88 456 40 78 424 505 77 381 49 46 50 45 51 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-	●	●
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	0105-		●
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	0105-		●
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	0105-0602		●
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91180-108-0	02	1	0603-		●
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	0105-		●
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512		●
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
77	HORN ASM	1-83430-041-2	01	1	0105-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0105-0108	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-347-0	01	1	0109-0109	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-	●	●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800	1-83129-031-1	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-		●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-0108	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-		●
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	0105-0210	●	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0105-	●	●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0110	●	●
424	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0111-	●	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-		●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0105-0110	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0108	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-0212	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0212	●	●

261 33 39 39 40 41 34 34 33 34 34 261 39 34 34 714 272 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0105-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0105-	●	●

261 89 90 88 34 34 88 282 284 604 210 261 604 602 88 285 210 88 97 503 280 467 290 96 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0105-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-0108	●	●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512		●
96	BOLT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
96	BOLT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0105-0108	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602	●	●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602	●
97	NUT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0109-0602		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
97	NUT; BRKT FIX 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
97	NUT; BRKT FIX 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M8 FLANGE	0-91150-108-0	04	1	0107-0108	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-0106		●
210	WASHER; PL,BRKT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0107-		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-		●
280	CONNECTOR; IN,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-		●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-0108	●	●
282	BRACKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-	●
282	BRACKET; MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-		●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0106		●
285	NUT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0107-0602		●
285	NUT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-		●
290	NUT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-09840-280-0	01	1	0109-0310	●
290	NUT 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-09840-280-0	01	1	0109-0310		●
290	NUT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-99111-412-0	01	1	0311-0512	●
290	NUT 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-99111-412-0	01	1	0311-0512		●
290	NUT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	0-91111-512-0	01	1	0601-	●
290	NUT 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	0-91111-512-0	01	1	0601-		●
467	WASHER; LK,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	9-09150-512-0	01	1	0109-0603	●
467	WASHER; LK,MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	9-09150-512-0	01	1	0109-0603		●
467	WASHER; LK,MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	0-91510-512-0	01	1	0604-	●
467	WASHER; LK,MAG VLV 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	0-91510-512-0	01	1	0604-		●
503	UNION 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12 2WAY	1-09654-059-2	01	1	0109-	●
503	UNION 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12 2WAY	1-09654-059-2	01	1	0109-		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-0106		●
602	GASKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0107-		●
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0107-	●	●

34 424 284 210 89 34 210 285 602 89 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0105-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-0106		●
210	WASHER; PL,BRKT 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-	●	●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0107-		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-		●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512		●
284	BOLT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0106		●
285	NUT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0107-0602		●
285	NUT; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-		●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0110	●	●
424	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0111-	●	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-0106		●
602	GASKET; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-	●	●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0107-		●

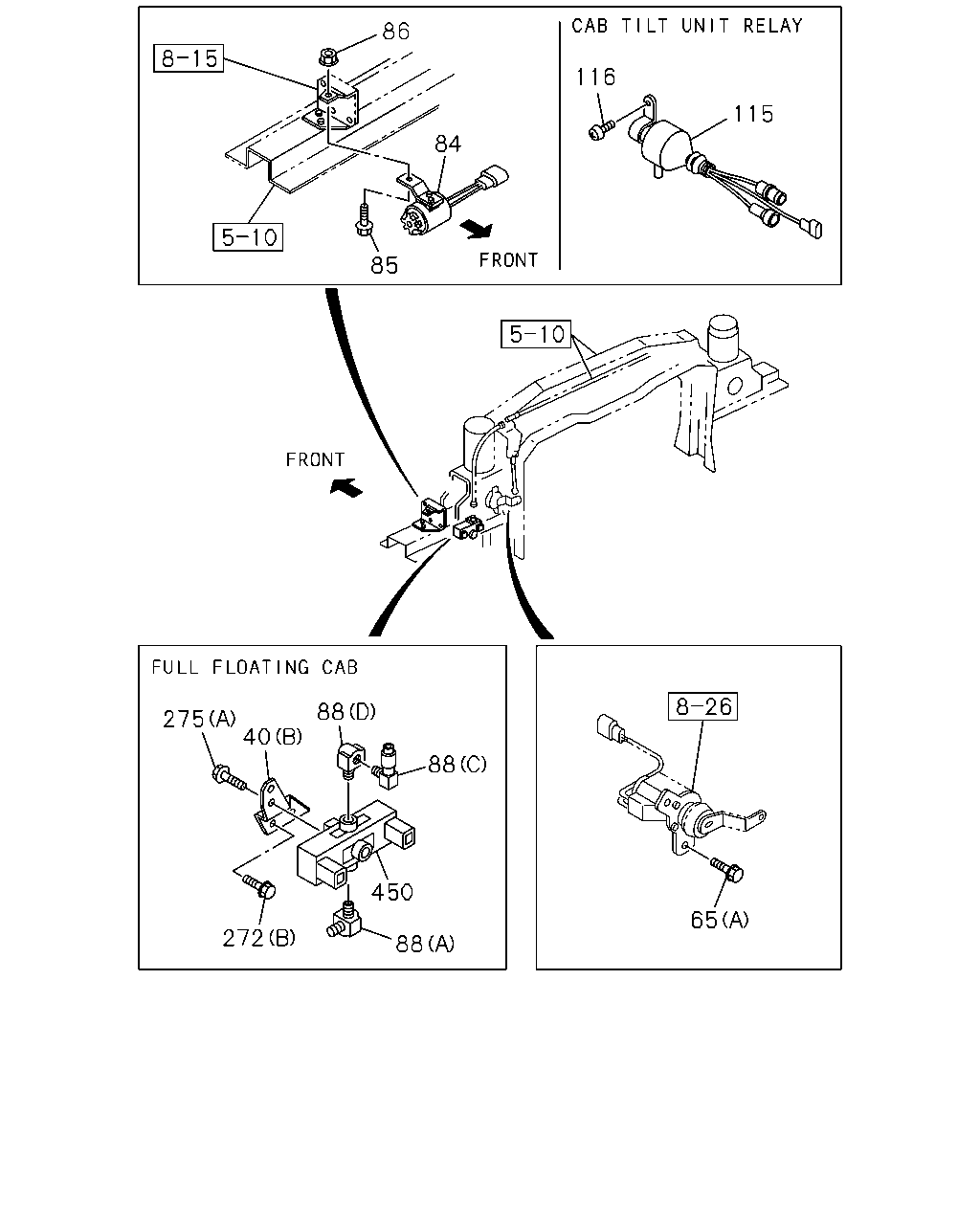

115 116 86 84 85 88 88 40 275 272 450 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●	●
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8),6WF1 TC(84L) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X25 FLANGE	0-28690-825-0	01	1	0105-0512	●	●
275	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X25 FLANGE	0-28660-825-0	01	1	0601-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-	●	●

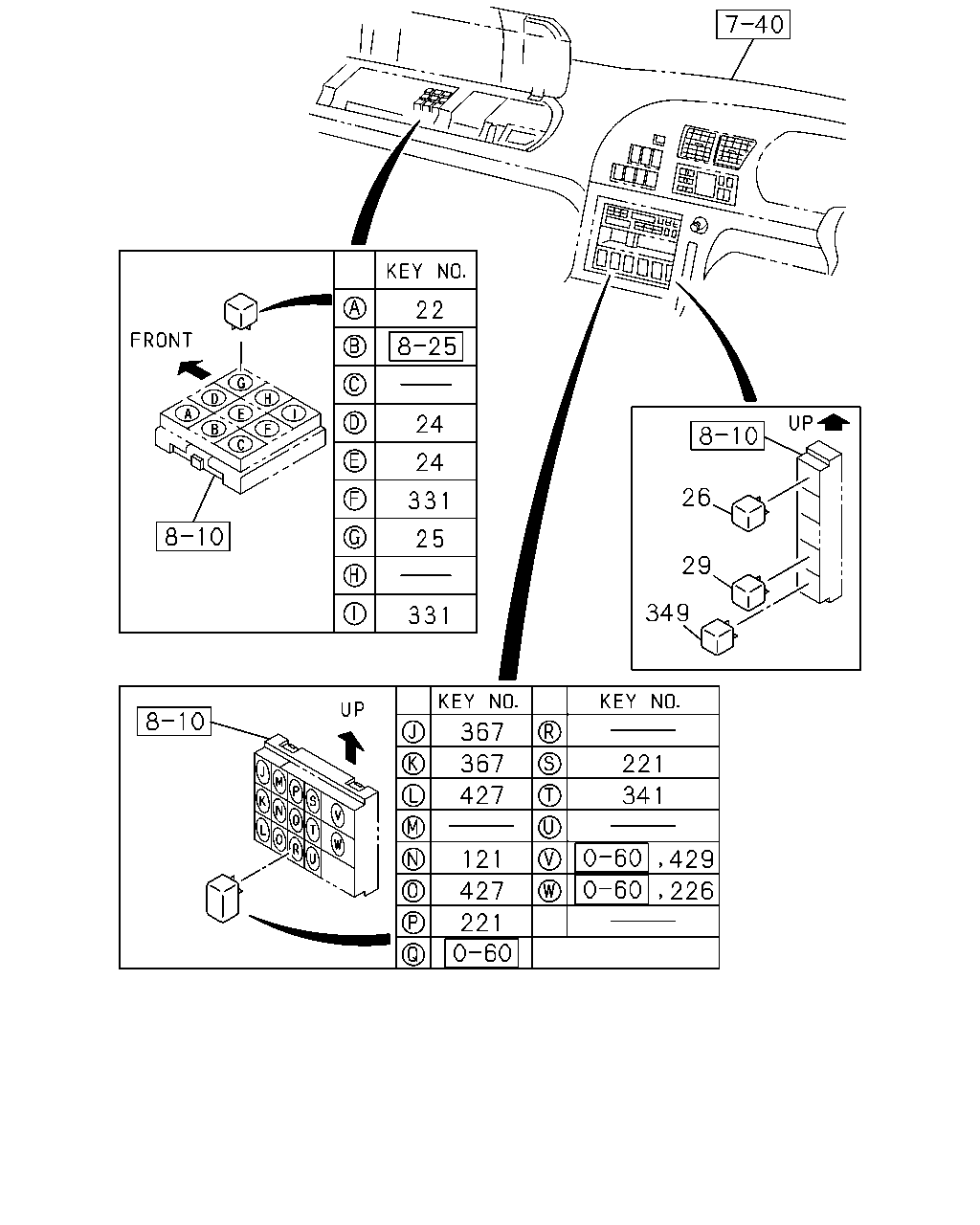

22 24 24 331 25 331 26 29 349 367 367 427 121 221 427 221 341 429 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111		●
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-		●
121	RELAY; PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-	●	●
221	RELAY; AUTO CRUISE AUTO CRUISE WO/RESUME<NKB> 24V 10A PANASONIC	8-97173-035-1	02	1	0105-	●
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0106	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0106		●
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111	●	●
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-	●	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
349	RELAY; BRK LK POWER BRAKE LOCK SYSTEM(J50) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0508	●	●
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0105-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0105-0106		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC	8-97173-035-1	02	1	0107-		●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111	●	●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
