◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#13432) — 73 parça
çizim 22662
40 38 39 491 483 380 39 38 40
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0105- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0107- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0105- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0105- ● ●

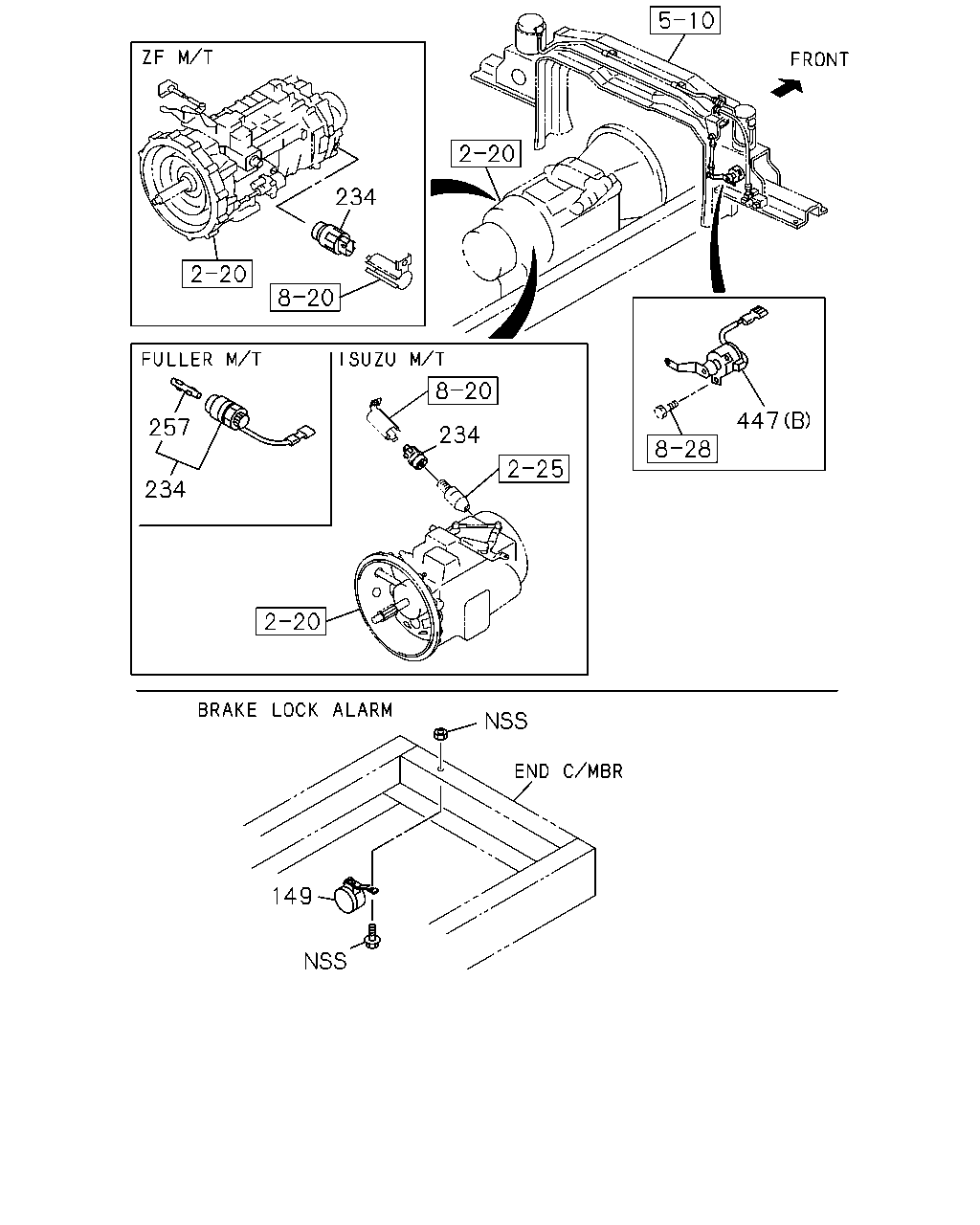

çizim 22711
234 447 234 234 149 257
BalonParca AdiParca NoAdetTipApplied Date A B
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) METRO DENSO 		1-83460-095-1 01 1 0105-0404 ● ●
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-83460-104-0 01 1 0405-0508 ● ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0105- ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-1 01 1 0105-0202 ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203- ● ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105- ● ●

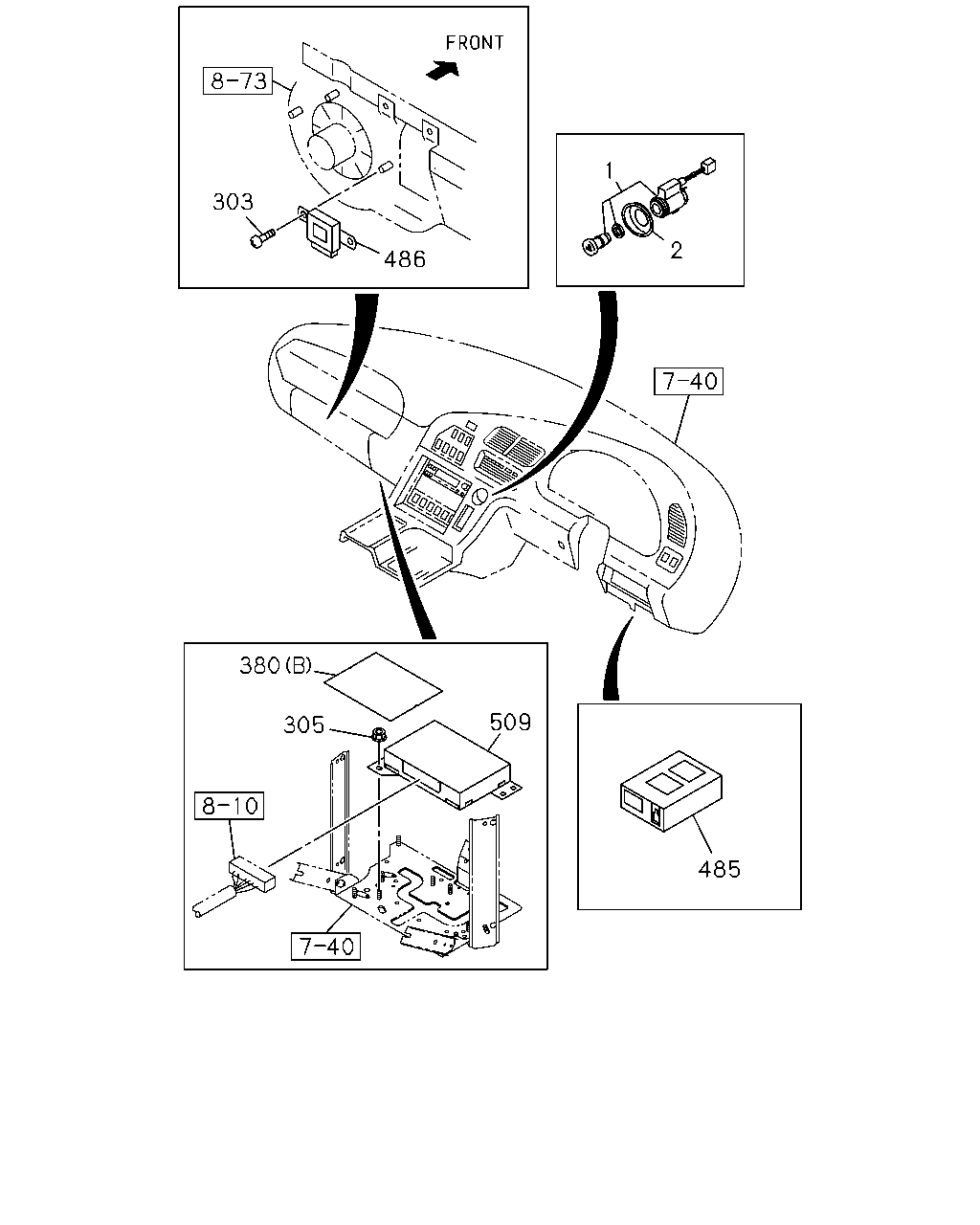

çizim 77092
485 509 305 2 1 486 303 380
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0105-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0105- ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0105- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0107- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0105-0402 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0105- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0105- ● ●

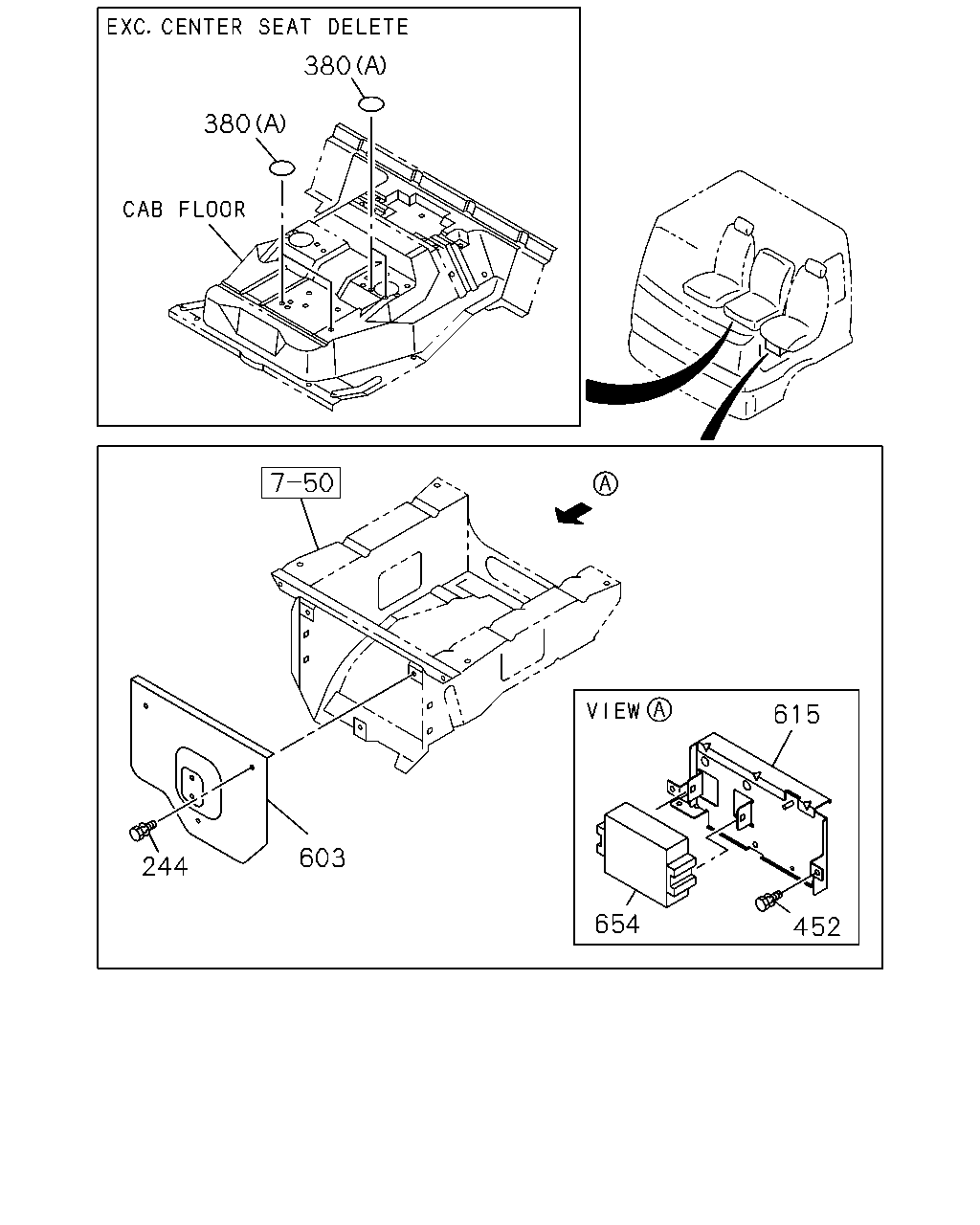

çizim 77244
615 452 654 380 380 603 244
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0107- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
452 BOLT; BRKT
ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0106 ●
452 BOLT; BRKT
ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107- ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75557-489-1 01 1 0105- ● ●
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-469-3 01 1 0105-0106 ●
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-469-3 01 1 0107- ● ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0112- ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-044-1 01 1 0105-0106 ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-044-1 01 1 0107-0111 ● ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-118-0 01 1 0112- ●
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0112- ●

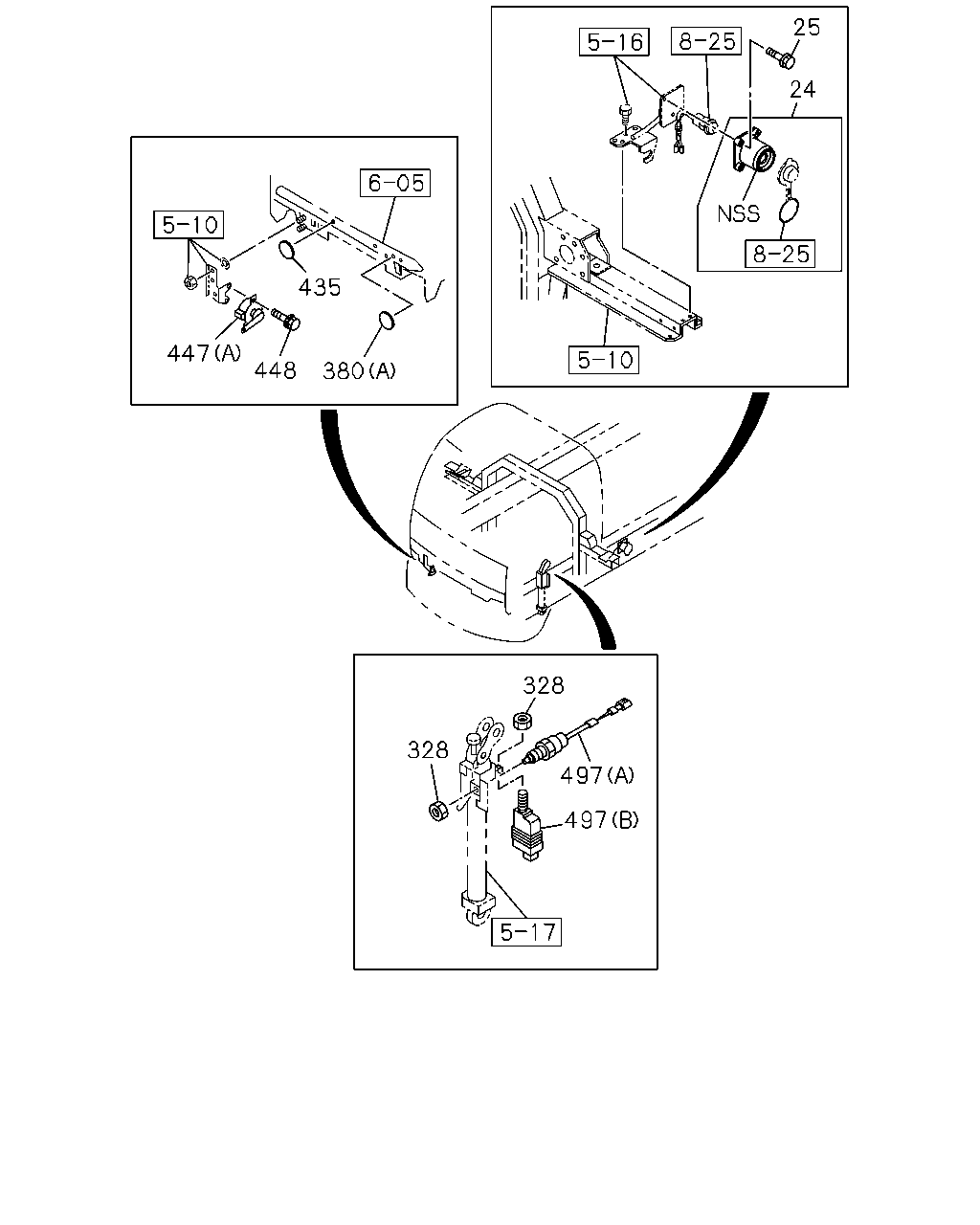

çizim 77279
447 435 448 380 25 24 328 497 497 328
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0105- ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0105-0512 ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28050-616-0 02 1 0601- ● ●
328 NUT
M16 		9-99111-416-0 02 1 0105-0512 ● ●
328 NUT
M16 		0-91111-516-0 02 1 0601- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-0106 ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0107- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105- ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0407 ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0105- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0105- ● ●
