◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#13431) — 71 parça
çizim 23915
258
BalonParca AdiParca NoAdetTipApplied Date A B
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> 		1-82410-137-1 01 1 0105- ● ●

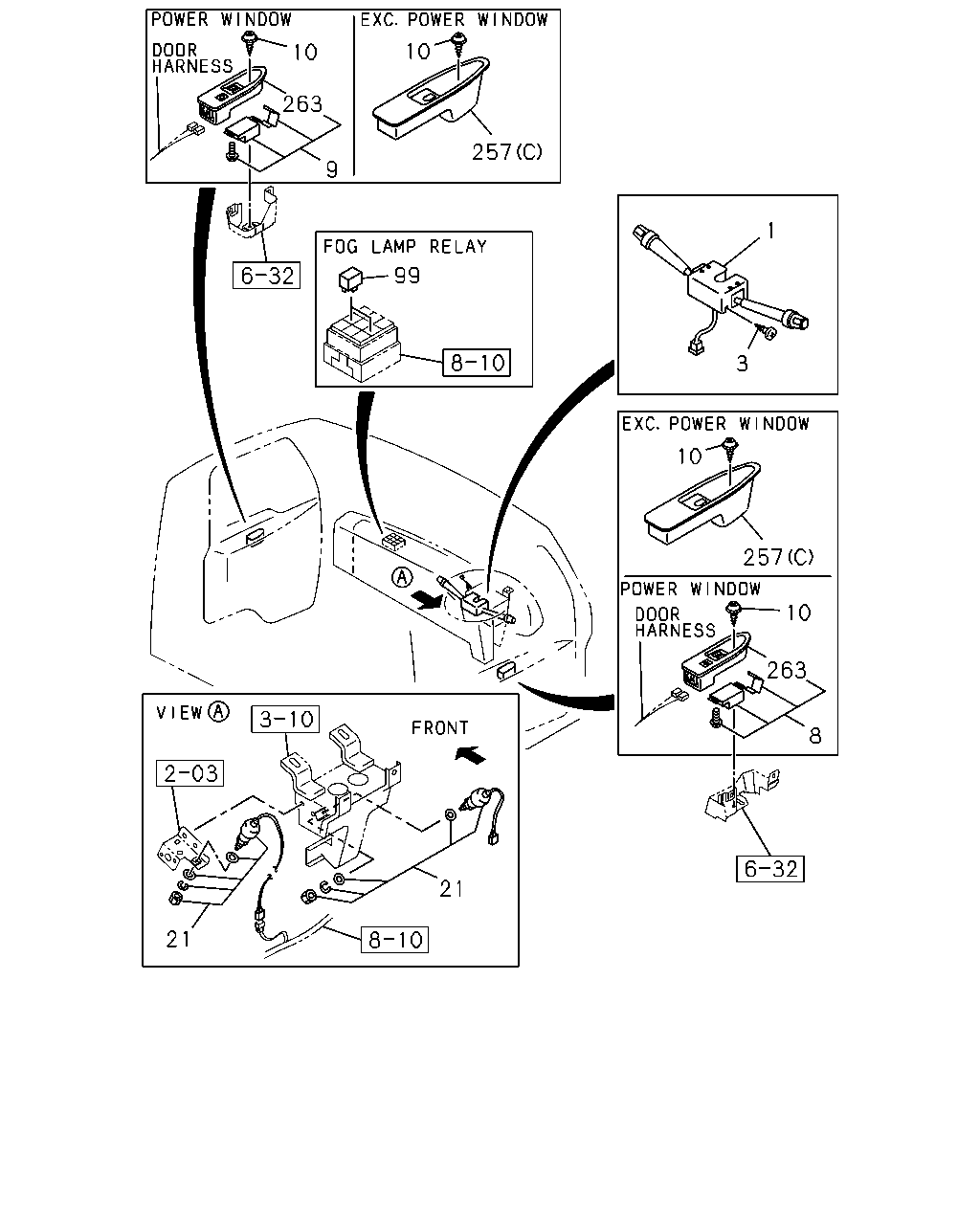

çizim 77036
8 263 10 257 10 1 99 9 263 10 10 257 21 3 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-660-0 01 1 0105-0312 ●
1 SWITCH; COMB
AUTO CRUISE WO/RESUME<NKB> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-727-0 01 1 0401- ●
1 SWITCH; COMB
AUTO CRUISE WO/RESUME<NKB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-597-0 01 1 0105-0312 ●
1 SWITCH; COMB
AUTO CRUISE WO/RESUME<NKB> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-709-0 01 1 0401- ●
1 SWITCH; COMB
EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-619-0 01 1 0105-0106 ● ●
1 SWITCH; COMB
EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-619-0 01 1 0107-0312 ● ●
1 SWITCH; COMB
EXC. AUTO CRUISE WO/RESUME<NKB>,NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-715-0 01 1 0401- ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO CRUISE WO/RESUME<NKB>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-658-0 01 1 0105-0106 ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO CRUISE WO/RESUME<NKB>,BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-658-0 01 1 0107-0312 ● ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO CRUISE WO/RESUME<NKB>,BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-726-0 01 1 0401- ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-610-0 01 1 0105-0312 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-713-0 01 1 0401- ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-668-0 01 1 0105-0312 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-728-0 01 1 0401- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0105-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE 		1-82380-155-3 01 1 0105- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE 		1-82380-154-3 01 1 0105- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0105-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-3 01 1 0105- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0105- ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0105-0111 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0105-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
263 COVER; SW
POWER WINDOW<A30> DRIVER SIDE 		1-82385-005-2 01 1 0105- ● ●
263 COVER; SW
POWER WINDOW<A30> PASSENGER SIDE 		1-82385-006-3 01 1 0105- ● ●

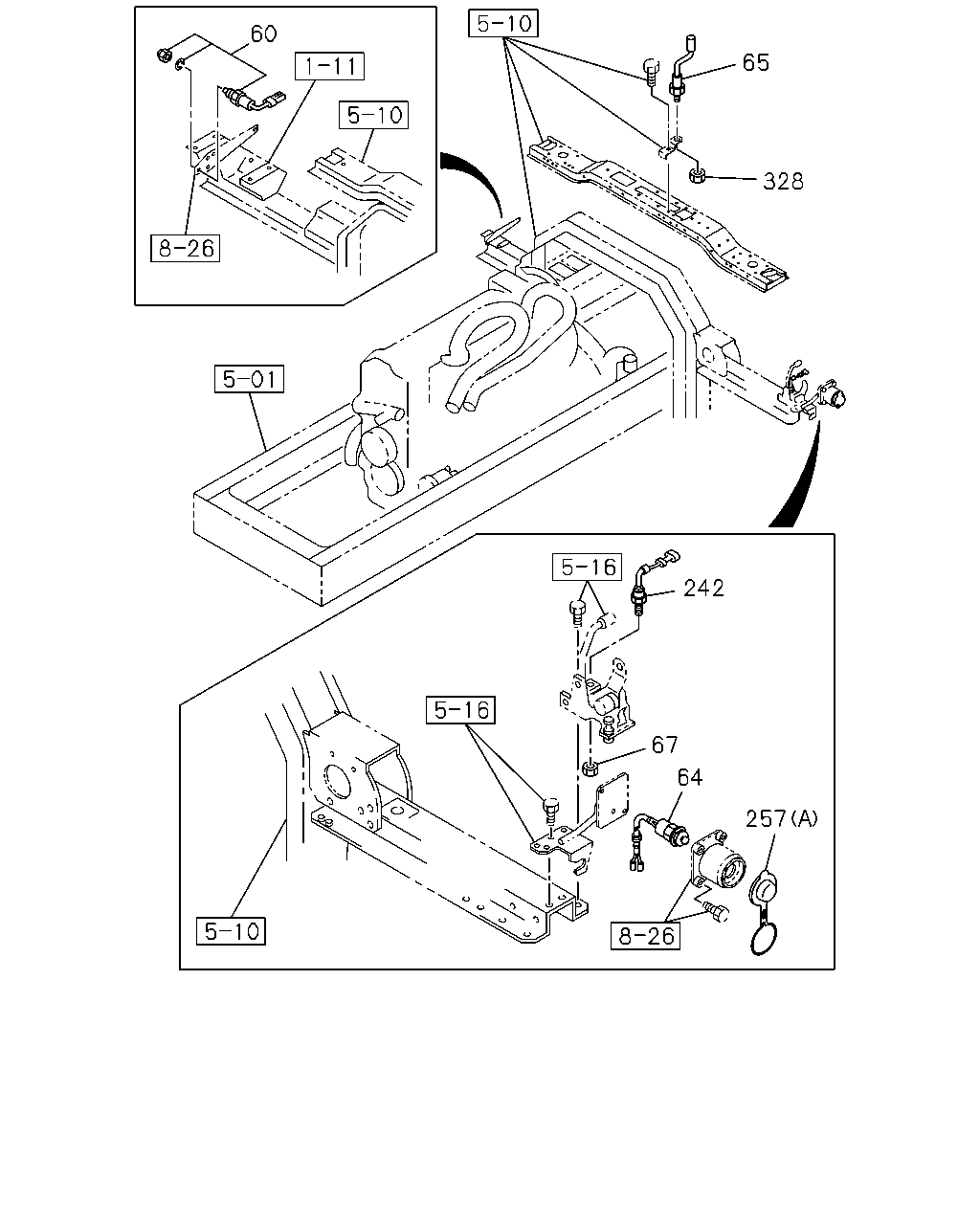

çizim 77067
257 64 67 242 328 65 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0105- ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 0105- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0105- ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 0105- ● ●
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 0105- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0105-0512 ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0601- ● ●

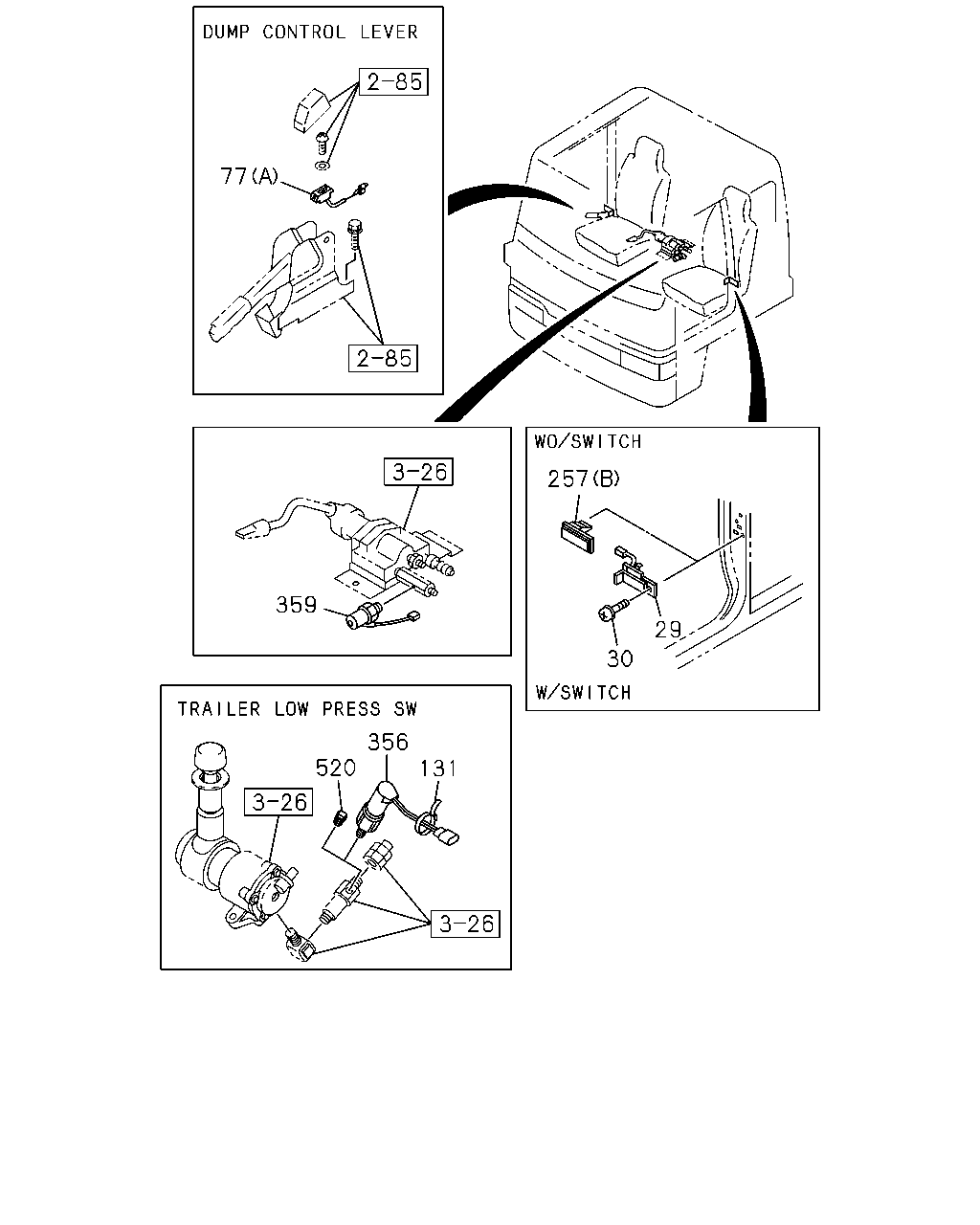

çizim 77243
30 29 131 356 520 257 77 359
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 02 1 0105- ● ●
29 SWITCH; DOOR
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 01 1 0105- ● ●
30 SCREW; DOOR SW
LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 02 1 0105- ● ●
30 SCREW; DOOR SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 01 1 0105- ● ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0105- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0105- ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 0105- ● ●
131 CLIP; BAND
FULL TRACTOR TRUCK<RD6> L=180 		1-09707-162-1 01 1 0105- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105- ● ●
356 SWITCH; TRAILER,LOW PRESS
FULL TRACTOR TRUCK<RD6> 		1-48340-057-1 01 1 0105-0312 ● ●
356 SWITCH; TRAILER,LOW PRESS
FULL TRACTOR TRUCK<RD6> 		1-48340-068-0 01 1 0401- ● ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> GREEN 		1-82410-176-0 01 1 0105-0508 ● ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> GREEN 		1-82410-176-1 01 1 0509- ● ●
520 PLUG; CONNECTOR
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/4 		9-99204-513-0 01 1 0106- ● ●

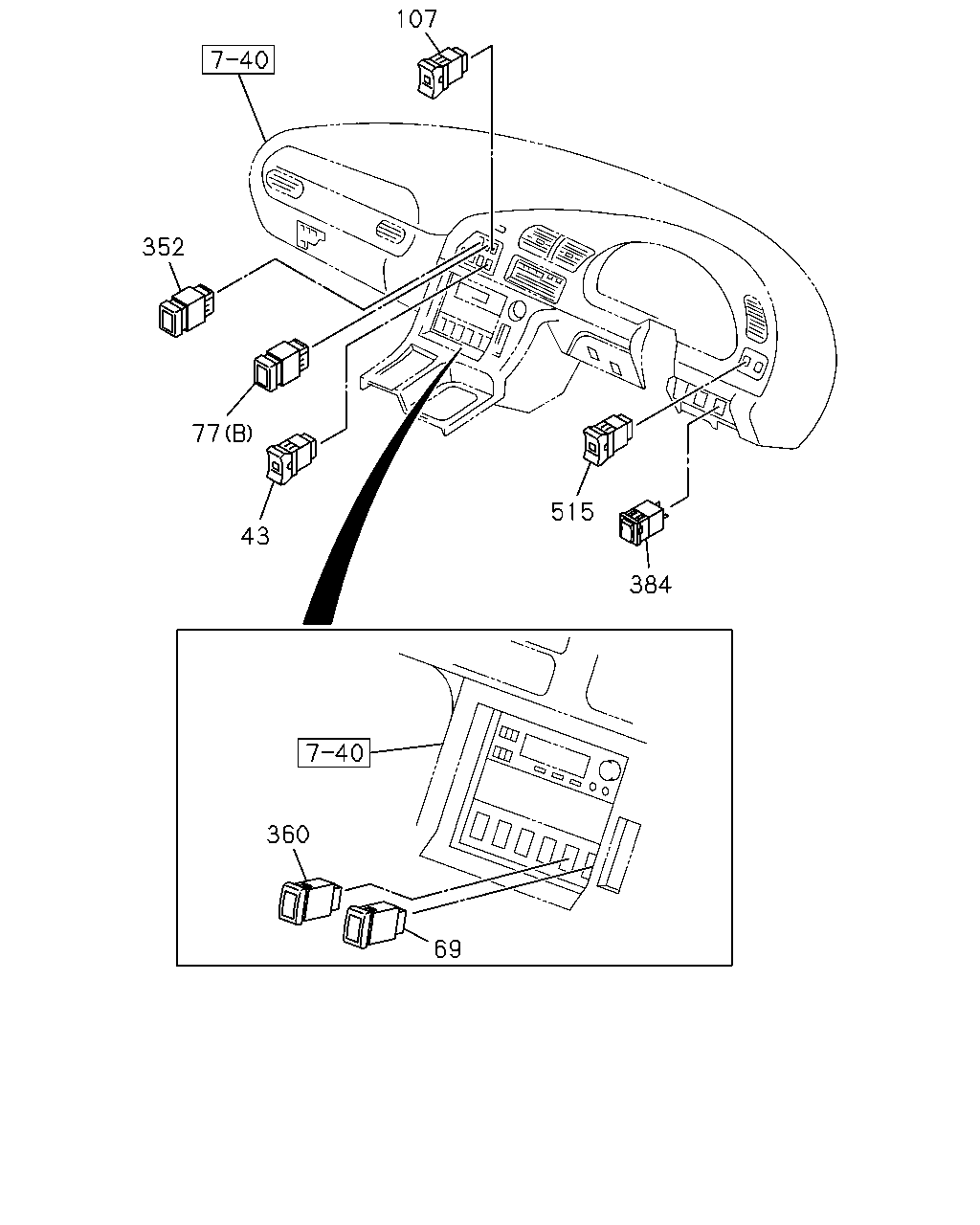

çizim 77565
384 515 43 77 352 107 360 69
BalonParca AdiParca NoAdetTipApplied Date A B
43 SWITCH; HORN
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-82350-332-0 01 1 0105- ●
69 SWITCH; AUTO CRUISE
AUTO CRUISE WO/RESUME<NKB> 		1-82340-412-2 01 1 0105- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0105- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0105- ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 0105- ● ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0105- ● ●
352 SWITCH ASM; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-82340-425-0 01 1 0105-0508 ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0105- ● ●
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-82350-213-1 01 1 0105- ● ●
515 SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-82350-230-0 01 1 0105- ● ●
