8-21 — METER ASM (#13430) — 93 parça

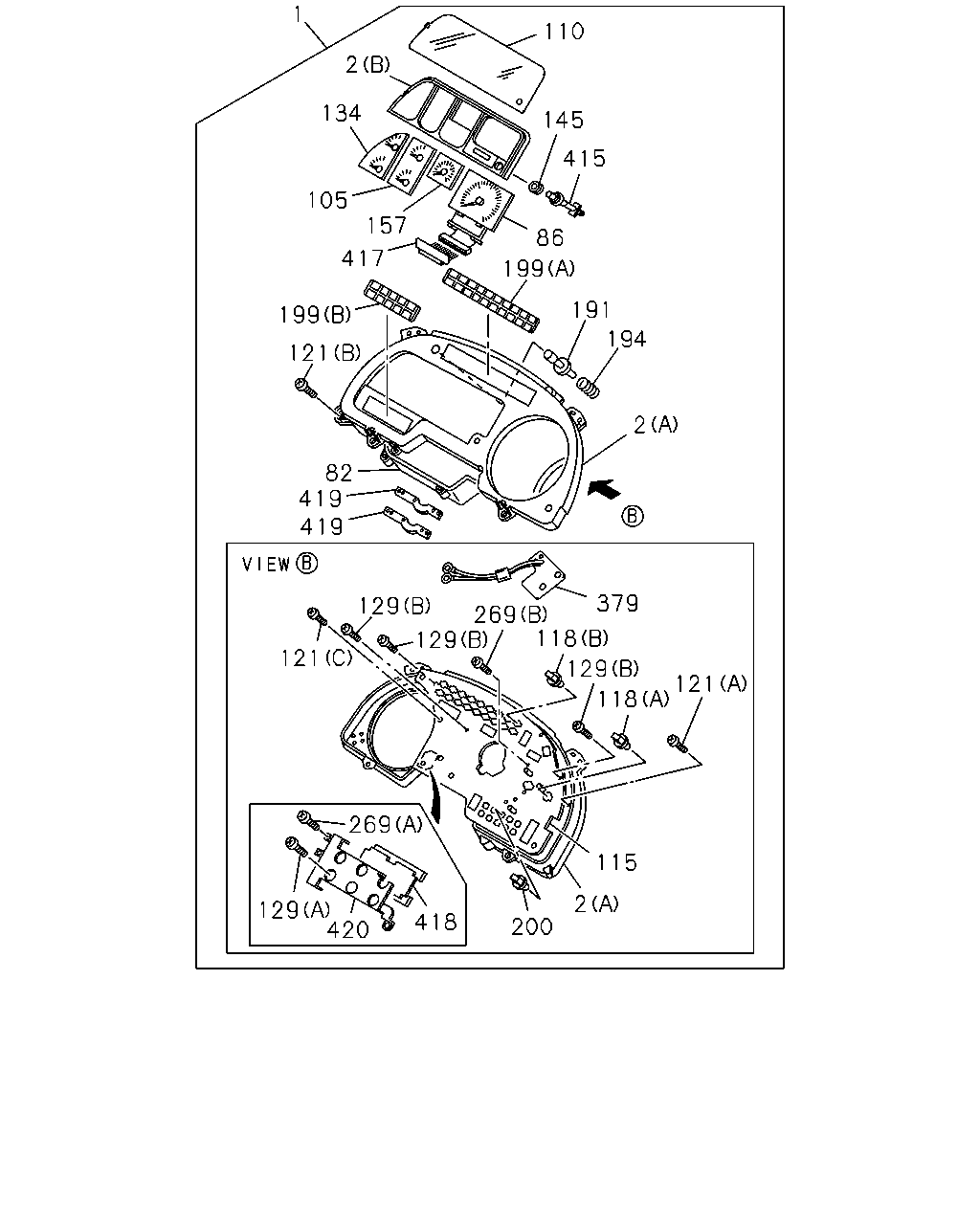

çizim 24043
200 2 115 121 118 129 379 118 269 129 129 121 269 418 420 129 2 194 191 199 86 415 145 110 1 2 134 105 157 417 199 121 82 419 419
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-851-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-848-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-844-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-842-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8),6WF1 TC(84L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-855-3 01 1 0105- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0105- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 0105- ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0105- ● ●
86 TACHOMETER; CLUSTER METER
10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83120-880-0 01 1 0105- ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-83120-879-0 01 1 0105- ● ●
86 TACHOMETER; CLUSTER METER
6WF1 TC-C(1B8),6WF1 TC(84L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83120-921-0 01 1 0105- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0105- ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0105- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83189-439-0 01 1 0105- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83189-438-0 01 1 0105- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0105- ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 28 1 0105-0109 ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 29 1 0110- ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0105- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 0105- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0105- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 0105- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 0105- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 0105- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 0105- ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0105- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-235-0 01 1 0105-0109 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-261-0 01 1 0110- ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0105- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0105- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-795-1 01 1 0105- ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-83119-797-0 01 1 0105- ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83119-796-0 01 1 0105- ● ●
200 BULB; WARNING LAMP
AUTO CRUISE WO/RESUME<NKB> 24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0106- ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 0105- ● ●
269 SCREW; METER CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING 		1-83119-677-0 05 1 0105-0106 ● ●
269 SCREW; METER CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M3 TAPPING 		1-83119-677-0 05 1 0105-0106 ● ●
269 SCREW; METER CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M3 TAPPING 		1-83119-677-0 05 1 0107- ● ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M3 TAPPING 		1-83119-677-0 05 1 0107- ● ●
269 SCREW; METER CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M3 TAPPING 		1-83119-677-0 08 1 0105- ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 0105- ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0105- ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0105- ● ●
418 CIRCUIT; CONTROL,METER
10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83189-400-0 01 1 0105- ● ●
418 CIRCUIT; CONTROL,METER
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-83189-399-0 01 1 0105- ● ●
418 CIRCUIT; CONTROL,METER
6WF1 TC-C(1B8),6WF1 TC(84L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83189-442-0 01 1 0105- ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0105- ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 0105- ● ●

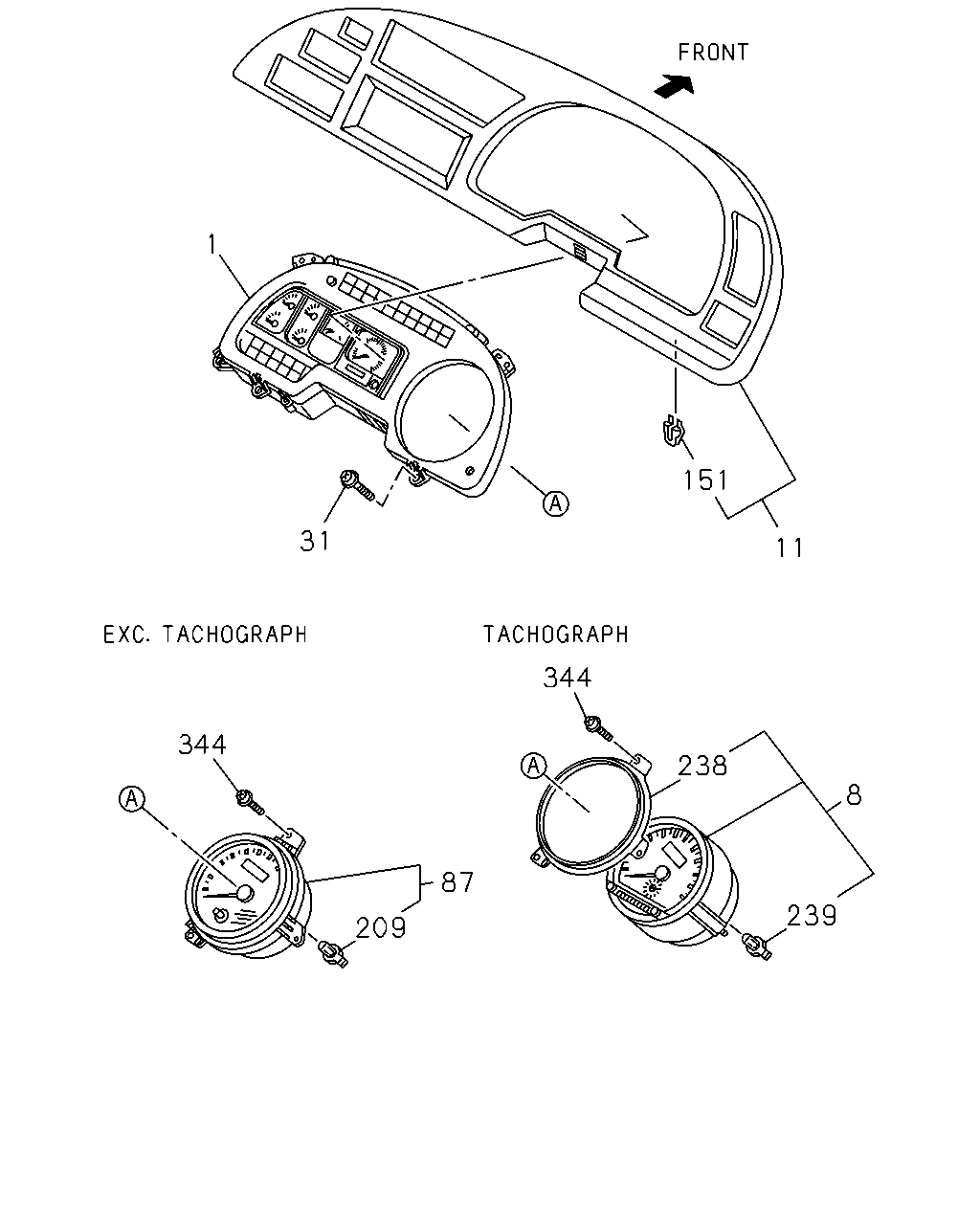

çizim 77001
1 31 151 11 344 238 8 239 87 209 344
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-851-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-848-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-844-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WG1 TC-C(72L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-842-3 01 1 0105- ● ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8),6WF1 TC(84L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83115-855-3 01 1 0105- ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-859-0 01 1 0105- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-83120-858-0 01 1 0105- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-847-0 01 1 0105- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-849-0 01 1 0105- ● ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0105- ● ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0105- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0105-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-844-0 01 1 0105- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0105- ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM <PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 0105- ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83129-311-0 01 1 0105- ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> ,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W 		5-82194-034-0 03 1 0105- ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 0105- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0105-0604 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●

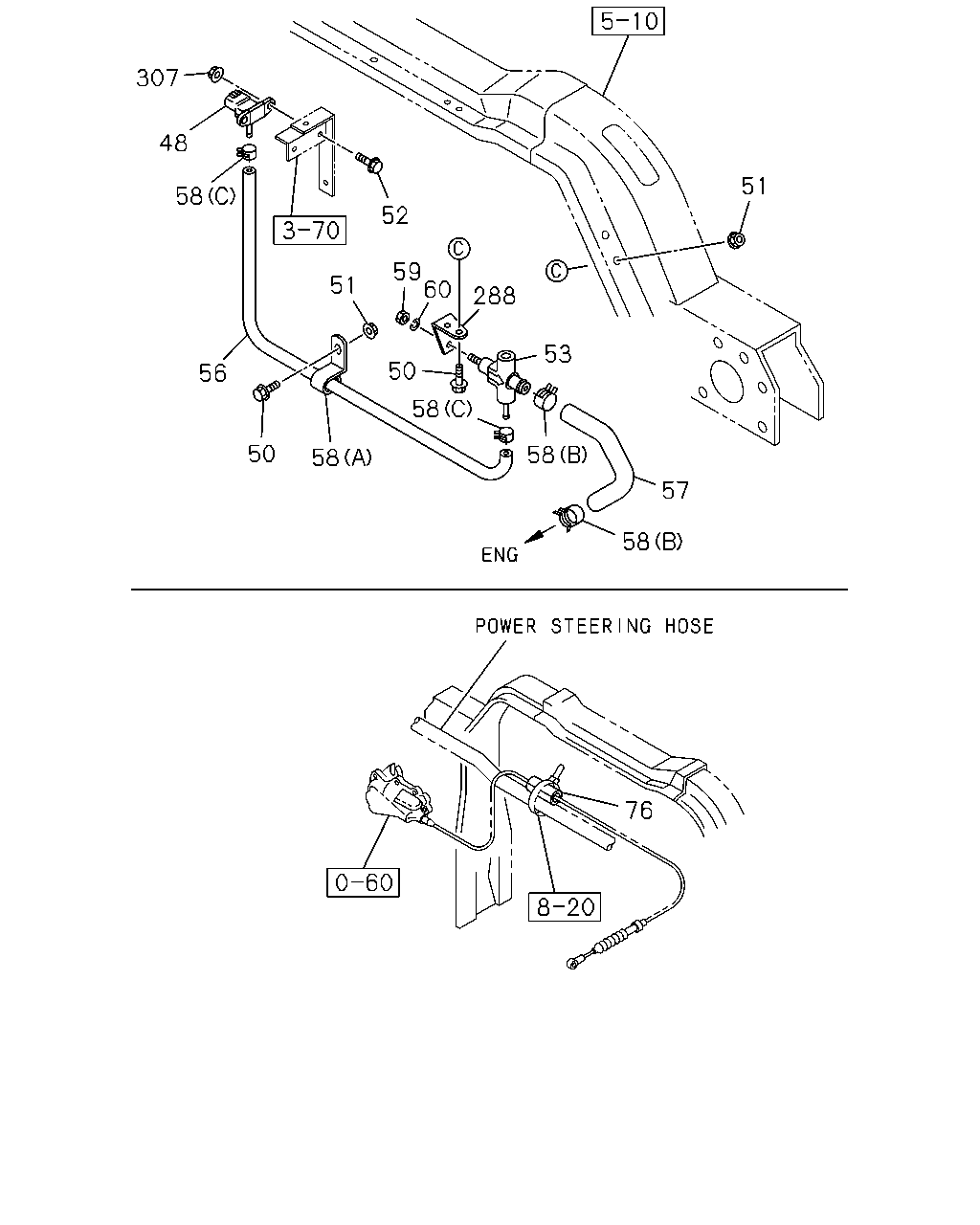

çizim 77563
76 57 58 53 51 288 60 59 52 51 56 50 50 58 58 48 58 307 58
BalonParca AdiParca NoAdetTipApplied Date A B
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-80220-018-0 01 1 0105- ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28680-616-0 02 1 0105-0512 ● ●
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
53 UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5) 		1-09661-017-0 01 1 0105- ● ●
56 HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 0105- ● ●
57 HOSE; BOOST
ELECTRONIC GOV RED3(KG5) 		1-83159-017-0 01 1 0105- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0105- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8 		8-94125-862-1 02 1 0105- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8 		8-94246-958-0 02 1 0105- ● ●
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		9-09111-410-0 01 1 0105-0512 ● ●
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		0-91111-510-0 01 1 0601- ● ●
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 0105-0603 ● ●
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		0-91510-510-0 01 1 0604- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105-0105 ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
PE-SERIES ENG<1A0> ID=6 OD=10 L=70 		1-09376-512-0 01 1 0105- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 0105- ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> 		1-47477-469-0 01 1 0105- ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-47477-379-0 01 1 0105- ● ●
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		9-09110-406-0 02 1 0105-0512 ● ●
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		0-91110-506-0 02 1 0601- ● ●
