7-40 — INSTRUMENT PANEL AND BOX (#1343) — 70 parça

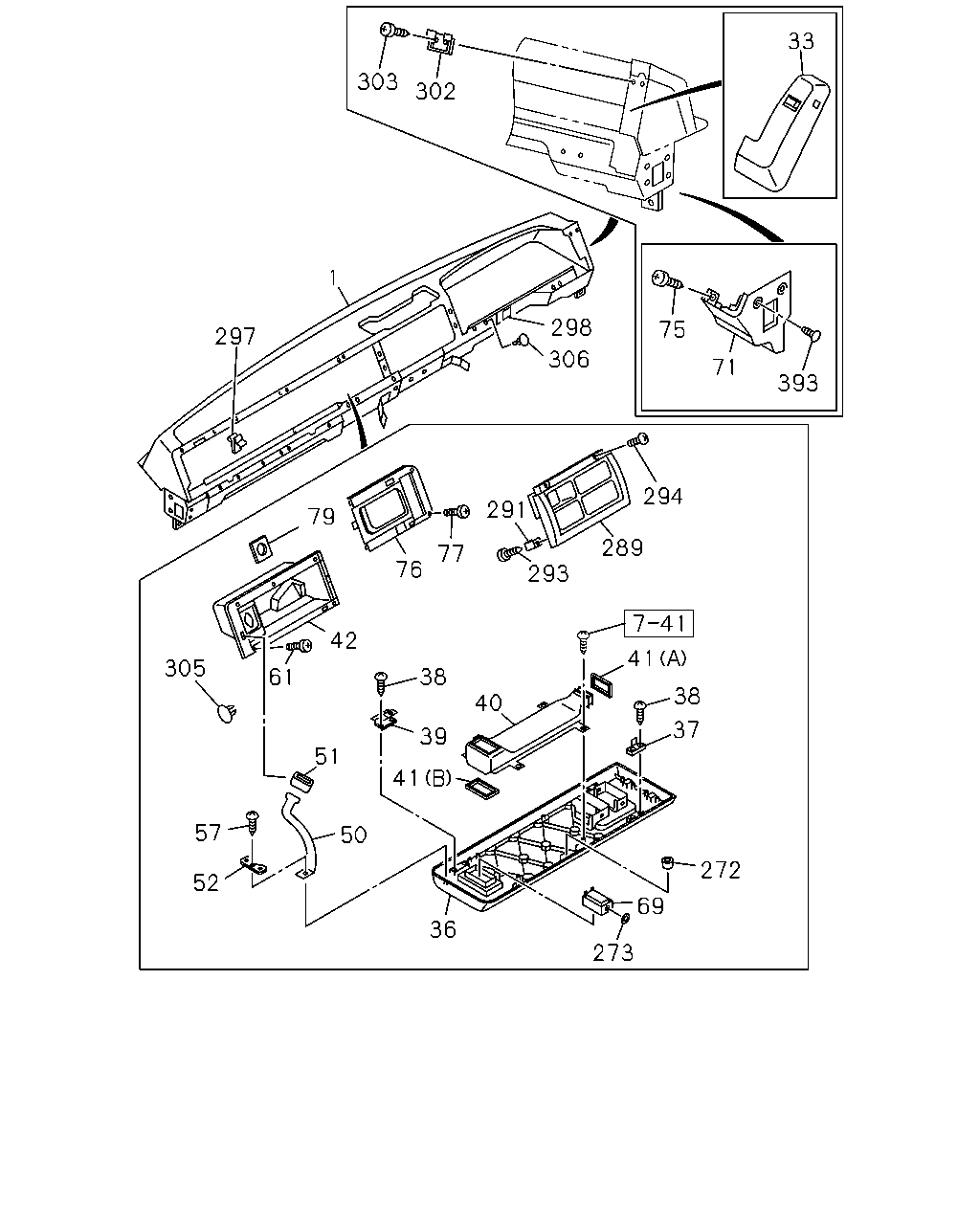

çizim 29233
33 303 302 1 298 75 297 306 71 393 294 291 79 289 77 76 293 42 41 305 38 61 38 40 37 39 51 41 57 50 272 52 69 36 273
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-65680-831-0 01 1 9204-
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9204-
36 BEZEL; INST SIDE CLUSTER
DARK GRAY 		1-72548-108-0 01 1 9204-
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9204-
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9204-
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-013-2 01 1 9204-
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-012-2 01 1 9204-
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76378-215-1 01 1 9204-
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9204-
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9204-
42 BOX; GLOVE,INST PNL 1-72538-025-6 01 1 9204-
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 1-72548-047-4 02 1 9204-
51 CUSHION; STOPPER,GLOVE BOX 1-72548-069-0 02 1 9204-
52 PLATE; STOPPER,GLOVE BOX 1-72548-073-0 02 1 9204-
57 SCREW; GLOVE BOX STOPPER 1-09981-388-1 06 1 9204-
61 SCREW; GLOVE BOX
M6X16 W/PL WASHER 		1-09981-176-0 05 1 9204-
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9204-
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9204-
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9204-
76 COVER; VENT DUCT,PASSENGER SIDE 1-73928-317-6 01 1 9204-
77 SCREW; VENT DUCT COVER
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9204-
79 SEAL; SIDE DEFROSTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-76377-092-0 01 1 9204-
272 CUSHION; SIDE CLUSTER BEZEL 1-72548-046-0 01 1 9204-
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9204-
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9204-
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9204-
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9204-
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9204-
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72558-014-1 02 1 9204-
298 PIECE; DIST,CLUSTER BEZEL 1-72548-077-0 01 1 9204-
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9204-
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9204-
305 PLUG; SIDE PANEL,INST CLUSTER
AUSTRALIA EQUIPMENT(RR3) D4.6X14.7 BLACK 		1-09983-104-0 02 1 9204-
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE 1-72448-261-0 02 1 9204-
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
EXC. AUTO ENG SHUTOFF<KB6> 		1-72448-261-0 01 1 9505-
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9204-

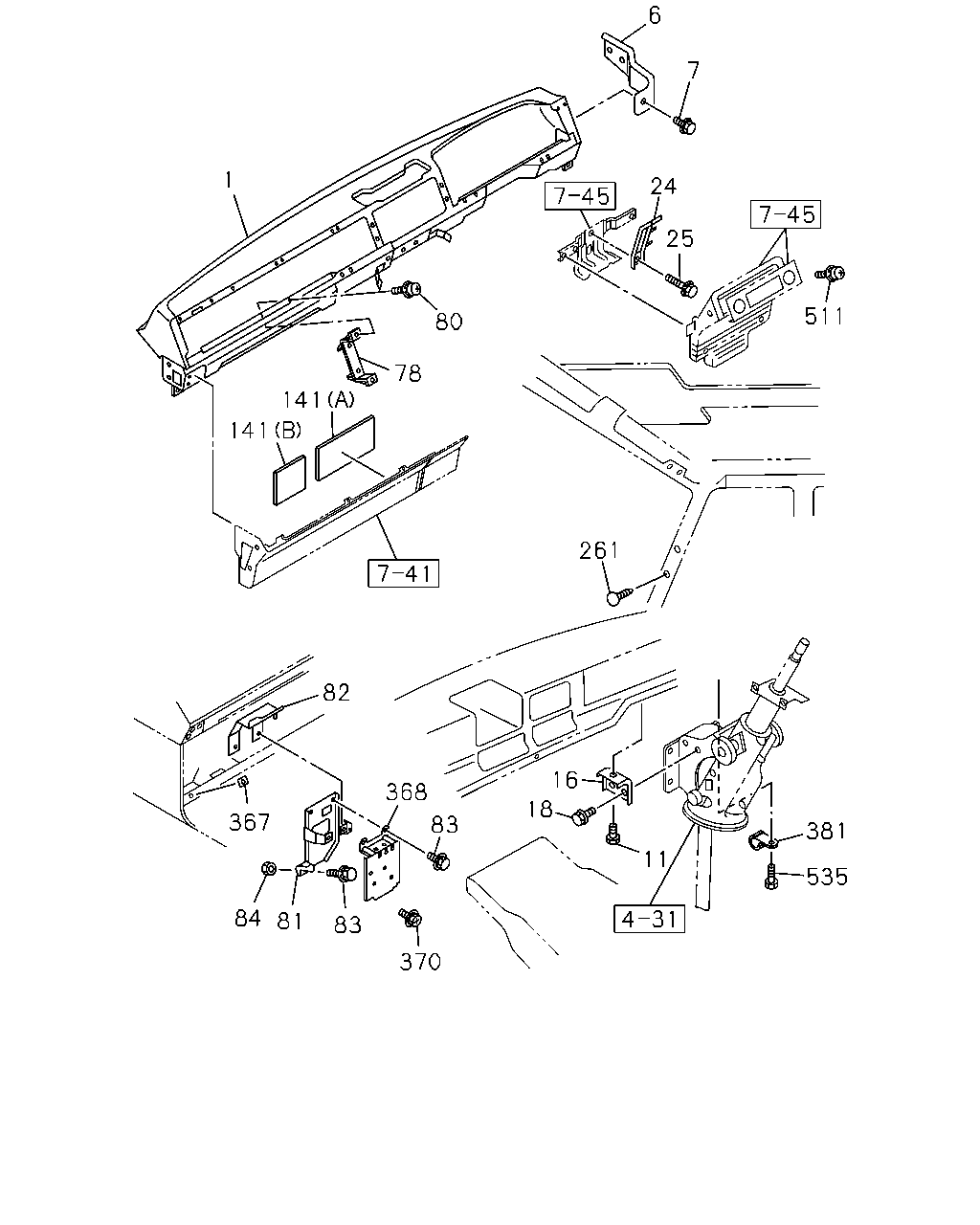

çizim 95753
6 7 1 24 25 511 80 78 141 141 261 82 16 368 18 367 83 381 11 535 84 81 83 370
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-65680-831-0 01 1 9204-
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9204-
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9204-
7 BOLT; SUPPORT,INST PNL
M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9204-
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 08 1 9204-
16 BRACKET; INST PNL 1-65680-836-0 01 1 9204-
18 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9204-
24 STAY; INST CLUSTER 1-65680-448-2 01 1 9204-
25 BOLT; STAY,INST CLUSTER
M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9204-9204
25 BOLT; STAY,INST CLUSTER
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-
78 SUPPORT; VENT DUCT,PASSENGER SIDE 1-65680-372-3 01 1 9204-
80 SCREW; SUPPORT,VENT DUCT
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9204-
81 BRACKET; ELEC CONT UNIT 1-73998-404-6 01 1 9204-
82 BRACKET; CONT UNIT,ELEC 1-73998-409-7 01 1 9204-
83 BOLT; BRKT,CONT UNIT
W/PAINT M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9204-9304
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305-
83 BOLT; BRKT,CONT UNIT
WO/PAINT M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9204-9204
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-
83 BOLT; BRKT,CONT UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9204-9204
83 BOLT; BRKT,CONT UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205-
83 BOLT; BRKT,CONT UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		9-01960-620-0 02 1 9204-9204
83 BOLT; BRKT,CONT UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9205-
84 NUT; CONT UNIT BRKT
M6 FLANGE 		5-09440-004-0 01 1 9204-
141 PROTECTOR; EDGE
(B) 		1-72378-028-0 01 1 9204-
141 PROTECTOR; EDGE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-72378-024-0 01 1 9204-
261 PLUG; ASSIST GRIP HOLE
EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14) BLACK 		1-09983-104-0 04 1 9204-
261 PLUG; ASSIST GRIP HOLE
EXC. AUSTRALIA EQUIPMENT(RR3),DELUXE CAB(W14) WHITE 		1-76378-213-0 04 1 9204-
261 PLUG; ASSIST GRIP HOLE
DELUXE CAB(W14) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-76378-240-0 04 1 9208-
367 SEAL; CONT UNIT BRKT
25X25 		8-94272-533-0 01 1 9204-
368 BRACKET; SUB,ELEC CONT UNIT 1-73998-408-6 01 1 9204-
370 SCREW; BRKT,ELEC CONT UNIT
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9204-
381 CLIP; HARNESS
ID=31 L=50 		1-09700-870-1 01 1 9209-
511 SCREW; CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-431-0 02 1 9204-
535 BOLT; CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9209-9211
