◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#13429) — 8 parça
çizim 22933
150 15 91
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; BAND,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=6 H=25 L=21 		1-09700-432-0 01 1 0105- ● ●
91 CLIP; BAND
PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 0105-0105 ● ●
91 CLIP; BAND
PE-SERIES ENG<1A0> L=250 		1-09707-126-0 01 1 0105- ● ●
91 CLIP; BAND
PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 0105- ● ●
132 SENSOR; SPD,SPEEDOMETER
10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 0105- ● ●

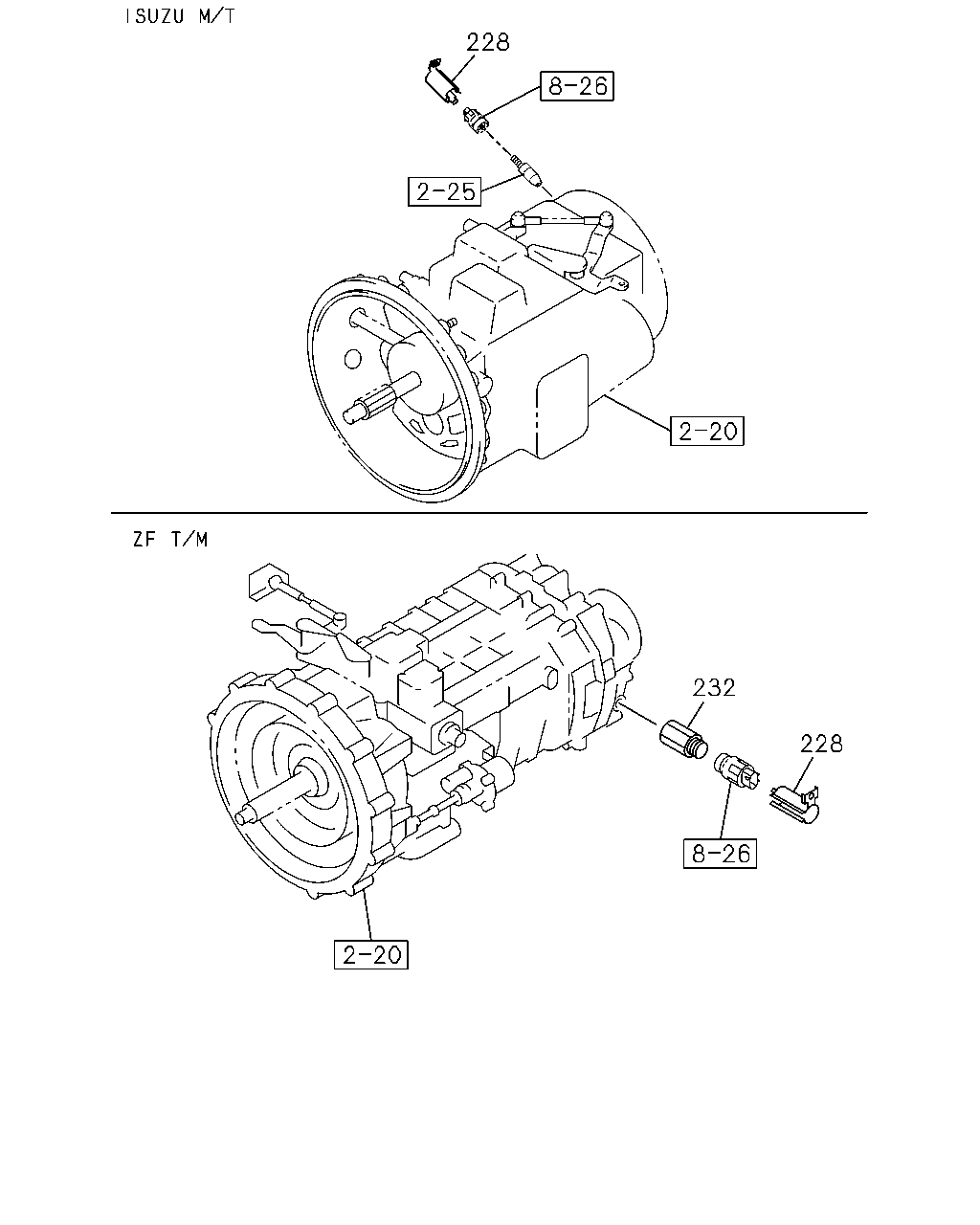

çizim 24044
232 228 228
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 0105- ● ●
228 PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		8-97168-308-0 01 1 0105- ● ●
232 ADAPTER; SPEED SENSOR
ZF M/T<X9E> 		1-80249-006-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
