◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#13427) — 388 parça
çizim 22932
280 275 277 276 605
BalonParca AdiParca NoAdetTipApplied Date A B
275 BOX ASM; FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L) 		1-82699-474-1 01 1 0105-0106 ●
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-82699-474-1 01 1 0105-0106 ●
275 BOX ASM; FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) 		1-82699-474-1 01 1 0107- ●
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) 		1-82699-474-1 01 1 0107- ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L) (B) 		1-82699-475-2 01 1 0105-0106 ●
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) 		1-82699-475-2 01 1 0105-0106 ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) (B) 		1-82699-475-2 01 1 0107- ●
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) (B) 		1-82699-475-2 01 1 0107- ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0105- ● ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-0106 ● ●
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8),6WA1 TC-C(55L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-0106 ●
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-0106 ●
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107- ● ●
277 BOLT; BOX ASM FIX
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107- ●
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107- ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0105- ● ●
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) 		1-82660-398-0 01 1 0105-0106 ●
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) 		1-82660-398-0 01 1 0107- ● ●

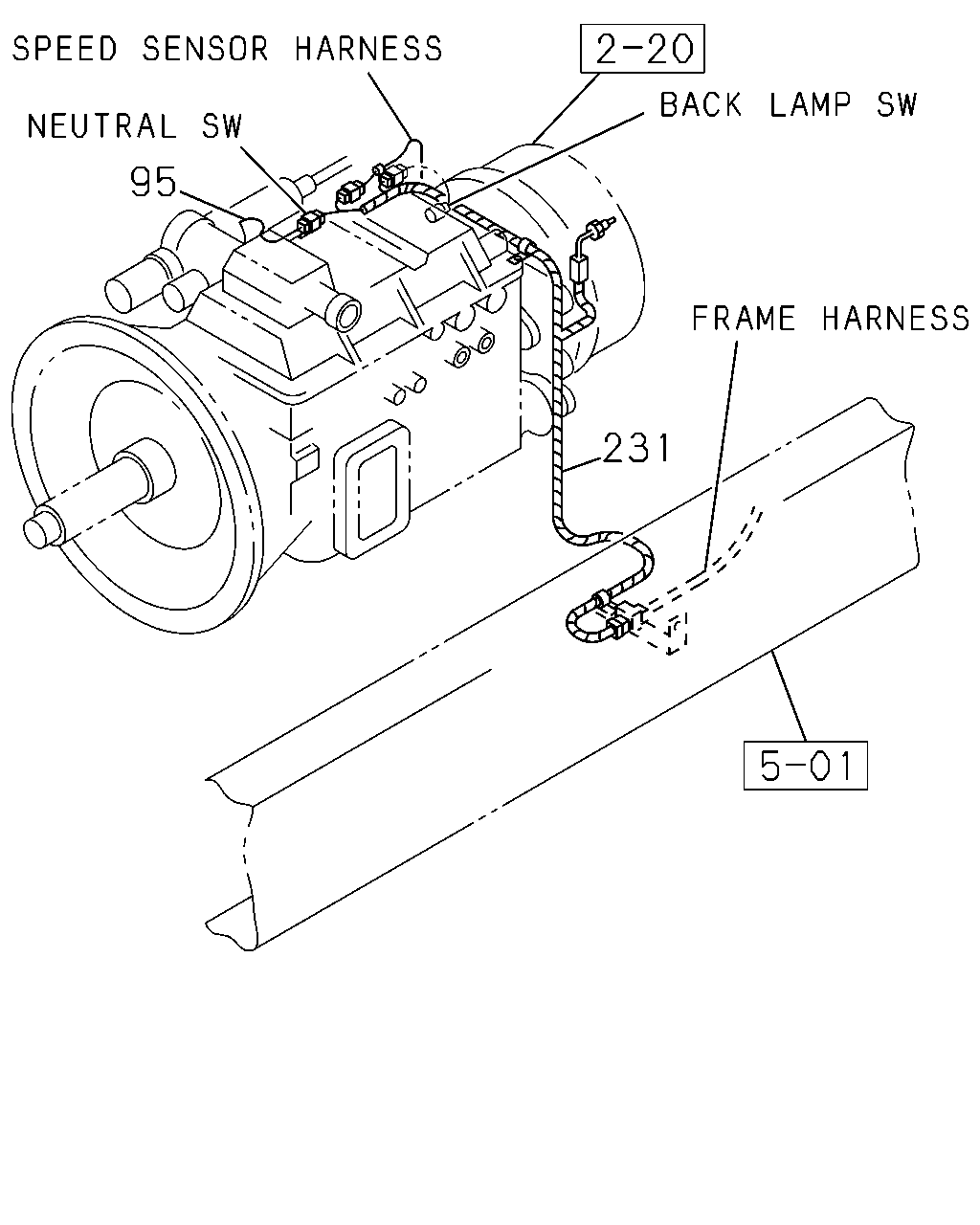

çizim 24041
231 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
FULLER M/T<X9B> 		1-82639-626-0 01 1 0105- ● ●
231 HARNESS; TRANS
FULLER M/T<X9B> PE-SERIES ENG<1A0> 		1-82638-903-3 01 1 0105- ● ●
231 HARNESS; TRANS
FULLER M/T<X9B> W-SERIES ENG<1A2> 		1-82674-853-1 01 1 0105- ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82671-661-1 01 1 0105-0106 ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82671-661-1 01 1 0107-0508 ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> PE-SERIES ENG<1A0> 		1-82671-661-1 01 1 0509- ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0105-0508 ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-849-1 01 1 0509- ●
231 HARNESS; TRANS
ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0509- ●
231 HARNESS; TRANS
POWER BRAKE LOCK SYSTEM(J50) ISUZU M/T<X9A> PE-SERIES ENG<1A0> 		1-82671-663-1 01 1 0105-0508 ● ●
231 HARNESS; TRANS
POWER BRAKE LOCK SYSTEM(J50) ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-851-1 01 1 0105-0508 ● ●
231 HARNESS; TRANS
ZF M/T<X9E> W-SERIES ENG<1A2> 		1-82674-852-0 01 1 0105-0107 ● ●
231 HARNESS; TRANS
ZF M/T<X9E> W-SERIES ENG<1A2> 		1-82675-056-0 01 1 0108- ● ●
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-850-1 01 1 0105-0106 ●
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> W-SERIES ENG<1A2> 		1-82674-850-1 01 1 0107- ●

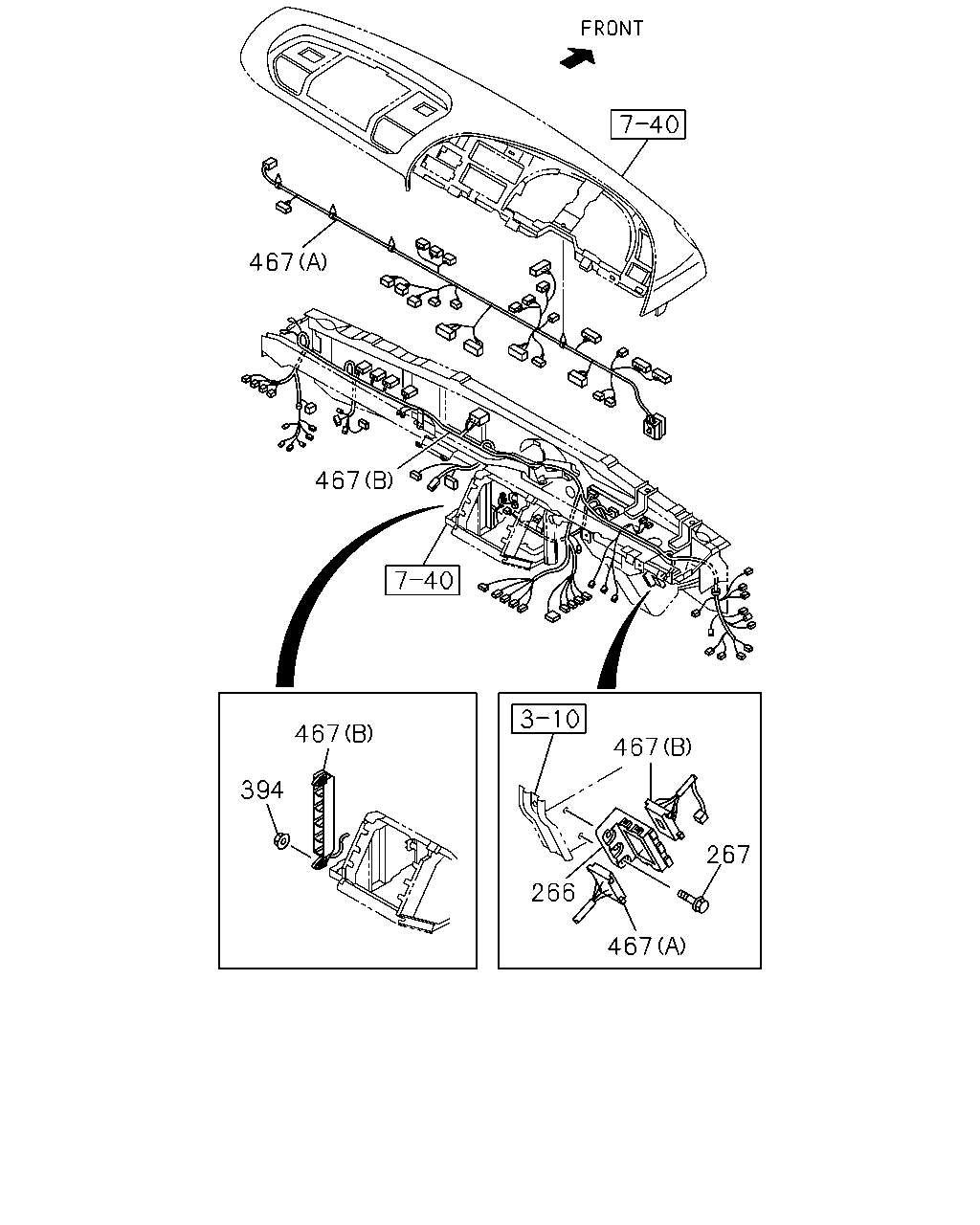

çizim 76999
467 267 266 467 467 394 467 467
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-0602 ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0107- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0107- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0107- ● ●
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) LOWER 		1-82660-406-2 01 1 0105- ● ●
467 HARNESS; FACIA
DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-407-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER 		1-82660-424-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS> (B) LOWER 		1-82660-425-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-426-2 01 1 0105- ● ●
467 HARNESS; FACIA
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-408-2 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82660-421-3 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNERING LAMP<TDS> (B) LOWER 		1-82660-422-3 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNERING LAMP<TDS>, DELUXE CAB(W14) (B) LOWER 		1-82660-423-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-427-2 01 1 0105- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-429-2 01 1 0105- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-428-2 01 1 0105- ●

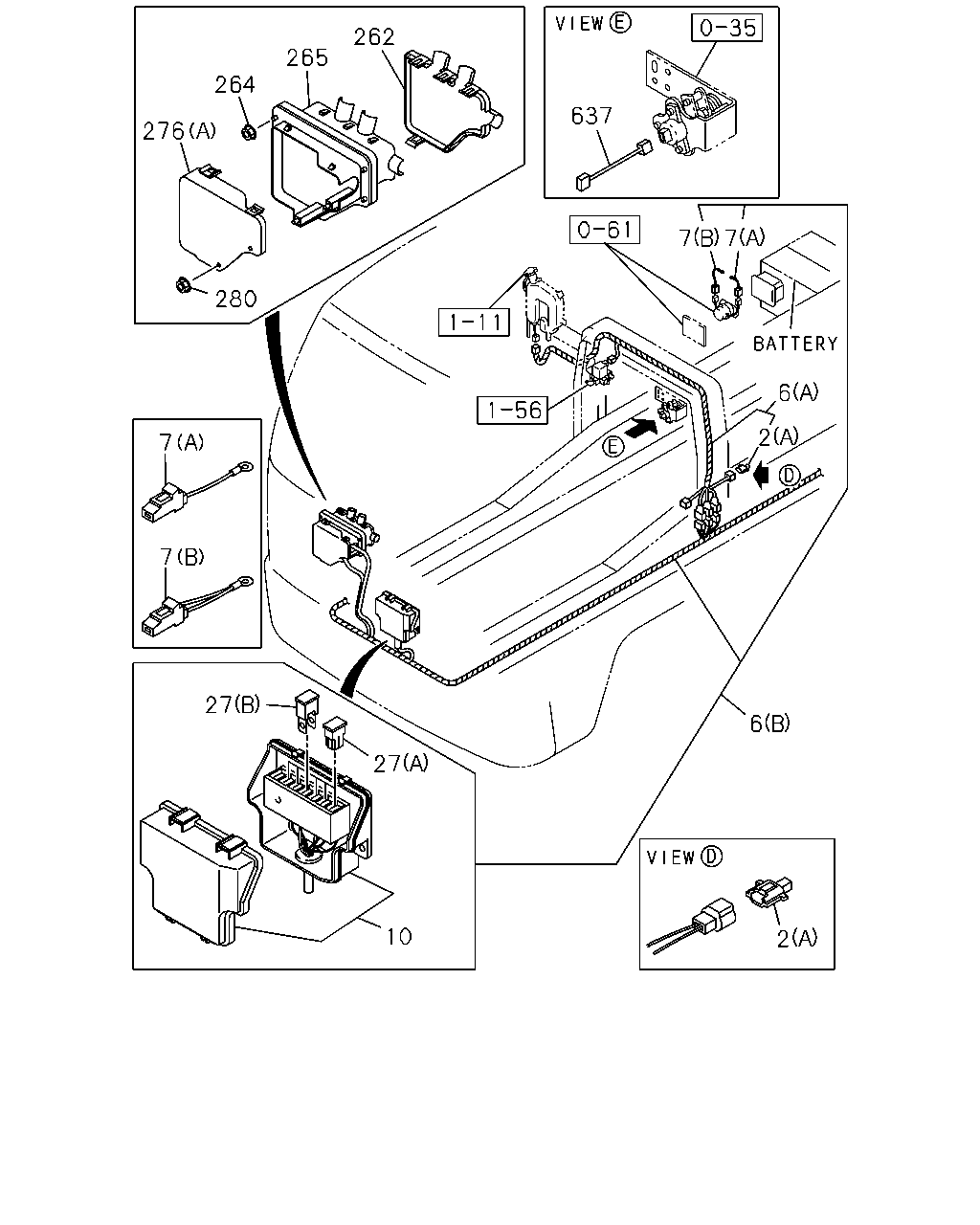

çizim 77002
6 10 27 27 7 7 280 276 264 265 262 637 7 7 6 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 AR 1 0105- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105- ● ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) FRAME 		1-82675-568-1 01 1 0109- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-975-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-543-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-974-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-542-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-778-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME 		1-82674-779-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-937-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-938-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-939-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-940-4 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0107- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0107- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-081-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-080-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105- ● ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-977-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-545-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-976-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-544-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1H(68L) WHEEL BASE 5300MM(53W) (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME,FRONT 		1-82674-788-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-956-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME,FRONT 		1-82674-957-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-943-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82674-944-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-954-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-955-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0110- ●
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 0105- ● ●
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 0105- ● ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0105-0106 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0105-0106 ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0107-0111 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0107-0111 ●
10 BOX; FUSE,HARNESS
FULL TRACTOR TRUCK<RD6> 		1-82510-467-0 01 1 0112- ● ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> 		1-82510-467-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6> 		1-82510-467-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> 		1-82510-466-0 01 1 0105-0111 ● ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-82510-466-0 01 1 0105-0111 ● ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
10PE1H(68L) WHEEL BASE 5300MM(53W) 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-466-0 01 1 0112- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-82510-466-0 01 1 0112- ●
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 AR 1 0105- ● ●
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 AR 1 0105- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0105- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0105- ● ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L) (B) 		1-82699-475-2 01 1 0105-0106 ●
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) 		1-82699-475-2 01 1 0105-0106 ●
276 COVER; BOX,FRAME HARNESS
6WF1 TC-C(1B8),6WA1 TC-C(55L),6WF1 TC(84L) (B) 		1-82699-475-2 01 1 0107- ●
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) (B) 		1-82699-475-2 01 1 0107- ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0105- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0105- ● ●
637 HARNESS; EXT,S/SENSOR
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207- ● ●

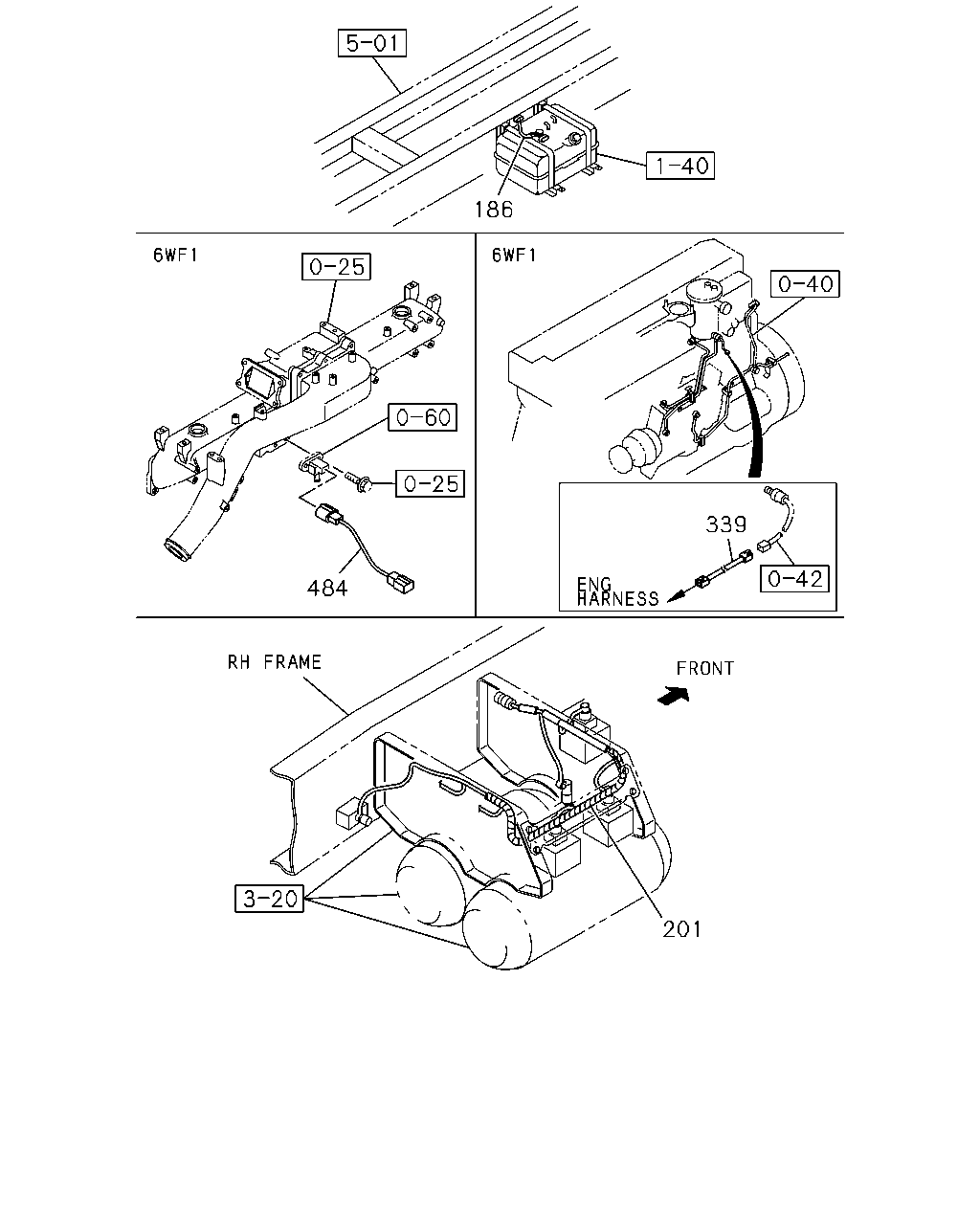

çizim 77247
201 484 339 186
BalonParca AdiParca NoAdetTipApplied Date A B
186 HARNESS; FUEL TANK
PE-SERIES ENG<1A0> 		1-82671-596-0 01 1 0105- ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82673-594-0 01 1 0105-0108 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) W-SERIES ENG<1A2> 		1-82639-362-2 01 1 0105-0508 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) PE-SERIES ENG<1A0> 		1-82673-595-0 01 1 0105-0508 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82639-361-2 01 1 0105-0108 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-82639-361-2 01 1 0109-0508 ● ●
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82639-361-2 01 1 0509- ● ●
339 HARNESS; EXT,FUEL
6WF1 TC-C(1B8),6WF1 TC(84L) 		1-82641-316-0 01 1 0311- ●
339 HARNESS; EXT,FUEL
6WF1 TC(84L) 		1-82641-316-0 01 1 0311- ●
484 HARNESS; BOOST SENSOR
6WF1 TC-C(1B8) 		1-82641-149-0 01 1 0105-0106 ●
484 HARNESS; BOOST SENSOR
6WF1 TC-C(1B8),6WF1 TC(84L) 		1-82641-149-0 01 1 0107- ●
484 HARNESS; BOOST SENSOR
6WF1 TC(84L) 		1-82641-149-0 01 1 0107- ●

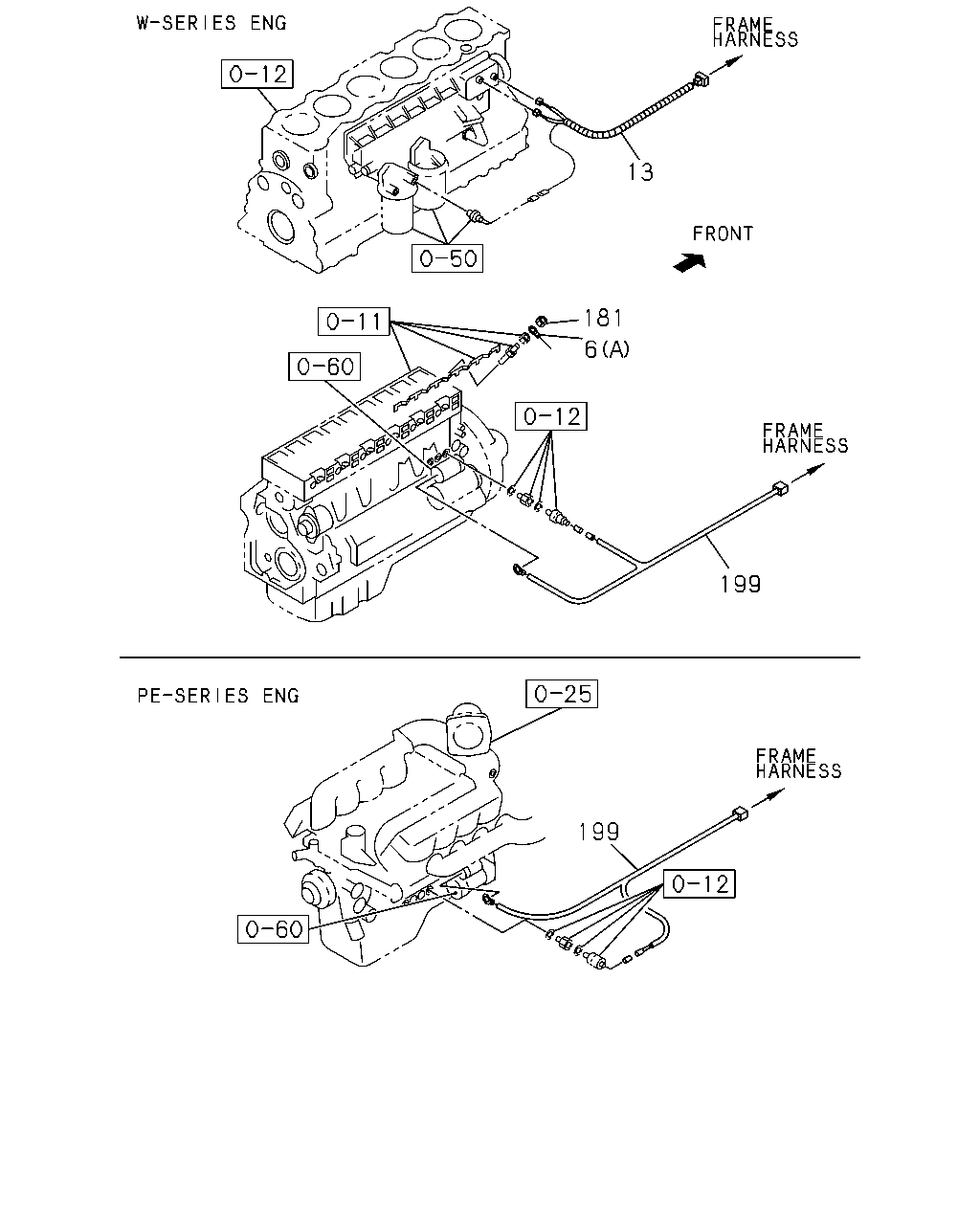

çizim 77487
199 199 13 181 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) FRAME 		1-82675-568-1 01 1 0109- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-975-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-543-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-974-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-542-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-778-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME 		1-82674-779-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-937-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-938-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-939-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-940-4 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0107- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0107- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-081-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-080-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105- ● ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-977-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-545-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-976-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-544-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1H(68L) WHEEL BASE 5300MM(53W) (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME,FRONT 		1-82674-788-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-956-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME,FRONT 		1-82674-957-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-943-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82674-944-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-954-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-955-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0110- ●
13 HARNESS; ENG
W-SERIES ENG<1A2> 		1-82640-553-4 01 1 0105- ● ●
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> W-SERIES ENG<1A2> M4 FLANGE 		5-09440-007-0 01 1 0105- ●
199 HARNESS; STARTER
PE-SERIES ENG<1A0> 		1-82640-733-2 01 1 0105- ● ●
199 HARNESS; STARTER
W-SERIES ENG<1A2> 		1-82640-734-1 01 1 0105- ● ●

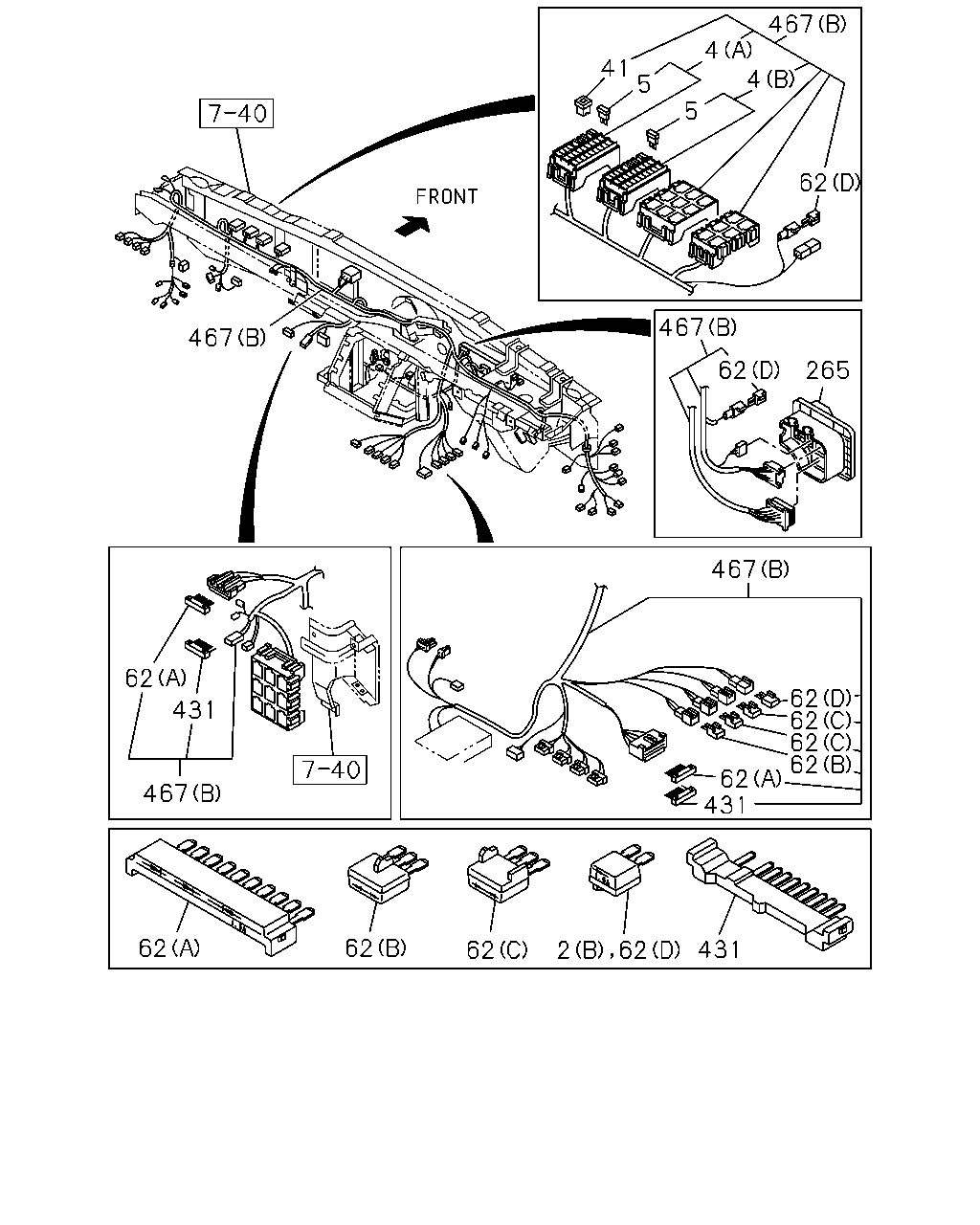

çizim 77641
431 62 2 62 62 62 467 62 431 467 62 431 62 62 62 62 265 62 467 62 5 5 41 4 4 467 467
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 AR 1 0105- ● ●
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0105-0106 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0105-0106 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0107- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0107- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105-0106 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105-0106 ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0107- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0107- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX23 		1-82510-414-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) (B) 15AX23 		1-82510-414-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX22 10AX4 		1-82510-435-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) (A) 7.5AX22 10AX4 		1-82510-435-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX20 		1-82510-405-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) 15AX20 		1-82510-405-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX18 		1-82510-422-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) PE-SERIES ENG<1A0> (A) 7.5AX18 		1-82510-422-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX22 		1-82510-394-0 01 1 0105- ● ●
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 7.5AX20 		1-82510-410-0 01 1 0105- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0105- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0105- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0105- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0105- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0105- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0105- ● ●
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0105- ● ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0105- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0105- ● ●
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0107- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0107- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0105-0106 ●
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0107- ● ●
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0105- ● ●
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) PE-SERIES ENG<1A0> (B) LOWER 		1-82660-406-2 01 1 0105- ● ●
467 HARNESS; FACIA
DELUXE CAB(W14) PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-407-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) LOWER 		1-82660-424-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS> (B) LOWER 		1-82660-425-2 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>, CORNERINGLAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-426-2 01 1 0105- ● ●
467 HARNESS; FACIA
PE-SERIES ENG<1A0> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-408-2 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82660-421-3 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNERING LAMP<TDS> (B) LOWER 		1-82660-422-3 01 1 0105- ● ●
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNERING LAMP<TDS>, DELUXE CAB(W14) (B) LOWER 		1-82660-423-3 01 1 0105- ● ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-427-2 01 1 0105- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-429-2 01 1 0105- ●
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-428-2 01 1 0105- ●

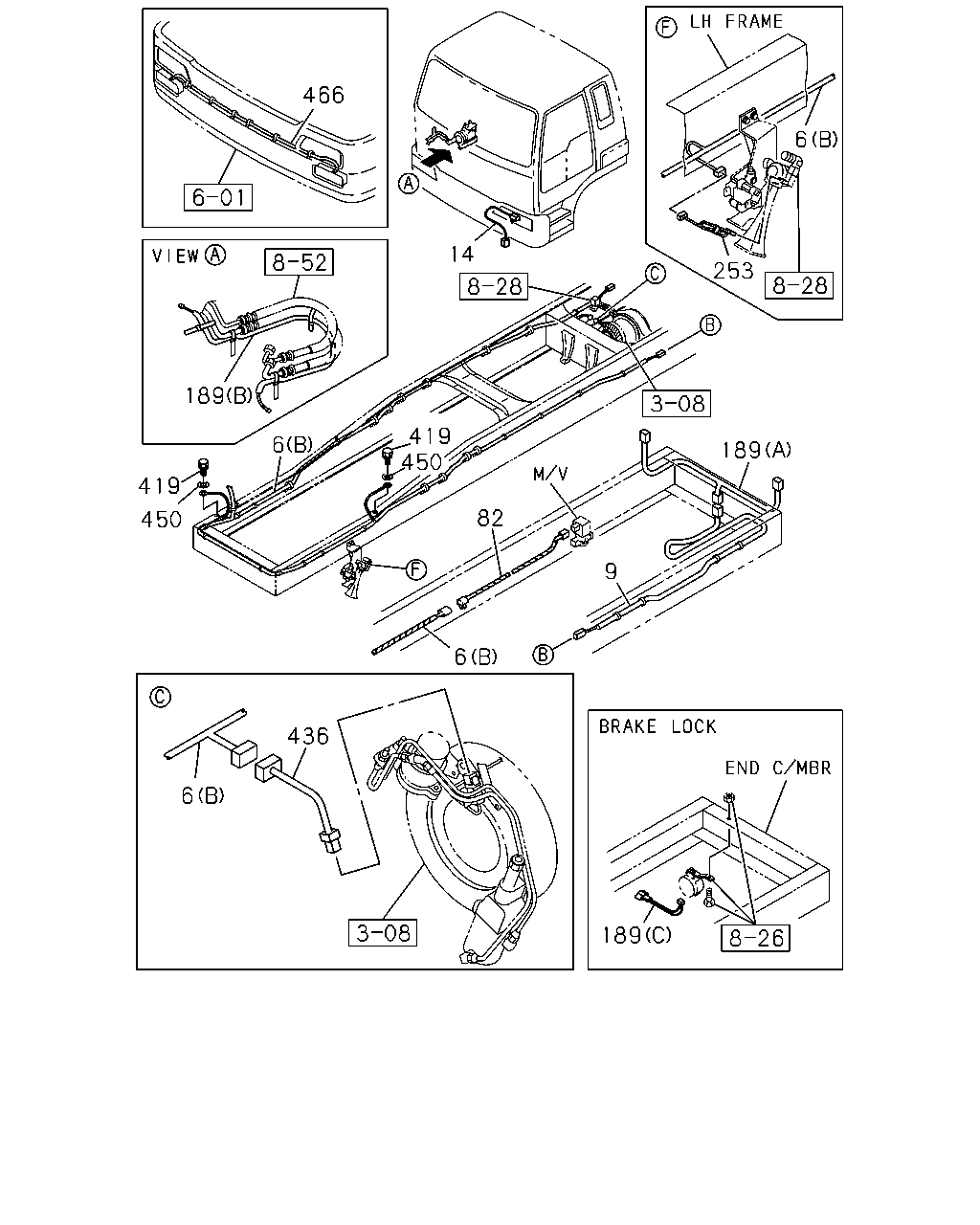

çizim 77721
189 6 436 6 82 9 189 253 6 14 466 189 419 450 6 419 450
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) FRAME 		1-82675-568-1 01 1 0109- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-975-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-543-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-974-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-542-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-778-1 01 1 0105- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME 		1-82674-779-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-937-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-938-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-939-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-940-4 01 1 0105- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0107- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-941-5 01 1 0107- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0105-0106 ●
6 HARNESS; FRAME
6WF1 TC-C(1B8),6WF1 TC(84L) WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-942-5 01 1 0107- ●
6 HARNESS; FRAME
AUTO CAB TILT<WV2> PE-SERIES ENG<1A0> (A) MEMBER 		1-82674-081-0 01 1 0105- ● ●
6 HARNESS; FRAME
PE-SERIES ENG<1A0> EXC. AUTO CAB TILT<WV2> (A) MEMBER 		1-82674-080-0 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105- ● ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105- ● ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-977-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-545-1 01 1 0110- ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-976-2 01 1 0105-0109 ●
6 HARNESS; FRAME
FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-544-1 01 1 0110- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) WHEEL BASE 5300MM(53W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME 		1-82674-536-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-0 01 1 0105-0111 ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1H(68L) WHEEL BASE 5300MM(53W) (B) FRAME,FRONT 		1-82674-787-1 01 1 0112- ●
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> (B) FRAME,FRONT 		1-82674-788-1 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-956-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME,FRONT 		1-82674-957-2 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-943-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82674-944-5 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-954-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2> ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-955-4 01 1 0105- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-958-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-959-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-960-3 01 1 0110- ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0105-0109 ●
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-C(72L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-961-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME,FRONT 		1-82674-962-3 01 1 0110- ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0107-0109 ●
6 HARNESS; FRAME
6WF1 TC(84L) WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME,FRONT 		1-82674-963-3 01 1 0110- ●
9 HARNESS; FRAME,RR
10PE1H(68L) WHEEL BASE 5300MM(53W) 		1-82675-900-0 01 1 0112- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) 		1-82674-460-0 01 1 0110- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> 		1-82673-584-0 01 1 0105- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) EXC. FULL TRACTOR TRUCK<RD6> 		1-82673-585-0 01 1 0105- ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-2 02 1 0105- ● ●
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 0105- ● ●
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> 		1-82625-986-0 02 1 0105- ● ●
82 HARNESS; DIFF LOCK
10PE1H(68L) WHEEL BASE 5300MM(53W) 		1-82675-901-0 01 1 0112- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 6100MM(61W) 		1-82675-498-0 01 1 0110- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> 		1-82639-356-3 01 1 0105-0206 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> 		1-82639-356-3 01 1 0207-0211 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. FULL TRACTOR TRUCK<RD6> 		1-82639-356-3 01 1 0207-0211 ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) PE-SERIES ENG<1A0> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-82639-356-3 01 1 0212- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 5900MM(59W) W-SERIES ENG<1A2> EXC. FULL TRACTOR TRUCK<RD6> 		1-82639-356-3 01 1 0212- ●
82 HARNESS; DIFF LOCK
WHEEL BASE 6300MM(63W) EXC. FULL TRACTOR TRUCK<RD6> 		1-82674-461-0 01 1 0105- ●
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) PE-SERIES ENG<1A0> (B) A/C L=890 		1-82636-373-0 01 1 0105- ● ●
189 HARNESS; EXT
POWER BRAKE LOCK SYSTEM(J50) (C) BRAKE LOCK 		1-82673-238-0 01 1 0105-0508 ● ●
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) (A) BACK LAMP 		1-82670-107-0 01 1 0105- ● ●
253 HARNESS; EXT,HORN
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> 		1-82677-941-0 01 1 0405- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105- ● ●
436 HARNESS; RETARDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82670-620-0 01 1 0105-0109 ●
436 HARNESS; RETARDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82675-610-0 01 1 0110- ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105- ● ●
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 0105- ● ●
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 0105- ● ●

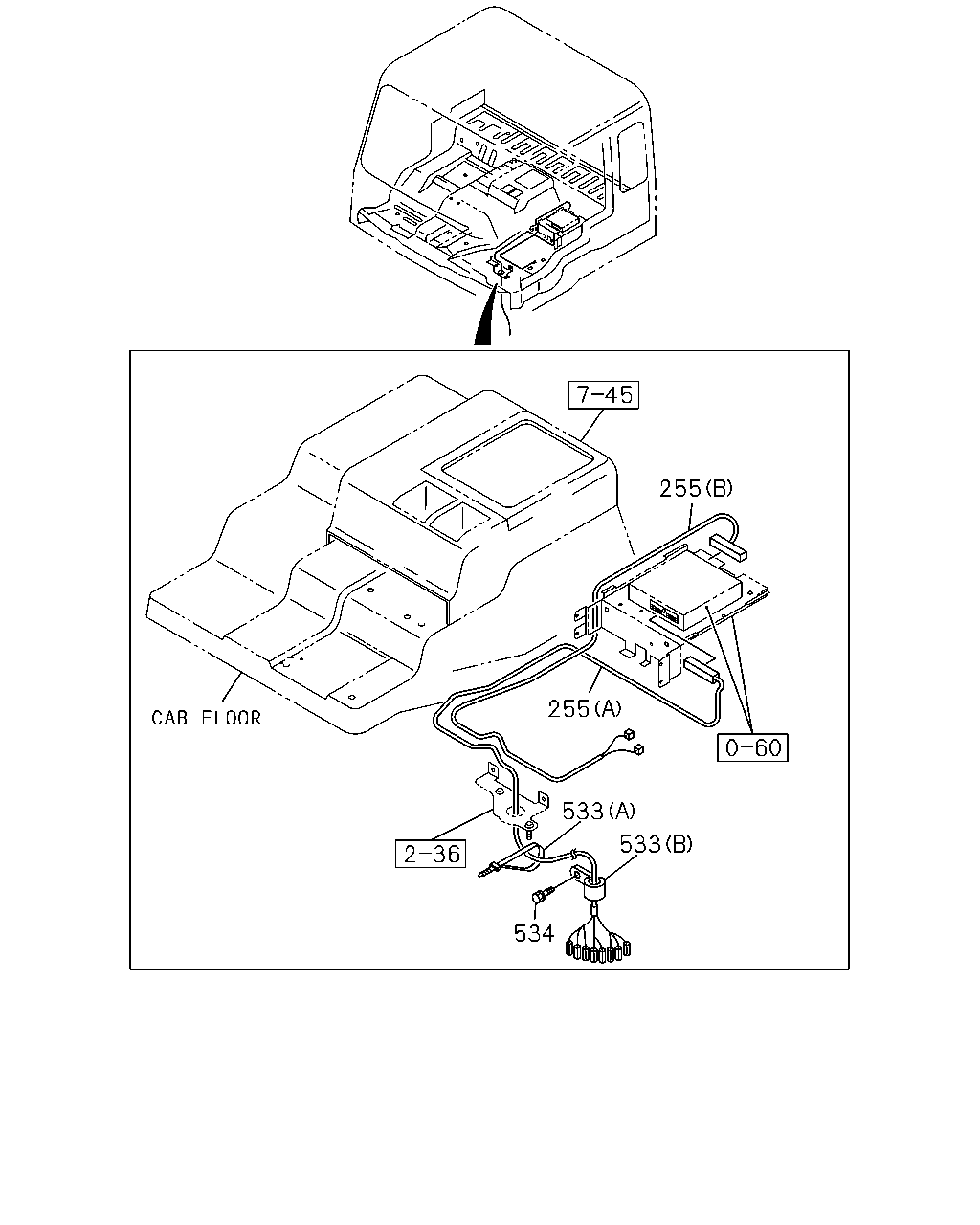

çizim 77722
255 255 533 533 534
BalonParca AdiParca NoAdetTipApplied Date A B
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-383-2 01 1 0105-0106 ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-383-2 01 1 0107- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) CAB UP +110MM<TGG> (A) 		1-82660-377-4 01 1 0105-0106 ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) CAB UP +110MM<TGG> (A) 		1-82660-377-4 01 1 0107- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82660-380-2 01 1 0105- ● ●
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82660-373-3 01 1 0105- ● ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82660-372-2 01 1 0105- ● ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-379-0 01 1 0105- ● ●
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82660-371-2 01 1 0105- ● ●
533 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> (A) L=250 		5-09707-030-1 03 1 0105-0205 ● ●
533 CLIP
6WA1 TC-C(55L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 03 1 0206- ● ●
533 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) L=180 		1-09707-162-1 03 1 0206- ● ●
533 CLIP
W-SERIES ENG<1A2> (B) ID=19 L=32 		1-09701-235-0 01 1 0105-0109 ● ●
533 CLIP
W-SERIES ENG<1A2> (B) ID=21 L=24 		8-94176-807-1 01 1 0110- ● ●
534 BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0105- ● ●

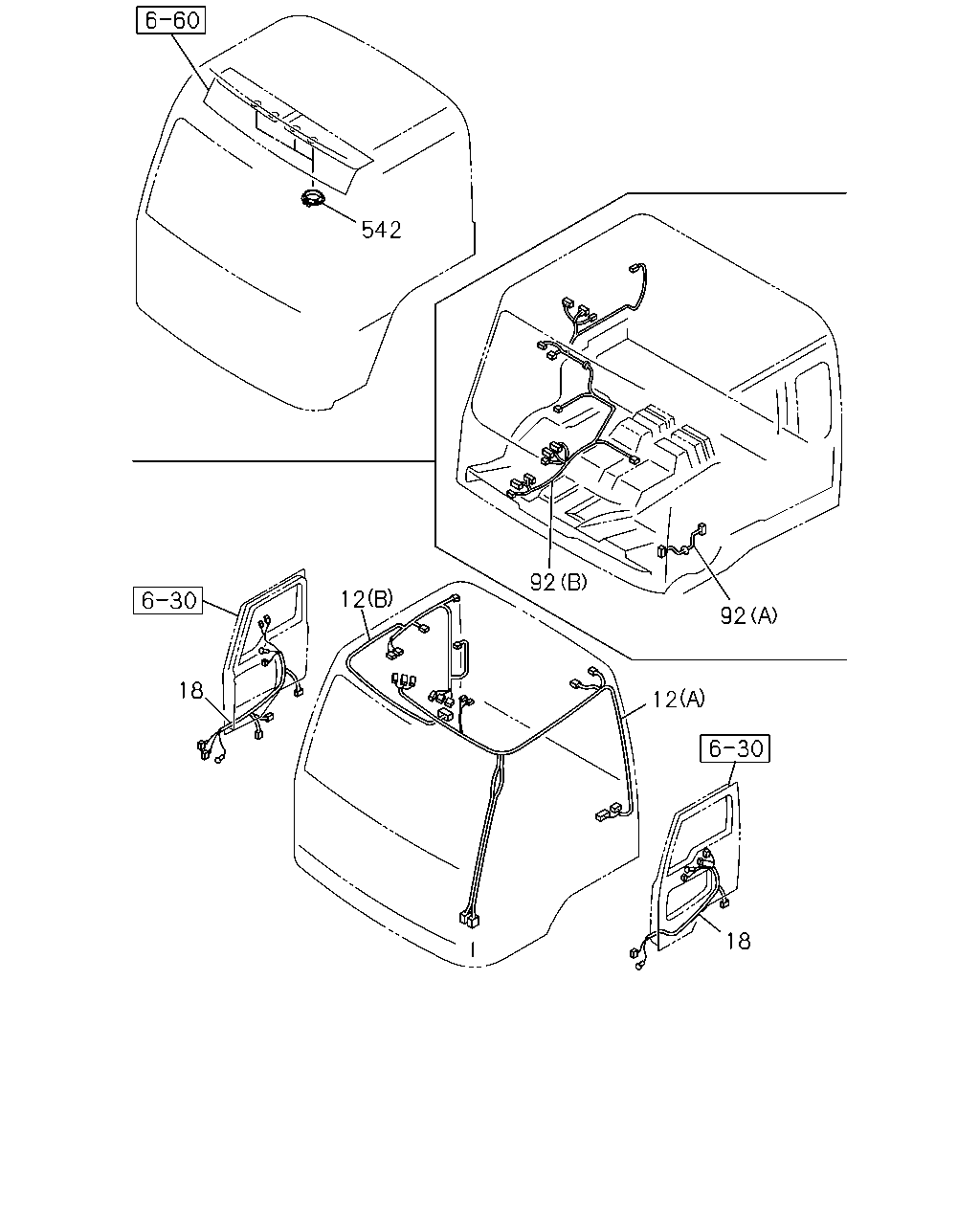

çizim 77724
18 12 92 92 12 18 542
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (A) 		1-82629-922-2 01 1 0105- ● ●
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> (A) 		1-82629-923-2 01 1 0105- ● ●
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. HIGH ROOF<S2F> (A) 		1-82629-919-2 01 1 0105- ● ●
12 HARNESS; ROOF
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F> (A) 		1-82629-918-2 01 1 0105- ● ●
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-82628-107-0 01 1 0105- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-588-0 01 1 0105- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-673-0 01 1 0105- ● ●
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-582-0 01 1 0105- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-589-0 01 1 0105- ● ●
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-388-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-388-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-388-3 01 1 0107- ● ●
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-392-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-392-3 01 1 0107- ● ●
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-390-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-390-3 01 1 0107- ● ●
92 HARNESS; FLOOR
EXC. ELECTRONIC GOV RED4(Q4F),DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-386-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-386-3 01 1 0105-0106 ●
92 HARNESS; FLOOR
EXC. ELECTRONIC GOV RED4(Q4F),DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-386-3 01 1 0107- ● ●
92 HARNESS; FLOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> (A) 		1-82625-261-5 01 1 0105- ● ●
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
