◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#13424) — 185 parça

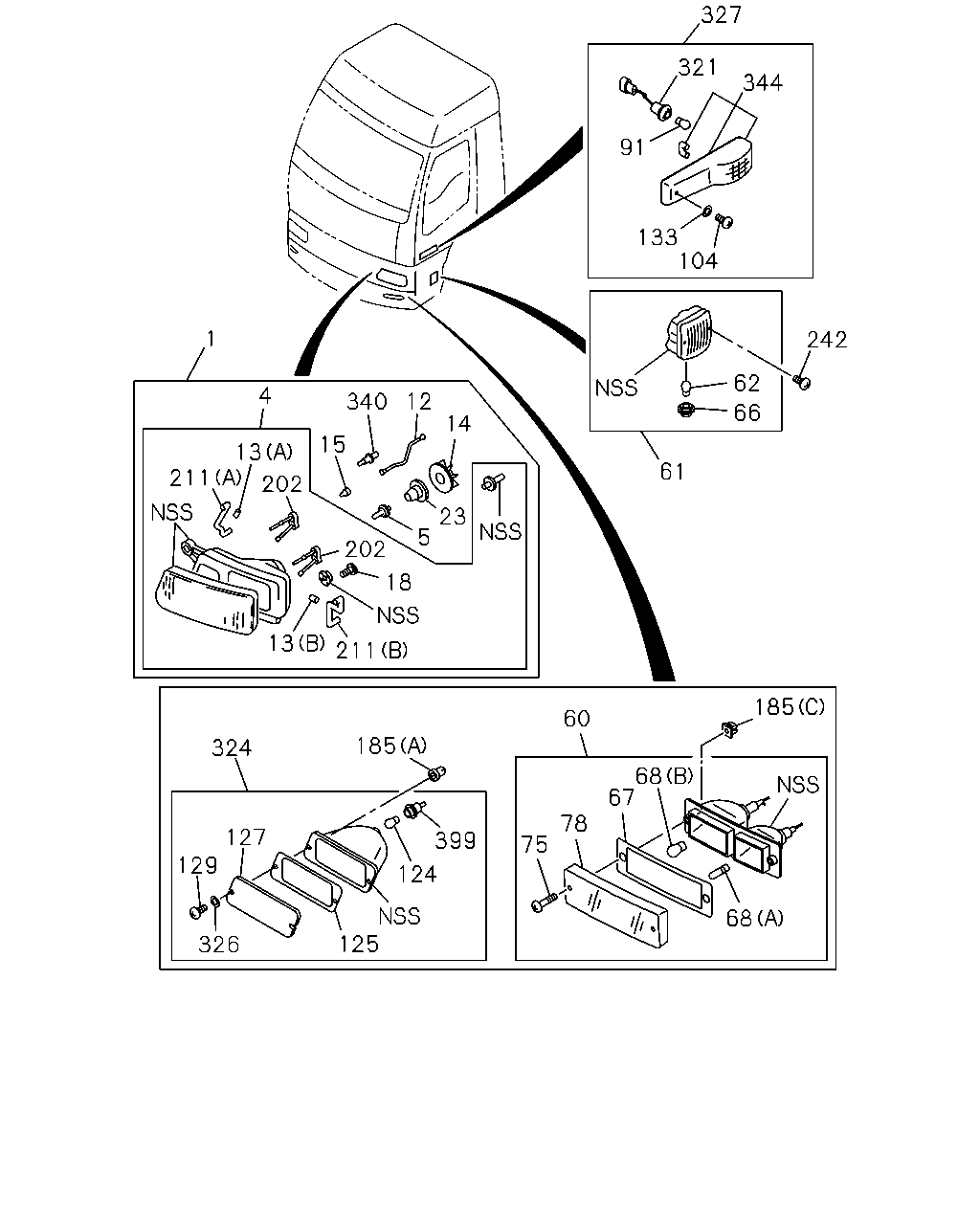

çizim 24256
68 185 68 60 67 78 75 399 124 125 326 129 127 324 185 211 13 18 202 5 23 14 12 340 15 4 1 211 13 202 61 66 62 242 104 133 91 321 327 344
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-413-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-413-1 01 1 0510- ● ●
4 HEADLAMP UNIT
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		1-82119-129-0 01 1 0105- ● ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> 24V 75/70W 		1-82119-129-0 01 1 0105- ● ●
4 HEADLAMP UNIT
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		1-82119-128-0 01 1 0105- ● ●
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> 24V 75/70W 		1-82119-128-0 01 1 0105- ● ●
5 BULB; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		1-82194-063-0 02 1 0105- ● ●
5 BULB; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 24V 75/70W 		1-82194-063-0 02 1 0105- ● ●
12 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-012-0 02 1 0105- ● ●
12 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82118-012-0 02 1 0105- ● ●
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 04 1 0105- ● ●
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82119-084-0 04 1 0105- ● ●
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-94381-588-0 14 1 0105- ● ●
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		8-94381-588-0 14 1 0105- ● ●
14 CAP; BULB,LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0105- ● ●
14 CAP; BULB,LAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-148-0 02 1 0105- ● ●
15 BULB; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 55W 		1-82194-079-0 02 1 0105- ● ●
15 BULB; FOG LAMP
BUMPER W/HEADLAMPS<SLB> 24V 55W 		1-82194-079-0 02 1 0105- ● ●
18 SCREW; GEAR CASE
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 0105- ● ●
18 SCREW; GEAR CASE
BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING 		1-82119-067-0 08 1 0105- ● ●
23 COVER; BULB,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0105- ● ●
23 COVER; BULB,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-147-0 02 1 0105- ● ●
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-273-0 01 1 0105- ● ●
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-272-0 01 1 0105- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0105- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105- ● ●
67 GASKET; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		8-94149-259-0 02 1 0105- ● ●
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (A) 24V 5W 		1-82194-089-0 02 1 0105- ● ●
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (B) 24V 21W 		1-82194-090-0 02 1 0105- ● ●
75 SCREW; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		0-91190-435-0 04 1 0105- ● ●
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-265-0 01 1 0105- ● ●
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-264-0 01 1 0105- ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0105- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105- ● ●
124 BULB; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 24V 21W 		1-82194-036-0 02 1 0105- ● ●
125 GASKET; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-033-0 02 1 0105- ● ●
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-065-0 01 1 0105- ● ●
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-064-0 01 1 0105- ● ●
129 SCREW; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-026-0 04 1 0105- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206 ● ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105- ● ●
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105- ● ●
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105- ● ●
202 GEAR UNIT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-139-0 04 1 0105- ● ●
202 GEAR UNIT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-139-0 04 1 0105- ● ●
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 0105-0105 ● ●
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-329-0 01 1 0105-0105 ● ●
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0105- ● ●
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-331-0 01 1 0105- ● ●
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 0105-0105 ● ●
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-328-0 01 1 0105-0105 ● ●
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0105- ● ●
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-330-0 01 1 0105- ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-0207 ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0105- ● ●
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-203-1 01 1 0105- ● ●
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-202-1 01 1 0105- ● ●
326 WASHER; PL,FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-032-0 04 1 0105- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0105- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0105- ● ●
340 BULB; POSITION
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 0105- ● ●
340 BULB; POSITION
BUMPER W/HEADLAMPS<SLB> 24V 5W 		1-82194-042-0 02 1 0105- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0105- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0105- ● ●
399 SOCKET; TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-034-0 02 1 0105- ● ●

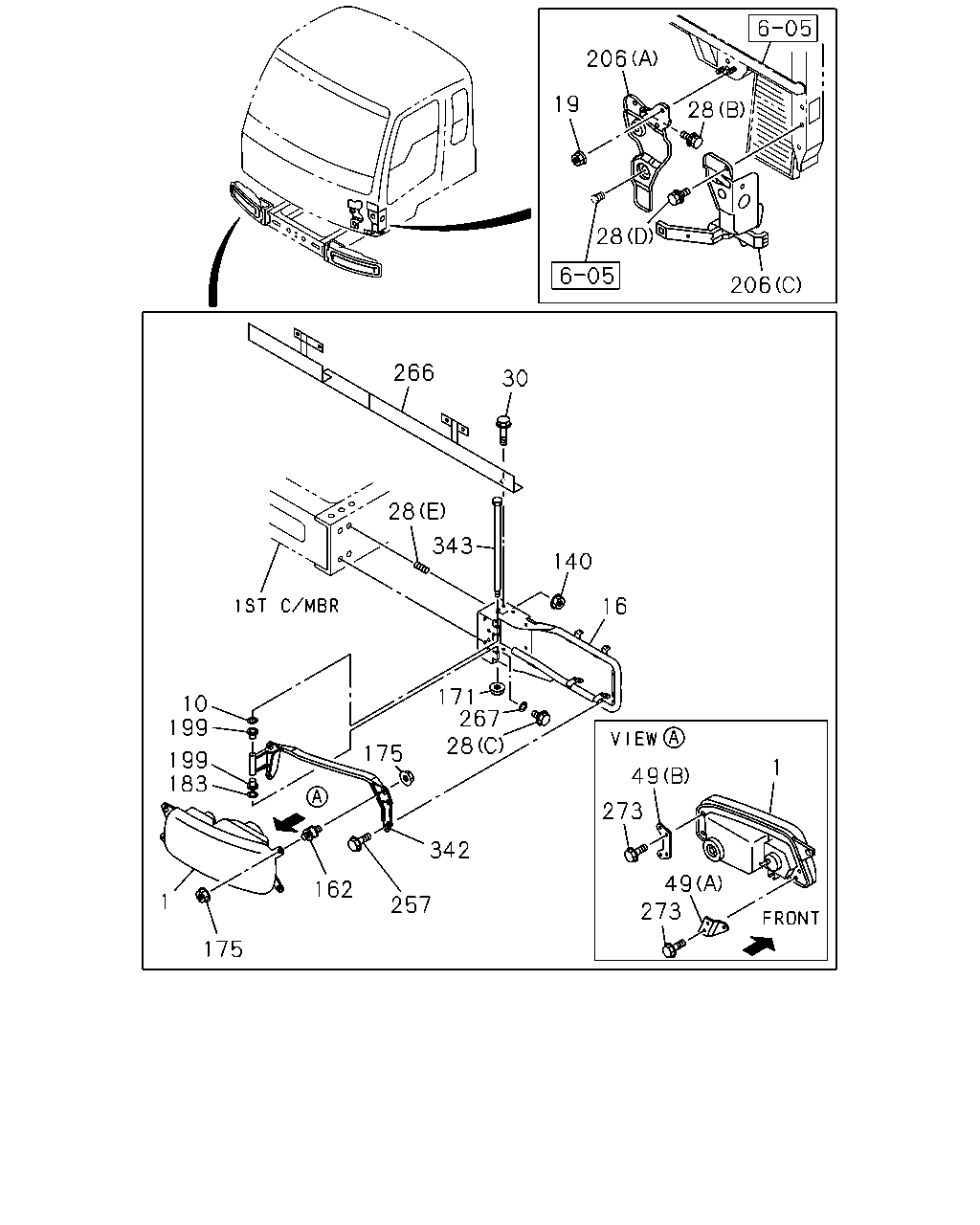

çizim 77655
273 1 49 273 16 140 343 28 30 266 10 199 199 183 175 28 267 171 342 257 162 175 1 19 206 28 28 206 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-413-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-413-1 01 1 0510- ● ●
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 		9-09160-508-0 02 1 0105- ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-82117-120-2 01 1 0105-0206 ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-82117-119-2 01 1 0105-0206 ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-155-2 02 1 0207- ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-82117-116-1 02 1 0105-0206 ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105- ● ●
30 BOLT; STAY
CAB UP +110MM<TGG> FRONT SPOILER<VP1> M10X25 FLANGE 		0-28681-025-0 04 1 0105-0207 ● ●
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 04 1 0208-0512 ● ●
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) 		1-82117-100-0 02 1 0105- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-102-0 01 1 0105- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-101-0 01 1 0105- ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-086-0 08 1 0105- ● ●
171 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ● ●
171 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-0602 ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603- ● ●
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5 		9-09855-333-0 02 1 0105- ● ●
199 BUSHING
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		5-15549-001-1 04 1 0105- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105- ● ●
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE 		0-28080-820-0 04 1 0105-0512 ● ●
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-82117-137-0 01 1 0105-0207 ● ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-137-1 01 1 0208-0510 ● ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-187-0 01 1 0511- ● ●
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=10.5 OD=22 		9-09164-610-0 04 1 0207- ● ●
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE 		0-28680-616-0 08 1 0105-0512 ● ●
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE 		0-28650-616-0 08 1 0601- ● ●
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-087-2 01 1 0105- ● ●
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-088-2 01 1 0105- ● ●
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82119-096-1 02 1 0105- ● ●

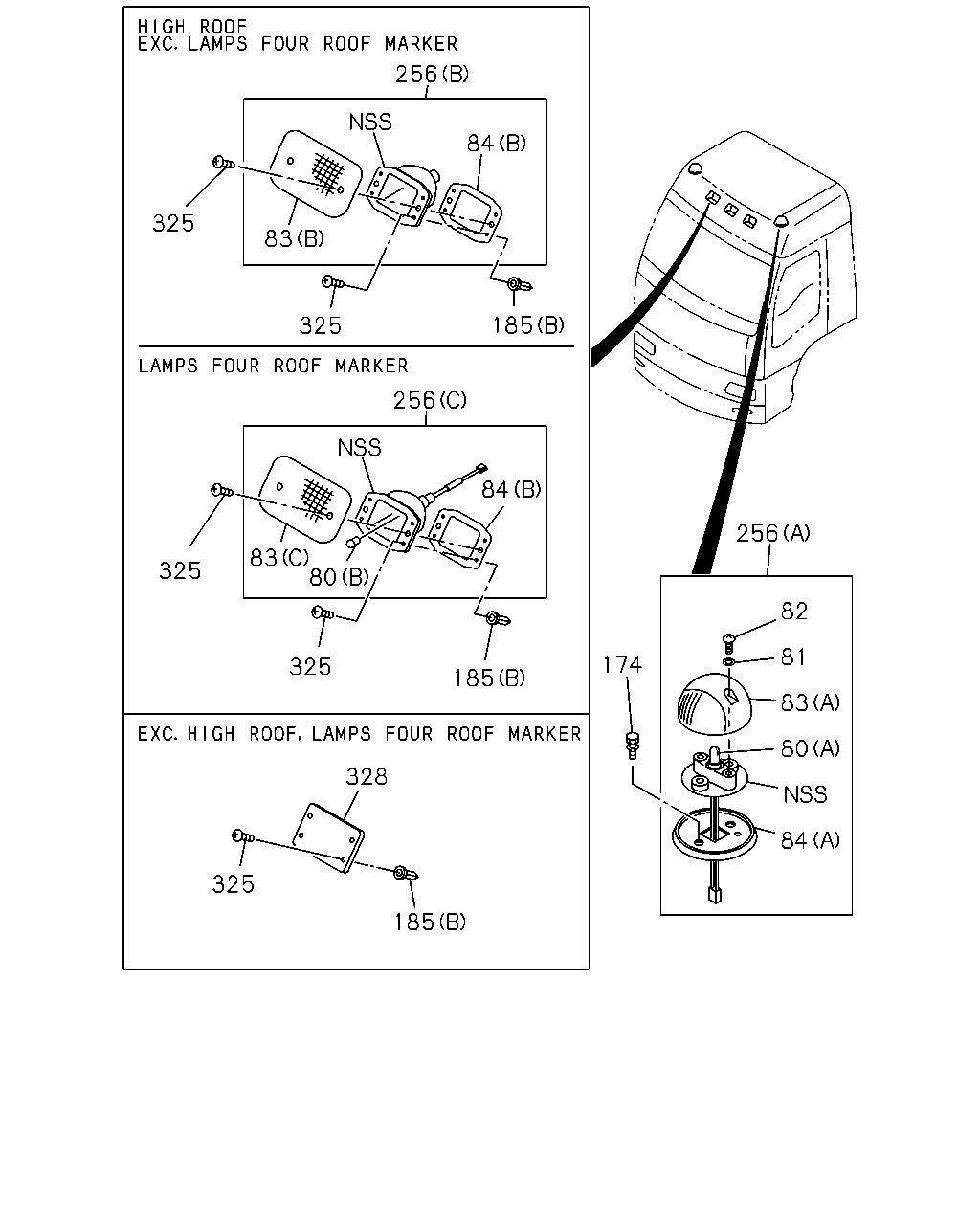

çizim 77689
84 80 83 81 82 174 185 325 328 185 325 325 80 83 84 185 256 325 84 83 325 256 256
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W 		8-94135-397-0 02 1 0105- ● ●
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W 		9-82691-302-0 02 1 0105- ● ●
81 SEAT; SCREW
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-012-0 04 1 0105- ● ●
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-011-0 04 1 0105- ● ●
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-321-0 03 1 0105- ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82215-048-0 02 1 0105- ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) 		1-86830-320-0 02 1 0105- ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) 		1-86830-321-0 01 1 0105- ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) 		1-82215-068-0 02 1 0105- ● ●
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) 		1-82215-069-0 01 1 0105- ● ●
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-153-0 03 1 0105- ● ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-153-0 03 1 0105- ● ●
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-288-0 02 1 0105- ● ●
174 BOLT
M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0105-0305 ● ●
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0306- ● ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105- ● ●
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105- ● ●
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105- ● ●
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) ROOF MARKER WO/BULB 		1-82210-230-0 03 1 0105- ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (A) MARKER INDICATER 		1-86830-129-0 02 1 0105- ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) ROOF MARKER W/BULB 		1-82210-229-0 02 1 0105- ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB 		1-82210-230-0 01 1 0105- ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB 		1-86830-131-0 01 1 0105- ● ●
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) ROOF MARKER W/BULB 		1-86830-170-0 02 1 0105- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0105-0603 ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0604- ● ●
325 SCREW; SPD INDICATOR LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105- ● ●
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105- ● ●
328 COVER; LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> 		1-76217-122-1 03 1 0105- ● ●

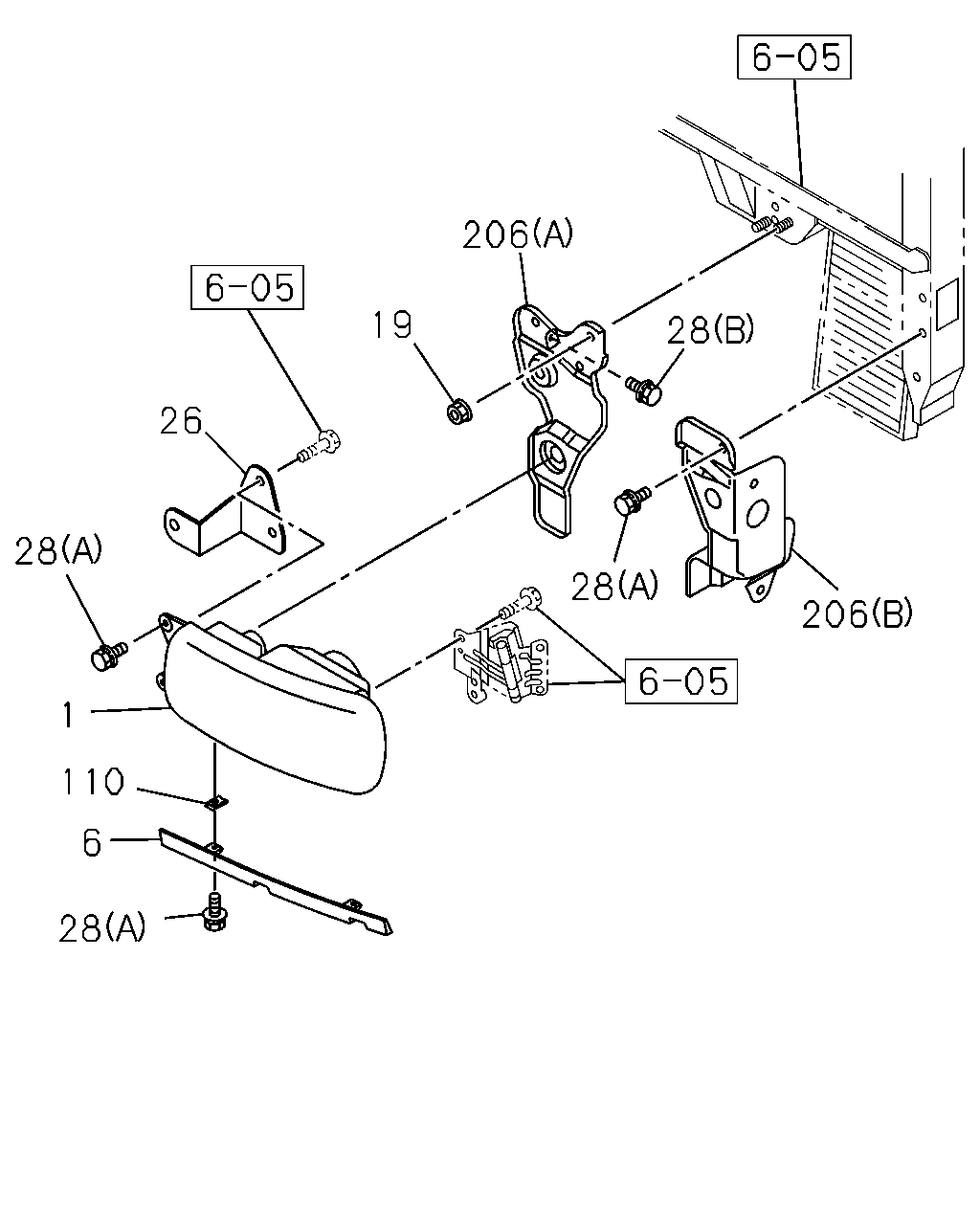

çizim 77691
206 28 28 206 19 26 28 1 110 6 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-396-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		1-82110-395-2 01 1 0105-0509 ● ●
1 LAMP ASM; HEAD
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		8-97609-413-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> 		8-97609-413-1 01 1 0510- ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105- ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105- ● ●
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105- ● ●
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105- ● ●
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-1 04 1 0105- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
