Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10874 - CXZ RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#13422) — 21 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀

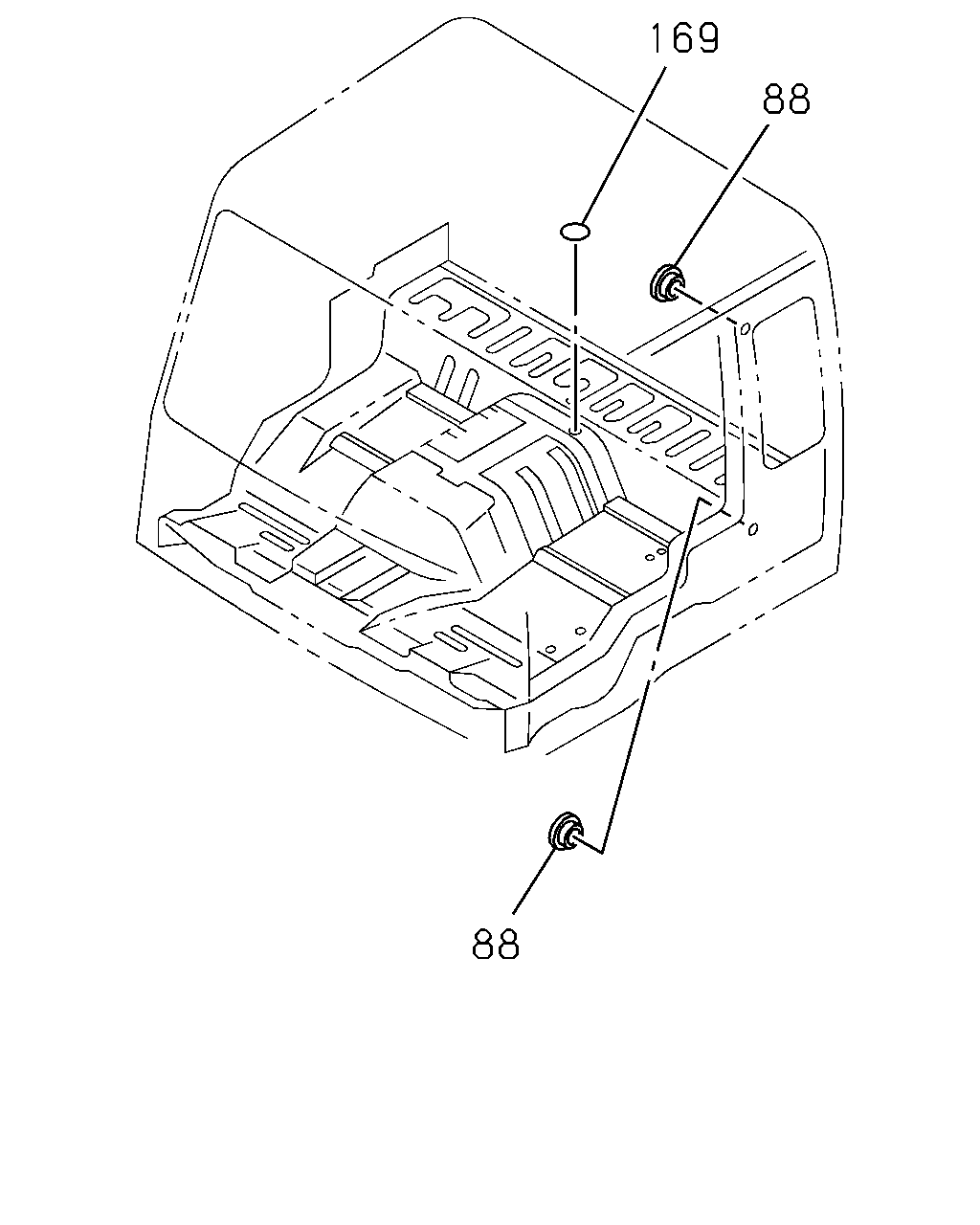

[760A] HOLE PLUG SEAL (4 parça)
[760A] DRIVER SEAT (7 parça)
[760A] PASSENGER SEAT (10 parça)
▶
88
169
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6
8-94198-177-0
02
1
0105-
●
●
169
SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
01
1
0105-
●
●
169
SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK
1-76798-019-0
02
1
0105-
●
●
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK
1-76798-019-0
04
1
0105-
●
●
171
55
123
3
2
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

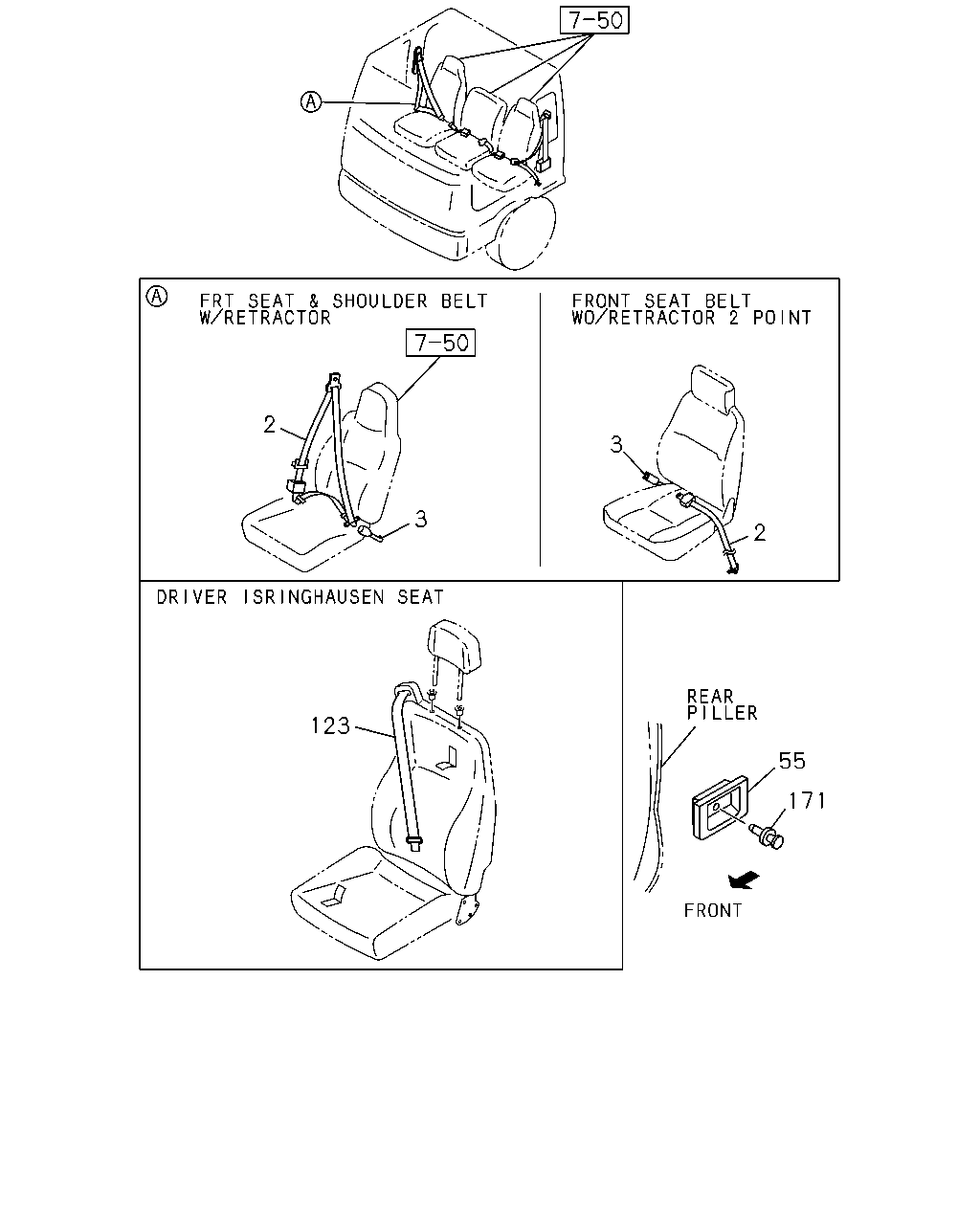

2
BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)
1-75618-936-3
01
1
0105-
●
●
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)
1-75618-938-3
01
1
0105-
●
●
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)
1-75618-914-0
01
1
0105-
●
●
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA)
1-75617-556-0
01
1
0105-
●
●
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-556-0
02
1
0105-
●
●
123
BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA)
1-75617-570-0
01
1
0105-
●
●
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0105-
●
●
170
4
170
6
5
171
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

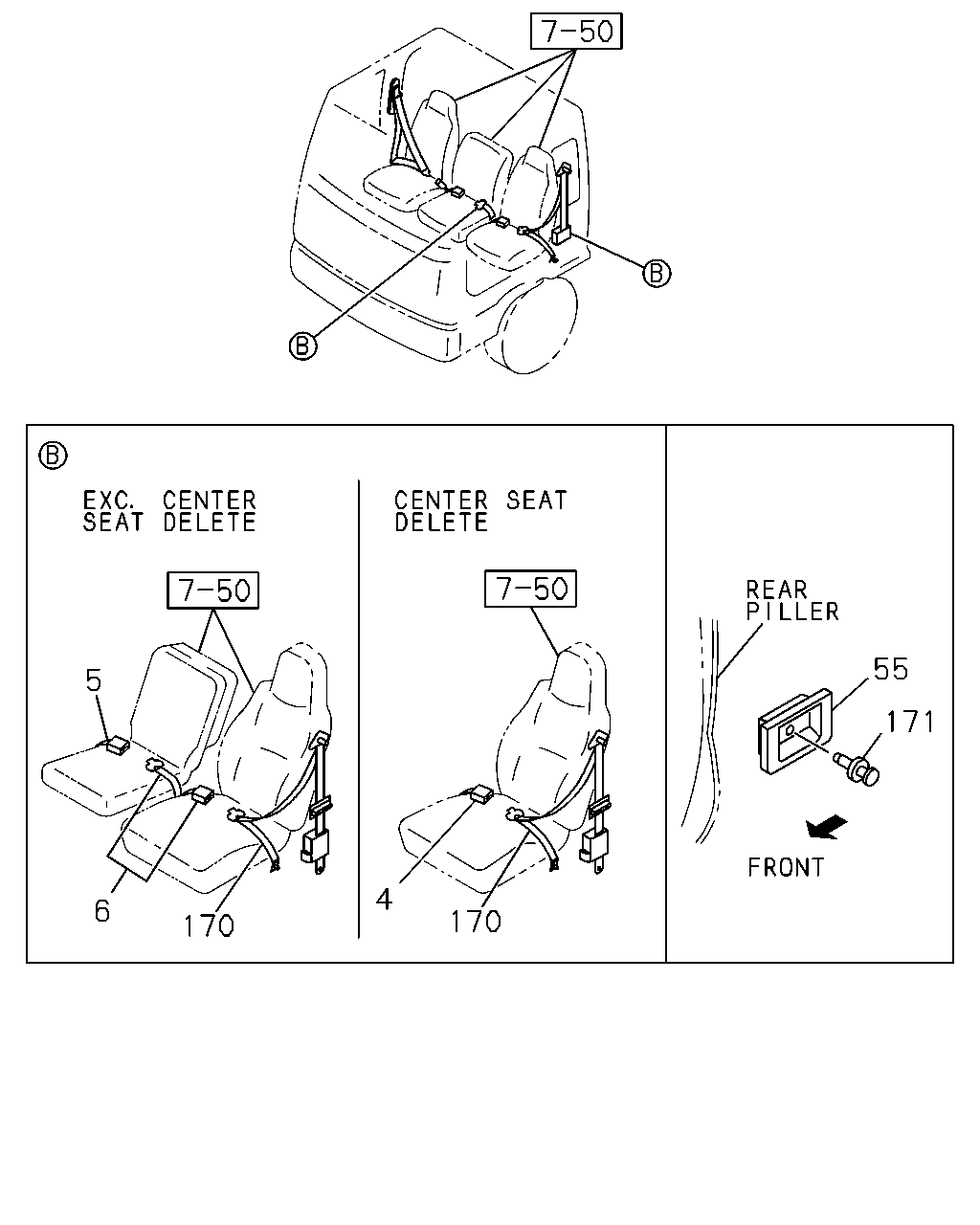

4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9)
1-75617-546-1
01
1
0105-
●
●
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9)
1-75617-553-1
01
1
0105-
●
●
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)
1-75618-926-1
01
1
0203-
●
●
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)
1-75617-547-4
01
1
0105-
●
●
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA)
1-75617-556-0
01
1
0105-
●
●
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-556-0
02
1
0105-
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA)
1-75618-924-2
01
1
0203-
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25)
1-75618-936-3
01
1
0105-
●
●
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)
1-75617-550-4
01
1
0105-
●
●
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
0105-
●
●
