Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#13421) — 336 parça

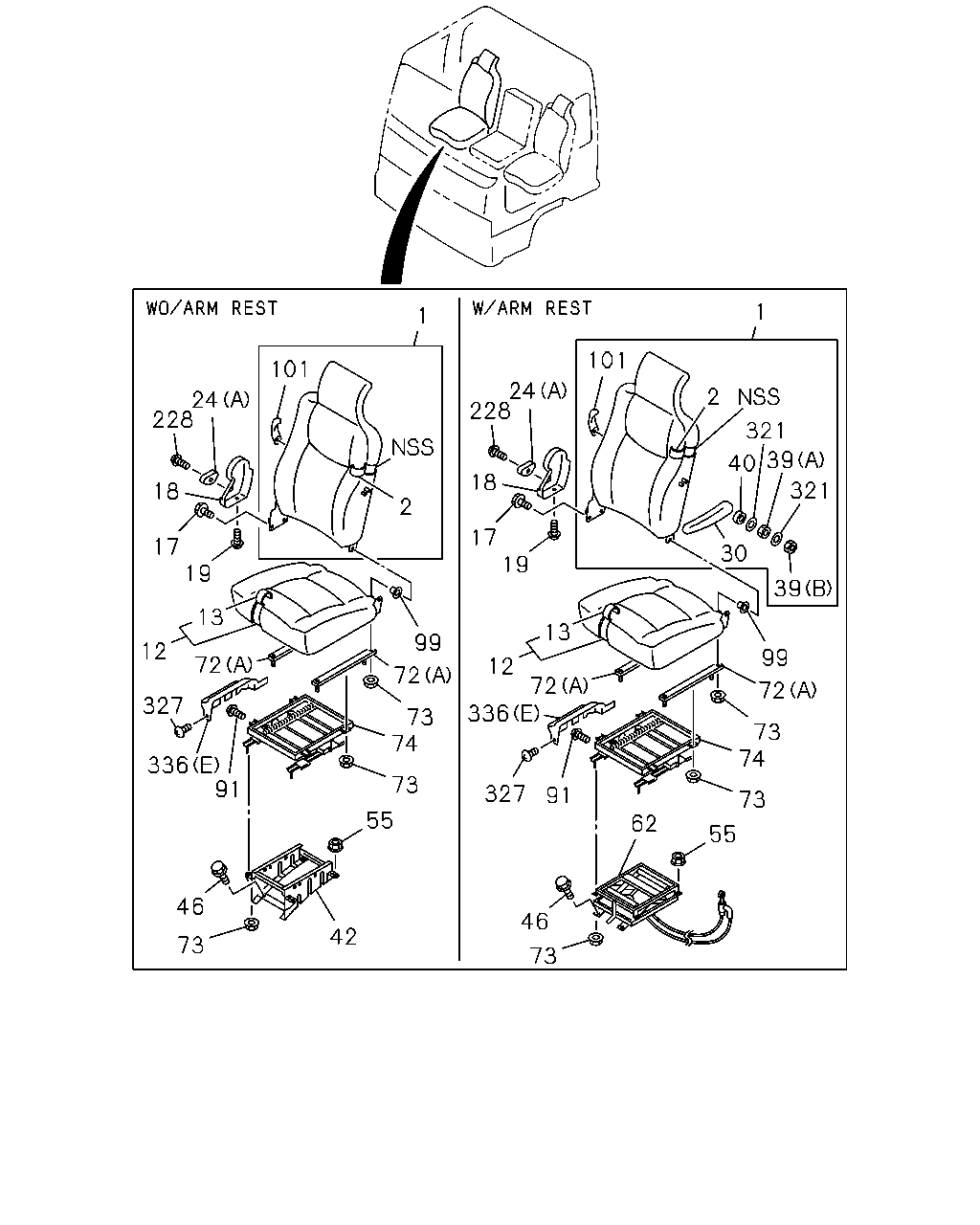

73 46 62 55 73 74 73 72 99 39 30 321 39 40 321 1 101 24 228 2 18 17 19 13 12 72 336 327 91 42 73 46 55 73 74 73 72 99 2 1 101 24 228 18 17 19 13 12 327 72 336 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0105-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0105-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0105-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0105-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-153-2	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-101-1	01	1	0105-	●	●
17	BOLT; RECLINING FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0105-	●	●
17	BOLT; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0105-	●	●
18	COVER; RECLINING FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97867-020-0	01	1	0105-	●	●
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97867-020-0	01	1	0105-	●	●
19	SCREW; COVER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
19	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0106-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0105-	●	●
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-121-1	01	1	0105-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0105-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0105-	●	●
40	SPACER; ARM REST FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0105-	●	●
42	STAND; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0105-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-	●	●

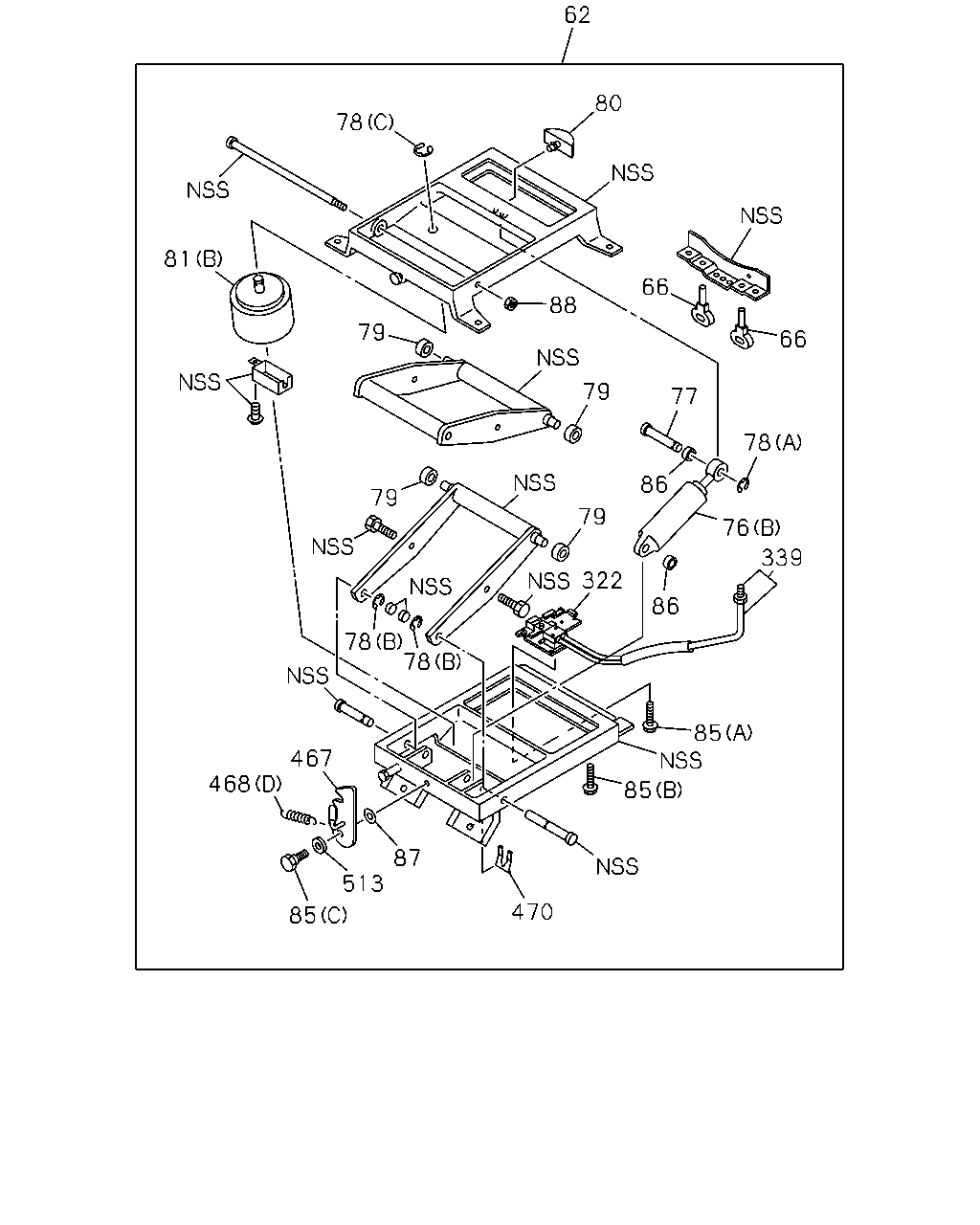

62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0105-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0105-0105	●	●
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0105-0105	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-	●	●
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-334-1	02	1	0105-	●	●
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-334-1	02	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75517-959-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75517-959-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-1	01	1	0105-	●	●
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-	●	●
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0105-	●	●
99	BUSHING; SEAT BACK EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0105-	●	●
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0105-	●	●
101	LEVER ASM; LUMBAR EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0105-	●	●
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-	●	●
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0105-0212	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0105-0212	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0303-	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0303-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-316-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-316-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-303-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-303-0	01	1	0105-	●	●

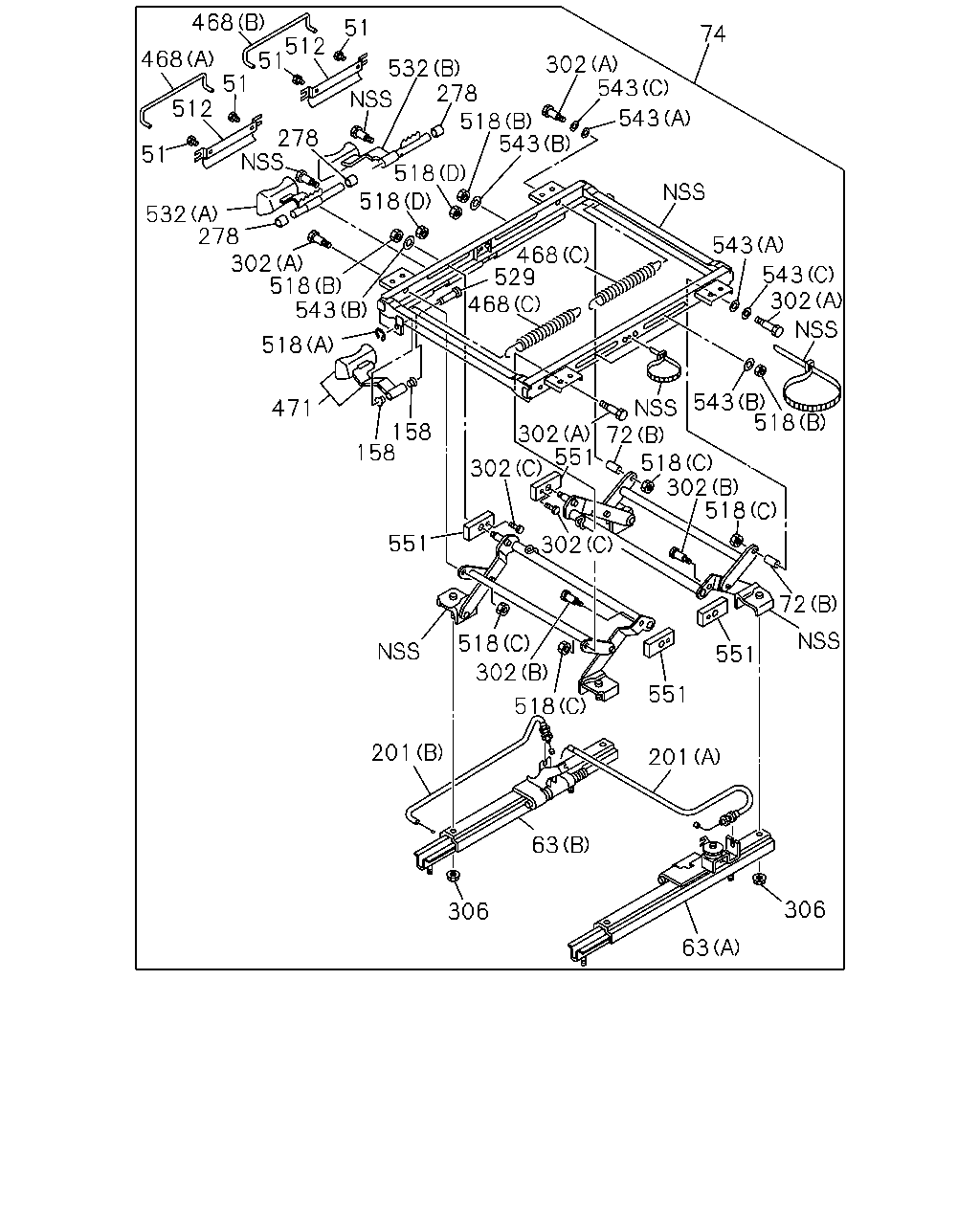

63 306 63 306 201 518 551 201 551 72 518 302 518 543 302 543 543 543 74 302 543 518 278 532 51 512 51 512 51 278 302 518 302 302 551 158 158 302 551 72 468 529 468 518 471 543 518 302 278 532 468 468 518 518 543 51 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0105-	●	●
51	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75517-953-0	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	0105-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0105-0105	●	●
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0105-0105	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75517-911-0	02	1	0106-	●	●
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-334-1	02	1	0105-	●	●
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-334-1	02	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75517-959-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75517-959-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-1	01	1	0105-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-1	01	1	0105-	●	●
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0105-	●	●
158	BUSHING; LINK ARM EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0105-	●	●
201	CABLE; ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0105-	●	●
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0105-	●	●
201	CABLE; ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0105-	●	●
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0105-	●	●
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0105-	●	●
278	COLLAR; FRT SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0105-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0105-	●	●
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0105-	●	●
306	NUT; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-	●	●
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-291-0	01	1	0105-	●	●
471	LEVER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-291-0	01	1	0105-	●	●
512	COVER; LEVER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-243-1	02	1	0105-	●	●
512	COVER; LEVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-243-1	02	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0105-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	0105-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-	●	●
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	0105-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	0105-	●	●
529	PIN; LINK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0105-	●	●
529	PIN; LINK EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0105-	●	●
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	0105-	●	●
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	0105-	●	●
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	0105-	●	●
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-335-0	02	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0105-0406	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0105-0406	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0105-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0105-	●	●
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0105-	●	●
551	SLIDER; HEIGHT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0105-	●	●

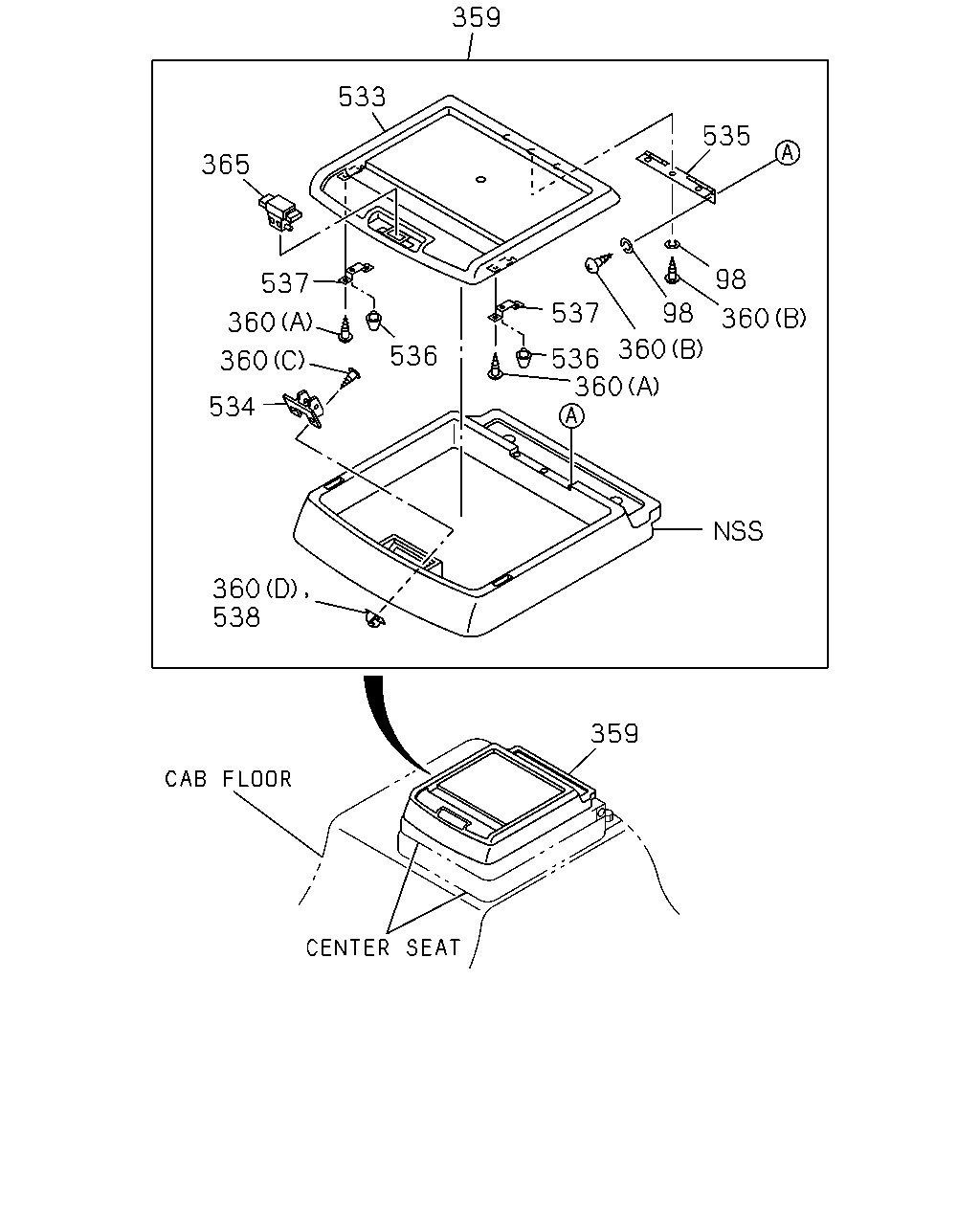

359 538 360 534 360 360 537 365 533 359 535 98 360 360 98 537 536 360 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211	●	●
98	WASHER; HINGE DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310	●	●
98	WASHER; HINGE EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0310	●	●
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0105-	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310	●	●
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310	●	●
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0105-	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0105-	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0105-	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0105-	●	●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0105-	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0105-	●	●
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-	●	●

403 182 179 403 189 359 188 16 188 175 176 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (B)	1-75418-062-1	01	1	0105-	●	●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75417-602-0	01	1	0105-	●	●
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-3	01	1	0105-	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-855-0	01	1	0105-0406	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-856-2	01	1	0407-	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-258-2	01	1	0105-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0105-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-651-0	01	1	0105-0406	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-710-1	01	1	0407-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-078-1	01	1	0105-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0105-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-696-1	01	1	0105-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-128-1	01	1	0105-	●	●
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-3	01	1	0105-	●	●
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-845-2	01	1	0105-	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-306-2	01	1	0105-	●	●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0105-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0105-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0105-	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0310	●	●
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310	●	●
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0105-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-504-1	04	1	0105-0206	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0207-0312	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0105-	●	●

136 73 211 123 122 113 114 120 119 126 120 24 228 515 327 135 137 115 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0106-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0106-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0105-0105	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0105-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
73	NUT; ADJ,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	08	1	0105-	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75026-796-0	01	1	0105-0105	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75208-191-4	01	1	0106-	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-302-4	01	1	0105-	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75026-735-0	01	1	0105-0105	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75208-074-3	01	1	0106-	●	●
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-228-0	01	1	0105-0105	●	●
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-549-1	01	1	0106-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75116-592-1	01	1	0105-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-709-2	01	1	0105-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-126-1	01	1	0105-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-059-1	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75026-784-2	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-299-1	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-1	01	1	0105-	●	●
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-215-2	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-691-2	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-123-1	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-1	01	1	0105-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-093-1	01	1	0105-	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0105-	●	●
120	BOLT; RECLINING ADJ DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0105-	●	●
120	BOLT; RECLINING ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0105-	●	●
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	04	1	0105-	●	●
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105	●	●
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING<SFQ> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105	●	●
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0106-	●	●
122	COVER; ADJ,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0106-	●	●
122	COVER; ADJ,RECLINING EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75418-050-0	01	1	0105-0105	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-598-0	01	1	0105-	●	●
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
123	SCREW; COVER,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M6X12	9-03490-612-0	01	1	0105-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0105-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0105-	●	●
136	STAND; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75558-550-4	01	1	0105-0105	●	●
136	STAND; PASSENGER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75558-602-0	01	1	0105-0105	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0106-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
211	COVER; FRT SEAT	1-72538-274-0	01	1	0105-	●	●
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-	●	●
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0302	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	01	1	0105-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0105-0212	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0105-0212	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0301-0302	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0303-	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0303-	●	●
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0105-	●	●

582 582 582 582 581 76 336 55 81 63 46 325 336 336 587 590 336 16 12 13 2 1 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0105-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-3	01	1	0105-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-4	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-1	01	1	0105-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-1	01	1	0105-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0105-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-2	01	1	0105-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-153-2	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING<SFQ>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0105-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-101-1	01	1	0105-	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (B)	1-75418-062-1	01	1	0105-	●	●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75417-602-0	01	1	0105-	●	●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-029-0	01	1	0105-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75517-953-0	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	0105-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	0105-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-	●	●
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-	●	●
81	SPRING; AIR FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0105-	●	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75537-274-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-316-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-316-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-303-0	01	1	0105-	●	●
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E)	1-75518-303-0	01	1	0105-	●	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-73907-605-2	01	1	0110-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09980-619-1	02	1	0110-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0110-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0110-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75197-007-0	01	1	0105-	●	●
590	KNOB KIT; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-600-0	01	1	0105-	●	●

470 85 85 86 339 76 78 66 66 77 79 79 88 62 80 78 81 79 79 86 322 78 78 467 87 513 85 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0105-	●	●
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-	●	●
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-	●	●
77	PIN; DAMPER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-	●	●
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-	●	●
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0105-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-	●	●
81	SPRING; AIR FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-2	01	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0105-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-	●	●
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-	●	●
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-	●	●
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0105-	●	●
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0105-	●	●
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0105-	●	●
467	LEVER; LOCK FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0105-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-	●	●
470	CLIP; HOSE FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-	●	●
513	SPACER; LEVER FABRIC SEAT W/RECLINING<SFQ>,PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
