8-15 — FIXING PARTS; WIRING HARNESS (#134208) — 169 parça

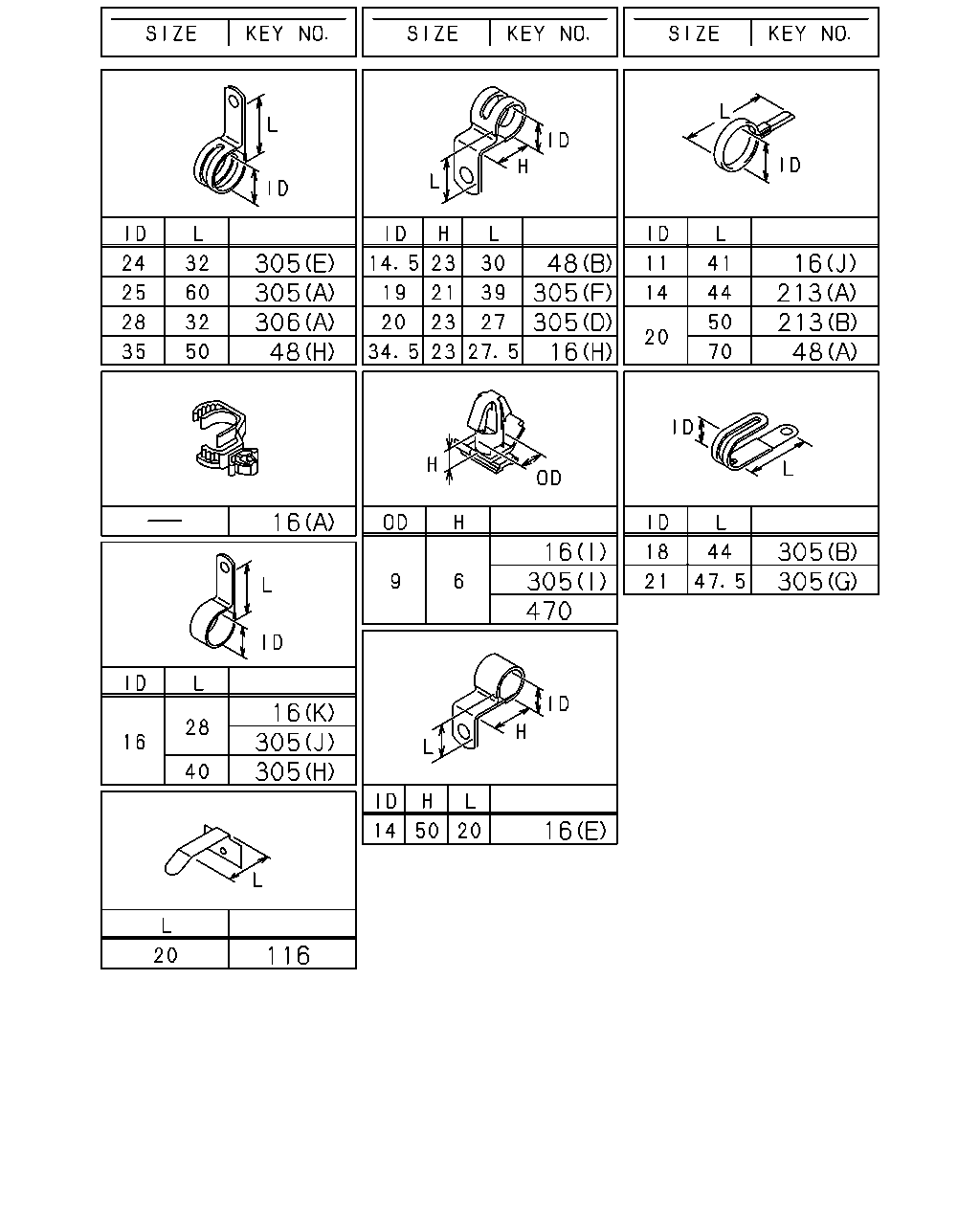

çizim 407983
305 48 306 305 16 16 305 305 116 16 470 16 305 48 16 305 305 16 48 213 213 305 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1402-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1402-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1402-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1402-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1402-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1402-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1402-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1402-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1402-
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 1402-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1402-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1402-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1402-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1402-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1402-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1402-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1402-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1402-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1402-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1402-

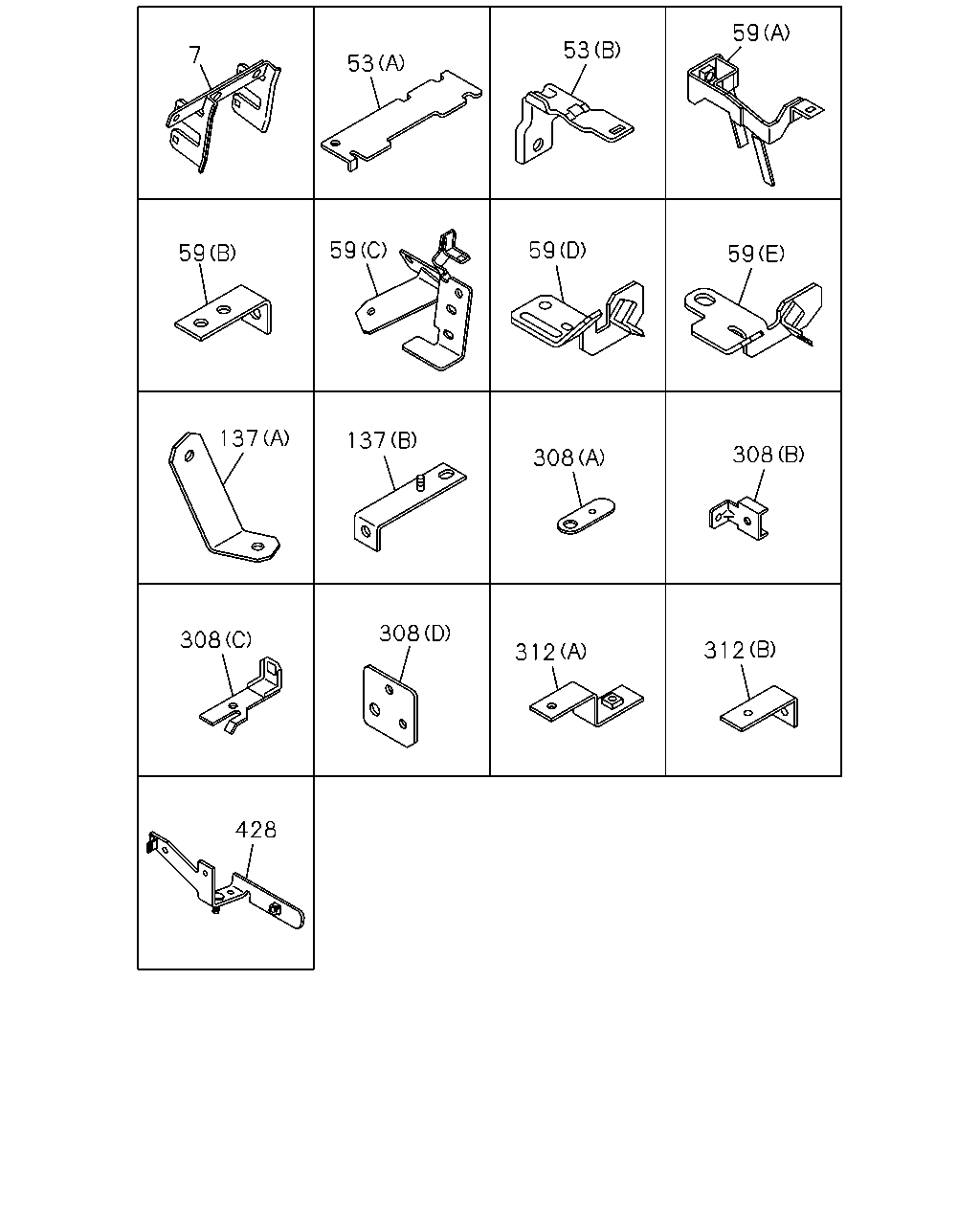

çizim 407986
7 53 53 59 59 59 308 308 137 137 59 59 308 308 312 312 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1402-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1402-
53 BRACKET; HARNESS
(A) 		8-98127-093-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(B) 		1-21464-170-2 01 1 1402-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1402-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1402-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1402-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1402-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1402-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1402-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1402-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1402-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1402-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1402-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1402-
428 BRACKET 8-98212-082-1 01 1 1402-

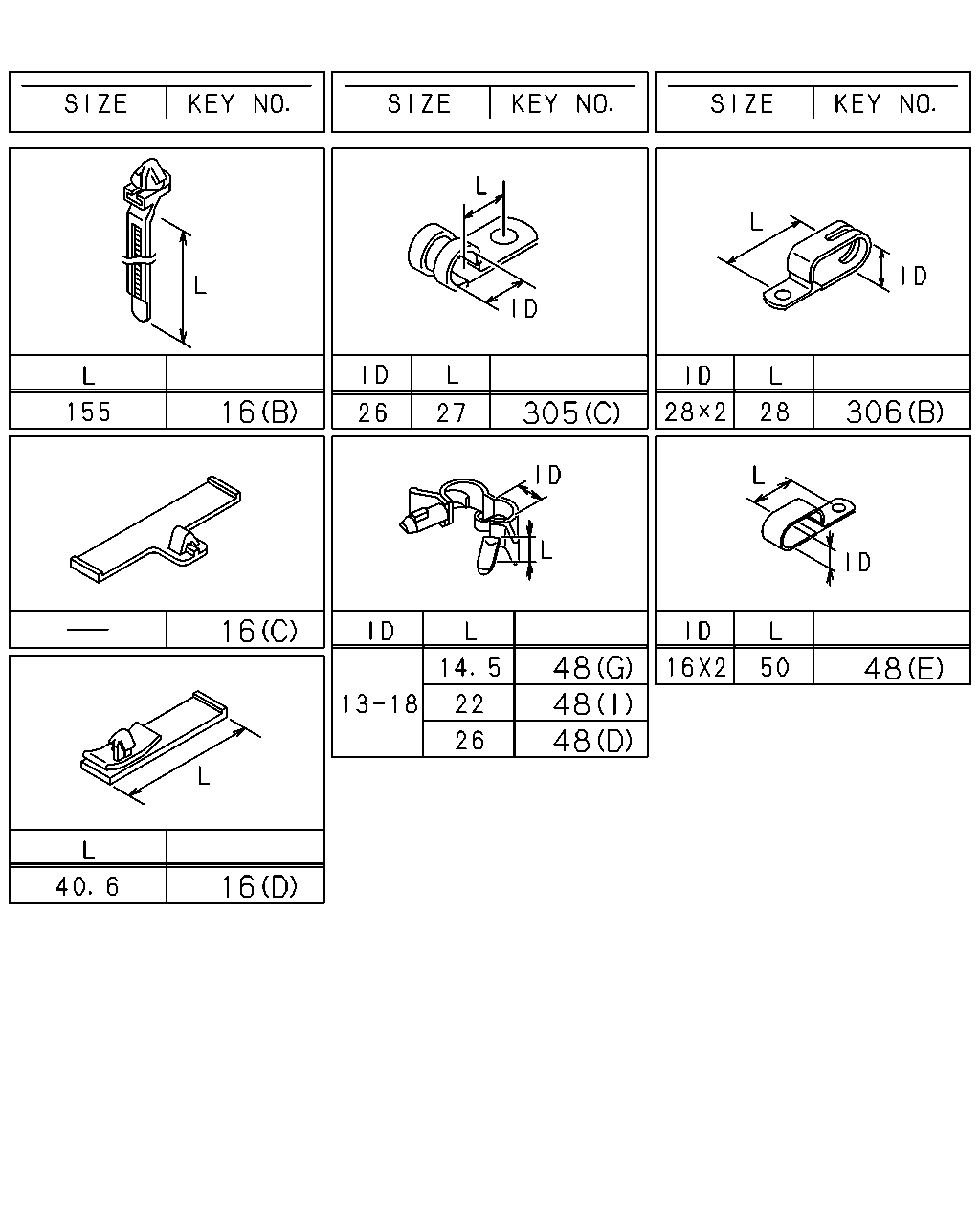

çizim 408039
16 16 16 48 48 305 48 48 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1402-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1402-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1402-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1402-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1402-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1402-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1402-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1402-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1402-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1402-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 		1-09700-972-1 01 1 1402-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 		1-09701-006-0 01 1 1402-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1402-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1402-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1402-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1402-

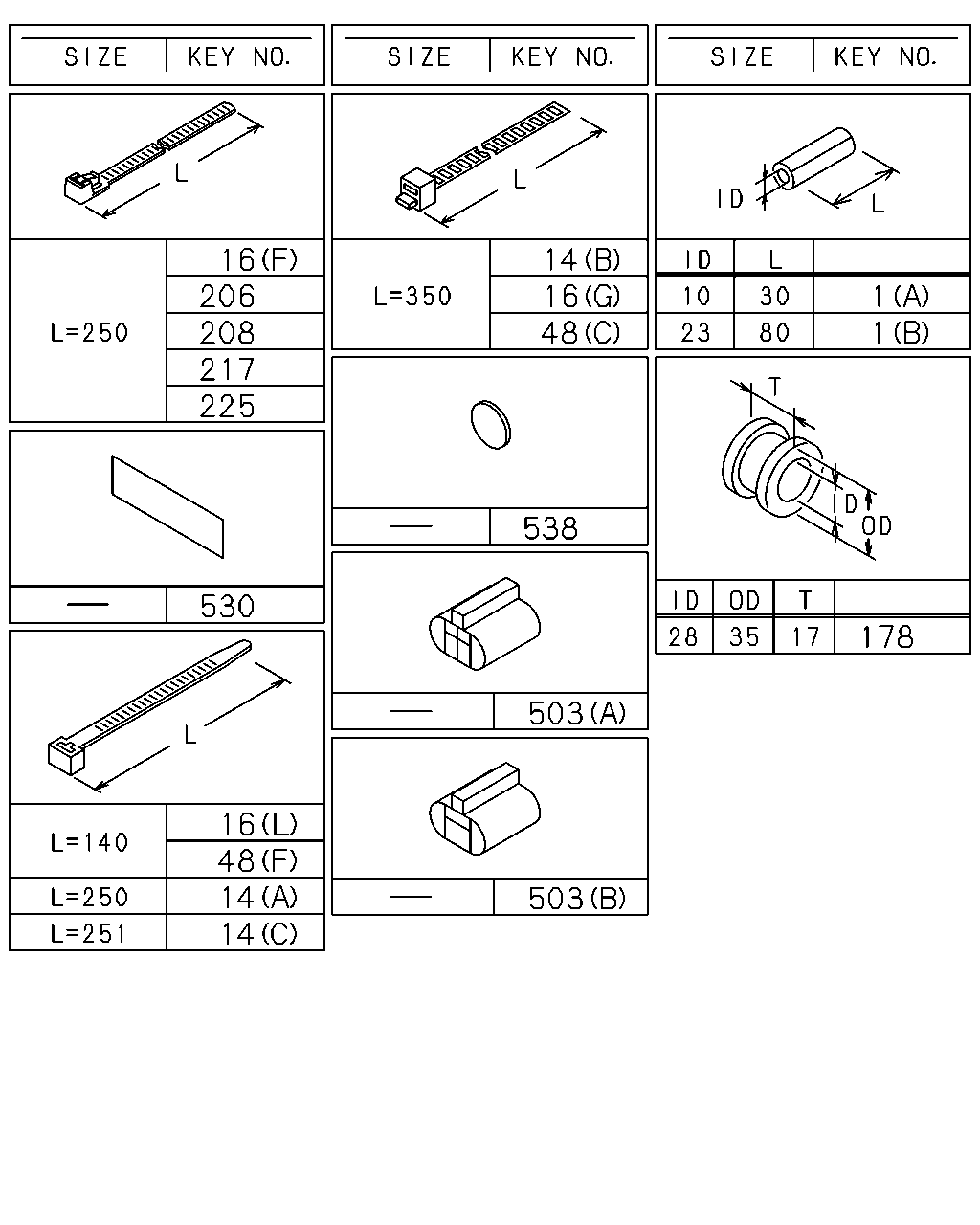

çizim 408188
16 206 208 217 225 16 48 14 14 503 503 538 48 16 14 178 1 1 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1402-1402
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 05 1 1403-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1402-1406
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 1407-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1402-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 1402-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 14 1 1402-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1402-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 		1-09700-403-0 01 1 1402-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1402-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1402-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 		1-09701-214-0 01 1 1402-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 		1-09709-290-0 03 1 1402-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 		1-09709-292-0 01 1 1402-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 		1-09709-293-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1402-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1402-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1402-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 		5-09707-030-1 01 1 1402-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 01 1 1402-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1402-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1402-
503 CONNECTOR
(A) 		1-82690-666-0 01 1 1402-
503 CONNECTOR
(B) 		1-82690-668-0 01 1 1402-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1402-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-

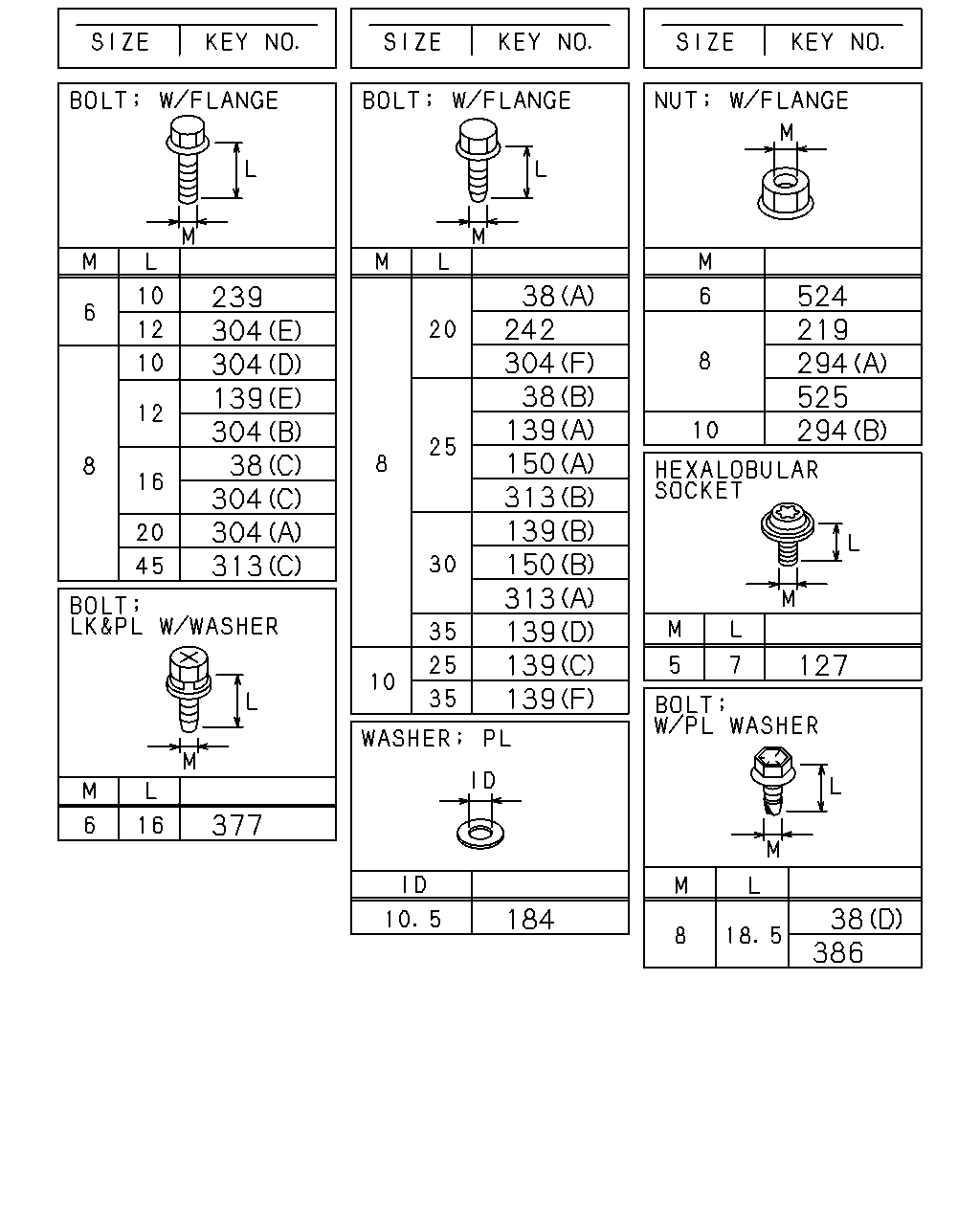

çizim 408296
127 38 386 294 525 294 219 524 184 139 139 139 313 150 139 313 150 139 38 304 242 38 239 304 304 139 304 38 304 304 313 377
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1402-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1402-
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1402-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1402-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
139 BOLT; BRKT
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 1402-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1402-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1402-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1402-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1403-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
304 BOLT; ENG HARNESS CLIP
(F) M8X20 FLANGE THA 		0-28650-820-0 01 1 1503-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1402-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1402-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1402-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1402-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402-
313 BOLT; BRKT
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 1402-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1402-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1402-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
