Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#134207) — 62 parça
◀
[810A] ENGINE HARNESS (3 parça)
[810A] OTHER HARNESS NO.1 (5 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] MISSION HARNESS (4 parça)
[810A] AIR TANK HARNESS (2 parça)
[810A] CAB HARNESS (24 parça)
[810A] FRAME HARNESS (15 parça)
[810A] OTHER HARNESS NO.2 (7 parça)
▶

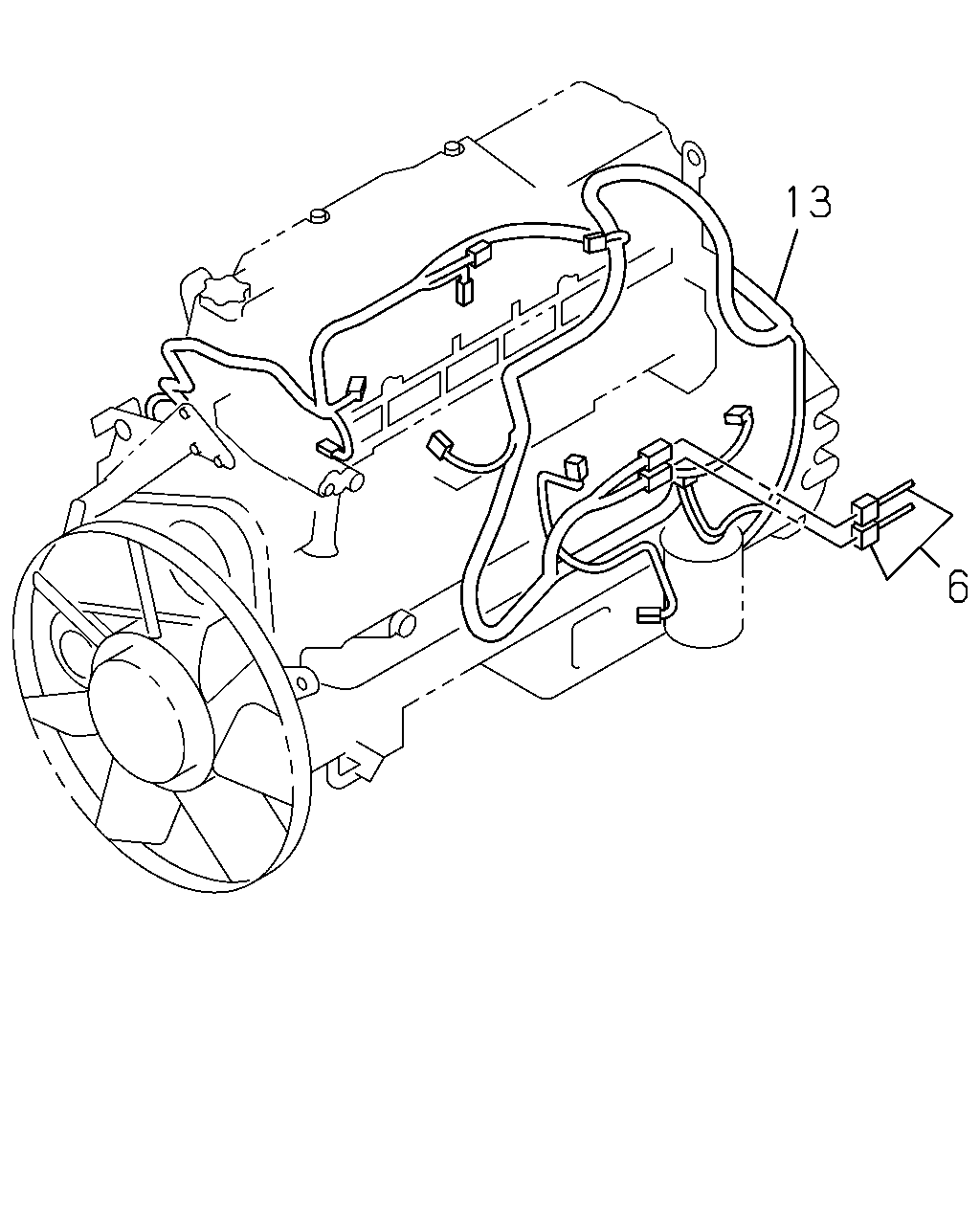

13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1402-
13
HARNESS; ENG
GENERATOR 24V50A<K89>
8-98171-593-0
01
1
1402-
13
HARNESS; ENG
GENERATOR 24V60A<KG2>
8-98171-594-0
01
1
1402-

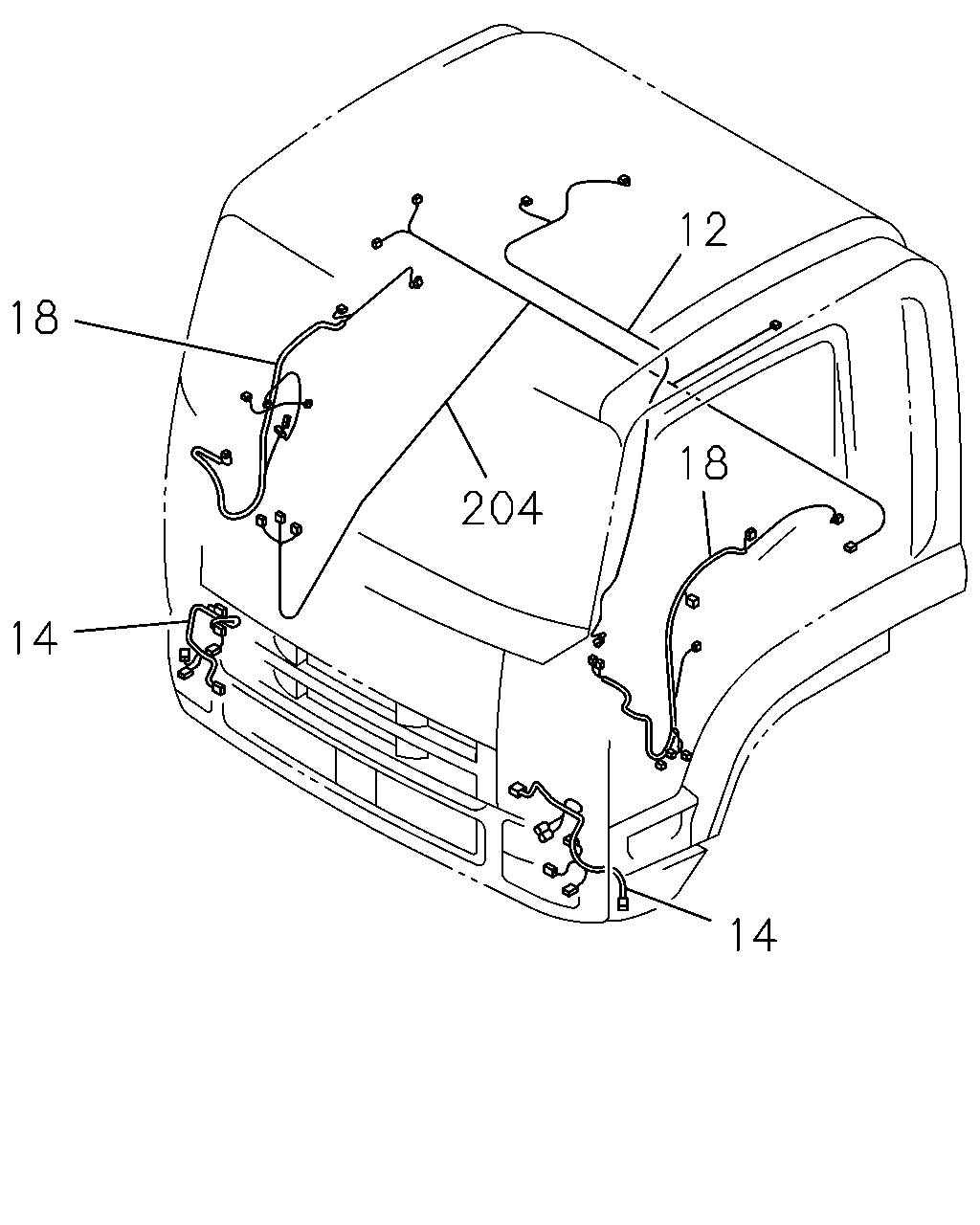

14
18
12
204
18
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
THA
8-97924-274-0
01
1
1402-
14
HARNESS; HEADLAMP
THA
8-94270-986-0
02
1
1402-
18
HARNESS; DOOR
PASSENGER THA
8-98076-305-3
01
1
1402-
18
HARNESS; DOOR
DRIVER THA
8-98076-304-3
01
1
1402-
204
HARNESS; CABLE,FLOOR
THA
8-98081-207-2
01
1
1402-

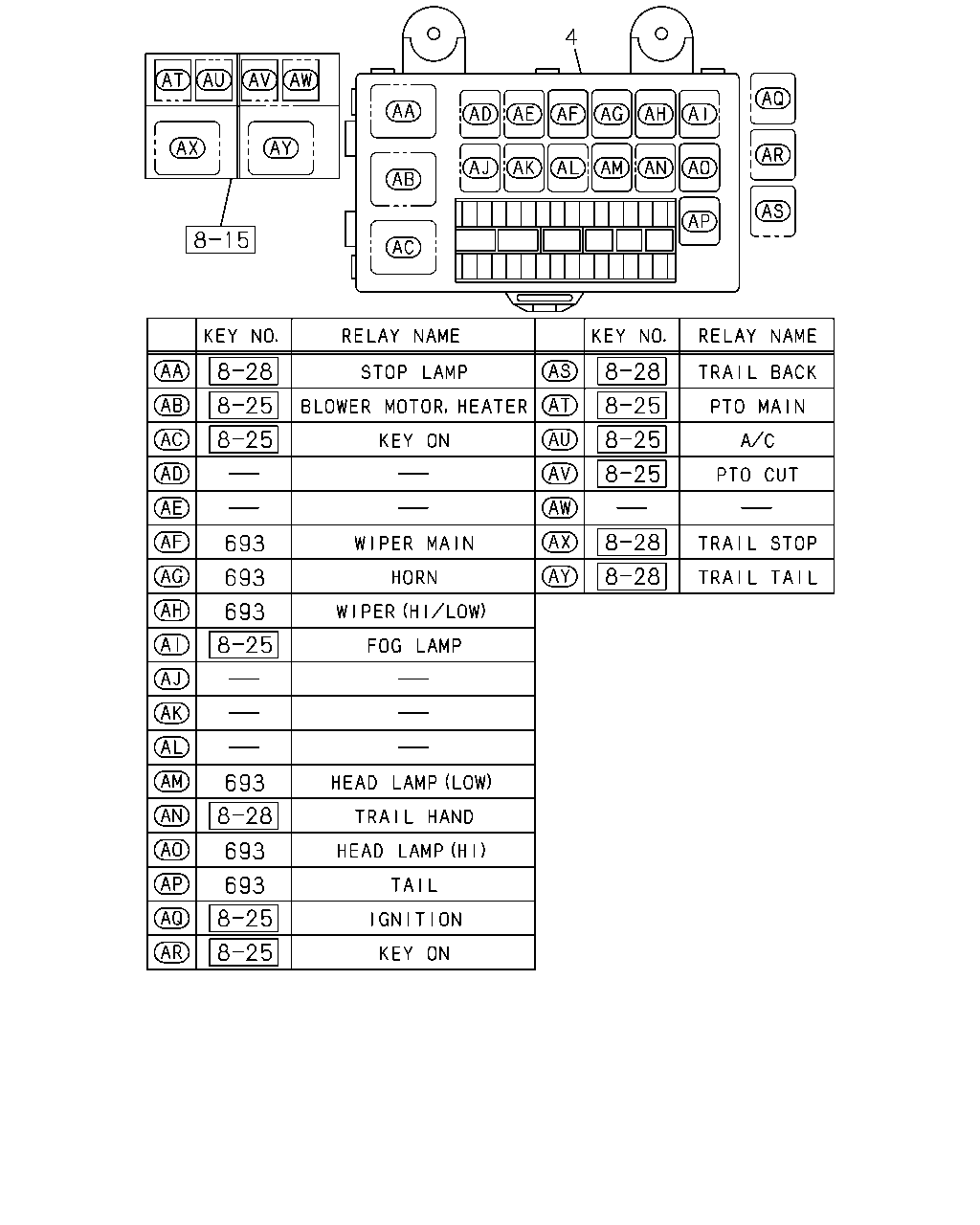

693
693
693
693
693
693
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
THA
8-98065-666-0
01
1
1402-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1402-

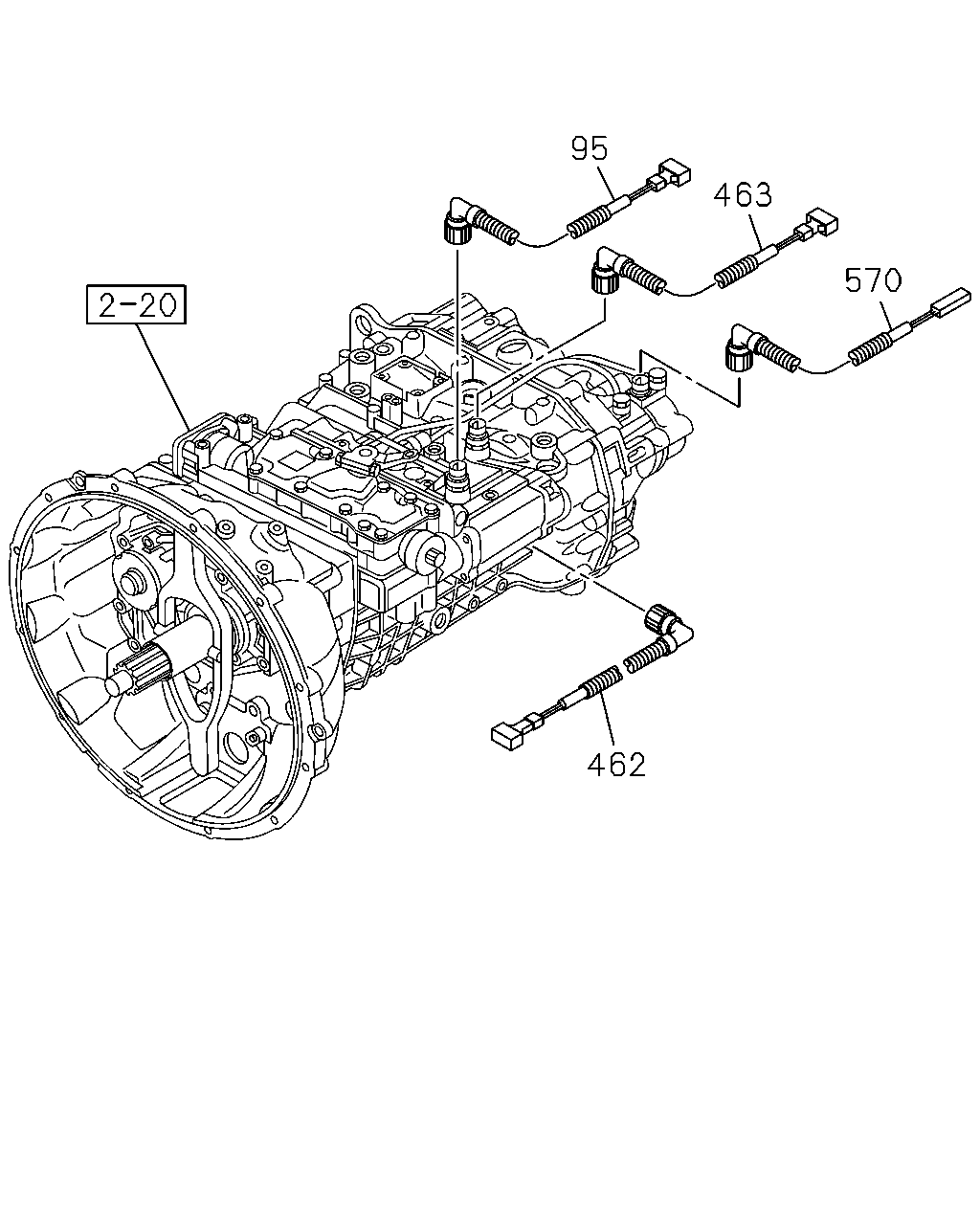

462
570
463
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
HARNESS; NEUTRAL SW
RED
8-98145-855-0
01
1
1402-
462
HARNESS; SW,RANGE
BLUE
8-98145-857-0
01
1
1402-
463
HARNESS; SW,BACK UP
BLACK
8-98145-856-0
01
1
1402-
570
HARNESS; SPEED SENSOR
8-98148-602-0
01
1
1402-

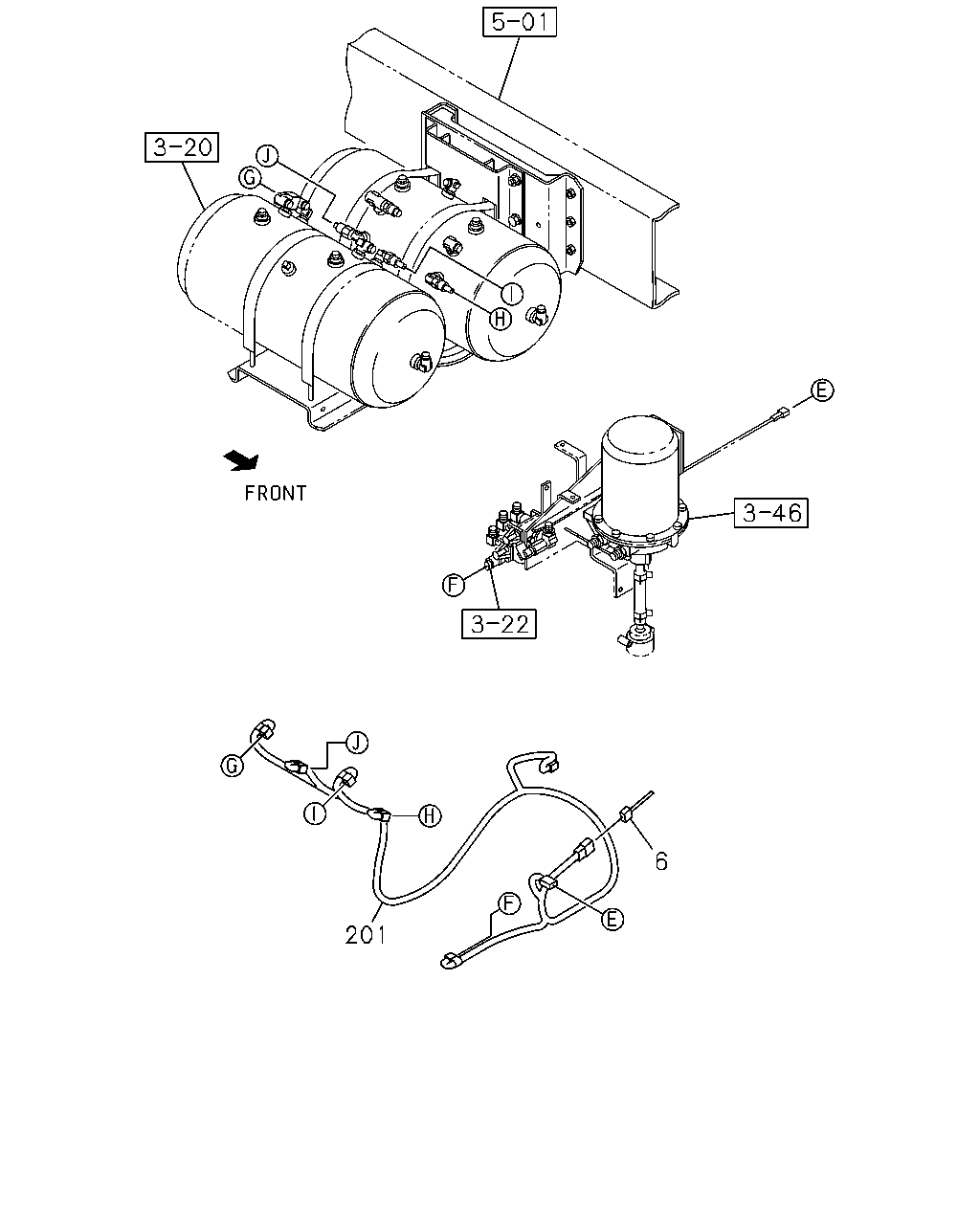

6
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1402-
201
HARNESS; AIR TANK
THA
8-98184-703-0
01
1
1402-

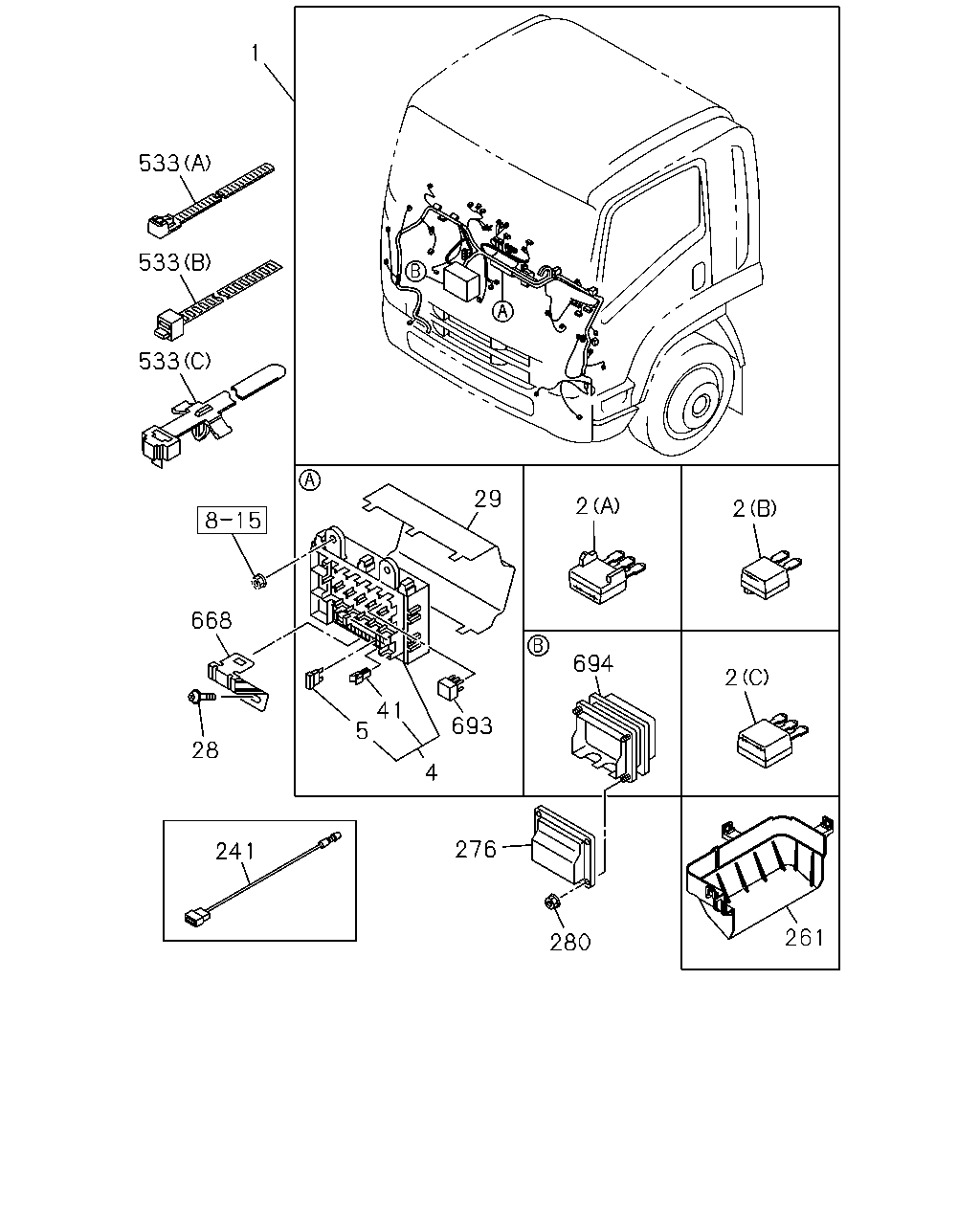

1
533
533
533
668
28
241
29
2
2
2
694
693
4
5
41
276
280
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
THA
8-97926-455-0
01
1
1402-1410
1
HARNESS; CAB
THA
8-98298-049-0
01
1
1411-
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
1402-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA
8-94422-639-1
03
1
1402-
2
DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA
8-94422-640-1
01
1
1402-
4
BOX ASM; FUSE,HARNESS
THA
8-98065-666-0
01
1
1402-
5
FUSE; FACIA HARNESS
10A RED THA
8-98054-257-0
AR
1
1402-
5
FUSE; FACIA HARNESS
15A BLUE THA
8-98054-258-0
AR
1
1402-
5
FUSE; FACIA HARNESS
20A YELLOW THA
8-98054-259-0
AR
1
1402-
5
FUSE; FACIA HARNESS
25A WHITE THA
8-98062-982-0
02
1
1402-1410
5
FUSE; FACIA HARNESS
25A WHITE THA
8-98062-982-0
AR
1
1411-
28
SCREW; FUSE BOX
M6X16 FLANGE THA
0-28650-616-0
01
1
1402-
29
COVER; FUSE BOX
THA
8-98056-968-0
01
1
1402-
41
PULLER; FUSE
THA
8-98054-260-0
01
1
1402-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
1402-
261
COVER; CONNECTOR BOX
THA
8-98065-986-1
01
1
1402-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1402-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
1402-
533
CLIP
(B) L=180
1-09707-162-1
01
1
1402-
533
CLIP
POOR QUALITY DIESEL FUEL<KF0> (A) L=250
5-09707-030-1
01
1
1402-
533
CLIP
REAR BODY MAKER<XN4> (C) L=170.3 THA
1-09987-182-0
01
1
1402-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1402-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1402-
694
BOX ASM; CONNECTOR
THA
8-98057-771-0
01
1
1402-

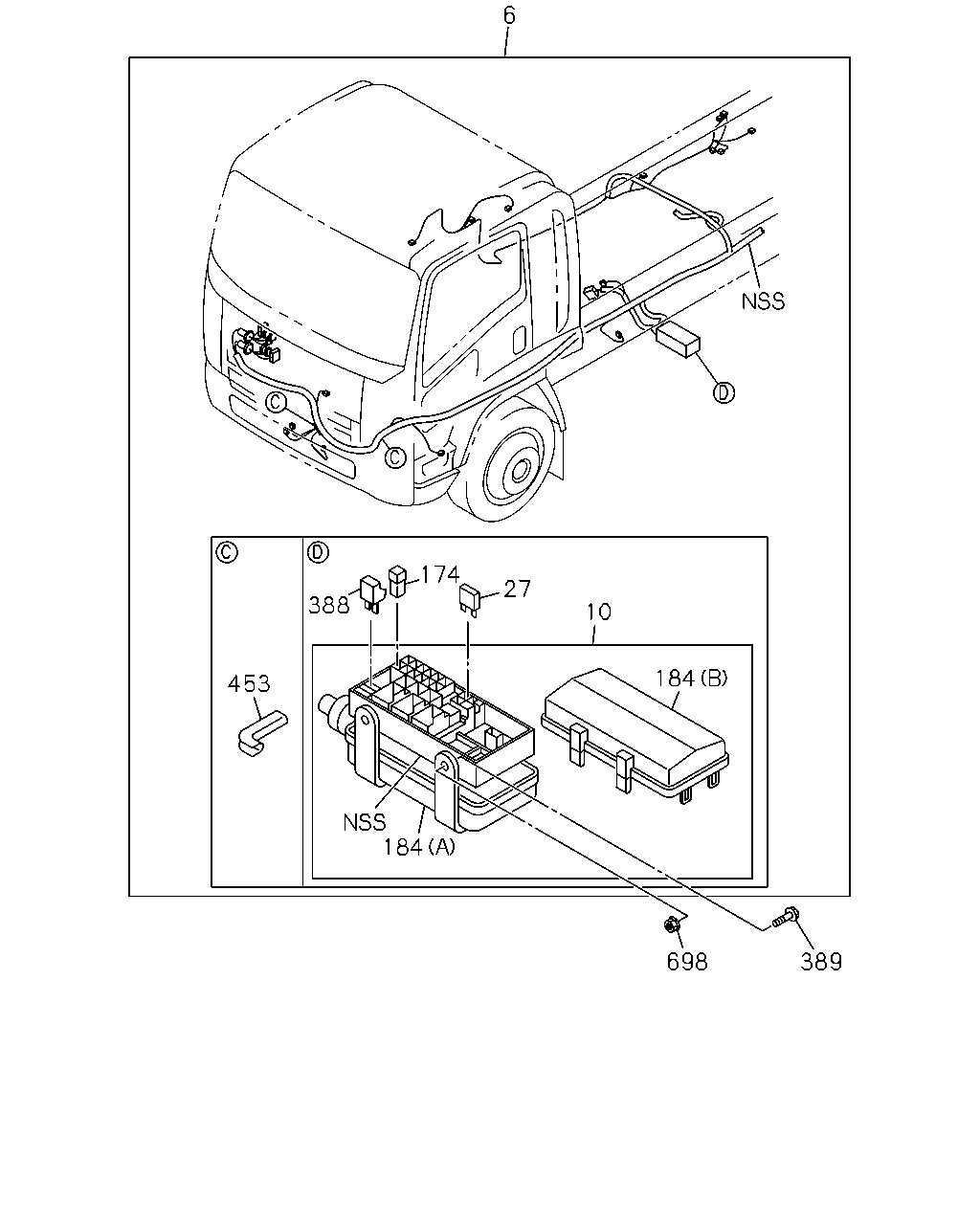

6
453
388
174
27
10
184
184
698
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1402-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1402-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
1402-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
02
1
1402-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1402-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1402-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
1402-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
1402-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
1402-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
1402-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
1402-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
1402-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1402-
453
PROTECTOR; HARNESS
THA
1-82699-709-0
01
1
1402-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
1402-

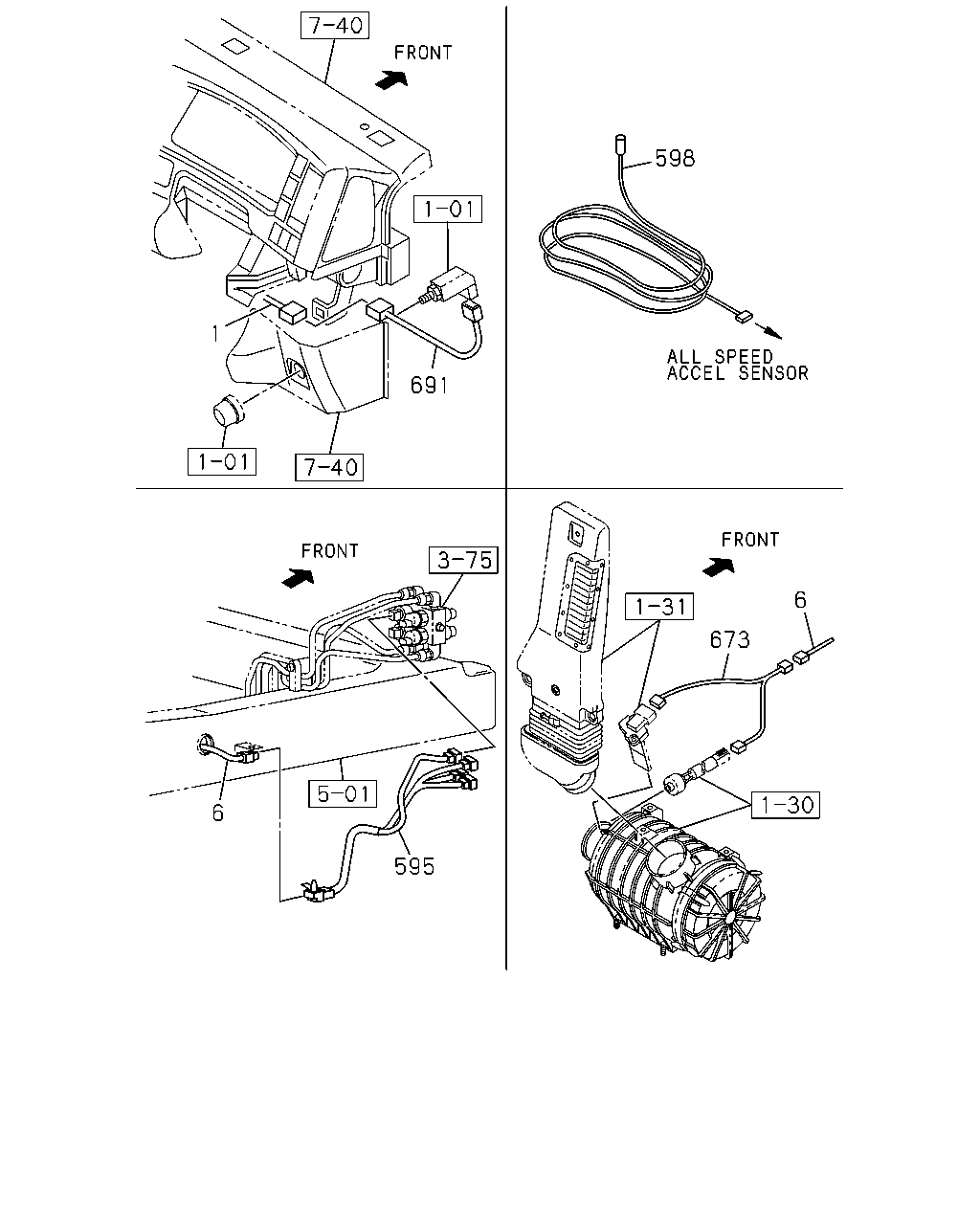

673
6
595
598
1
691
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
THA
8-97926-455-0
01
1
1402-1410
1
HARNESS; CAB
THA
8-98298-049-0
01
1
1411-
6
HARNESS; FRAME
THA
8-97926-419-0
01
1
1402-
595
HARNESS; WARNING,BRK
THA
8-97924-875-0
01
1
1402-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6>
1-82675-898-0
01
1
1402-
673
HARNESS; EXT,SENSOR
THA
8-97948-234-0
01
1
1402-
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1402-
