7-45 — CONSOLE BOX (#13420) — 110 parça

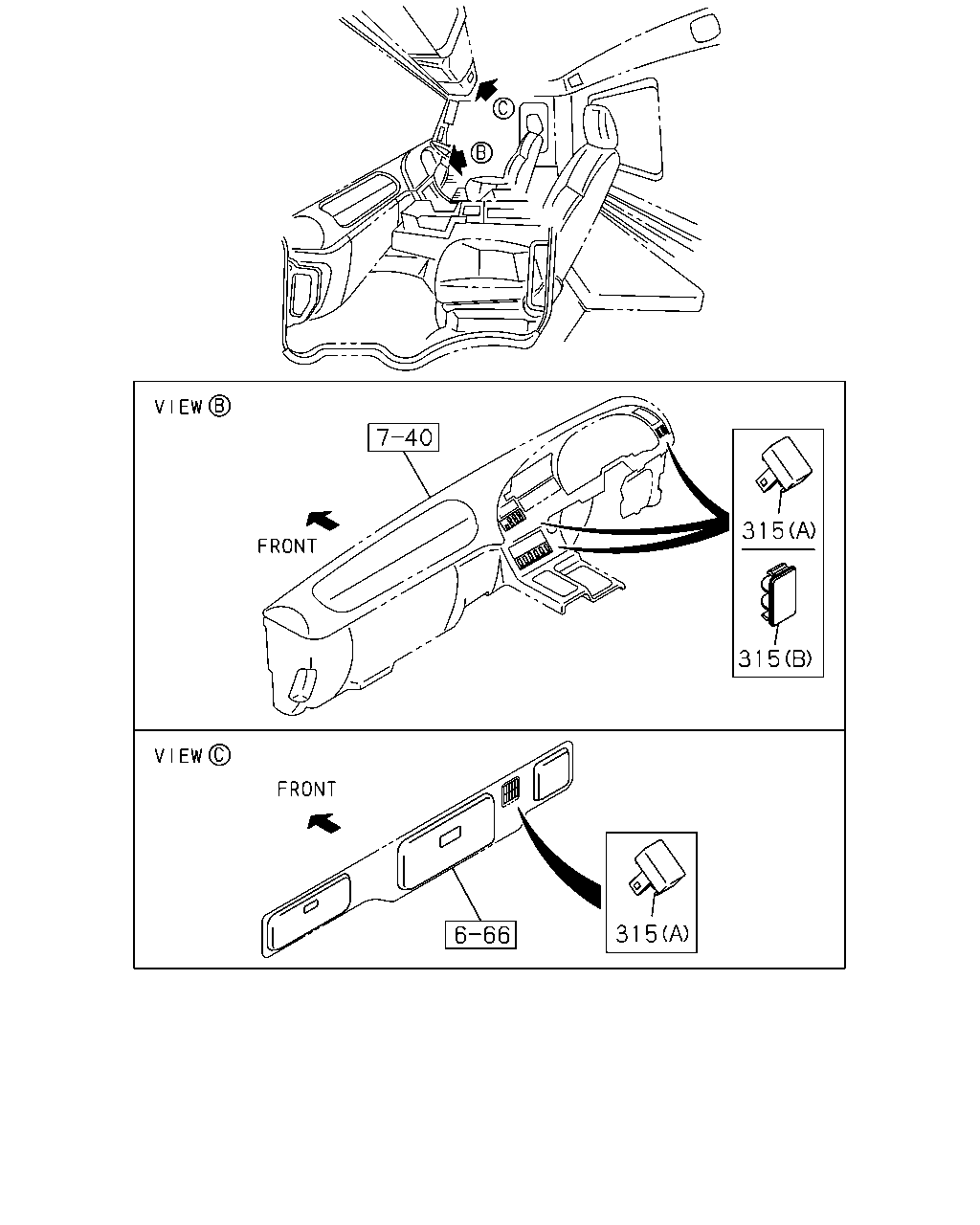

315 315 315

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	0105-	●	●
	315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	0105-	●	●

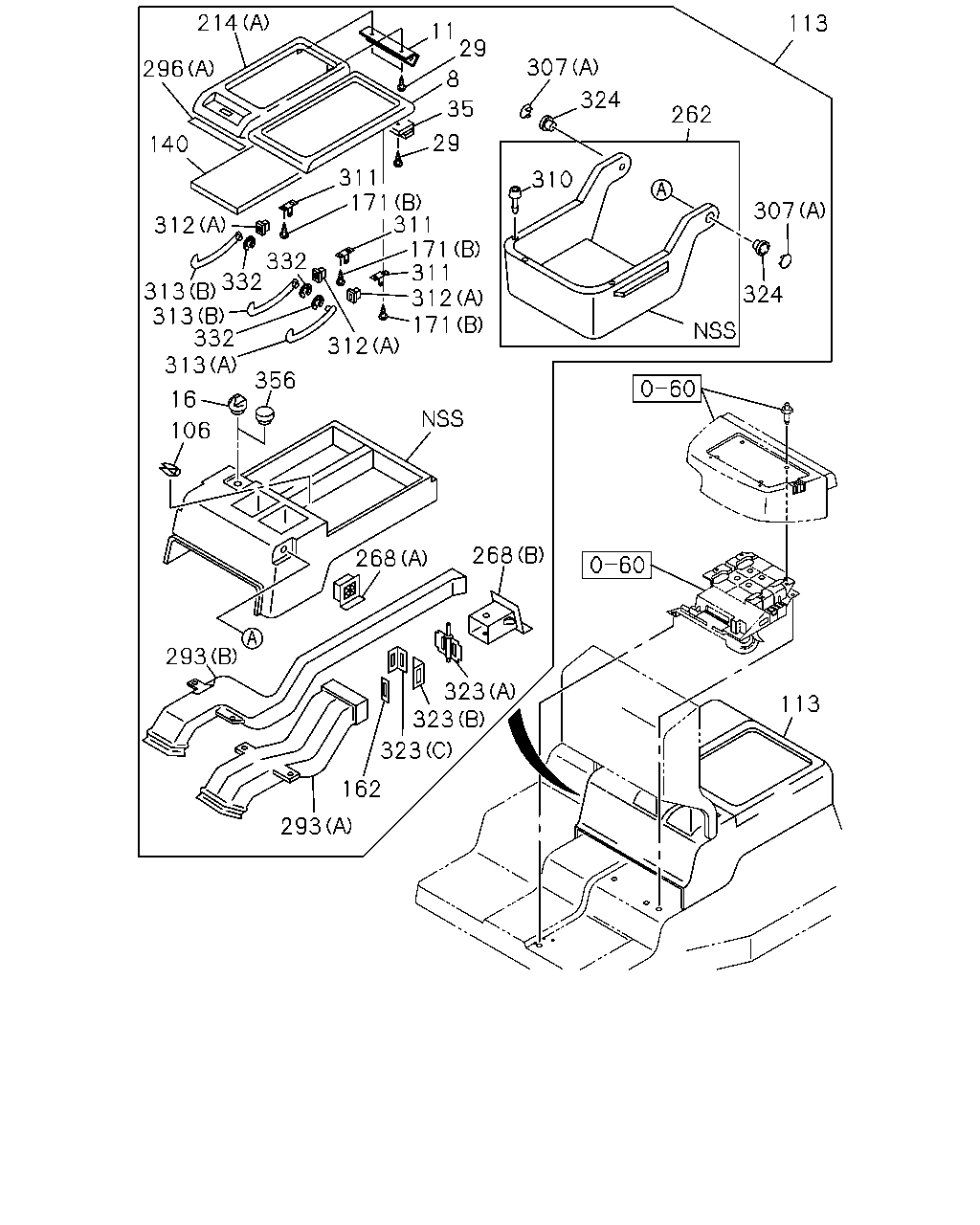

293 113 162 323 323 323 268 268 293 106 16 356 312 171 312 311 171 311 171 311 312 332 332 313 313 313 140 296 214 11 29 8 35 29 307 324 262 113 310 307 324 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-185-0	01	1	0105-	●	●
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-185-0	01	1	0105-	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0105-	●	●
11	HINGE; CONSOLE LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-070-2	01	1	0105-	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0105-	●	●
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-189-0	01	1	0105-	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	0105-	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	0105-	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD	1-72537-169-0	06	1	0105-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-182-1	01	1	0105-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72538-182-1	01	1	0105-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-079-0	02	1	0105-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-079-0	02	1	0105-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-	●	●
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-093-1	01	1	0105-	●	●
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	0105-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0105-	●	●
214	LID; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72537-069-1	01	1	0105-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-186-0	01	1	0105-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72537-186-0	01	1	0105-	●	●
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-187-1	01	1	0105-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-183-0	01	1	0105-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B)	1-72537-183-0	01	1	0105-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-184-0	01	1	0105-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72537-184-0	01	1	0105-	●	●
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	0105-	●	●
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	0105-	●	●
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	0105-0303	●	●
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0304-	●	●
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-094-1	01	1	0105-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0105-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0105-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-187-0	02	1	0105-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72538-187-0	02	1	0105-	●	●
311	HOLDER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-188-2	01	1	0105-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0105-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72538-184-3	01	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-72538-186-1	01	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-72538-187-0	02	1	0105-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-186-1	03	1	0105-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72538-186-1	03	1	0105-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	0105-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	0105-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	0105-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	0105-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B)	1-72537-126-0	01	1	0105-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	0105-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	0105-	●	●
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL>	1-72537-116-0	02	1	0105-	●	●
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-170-0	03	1	0105-	●	●
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-170-0	03	1	0105-	●	●
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0105-	●	●

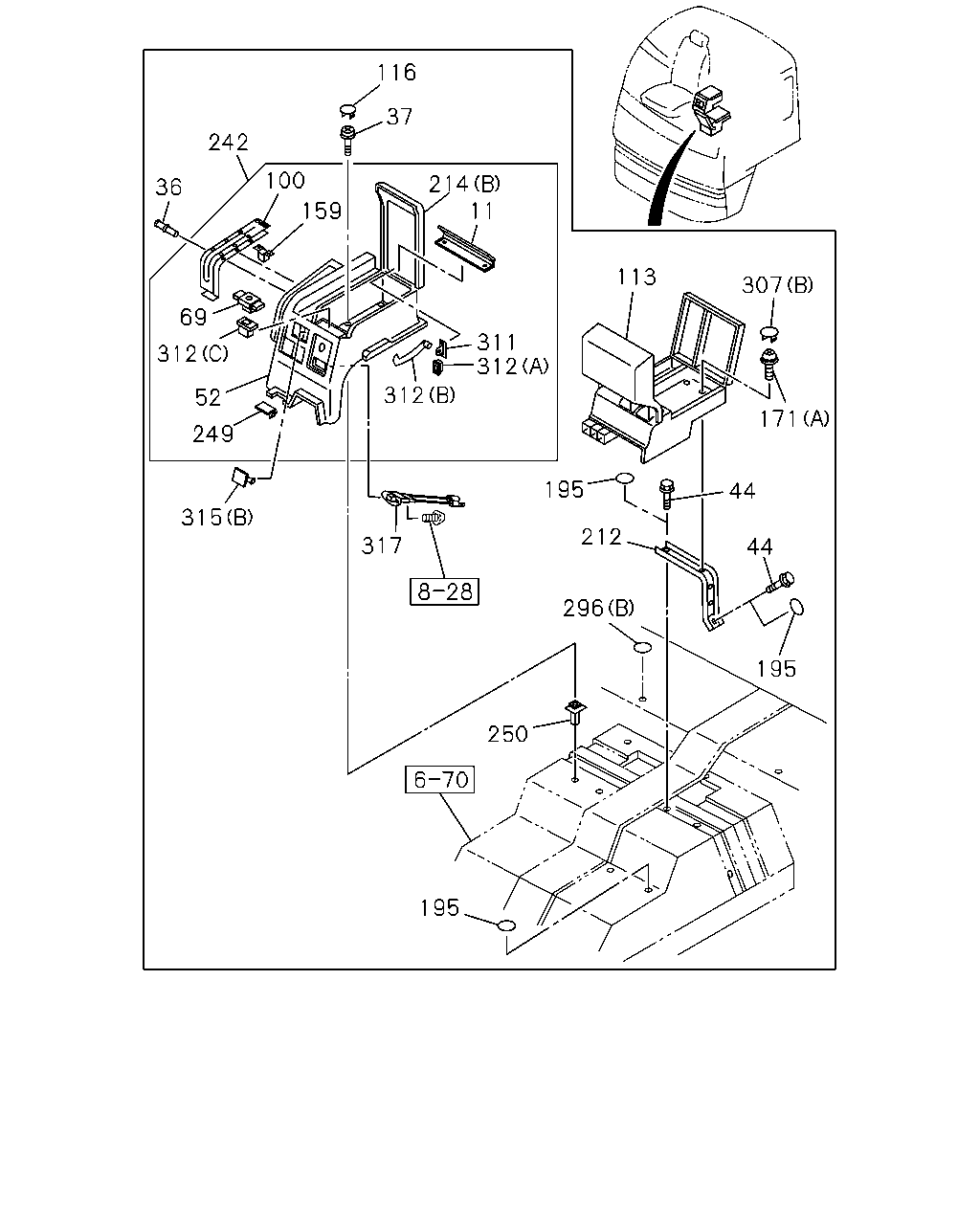

195 250 296 195 44 44 171 307 212 195 113 312 311 214 37 116 100 159 242 36 69 312 249 52 315 317 312 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0105-	●	●
11	HINGE; CONSOLE LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-070-2	01	1	0105-	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0105-	●	●
36	FASTENER; CENTER CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) D8X13.5	1-09987-248-1	02	1	0105-	●	●
37	SCREW; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	0105-	●	●
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
52	CONSOLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-067-5	01	1	0105-	●	●
69	LOCK ASM; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-180-0	01	1	0105-	●	●
100	RUBBER; CONSOLE,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-161-3	01	1	0105-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-180-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-240-3	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-285-3	01	1	0508-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-220-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-252-2	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU>	1-72537-291-3	01	1	0508-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-181-0	01	1	0105-0404	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-251-2	01	1	0405-0507	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-294-2	01	1	0508-	●	●
116	COVER; HOLE,CONSOLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-106-0	02	1	0105-	●	●
159	STRIKER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-190-0	01	1	0105-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0105-	●	●
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	0105-	●	●
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	0105-	●	●
214	LID; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72537-069-1	01	1	0105-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-186-0	01	1	0105-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72537-186-0	01	1	0105-	●	●
242	TRAY ASM; CTR CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-065-4	01	1	0105-	●	●
249	COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-124-0	01	1	0105-	●	●
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	0105-	●	●
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	0105-0303	●	●
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0304-	●	●
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-094-1	01	1	0105-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-76337-461-0	04	1	0105-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A)	1-72537-188-0	02	1	0105-	●	●
311	HOLDER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-188-2	01	1	0105-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0105-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72538-184-3	01	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-72538-186-1	01	1	0105-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-72538-187-0	02	1	0105-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-186-1	03	1	0105-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> (A)	1-72538-186-1	03	1	0105-	●	●
315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	0105-	●	●
315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	0105-	●	●
317	CONSENT	1-82523-020-2	01	1	0105-	●	●
