Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

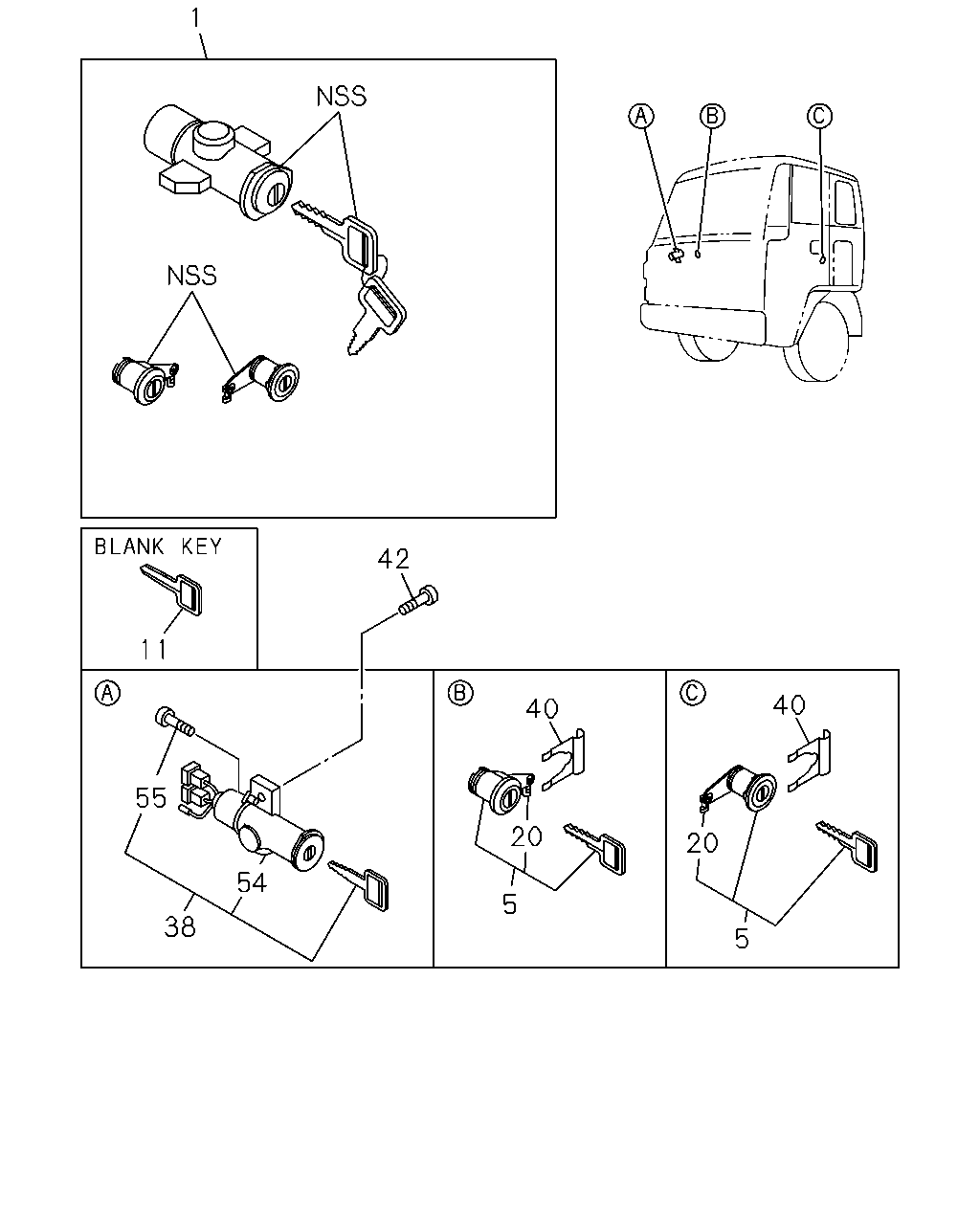

7-30 — LOCK CYLINDER SET
(#1342) — 16 parça
1
42
11
40
40
55
20
20
54
5
38
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
1-79138-156-2
01
1
9204-9409
1
CYLINDER SET; CAR LOCK
1-79137-089-1
01
1
9410-
5
CYLINDER ASM; DOOR LOCK
W/KEY
1-79138-101-1
01
1
9204-9409
5
CYLINDER ASM; DOOR LOCK
W/KEY
1-79137-094-0
01
1
9410-
5
CYLINDER ASM; DOOR LOCK
W/KEY
1-79138-100-1
01
1
9204-9409
5
CYLINDER ASM; DOOR LOCK
W/KEY
1-79137-093-0
01
1
9410-
11
KEY; BLANK
1-79137-039-0
AR
1
9204-9409
11
KEY; BLANK
1-79137-129-0
AR
1
9410-
20
SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5
1-79138-167-0
01
1
9210-
20
SNAP; DOOR LOCK CYL
YELLOW
1-79138-166-0
01
1
9210-
38
LOCK ASM; STRG
1-79138-165-0
01
1
9204-9409
38
LOCK ASM; STRG
1-79137-122-1
01
1
9410-
40
CLIP; CYL LK
1-79137-033-1
02
1
9204-
42
BOLT; STRG LOCK
M8X30 W/PL WASHER
1-09981-482-1
02
1
9204-
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-0
01
1
9410-
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
9410-
