7-43 — SUN VISOR AND ASSIST GRIP (#13419) — 151 parça

75 49 142 142 72 142 75 72 142 142 142 142 142 72 75 48 75 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-0110	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WF1 TC-C(1B8) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-608-1	01	1	0105-0106	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WF1 TC-C(1B8),6WF1 TC(84L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-608-1	01	1	0107-0110	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0105-0110	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ,6WG1 TC-C(72L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0105-0110	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY 6WF1 TC-C(1B8) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-0106	●
75	SHEET; ASSIST GRIP,CAB ENTRY 6WA1 TC-C(55L) GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-0106	●
75	SHEET; ASSIST GRIP,CAB ENTRY 6WF1 TC-C(1B8),6WF1 TC(84L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0107-0110	●
75	SHEET; ASSIST GRIP,CAB ENTRY 6WA1 TC-C(55L) GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0107-0110	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> PE-SERIES ENG<1A0>	1-71997-548-0	02	1	0105-0110	●	●
142	SEAL; ASSIST GRIP 6WF1 TC-C(1B8) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0105-0106	●
142	SEAL; ASSIST GRIP 6WF1 TC-C(1B8),6WF1 TC(84L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0107-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (B)	1-71997-691-0	01	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (A) 25X25	8-94272-533-0	02	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (B)	1-71997-691-0	02	1	0105-0110	●	●

59 48 48 59 48 103 66 69 59 48 48 59 48 103 66 69 142 55 106 48 48 48 48 62 64 64 64 64 62 154 154 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0105-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
142	SEAL; ASSIST GRIP 6WF1 TC-C(1B8) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0105-0106	●
142	SEAL; ASSIST GRIP 6WF1 TC-C(1B8),6WF1 TC(84L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0107-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (B)	1-71997-691-0	01	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (A) 25X25	8-94272-533-0	02	1	0105-0110	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> W-SERIES ENG<1A2> (B)	1-71997-691-0	02	1	0105-0110	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●

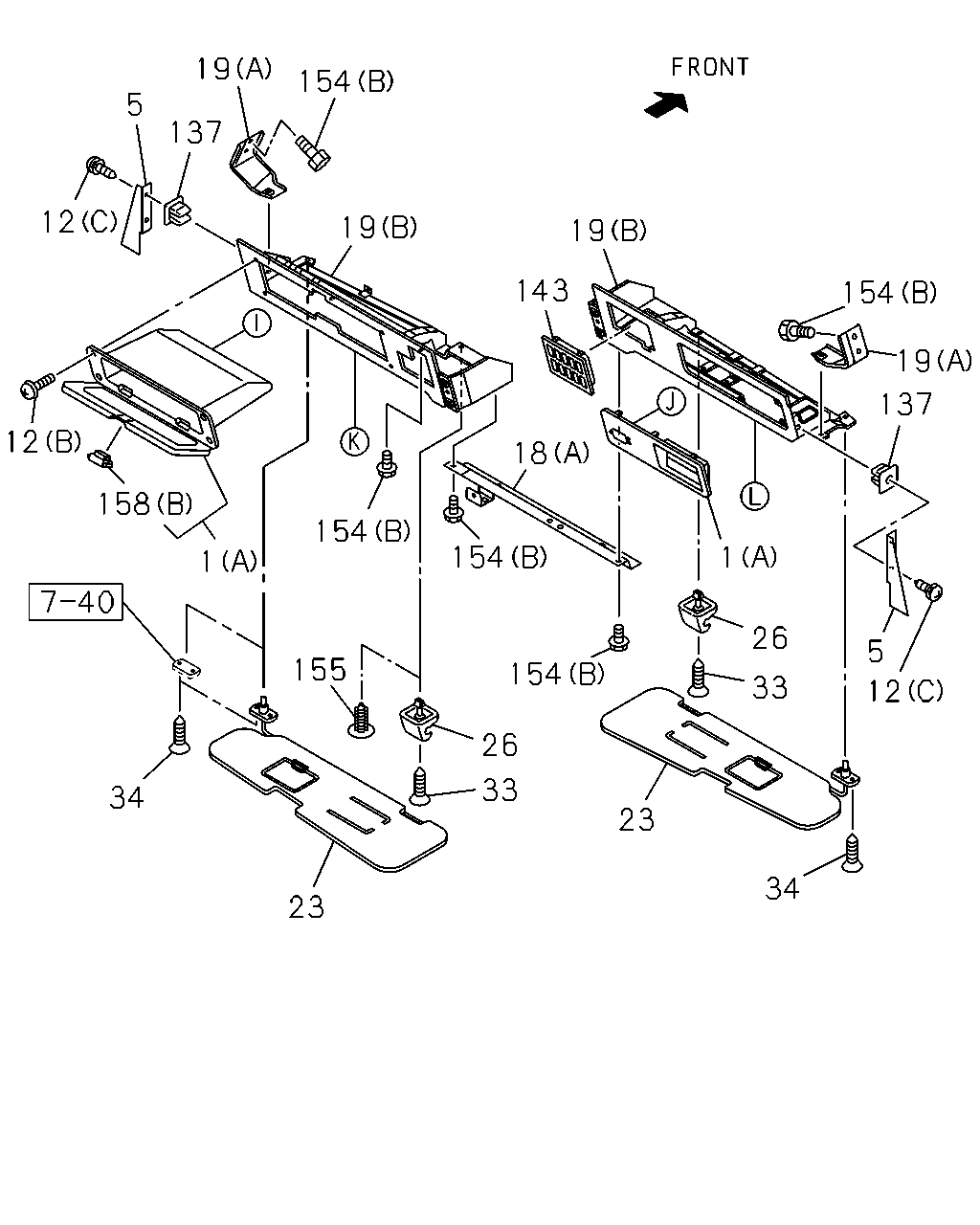

34 33 26 5 12 137 19 154 19 143 18 1 154 154 23 33 26 23 155 34 1 154 158 12 12 19 154 19 137 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-	●	●
23	SUN VISOR	1-73138-156-1	01	1	0105-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0105-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-	●	●
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-	●	●
143	BEZEL	1-72447-768-2	01	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-	●	●

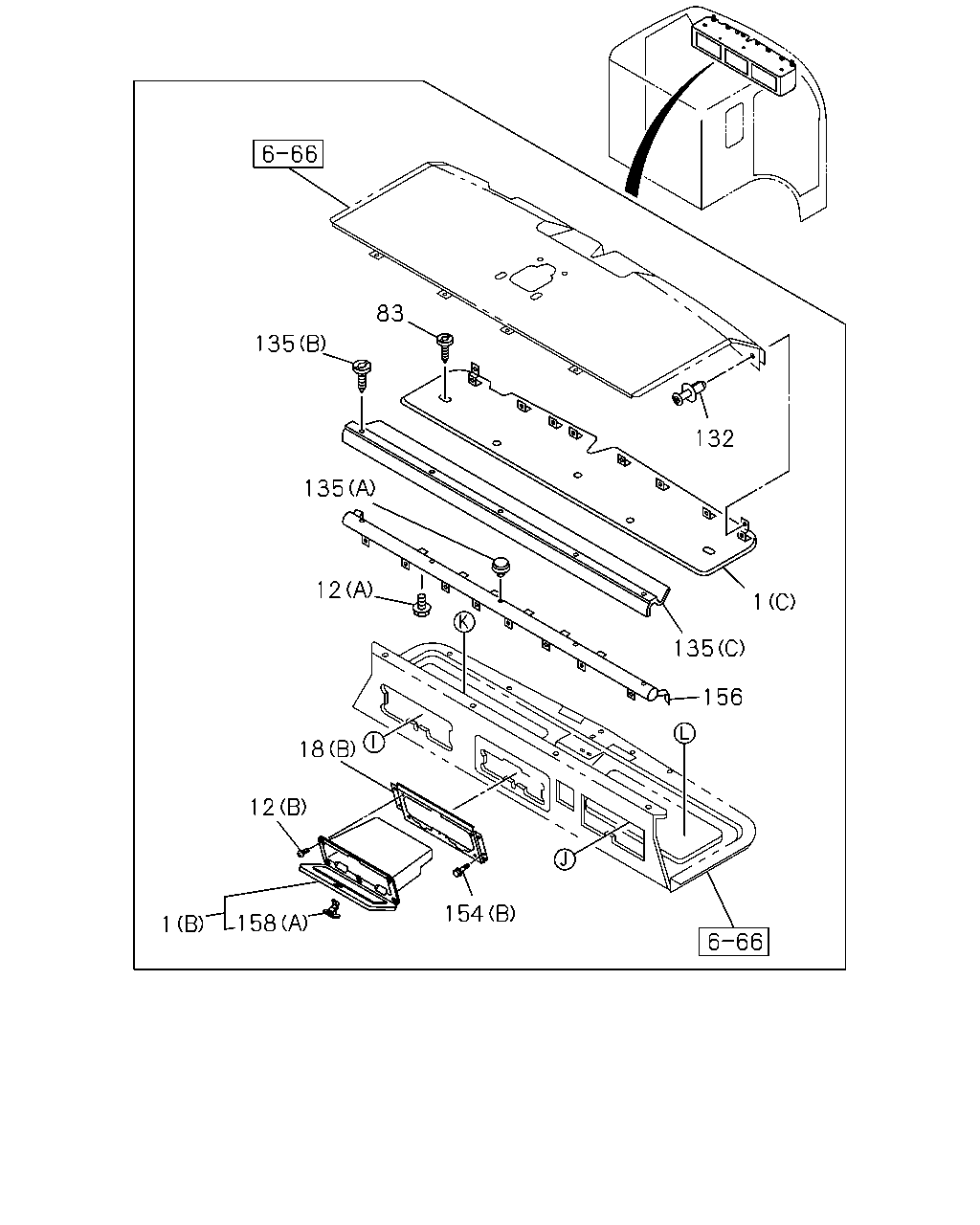

154 1 158 12 18 12 135 135 83 132 1 135 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-	●	●
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-	●	●
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-885-4	01	1	0105-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-	●	●
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-	●	●

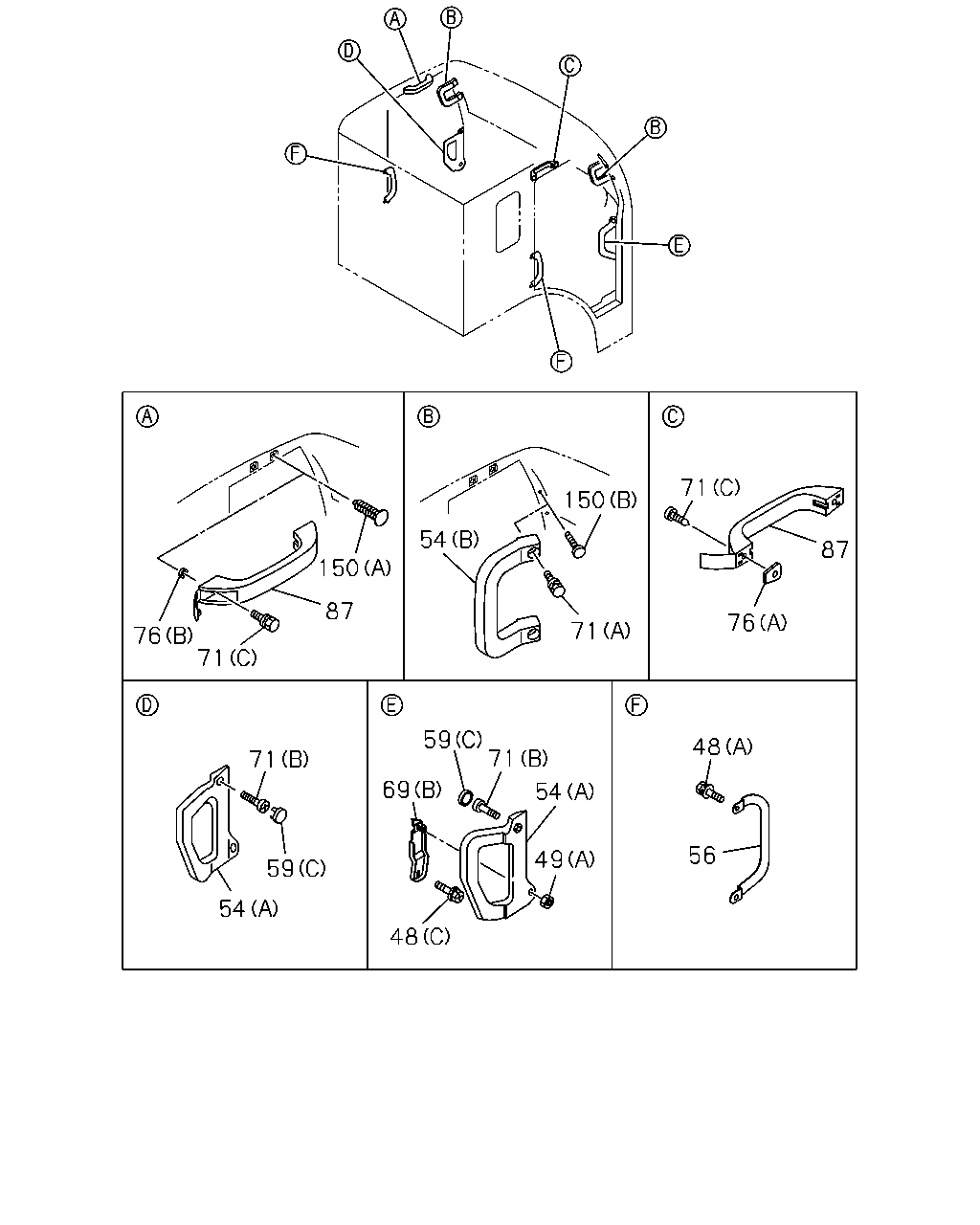

56 48 76 87 71 150 71 54 150 87 76 71 54 59 69 59 71 49 54 48 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> PE-SERIES ENG<1A0> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-0110	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-0110	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0105-	●	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-185-1	01	1	0105-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0105-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0105-	●	●
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0105-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-	●	●
