◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#13417) — 131 parça

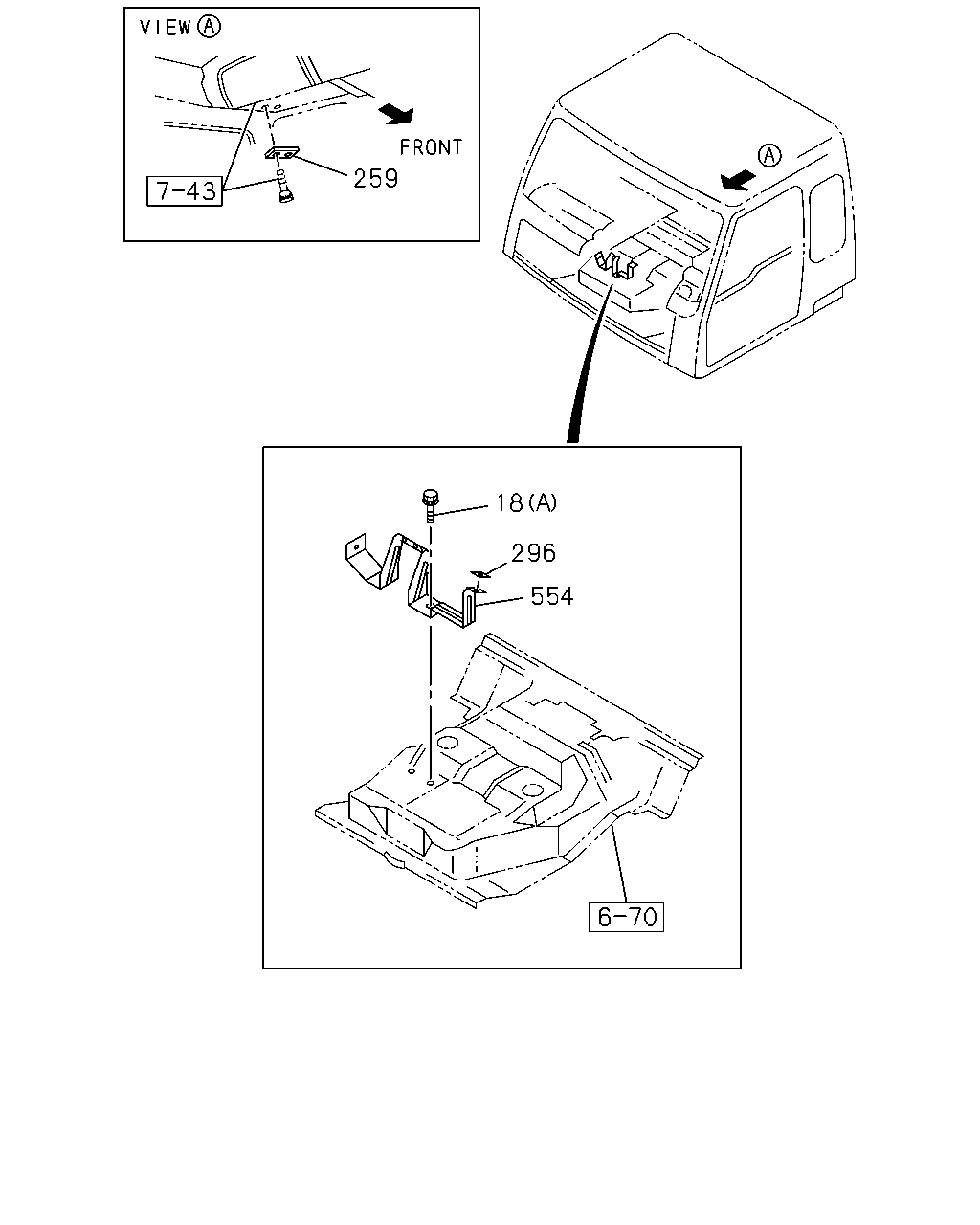

çizim 24054
554 296 18 259
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105- ● ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0105- ● ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0105- ● ●

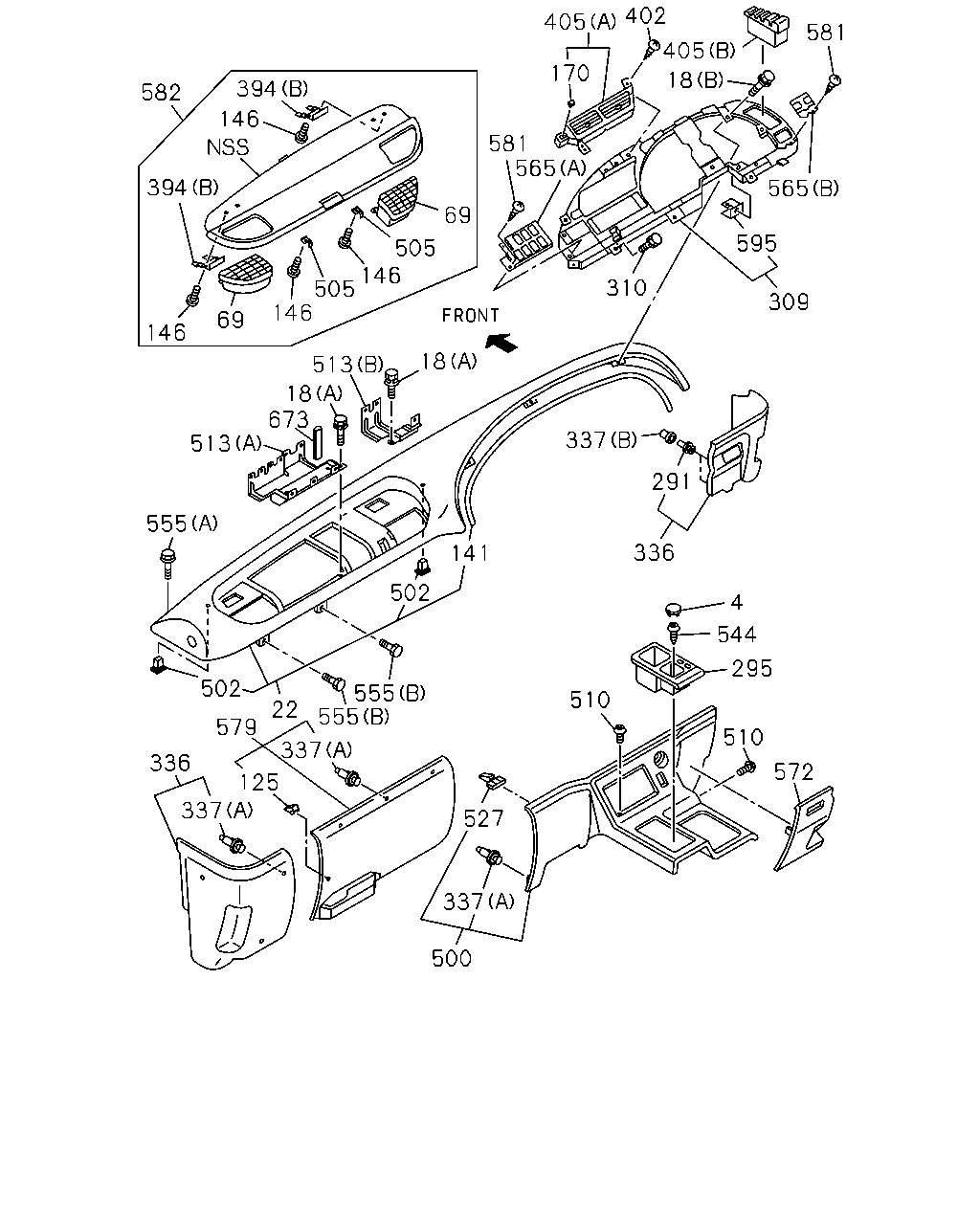

çizim 24139
500 337 527 510 4 544 295 510 572 336 291 337 310 309 595 565 581 18 405 402 405 170 581 565 69 505 146 505 146 18 69 146 394 582 146 394 555 513 673 18 513 141 502 555 555 337 125 337 336 502 579 22
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
22 PAD; INST 1-72317-347-2 01 1 0105- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0105- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0105- ● ●
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309 ● ●
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0105- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0105- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0105- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0105- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0105- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0105- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0105- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0105- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0105- ● ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0105- ● ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0105- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0105- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105- ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0105-0205 ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ● ●
513 BRACKET; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-73907-327-3 01 1 0105- ● ●
513 BRACKET; RELAY
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-73907-327-3 01 1 0105- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0105- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0105- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0105- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0105- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 0105- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0105- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 0105- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105- ● ●

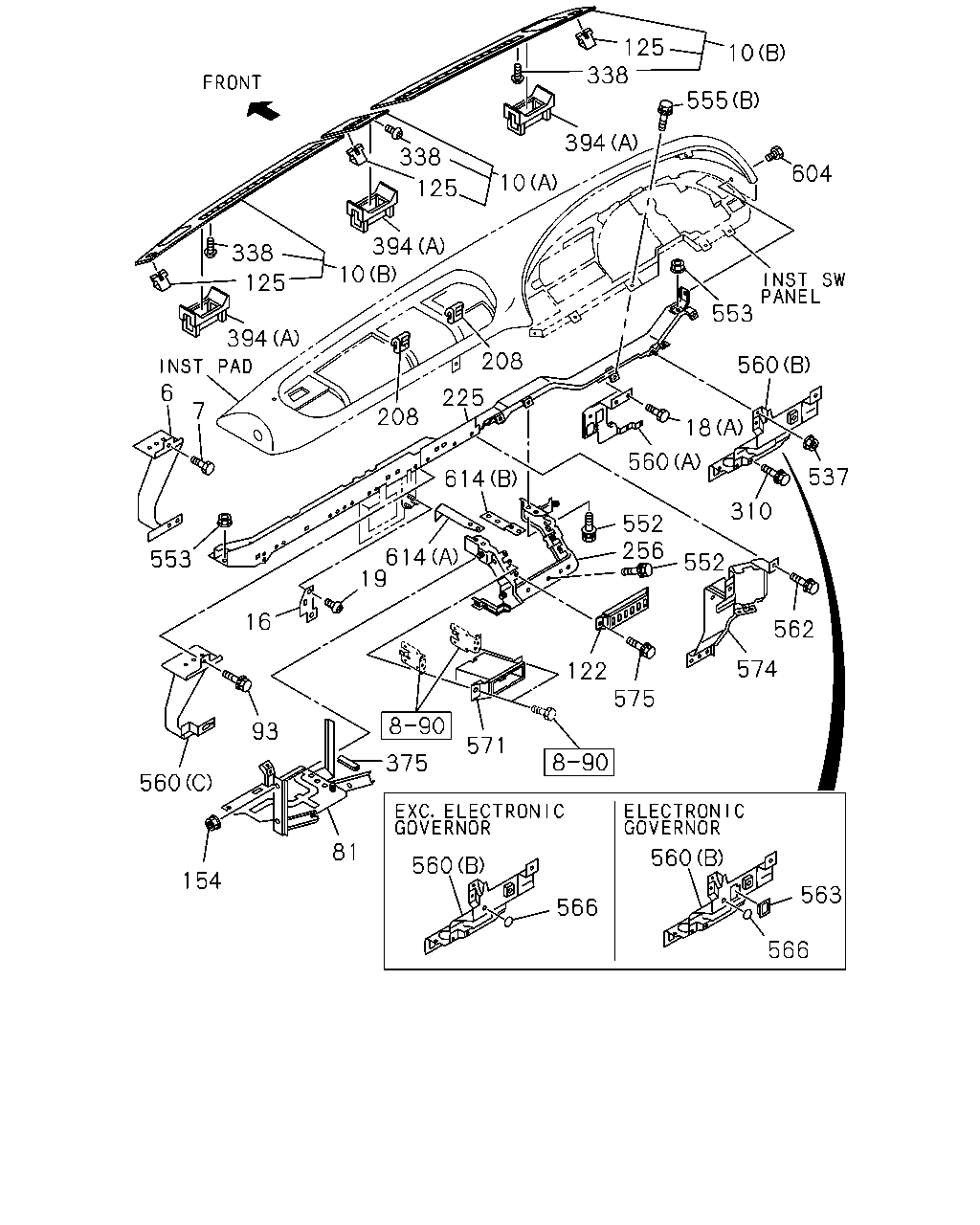

çizim 81692
566 563 566 81 154 560 93 375 571 575 574 562 122 552 310 537 256 552 560 18 560 553 604 555 10 125 338 394 10 125 338 10 394 338 125 394 208 225 208 614 614 19 16 553 7 6 560 560
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0105- ● ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0105- ● ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0105- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105- ● ●
18 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
18 BOLT; BRKT
ZF M/T<X9E> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0105- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0105-0110 ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111- ● ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105- ● ●
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 18 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0309 ● ●
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		8-97217-066-0 10 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0406- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602 ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 0105- ● ●
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0105-0210 ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211- ● ●
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0105-0210 ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0105-0208 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406- ● ●
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-760-4 01 1 0105- ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65671-717-8 01 1 0105-0302 ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-65671-786-2 01 1 0303- ● ●
560 BRACKET
(A) 		1-65680-976-3 01 1 0105- ● ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0105- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-772-4 01 1 0105-0106 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-772-4 01 1 0107- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105- ● ●
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-72448-410-3 01 1 0105- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0105- ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0105- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0105- ● ●
574 PANEL; RELAY BOX 1-73907-365-9 01 1 0105- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0105- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0105- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0105- ● ●
