Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#134168) — 48 parça
◀

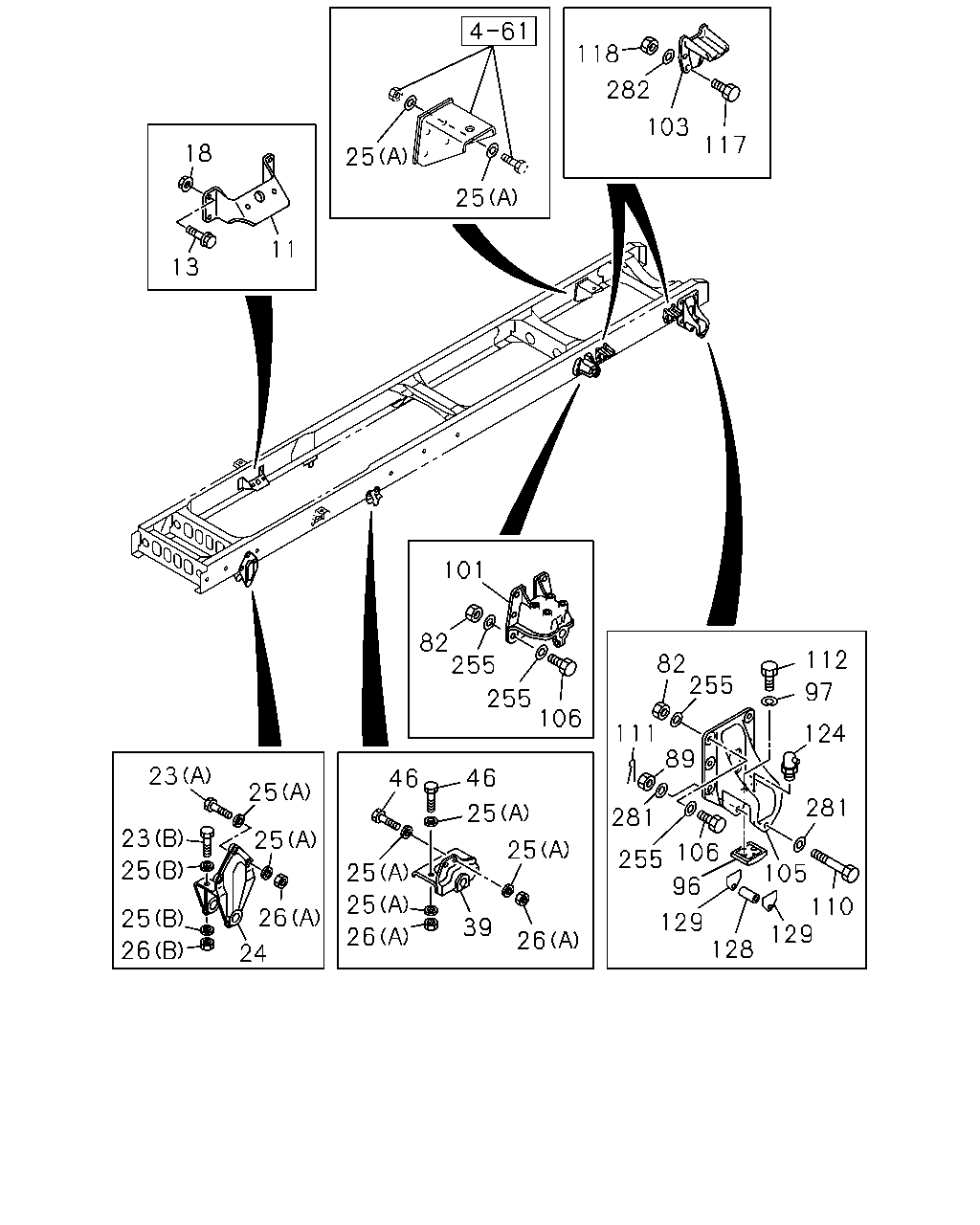

[501A] BRACKET AND OTHER PARTS (34 parça)

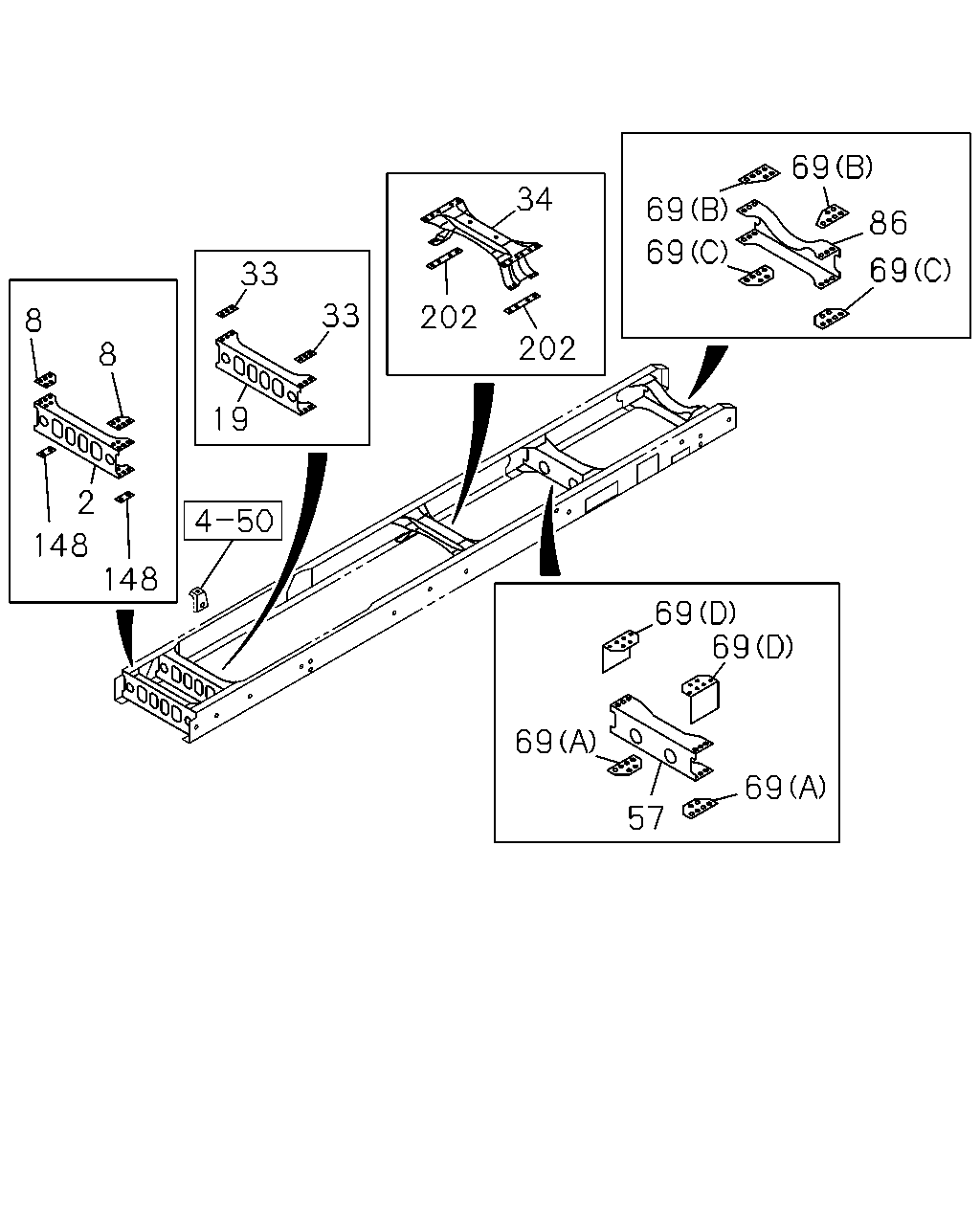

[501A] CROSS MEMBER (14 parça)
▶
18
11
13
25
25
118
103
282
117
101
82
255
255
106
82
255
112
97
124
89
111
281
255
106
96
129
128
129
105
110
281
25
25
46
46
25
25
26
39
26
25
23
23
25
25
26
24
26
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1402-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1402-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1402-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1402-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1402-
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1402-
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1402-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1402-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
44
1
1402-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1402-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1402-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1402-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1402-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1402-
82
NUT; BRKT
M14 THA
0-91110-514-0
24
1
1402-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1402-
96
PAD; RR SPR
1-53359-047-0
02
1
1402-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1402-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
1402-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1402-
105
BRACKET; RR SPR,RR
1-53354-073-1
02
1
1402-
106
BOLT; BRKT
M14X50
0-20951-450-0
24
1
1402-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1402-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1402-
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1402-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1402-
118
NUT; STOPPER
M14 THA
0-91110-514-0
16
1
1402-
124
NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1402-
128
COLLAR; RUBBER
1-53359-004-0
02
1
1402-
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
1402-
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
1402-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
48
1
1402-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1402-
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1402-
8
8
2
148
148
19
33
33
34
202
202
69
69
69
69
57
69
69
86
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1402-
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1402-
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1402-
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1402-
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1402-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97611-239-2
01
1
1402-
69
GUSSET; RR SUSP,UPR
(B)
8-97611-280-0
02
1
1402-
69
GUSSET; RR SUSP,UPR
(C)
8-97611-314-0
02
1
1402-
69
GUSSET; RR SUSP,UPR
(A)
8-97618-453-0
02
1
1402-
69
GUSSET; RR SUSP,UPR
(D) THA
8-97948-664-0
01
1
1402-
69
GUSSET; RR SUSP,UPR
(D) THA
8-97948-665-0
01
1
1402-
86
MEMBER; CROSS,RR SUSP RR
8-97611-312-1
01
1
1402-
148
SPACER; C/MBR
THA
8-97948-168-0
02
1
1402-
202
SPACER; 3RD C/MBR
8-97610-873-0
02
1
1402-
