Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#134162) — 32 parça
◀

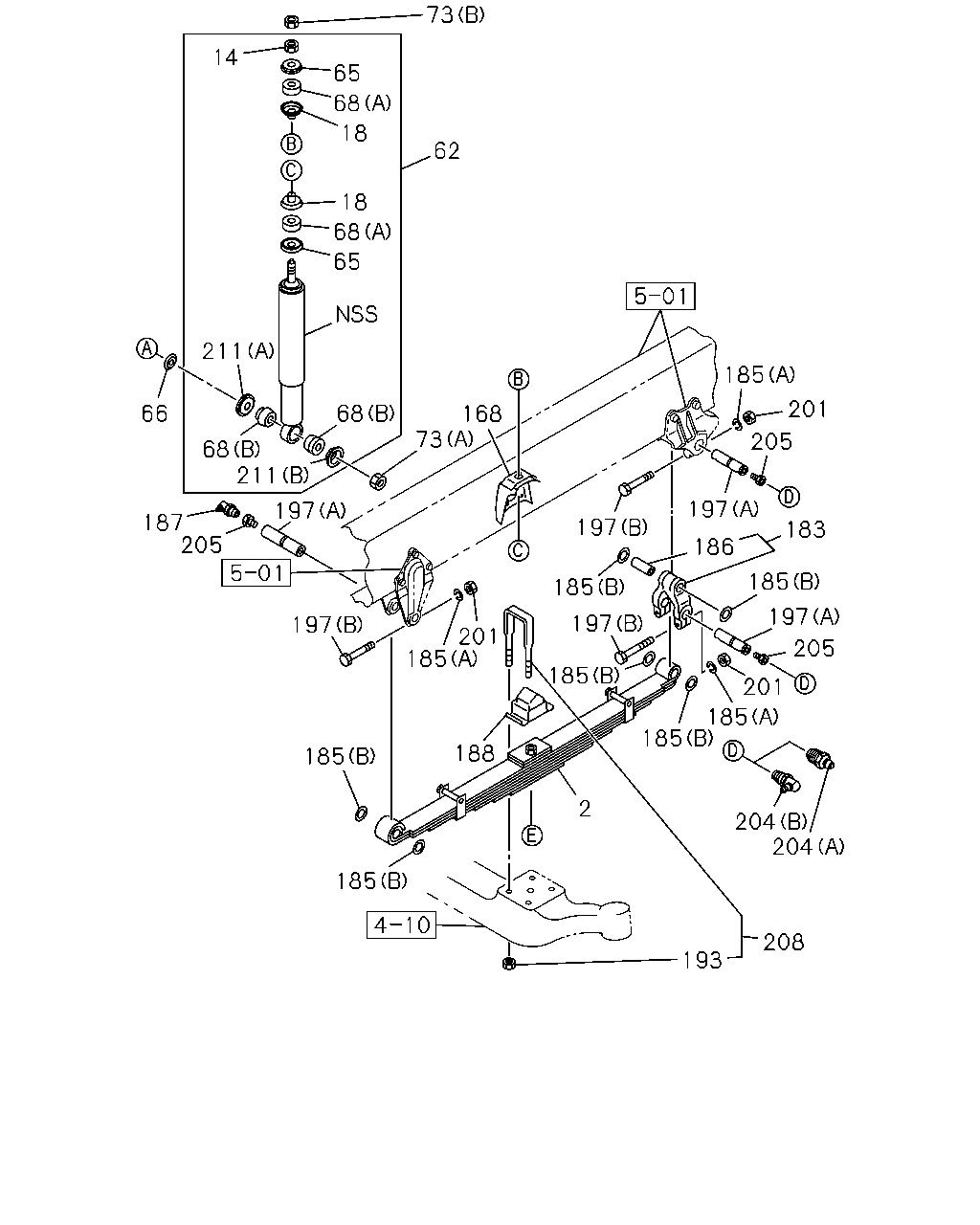

[450A] LEAF SPRING AND SHOCK ABSORBER (28 parça)
[450A] BRACKET;STAB BAR (4 parça)
▶
73
62
18
68
68
65
18
14
211
66
68
211
197
68
168
73
185
201
205
197
183
186
197
185
197
205
201
185
185
204
204
208
2
188
185
197
185
201
185
197
185
185
65
193
187
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98010-512-0
01
1
1402-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98136-375-0
01
1
1402-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1402-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1402-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-224-0
02
1
1402-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1402-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1402-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1402-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1402-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1402-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1402-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1402-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1402-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1402-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1402-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1402-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1402-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-187-0
02
1
1402-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1402-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1402-
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1402-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1402-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1402-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1402-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1402-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1402-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1402-
140
377
377
138
137
377
140
377
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
8-98128-356-1
02
1
1402-
138
NUT; BRKT
M14 THA
0-91110-514-0
06
1
1402-
140
BOLT; BRKT
M14X45
9-92061-445-0
06
1
1402-
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
12
1
1402-
