4-25 — REAR FINAL DRIVE (#134154) — 68 parça

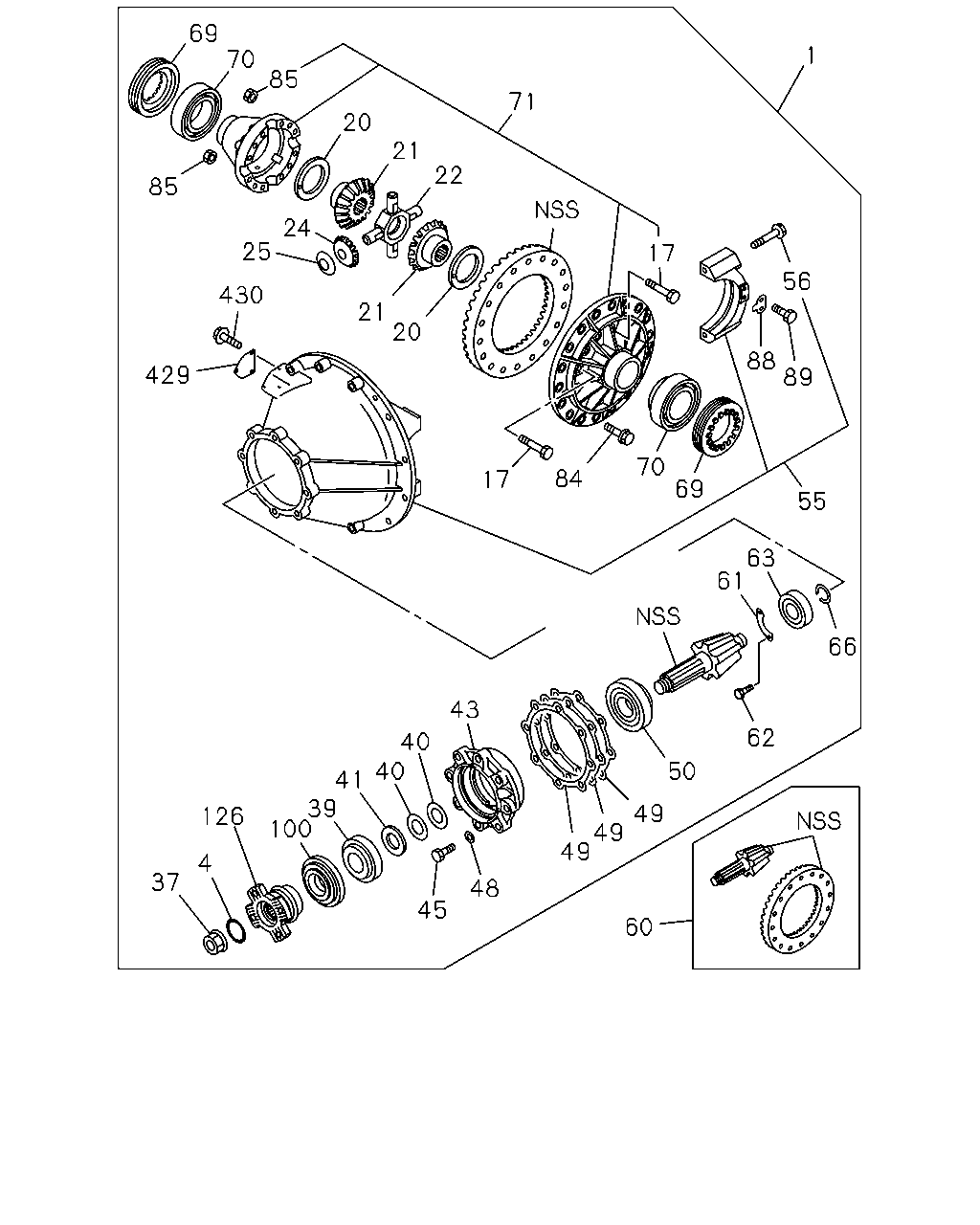

çizim 407183
1 71 17 22 21 20 85 70 69 85 430 25 24 429 56 89 88 69 70 84 17 62 50 49 49 49 48 45 37 126 100 40 41 40 43 61 55 63 66 60 21 20 4 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/8 		1-41002-395-0 01 1 1402- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41002-394-0 01 1 1402- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 1402- ● ●
17 BOLT; DIFF CAGE SETTING
M16X141 FLANGE 		1-09070-013-0 08 1 1402- ● ●
17 BOLT; DIFF CAGE SETTING
M16X105 FLANGE 		1-09070-014-0 04 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 1402- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 1402- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 1402- ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 1402- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 1402- ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 1402- ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 1402- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 1402- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 1402- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 1402- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 1402- ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 1402- ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 1402- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 1402- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 1402- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 1402- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 1402- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 1402- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 1402- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-3 01 1 1402- ● ●
55 CARRIER; DIFF 1-41110-117-1 01 1 1402- ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 1402- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-618-0 01 1 1402- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-617-0 01 1 1402- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 1402- ● ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 1402- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 1402- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 1402- ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 1402- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 1402- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 1402- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 1402- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 1402- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 1402- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1402- ● ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 1402- ● ●
89 BOLT; LK PLATE
M10X20 FLANGE THA 		0-28751-020-0 04 1 1402- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 1402- ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 1402- ● ●
429 PLATE; DUMMY 1-41279-014-0 01 1 1402- ● ●
430 BOLT; PLATE,DUMMY
M8X20 FLANGE THA 		0-28650-820-0 03 1 1402- ● ●
