Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

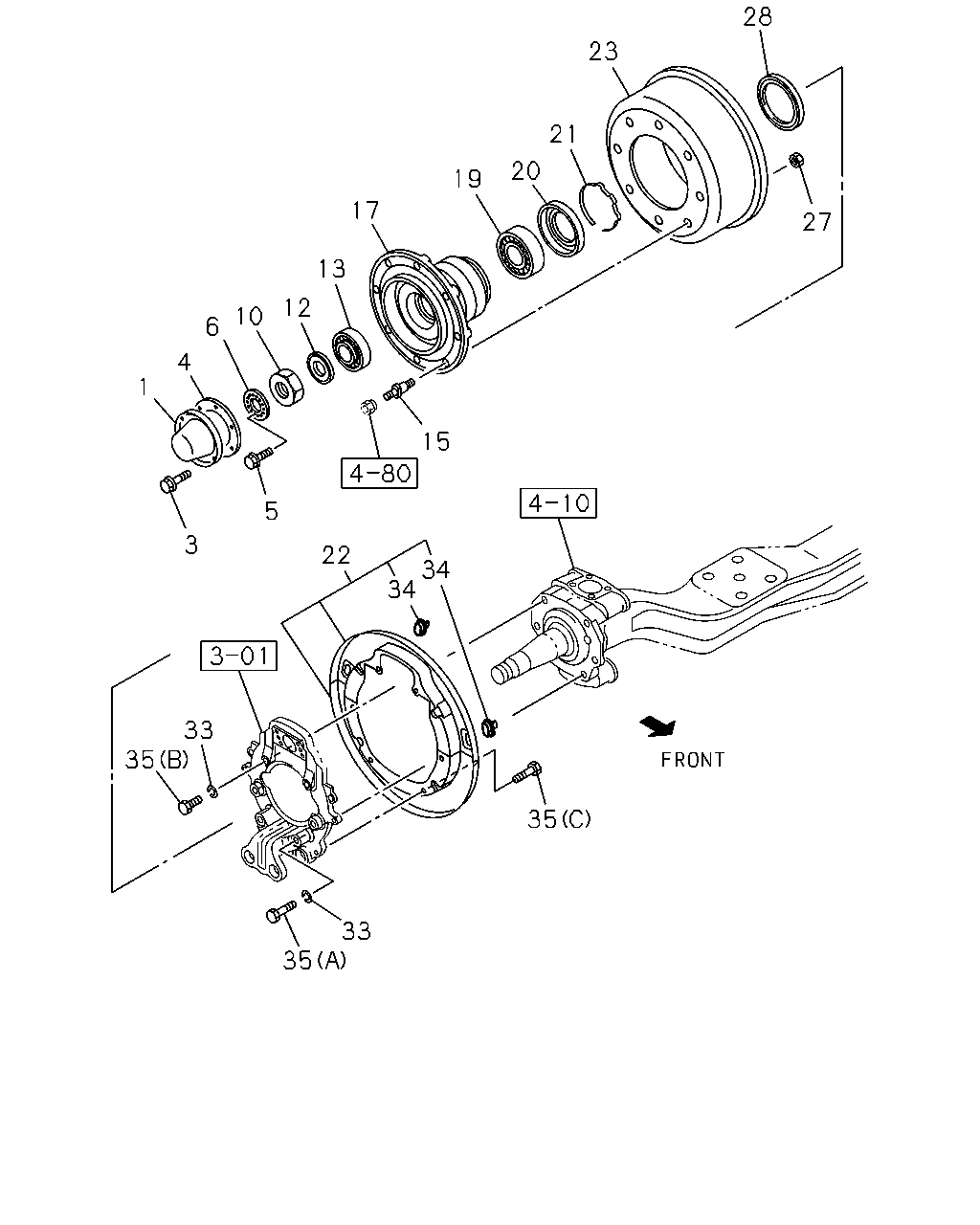

4-11 — FRONT HUB AND DRUM OR ROTOR
(#134152) — 24 parça
28
27
23
21
20
19
17
13
12
10
6
4
5
1
15
3
22
35
34
34
33
35
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1402-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE THA
0-28050-812-0
12
1
1402-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1402-
5
BOLT; LK WASHER
M6X16 FLANGE
8-98200-943-0
04
1
1402-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1402-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1402-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1402-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1402-
15
PIN; WHEEL,FRT AXLE
M24X37.0,M22X57.5 RH THREAD THA
8-97916-068-0
08
1
1402-
15
PIN; WHEEL,FRT AXLE
M24X37.0 LH THREAD,M22X57.5 RH THREAD THA
8-97916-070-0
08
1
1402-
17
HUB; FRT AXLE
8-97520-622-0
02
1
1402-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1402-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1402-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1402-
22
COVER SET; FRT BRK DRUM
1-87831-225-0
02
1
1402-
23
DRUM; BRK,FRT
THA
1-42315-397-0
02
1
1402-1408
23
DRUM; BRK,FRT
THA
8-98293-382-0
02
1
1409-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE THA
8-97914-195-0
16
1
1402-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1402-
33
WASHER; LK,DRUM COVER
ID=18.2
0-91510-818-0
12
1
1402-
34
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
04
1
1402-
35
BOLT; DRUM COVER
(A) M18X65
1-09000-789-0
04
1
1402-
35
BOLT; DRUM COVER
(B) M18X45
1-09000-790-0
08
1
1402-
35
BOLT; DRUM COVER
(C) M10X12 THA
1-47159-187-0
12
1
1402-
