Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#134143) — 45 parça
◀

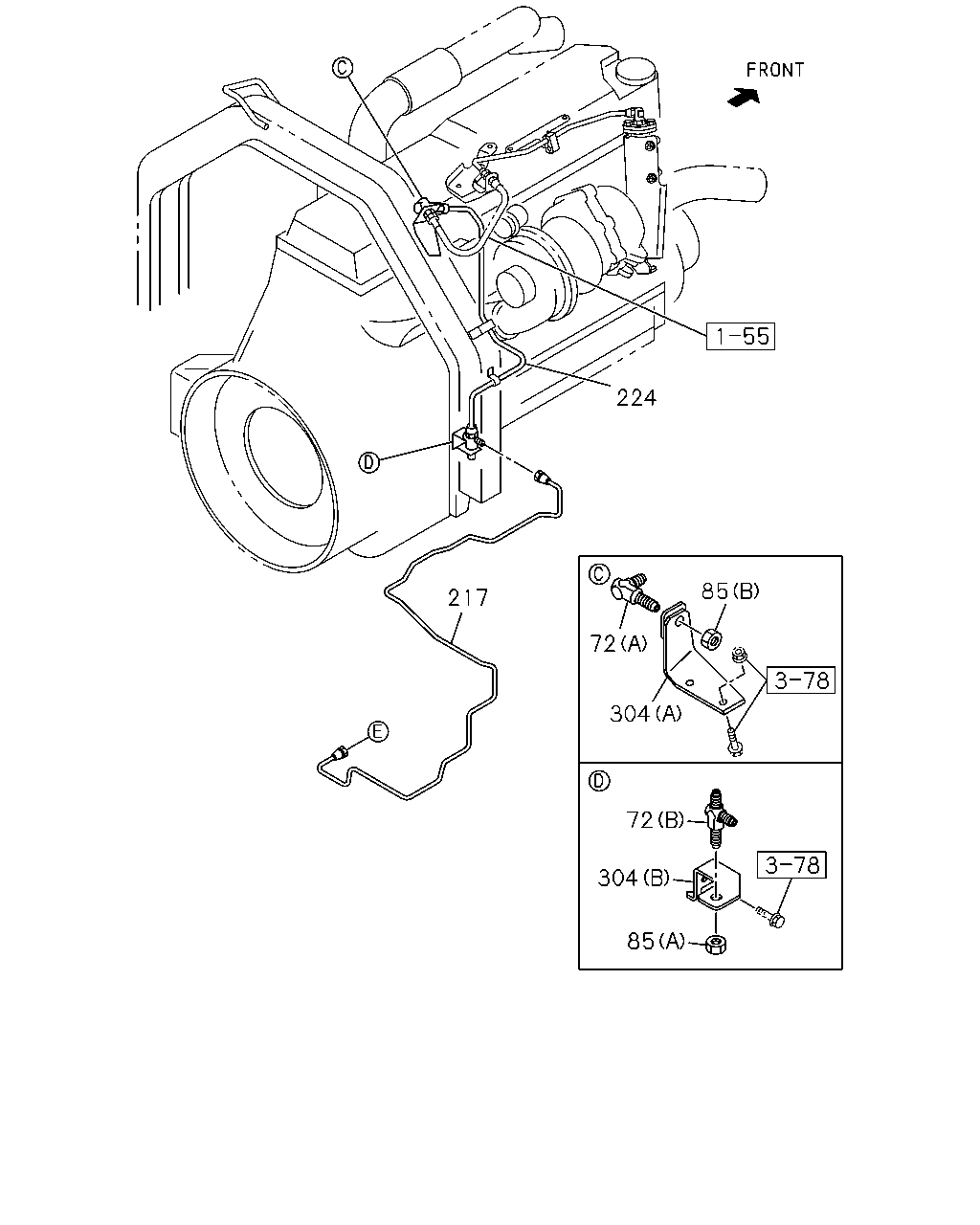

[370A] CAB MOUNTING SIDE (8 parça)

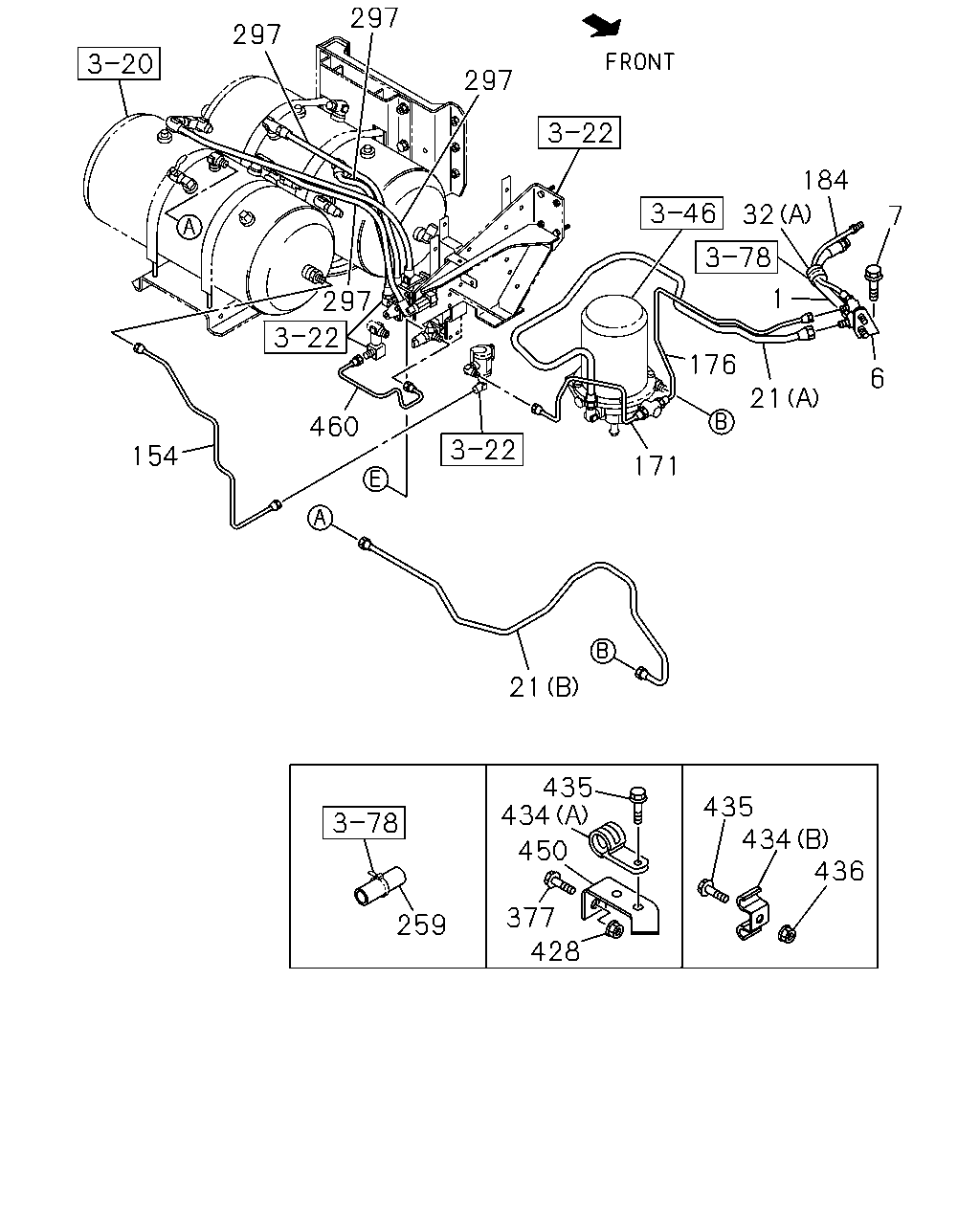

[370A] AIR TANK SIDE (25 parça)

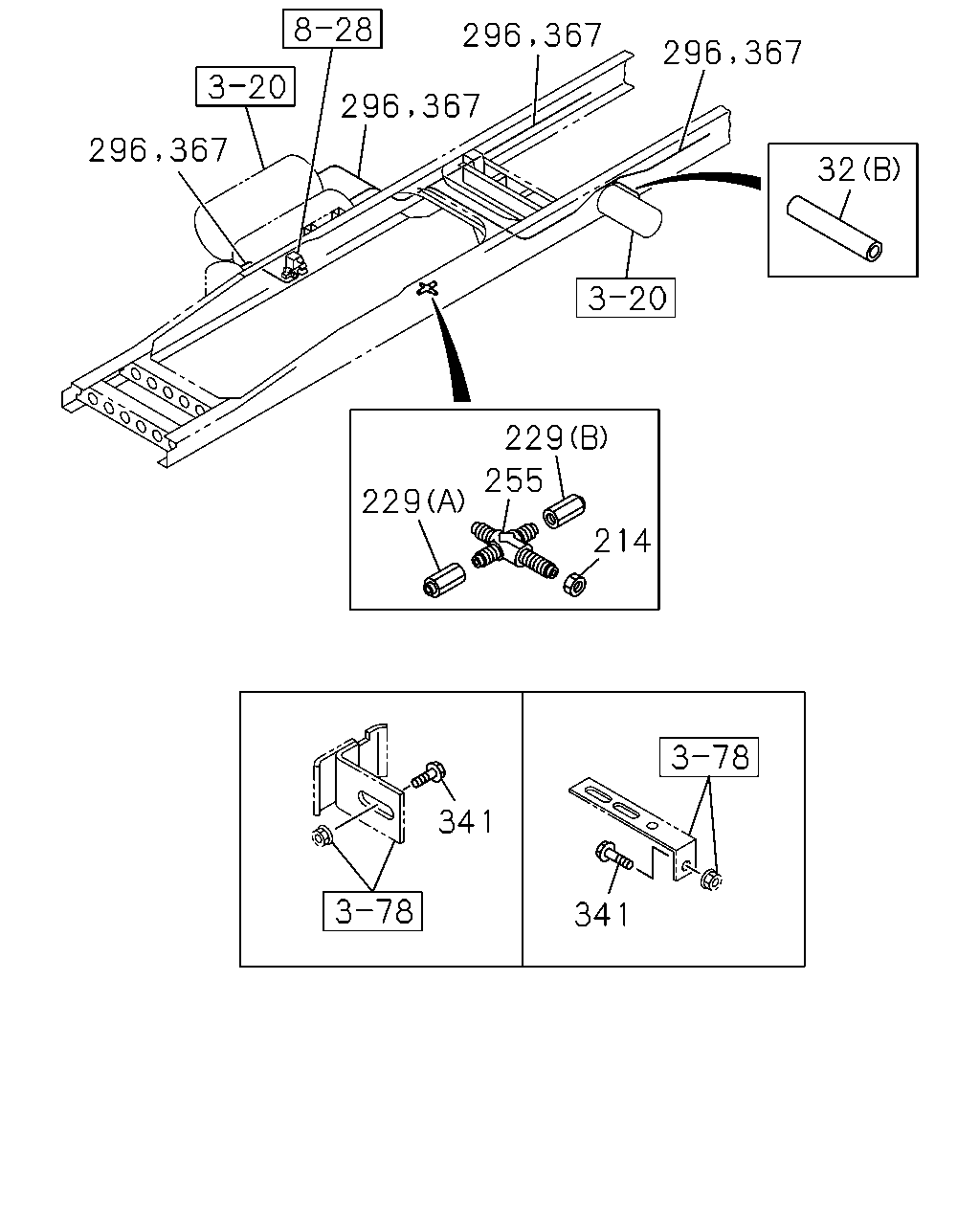

[370A] FRAME SIDE (12 parça)
▶
217
224
85
304
72
72
304
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
UNION; AIR PIPE
(A) M12 ELBOW
0-92125-006-0
01
1
1402-
72
UNION; AIR PIPE
(B) M12 2WAY
1-09654-059-2
01
1
1402-
85
NUT; UNION
(A) M12
0-91111-512-0
01
1
1402-
85
NUT; UNION
(B) M12
9-09840-280-0
01
1
1402-
217
PIPE; VAC,UNION TO MAG VLV
L=1897 SERVICED BY L=2000
1-47428-823-0
01
1
1402-
224
PIPE; AIR,UNION TO FLEX HOSE
L=667 SERVICED BY L=700
1-47428-811-0
01
1
1402-
304
BRACKET; UNION
(B)
8-98211-164-1
01
1
1402-
304
BRACKET; UNION
(A)
8-98229-691-0
01
1
1402-
21
259
428
435
434
450
377
435
434
436
171
460
154
297
297
297
184
32
1
21
6
7
176
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
L=310
8-97607-730-0
01
1
1402-
6
BRACKET; FLEX HOSE,AIR TANK
8-98117-117-0
01
1
1402-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA
0-28650-830-0
02
1
1402-
21
PIPE; AIR,UNION TO AIR DRYER
(A) L=1545 THA
8-98211-175-0
01
1
1402-
21
PIPE; AIR,UNION TO AIR DRYER
(B) THA
8-98218-242-0
01
1
1402-
32
SLEEVE; RUBBER,AIR PIPE
(A) ID=32 OD=36 L=50
1-09337-023-0
01
1
1402-
32
SLEEVE; RUBBER,AIR PIPE
(B) L=150 SERVICED BY L=1300
1-09360-677-1
01
1
1402-
154
PIPE; AIR,AIR TANK TO AIR GOV
THA
8-98218-244-0
01
1
1402-
171
PIPE; AIR,GOV TO AIR DRYER
L=507 SERVICED BY L=550
1-47428-808-0
01
1
1402-
176
PIPE; AIR,AIR DRYER TO UNION
L=864 SERVICED BY L=900
1-47428-813-0
01
1
1402-
184
HOSE; FLEX,AIR GOV
L=350
1-09363-624-0
01
1
1402-
259
SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40
1-09337-013-0
01
1
1402-
297
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1402-
297
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1402-
377
BOLT; BRKT FIX
M8X30 FLANGE THA
0-28650-830-0
01
1
1402-
428
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1402-
434
CLIP
(A) ID=7 L=20
0-95234-635-0
01
1
1402-
434
CLIP
(A) ID=16 L=20 THA
0-95235-536-0
01
1
1402-
434
CLIP
(B) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
02
1
1402-
435
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1402-
435
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
1402-
436
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1402-
436
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1402-
450
BRACKET; CLIP
8-98232-692-0
01
1
1402-
460
PIPE; AIR,PROTECTION VALVE
8-98184-394-0
01
1
1402-
341
341
255
229
229
214
32
367
296
367
296
296
367
296
367
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
SLEEVE; RUBBER,AIR PIPE
(A) ID=32 OD=36 L=50
1-09337-023-0
01
1
1402-
32
SLEEVE; RUBBER,AIR PIPE
(B) L=150 SERVICED BY L=1300
1-09360-677-1
01
1
1402-
214
NUT; UNION,AIR PIPE
M12
0-91110-512-0
01
1
1402-
229
ADAPTER; NYLON TUBE
(B) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1402-
229
ADAPTER; NYLON TUBE
(A) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1402-
255
UNION; NYLON TUBE
M12
0-92138-306-0
01
1
1402-
296
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
04
1
1402-
341
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
04
1
1402-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1402-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1402-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1402-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1402-
